Vollrath  |  SKU: 3664620

Vollrath 3664620 Steam Tables & Food Wells

$2,184.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Short Side Hot Well Drop-In – 2 Pan, Manifold Drain

Vollrath Model 3664620 | 208-240 V, Thermostatic

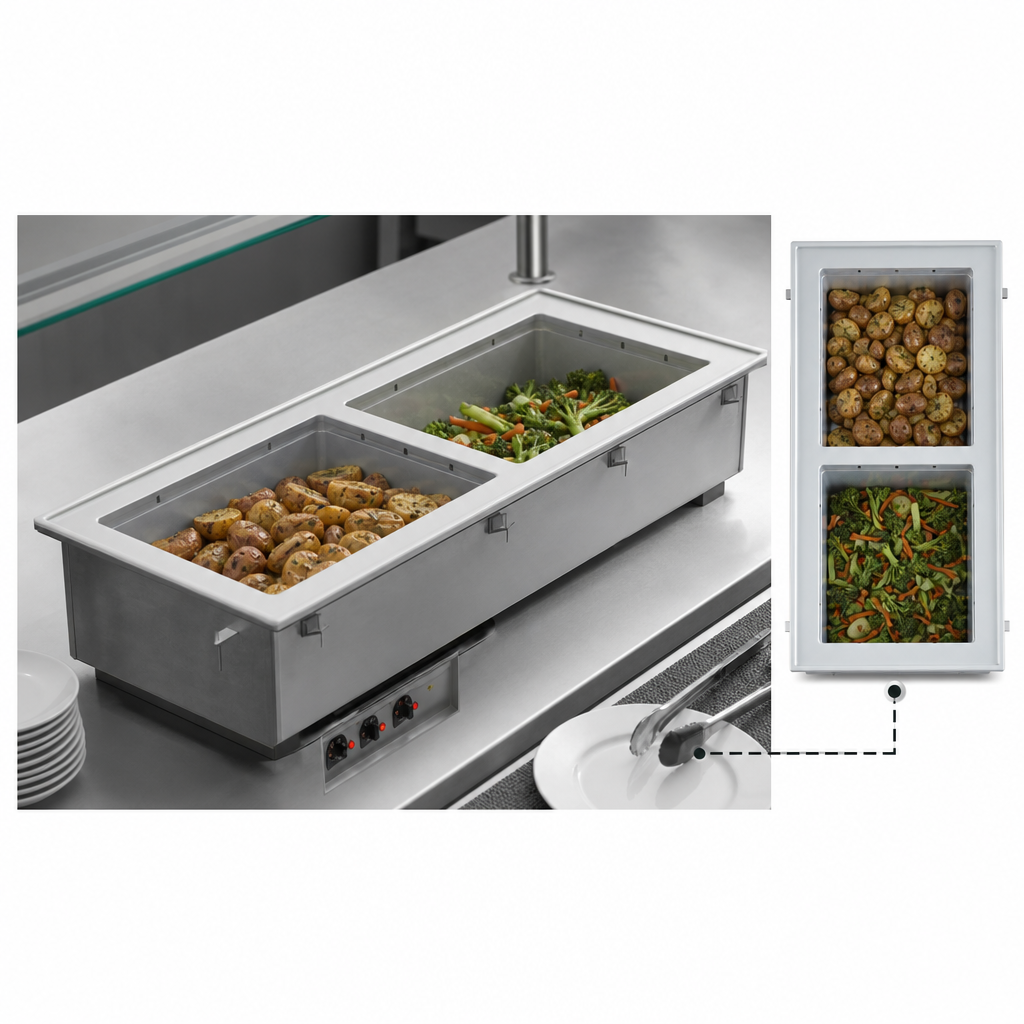

Give guests easier access to perfectly-held entrées while freeing up valuable counter depth. Vollrath’s short-side 2-pan drop-in turns full-size steam-table pans sideways, creating an 18 inch-deep footprint without sacrificing capacity. Built with heavy-duty stainless steel and high-density insulation, this U.S.-made well delivers reliable, NSF-listed hot food holding wherever you need it.

Why you’ll love it

  • Narrow 18 in. (45.7 cm) profile keeps food within easy reach and fits tight counters.
  • Thermostatic control maintains consistent holding temperatures with moist heat for even results.
  • 1 in. copper manifold drain with individual well shut-offs & master shut-off speeds cleanup.
  • Full-perimeter drip edge contains spills and adds strength to the flange.
  • 18 ga 18/8 stainless top and welded wells withstand daily commercial abuse.
  • High-density insulation on all sides allows zero-clearance installation.
  • 6 ft (1.8 m) cord with factory-installed NEMA 6-15P plug—no hard-wiring required.
  • UL, CUL & NSF 4 listed; proudly Made in the USA.

Technical specs

Capacity 2 full-size steam-table pans (sideways)
Total wattage 2000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase / 7.2 – 8.3 A
Plug NEMA 6-15P (6 ft cord)
Controls Remote stainless panel with thermostatic dial & power indicator light (3 ft tether)
Overall size 45 1⁄2 in L × 18 in W
Counter cut-out 44 11⁄16 in L × 17 1⁄4 in W  | 7⁄8 in (2.2 cm) corner radius
Well interior 20 in × 12 in × 8 in D (each)
Material 18/8 stainless wells & top, 20 ga galvanized exterior
Included Breaker gasket, positioning & mounting clips, drain plug, installation manual
Certifications UL, CUL, NSF 4
Country of origin United States

For NSF performance, operate with water in the wells. Designed for holding pre-heated food; not a rethermalizer.

Warranty

One-year parts & labor. See full policy at  vollrathfoodservice.com.

Important: Disconnect unit before cleaning or servicing. Do not operate dry—always maintain water level to protect heating elements and food quality.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

138.0lbs

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
