Vollrath  |  SKU: 36646

Vollrath 36646 Steam Tables & Food Wells

$2,076.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

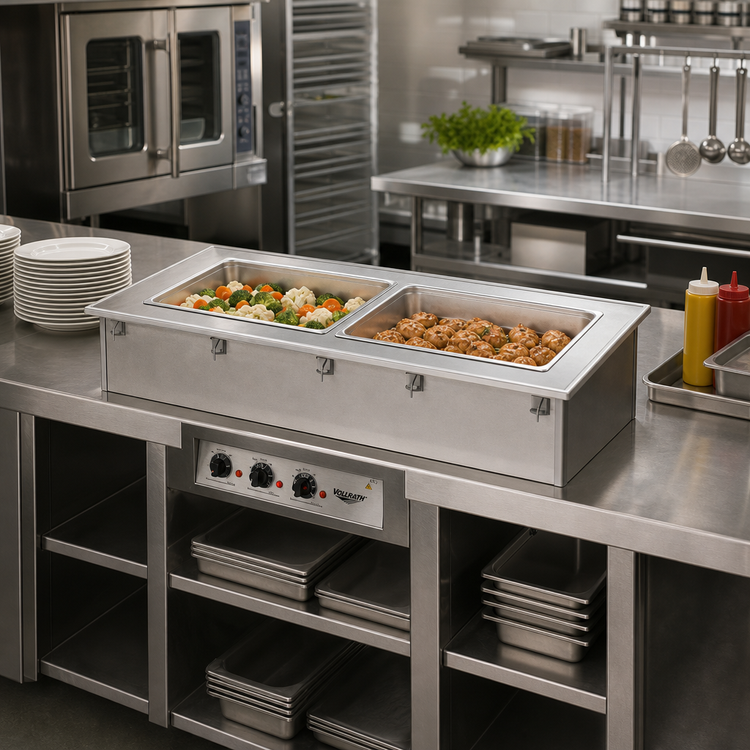

Vollrath Short Side Hot Drop-In Well – 2 Pan, Thermostatic

Model 36646 | 208-240 V, 1-Phase | NEMA 6-15P | Made in USA

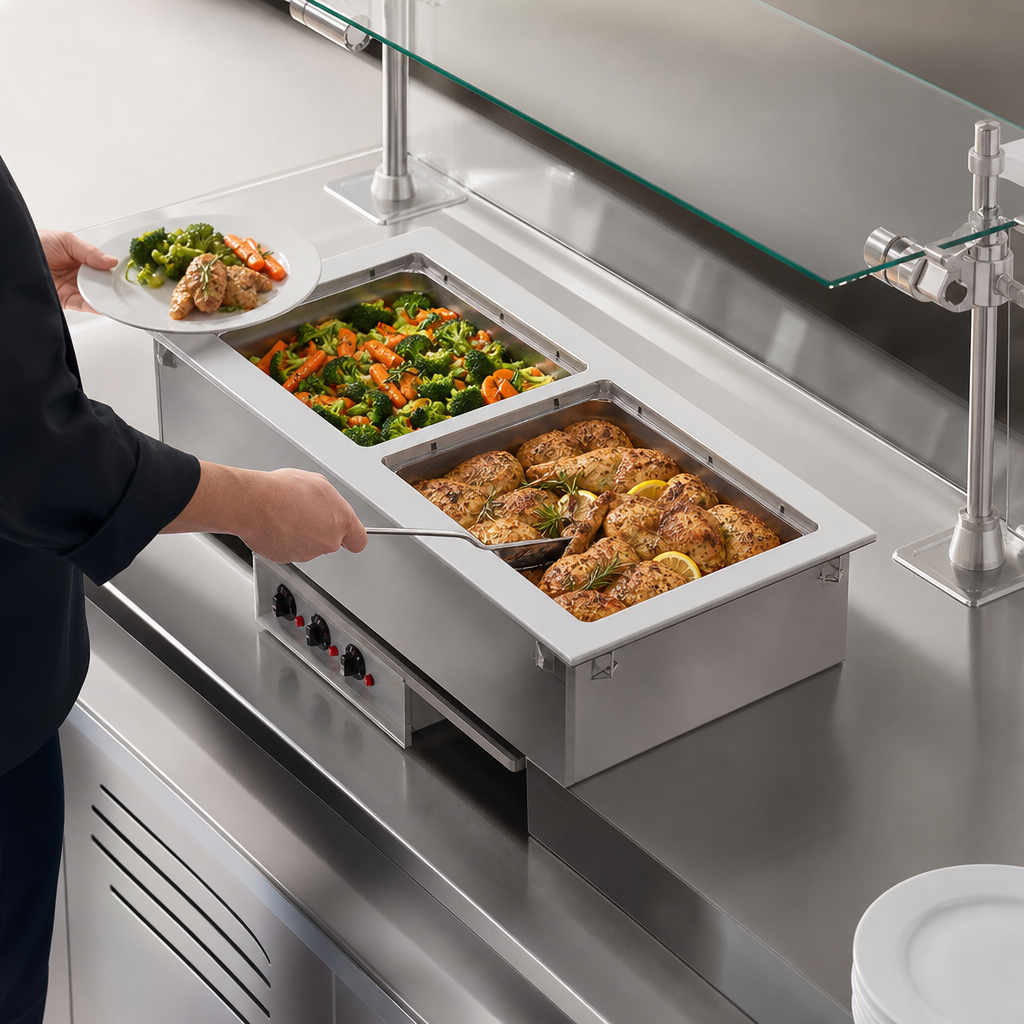

Give your buffet or serving line a sleek, space-saving look without sacrificing capacity. The Vollrath short side drop-in turns two full-size pans sideways, trimming your counter depth to just 18 inches while keeping food hot, safe and within easy reach.

Why you’ll love it

  • 2,000 W total (1,000 W per well) delivers rapid, even heating.
  • Thermostatic controls accurately hold HACCP-safe temperatures.
  • 18-gauge 18/8 stainless-steel top & well – durable, corrosion-resistant and easy to clean.
  • Full-perimeter drip edge and included breaker gasket keep condensation off the counter.
  • High-density glass-fiber insulation allows zero-clearance installation and reduces energy loss.
  • Standard ½″ stainless drain with ball-valve shut-off and removable plug makes cleanup simple.
  • 6 ft pre-wired cord with NEMA 6-15P plug – no hard-wiring required.
  • UL, cUL & NSF listed for commercial use.

Specifications

Pan capacity (2) Full-size steam table pans, turned sideways
Well interior (each) 20″ L × 12″ W × 8″ D (50.8 × 30.5 × 20.3 cm)
Overall dimensions 45 ½″ L × 18″ W (115.6 × 45.7 cm)
Counter cut-out 44 11⁄16″ L × 17 ¼″ W • 7⁄8″ corner radius
Power 208-240 V / 60 Hz / 1-ph • 7.2-8.3 A • 2,000 W
Plug type NEMA 6-15P (attached)
Construction 18-ga. 18/8 stainless well & top, 20-ga. galvanized exterior
Insulation High-density glass-fiber, sides & bottom
Certifications UL, cUL, NSF 4 (moist-heat operation)
Important: For even heating and to meet NSF 4 performance standards, operate the well with water (moist heat). Do not use as a re-thermalizing vessel.

What’s in the box

  • Short Side 2-pan drop-in hot well (pre-wired with control box)
  • Stainless control panel with 3 ft tether for remote mounting
  • Breaker gasket & adjustable mounting clips (up to 3″ counter thickness)
  • ½″ ball-valve drain assembly & plug
  • Installation & operation manual

Perfect for

  • Buffet lines with limited counter depth
  • Convenience stores and cafés pulling food forward to customers
  • Catering stations where easy pan reach and quick cleanup are priorities

One-year parts & labor warranty. Refer to VollrathFoodservice.com for full warranty policy.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

45.44in

Depth

18.0in

Shipping Weight

100.0lbs

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, standard drains, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
