Vollrath  |  SKU: 36645HD

Vollrath 36645HD Steam Tables & Food Wells

$3,554.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

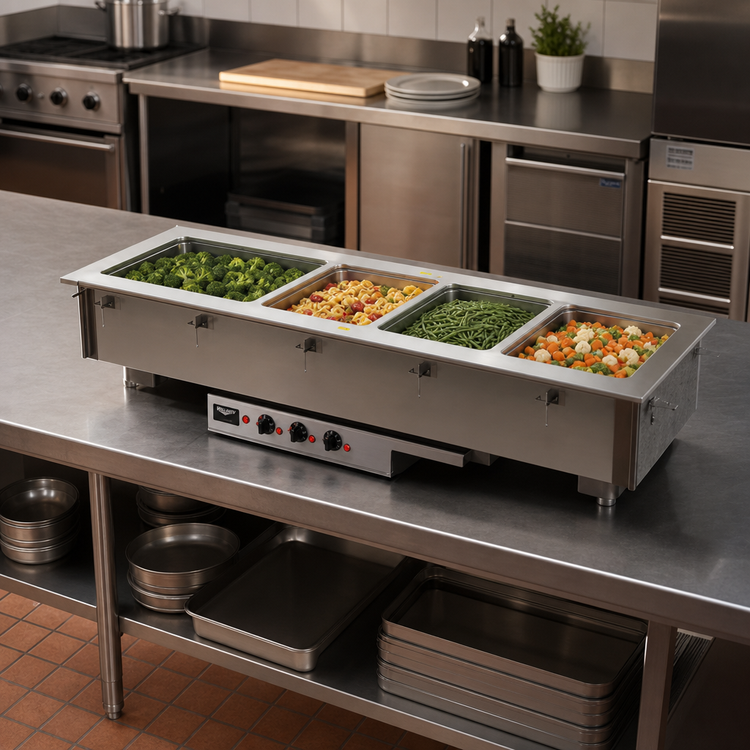

Vollrath Short-Side Hot Drop-In — 4-Well, Infinite Control, 120 V

Model 36645HD • Marine-Grade Stainless Steel

Give your serving line a slim, easy-reach profile without sacrificing capacity. The Vollrath 36645HD short-side hot well turns four full-size pans sideways, fitting into counters just 18 inches deep while keeping food hot, fresh and within arm’s length.

Key Features

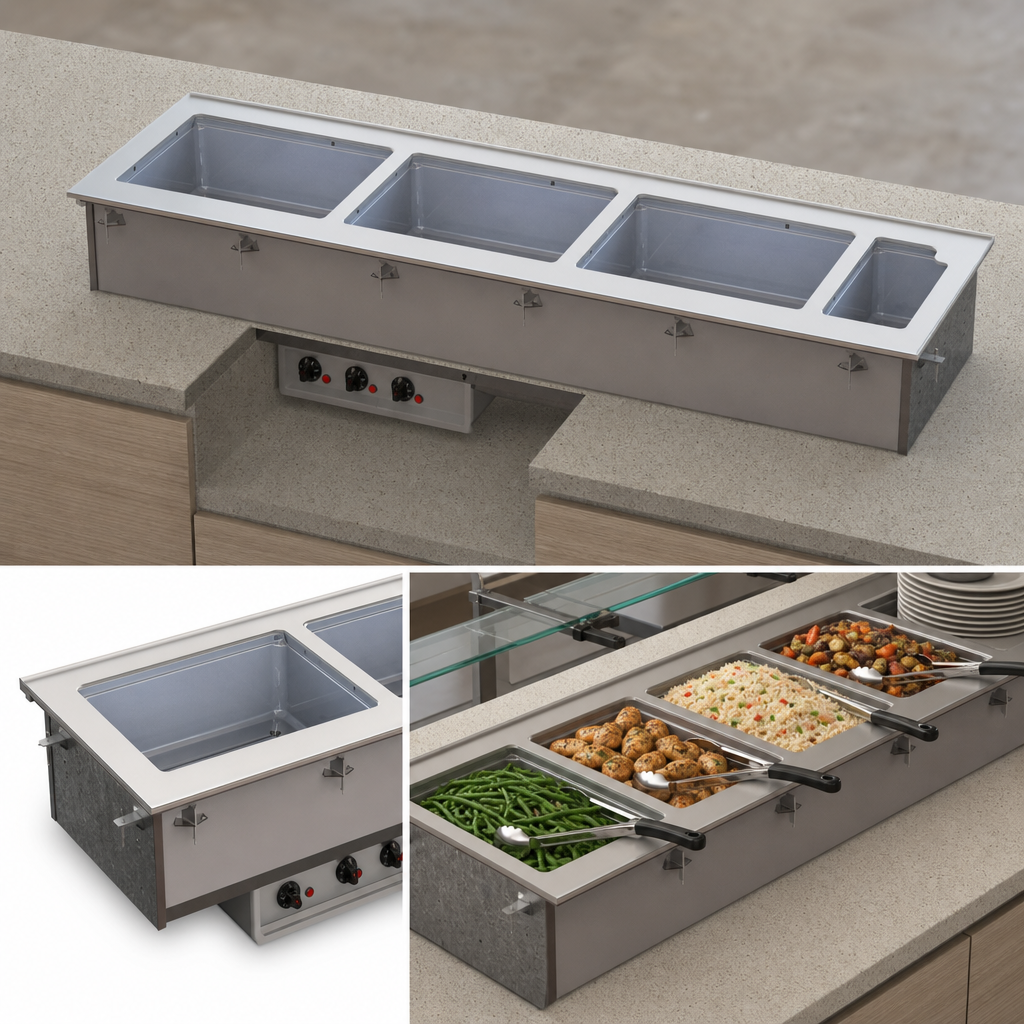

  • Rotated wells position full-size pans sideways for a narrower footprint and better ergonomics.
  • 18-gauge, Type 316 marine-grade stainless steel top resists pitting and corrosion.
  • Individual infinite controls on a remote stainless-steel panel with 4 ft tether for flexible mounting.
  • Standard ½ in. drains with individual ball valves; drain plug included for fast, mess-free cleanup.
  • Full-perimeter drip edge and thick polyurethane foam insulation to minimize heat loss.
  • Zero-clearance, top-mount installation; gasket and mounting clips supplied for counters up to 3 in. thick.
  • 6 ft cord with NEMA 5-30P plug — no hard-wiring required.
  • UL, CUL and NSF listed; proudly Made in the USA.

Capacity

Holds four full-size or fractional steam-table pans up to 8 in. deep (adapter bars recommended for fractional pans).

Technical Specifications

Item number 36645HD
Number of wells 4 (sideways orientation)
Control type Infinite manual
Total power 2,500 W (625 W per well)
Electrical 120 V / 60 Hz / 1-phase  •  20.8 A
Plug NEMA 5-30P  •  6 ft (1.8 m) cord
Well size (each) 20 in. × 12 in. × 8 in. deep
Overall dimensions 88 1⁄4 in. L × 18 in. W
Counter cut-out 87 1⁄2 in. L × 17 1⁄4 in. W  •  7⁄8 in. corner radius
Construction 316 marine-grade stainless well & top, stainless exterior housing
Insulation High-density polyurethane foam on all sides, including between wells
Drains ½ in. drains with individual ball valves
Certifications UL, CUL, NSF
Origin Made in USA
Important: For even heating this unit must be operated with water in the wells. Built-to-order drop-ins cannot be canceled or returned once the order is placed.

Two-year limited warranty. See full details at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

88.56in

Depth

18.0in

Shipping Weight

177.0lbs

Insulated or Non-Insulated

insulated

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, infinite controls, standard drains, 2500 watts, 120v/60/1-ph, 20.8 amps, NEMA 5-30P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
