Vollrath 3664530HD Steam Tables & Food Wells
Description
Short-Side Modular 4-Pan Hot Drop-In w/ Auto-Fill & Manifold Drain

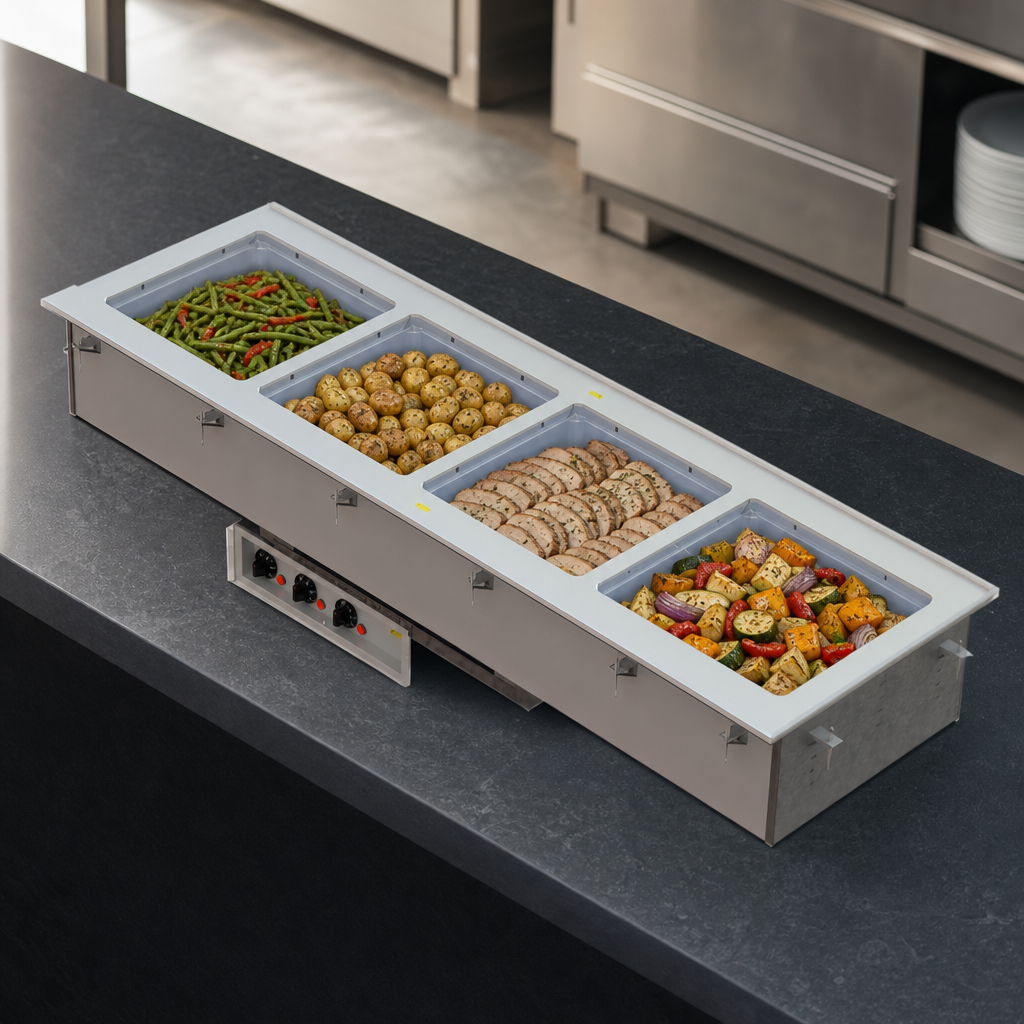

Vollrath Model 3664530HD · Marine-Grade Wells · Infinite ControlsGive your serving line a slim, guest-friendly profile without sacrificing capacity. This 4-pan Short-Side Hot Well turns full-size pans sideways, trimming counter depth to just 18 inches for easy reach and smooth workflow. Built from 18-gauge 316 stainless steel, it shrugs off corrosive foods and coastal air while auto-fill keeps water levels perfect all day.
Why you’ll love it
- Narrow 18 in. footprint – ideal for tight counters or when food is pulled forward.
- Four 20 × 12 in., 8 in. deep wells accept full-size or fractional pans up to 6 in. deep.
- Marine-grade (SAE 316) drawn wells resist pitting, salt and acidic foods.
- Auto-fill system maintains optimum water level; 1 in. copper manifold drain with master shut-off speeds cleanup.
- Individual infinite controls with power lights on a 4 ft tethered stainless control panel.
- Thick polyurethane foam insulation on all sides and between wells for energy-saving performance.
- Full-perimeter drip edge and included gasket protect counter surfaces.
- Ships ready to plug in – 6 ft cord with NEMA 5-30P; no hard-wiring required.
- Zero-clearance drop-in, UL, CUL & NSF listed, proudly made in the USA.
Specifications
| Capacity | 4 full-size pans (sideways orientation) |
|---|---|
| Total wattage | 2,500 W (625 W per well) |
| Power requirements | 120 V / 60 Hz / 1-ph · 20.8 A |
| Electrical connection | NEMA 5-30P, 6 ft (1.8 m) cord |
| Well size (each) | 20 × 12 in. (50.8 × 30.5 cm) · 8 in. (20.3 cm) deep |
| Overall drop-in | 88 1⁄4 × 18 in. (224.1 × 45.7 cm) |
| Counter cutout | 87 1⁄2 × 17 1⁄4 in. (222.3 × 43.8 cm) · 7⁄8 in. corner radius |
| Construction | 18-ga 316 stainless top & wells; stainless exterior housing |
| Drain | 1 in. copper manifold with master shut-off & drain plug |
| Insulation | High-density polyurethane foam (all sides & between wells) |
| Controls | Individual infinite knobs, power indicator lights |
| Certifications | UL, CUL, NSF |
| Origin | Made in USA |
Installation & operation
- Indoor use only; zero-clearance required on all sides.
- Unit meets NSF 4 performance standards only when operated with water. Moist heat is required for even food temperature.
- Auto-fill requires a 1⁄4 in. potable water connection (not supplied).
- Adapter bars (sold separately) are recommended when using fractional pans.
Warranty
Backed by Vollrath’s 2-year limited warranty against defects in materials and workmanship. For full terms visit the Vollrath warranty page.
