Vollrath 3664520HD Steam Tables & Food Wells
Description
Vollrath Short-Side Drop-In Hot Well – 4 Pan, Marine-Grade
Model 36645HD | Infinite Controls | Manifold Drain | 120 VGive your serving line maximum capacity in minimal depth. The Vollrath 36645HD rotates four full-size pans sideways to create an 18-inch-wide profile that’s easier to reach and perfect for tight counter layouts. Built from 316 marine-grade stainless steel and packed with thick polyurethane foam insulation, this U.S-made drop-in delivers dependable hot-holding—shift after shift, season after season.
Highlights

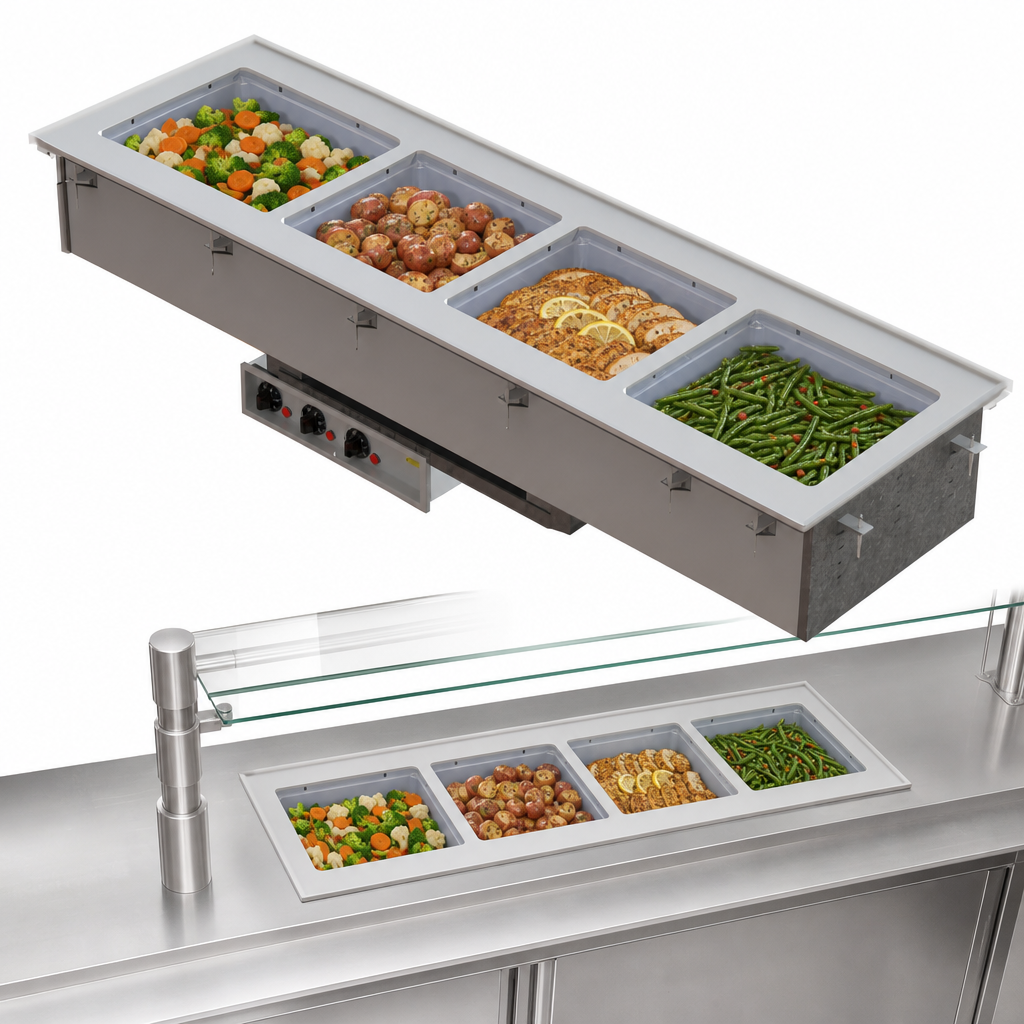

- Narrow, short-side design turns pans sideways for a slim 18" presentation and faster access.
- 18-gauge 316 marine-grade stainless top fights corrosion from salt, steam and cleaning chemicals.
- Four independent infinite controls with power lights let you fine-tune each well.
- 1" copper manifold drain with master shut-off and removable plug speeds cleanup.
- Full-perimeter drip edge plus supplied gasket keep condensation off the counter.
- Foamed-in-place polyurethane insulation on every side—even between wells—for superior heat retention.
- Ships ready to install: 6' (1.8 m) cord, NEMA 5-30P plug and mounting clips for counters up to 3" thick.
- Zero-clearance drop-in for any indoor counter; 7/8" corner-radius cutout required.
- UL, cULus & NSF listed; backed by Vollrath’s 2-year parts & labor warranty.
Key Specifications
| Pan Capacity | 4 full-size (20" × 12") pans turned sideways; accepts fractional pans with adapter bars |
|---|---|
| Well Depth | 8" (20.3 cm) |
| Heat Output | 625 W per well | 2,500 W total |
| Controls | Individual infinite manual controls with indicator lights |
| Drain | 1" copper manifold drain, ball valve, threaded plug included |
| Electrical | 120 V / 60 Hz / 1-ph, 20.8 A, NEMA 5-30P |
| Overall Dimensions | 88-1/4" L × 18" W |
| Counter Cutout | 87-1/2" L × 17-1/4" W, 7/8" corner radius |
| Construction | Marine-grade (SAE 316) stainless well & top; stainless exterior housing |
| Insulation | Foamed-in-place polyurethane |
| Included | Stainless steel remote control panel (4' tether), gasket, mounting clips & drain plug |
| Certifications | UL, cULus, NSF |
| Origin | Made in USA |
Ideal For
- Buffets and self-service lines with limited counter depth
- Front-of-house serving where quick reach and visibility matter
- Coastal or outdoor venues needing superior corrosion resistance
For complete warranty details, visit vollrathfoodservice.com.
