Vollrath 3664520 Steam Tables & Food Wells

Vollrath Short Side 4-Pan Drop-In Hot Well
Model 3664520 • Infinite Controls • Manifold Drain • 120 V

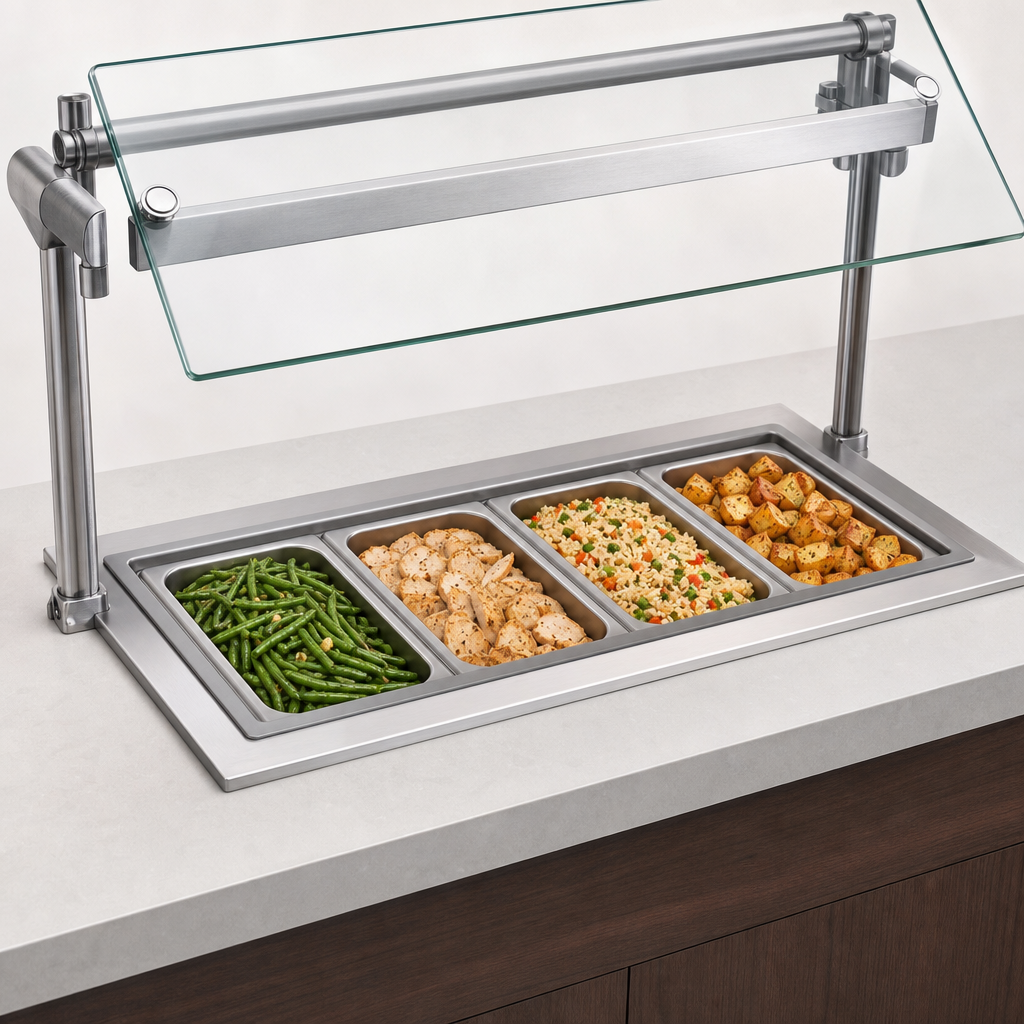

Turn full-size pans sideways for a slim, guest-friendly serving line without sacrificing capacity. This UL, cUL & NSF listed hot well keeps four pans of food at safe serving temperatures while fitting counters as shallow as 18 inches deep.

• Narrow 18 in. depth lets customers reach product easily and frees up counter space.
• Four individually controlled wells (625 W each) deliver a combined 2,500 W of holding power.
• Remote stainless-steel control panel with infinite controls and power indicator lights for every well.
• 1 in. copper manifold drain with master shut-off simplifies daily cleanup.
• 18/8 stainless-steel flange and drawn wells with full-perimeter drip edge resist corrosion and contain spills.
• Thick polyurethane foam insulation on all sides—including between wells—maximizes energy efficiency.
• Ships ready to install: 6 ft (1.8 m) cord with NEMA 5-30P plug, gasket, mounting clips (up to 3 in. counter thickness) and drain plug included.
• Zero-clearance design—no side or rear air gaps required.
• Made in the USA and backed by Vollrath’s standard commercial warranty (see vollrathfoodservice.com for details).

• Cafeterias and buffet lines with limited counter depth
• Convenience stores & delis pulling product forward for faster service
• QSR, concessions and stadium kiosks wanting full-size pan capacity in a compact footprint

• Sheet-pan adapter bar – Item 19186 (allows two half-size pans or assorted fractional pans per well)

Need help with cut-out prep or wiring? Contact Vollrath Technical Services at 800-628-0832.
