Vollrath Short-Sided 4-Pan Drop-In Hot Well with Thermostatic Controls, 120V, 316 Stainless Steel

Rotates full-size pans sideways for a narrower presentation and easier reach.

This short-sided drop-in hot well delivers consistent thermostatic heat in corrosion-resistant marine-grade stainless steel while creating a more compact, easy-to-serve presentation.

  • Short-sided design turns full-size pans sideways for a narrower serving line and easier access.
  • Four-pan hot well with thermostatic controls for reliable hot holding.
  • Marine-grade 316 stainless steel wells help resist corrosion in demanding buffet environments.
  • Insulated construction and a full perimeter drip edge support heat retention and cleaner counters.
  • Includes cord-and-plug connection and mounting clips for easier installation with no hard-wiring required.

Overall Dimensions:

88.56"W x 18.0"D x 15.0"H

Product Weight:

173.0 lb

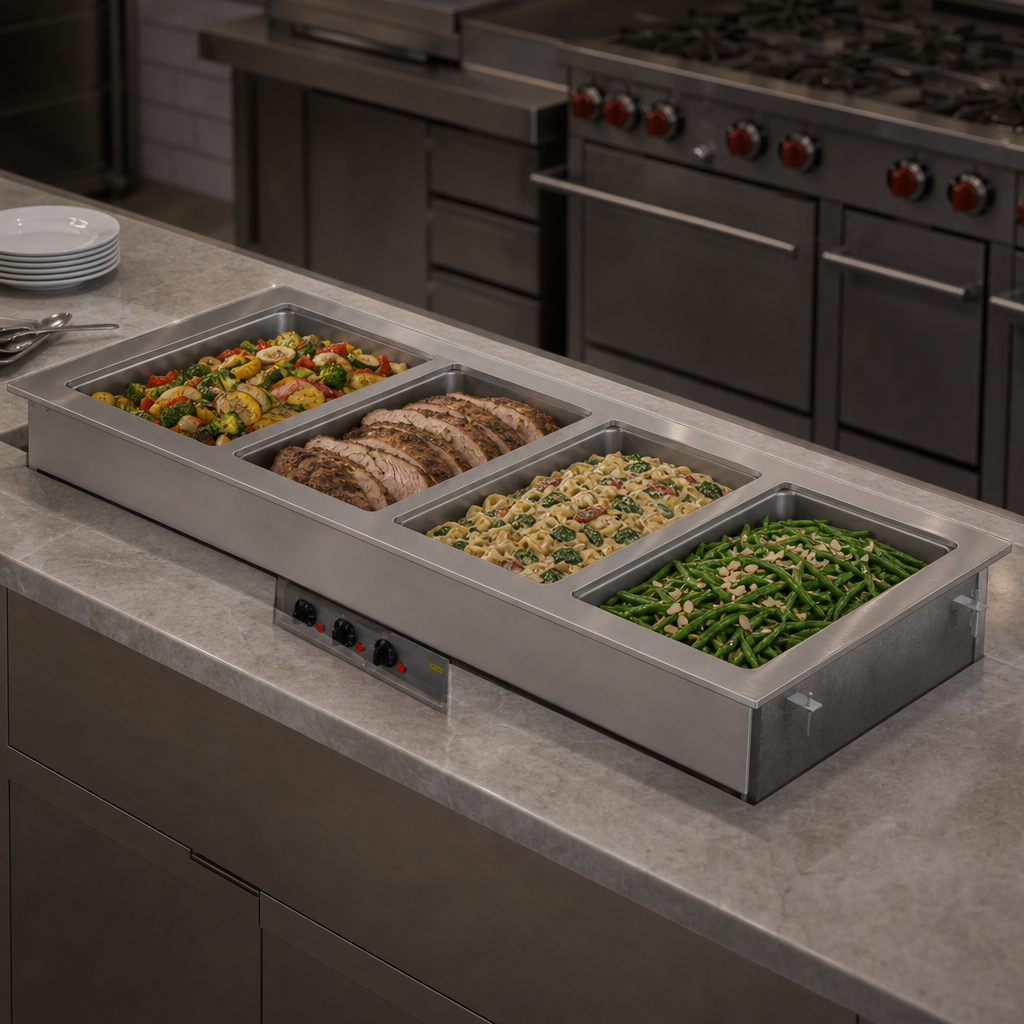

Short-Sided Pan Orientation

Rotates full-size pans sideways to create a narrower presentation and easier reach for staff and guests.

Marine-Grade Stainless Wells

Drawn SAE Type 316 stainless steel wells provide enhanced corrosion resistance.

Thermostatic Individual Controls

Individual thermostatic controls with a power indicator light help maintain consistent holding temperatures in each well.

Insulated Construction

Insulated on all sides, including between wells, to help retain heat and improve efficiency.

Standard Drain System

Includes standard drains with individual well ball valves; a drain plug is included.

Ready-to-Install Design

Includes a 6-foot cord with plug and mounting clips; hard-wiring is not required.

Service-Friendly Access

Removable bottom access panels make service easier, and the gasket under the drip edge helps support cleaner installation.

Pan Flexibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Indoor, Zero-Clearance Use

Designed for zero-clearance installation and indoor use only.

Type Hot Well
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 4 Full-Size Pans
Material 316 Marine Grade Stainless Steel
Voltage 120 Volts
Amps 20.8 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 89 Inches
Shipping Depth 18 Inches
Shipping Height 15 Inches
Shipping Weight 173 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a cord with plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep, and the short-sided design turns full-size pans sideways.
Yes. It is insulated on all sides, including between each well.
It requires 120 Volts, 60 Hz, 1-phase power, draws 20.8 amps, and uses a NEMA 5-30P plug.
Yes. Water is required for even heating of the food product.
The unit includes mounting clips, a cord with plug, and a gasket under the drip edge.
