Vollrath 3664430HD Steam Tables & Food Wells
Description
Vollrath Short-Side 4-Pan Hot Drop-In w/ Auto-Fill & Manifold Drain – 120 V

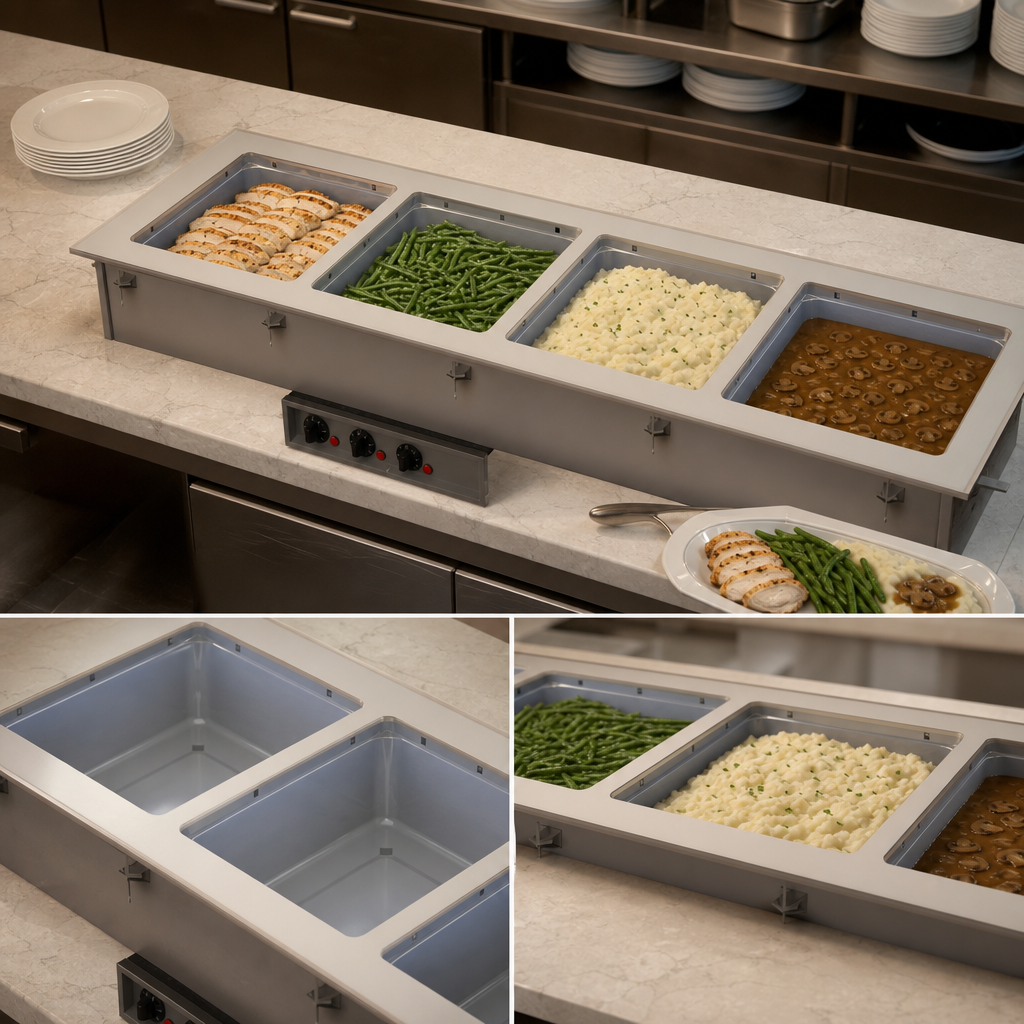

Model 3664430HD • Marine-Grade 316 Stainless Steel WellsPerfect for tight counter depths or customer-facing serving lines, this Vollrath short-side hot well turns full-size pans sideways, trimming the footprint to only 18 inches while keeping every entrée within easy reach. Four individually controlled wells, automatic water fill and a one-inch copper manifold drain make high-volume holding effortless, efficient and exceptionally clean.
Why You’ll Love It
- Rotated wells create a narrow 18″ profile for space-saving presentation.
- 18-ga SAE 316 marine-grade stainless top shrugs off salt, steam and acidic foods.
- 625 W thermostatic element per well (2,500 W total) holds food safely without scorching.
- Auto-fill system maintains the optimal water level—no constant refills.
- 1″ copper manifold drain with master shut-off plus individual ½″ ball valves; drain plug included.
- Full-perimeter drip edge keeps condensation off counter surfaces.
- High-density polyurethane insulation on all sides and between wells conserves energy.
- Remote stainless control panel (4 ft tether) with power light & dial for each well.
- 6 ft factory-wired cord with NEMA 5-30P—install without an electrician.
- Zero-clearance design, mounting clips and gasket included for counters up to 3″ thick.
- UL, CUL & NSF listed; proudly Made in the USA.
Technical Specifications
| Number of wells | 4 (short-side orientation) |
|---|---|
| Total power | 2,500 W (625 W × 4) |
| Electrical | 120 V / 60 Hz / 1-ph • 20.8 A • NEMA 5-30P |
| Control type | Thermostatic, individual dial & indicator light per well |
| Auto-fill connection | ¼″ NPT (field plumbed) |
| Drain connection | 1″ copper manifold, master valve + individual ½″ valves |
| Well size (each) | 20″ L × 12″ W × 8″ D |
| Pan depth capacity | Up to 6″ deep full-size or fractional pans (use adapter bars) |
| Top outside dimensions | 88-1/4″ L × 18″ W |
| Counter cutout | 87-1/2″ L × 17-1/4″ W • 7/8″ corner radius |
| Construction | 18-ga 316 SS wells & top, stainless exterior housing |
| Insulation | Foamed-in-place polyurethane |
| Warranty | 2-year parts & labor on HD marine-grade wells (see full policy) |
Optional sheet-pan adapter bars (Vollrath #19186) sold separately. Orders for drop-ins cannot be cancelled or returned.
