Vollrath 3664420HD Steam Tables & Food Wells
Description
Vollrath HD Series Short-Side Drop-In Hot Well – 4 Pan, 120 V

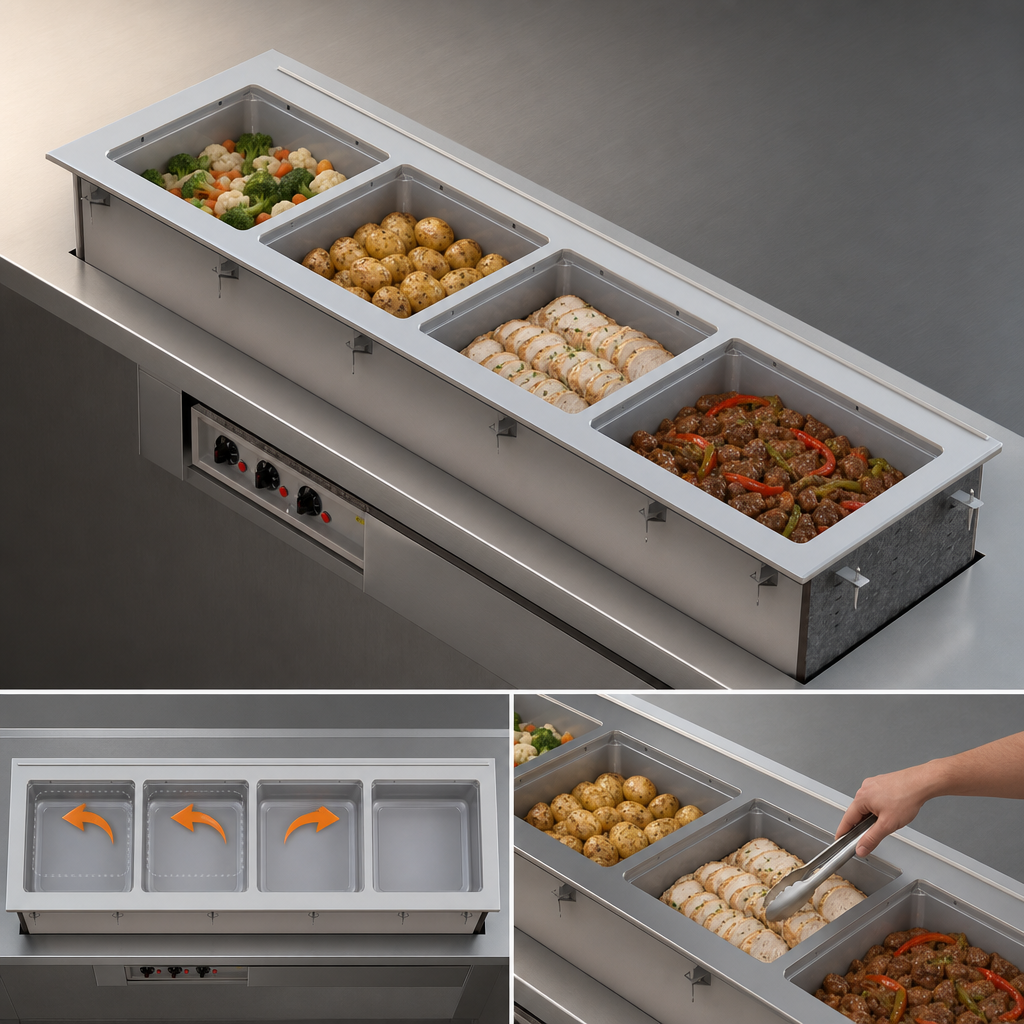

Marine-grade wells turned sideways for a slimmer, easier-reach presentationBring maximum holding power to the tightest counter spaces with Vollrath’s 4-pan Short-Side Modular Hot Drop-In. Rotated 12" x 20" wells let you present four full-size pans in an 18"-deep footprint while thick polyurethane insulation, marine-grade stainless steel, and thermostatic controls keep every menu item at the perfect serving temperature.
Why You’ll Love It
- Space-saving: full-size pans install sideways for a narrow 18" counter depth and easy reach.
- Corrosion-proof 18 ga SAE 316 marine-grade stainless steel top with matching exterior housing.
- Four independent, thermostatic controls with indicator lights—dial in precise holding temps.
- 1" copper manifold drain with master shut-off plus included drain plug for fast clean-up.
- Full-perimeter drip edge and included gasket protect counters from condensation.
- Thick polyurethane foam insulation on every side (and between wells) maximizes efficiency.
- Ships ready to plug in—6' (1.8 m) cord with NEMA 5-30P; no hard-wiring required.
- Zero-clearance installation; standard mounting clips supplied for counters up to 3" (7.6 cm).
- UL, CUL, and NSF listed; proudly Made in the USA with a 2-year manufacturer’s warranty.
Technical Specs
| Pan capacity | 4 full-size 20" × 12" (sideways) |
|---|---|
| Total power | 2,500 W (625 W per well) |
| Controls | 4 thermostatic knobs, remote stainless panel (4' tether) |
| Voltage / Phase | 120 V / 60 Hz / 1-ph |
| Amps / Plug | 20.8 A | NEMA 5-30P |
| Well size (each) | 20" × 12" × 8" deep |
| Overall dimensions | 88-1/4" L × 18" W |
| Counter cut-out | 87-1/2" L × 17-1/4" W | 7/8" corner radius |
| Drain | 1" copper manifold with master ball valve; drain plug included |
| Construction | 18 ga / 316 marine-grade stainless steel top, stainless exterior housing |
| Certifications | UL, CUL, NSF |
| Warranty | 2 years (see VollrathFoodservice.com for full policy) |
Modular drop-ins are built to order and are non-cancelable / non-returnable. Always verify cut-out dimensions before cutting counters.
