Vollrath 3664420 Steam Tables & Food Wells
Description
Vollrath Short-Side 4-Pan Hot Well Drop-In with Manifold Drain – 120 V Thermostatic
Model 36644-20 • NEMA 5-30P • Made in USAGive guests easy reach and save valuable counter depth with Vollrath’s innovative short-side hot well. Four full-size pans are turned sideways in an 18-inch-deep footprint, while independent thermostats keep every dish at food-safe serving temperature.
Why you’ll love it

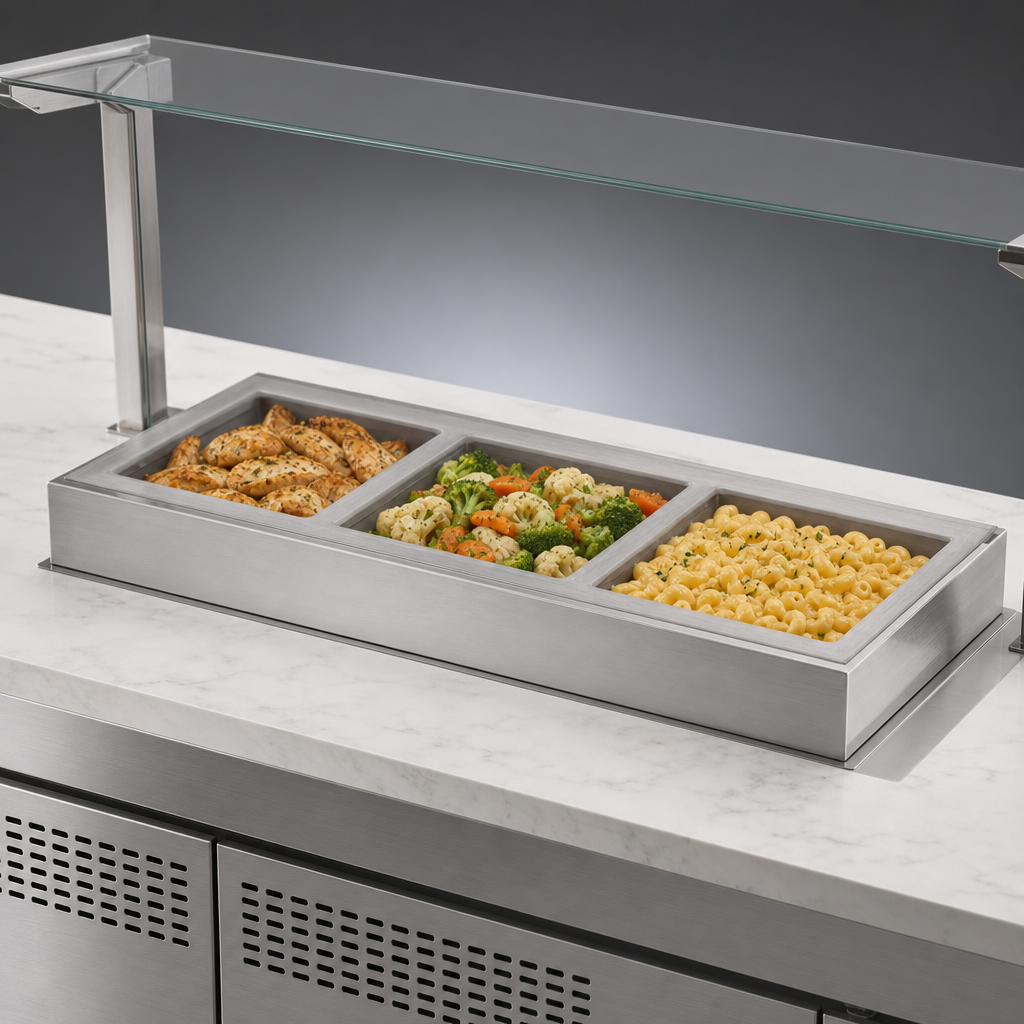

- Narrow 18″ presentation – perfect for tight buffet lines or back-of-house pass-thrus.
- Independent thermostatic controls and power lights for each well ensure precise holding.
- 1″ copper manifold drain with master shut-off plus individual ball valves speeds end-of-day cleanup.
- Top flange and drawn wells formed from 18/8 (300 series) stainless for long-lasting corrosion resistance.
- Thick polyurethane foam insulation on all sides, including between wells, improves efficiency and protects cabinetry.
- Full-perimeter drip edge and factory-installed gasket keep condensation off counters.
- Ships with 6′ cord and NEMA 5-30P plug – no hard-wiring required.
- Zero-clearance design drops into counters up to 3″ thick with the included mounting clips.
- UL, CUL and NSF listed for commercial foodservice.
Technical specifications
| Number of wells | 4 (accepts full-size & fractional pans up to 6″ deep) |
|---|---|
| Heating method | Wet operation required for even steam heat (NSF 4 compliant) |
| Controls | 4 × thermostatic, remote stainless panel with 4′ tether |
| Total power | 2500 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph • 20.8 A • NEMA 5-30P |
| Overall dimensions | 88-1/4″ L × 18″ W |
| Cut-out dimensions | 87-1/2″ L × 17-1/4″ W • 7/8″ corner radius |
| Individual well size | 20″ L × 12″ W × 8″ D (internal) |
| Drain connection | 1″ manifold tube with drain plug (included) |
| Construction | 18/8 stainless flange & wells, galvanized exterior housing, polyurethane insulation |
| Certifications | UL • CUL • NSF |
| Country of origin | USA |
• For optimum performance always operate with water in the well.
• Designed for holding pre-heated food, not for rethermalizing from cold.
• Full warranty details available at vollrathfoodservice.com.
