Vollrath 36643HD Steam Tables & Food Wells
Description
Vollrath Short-Side Modular Hot Drop-In – 3 Pan, Infinite Control

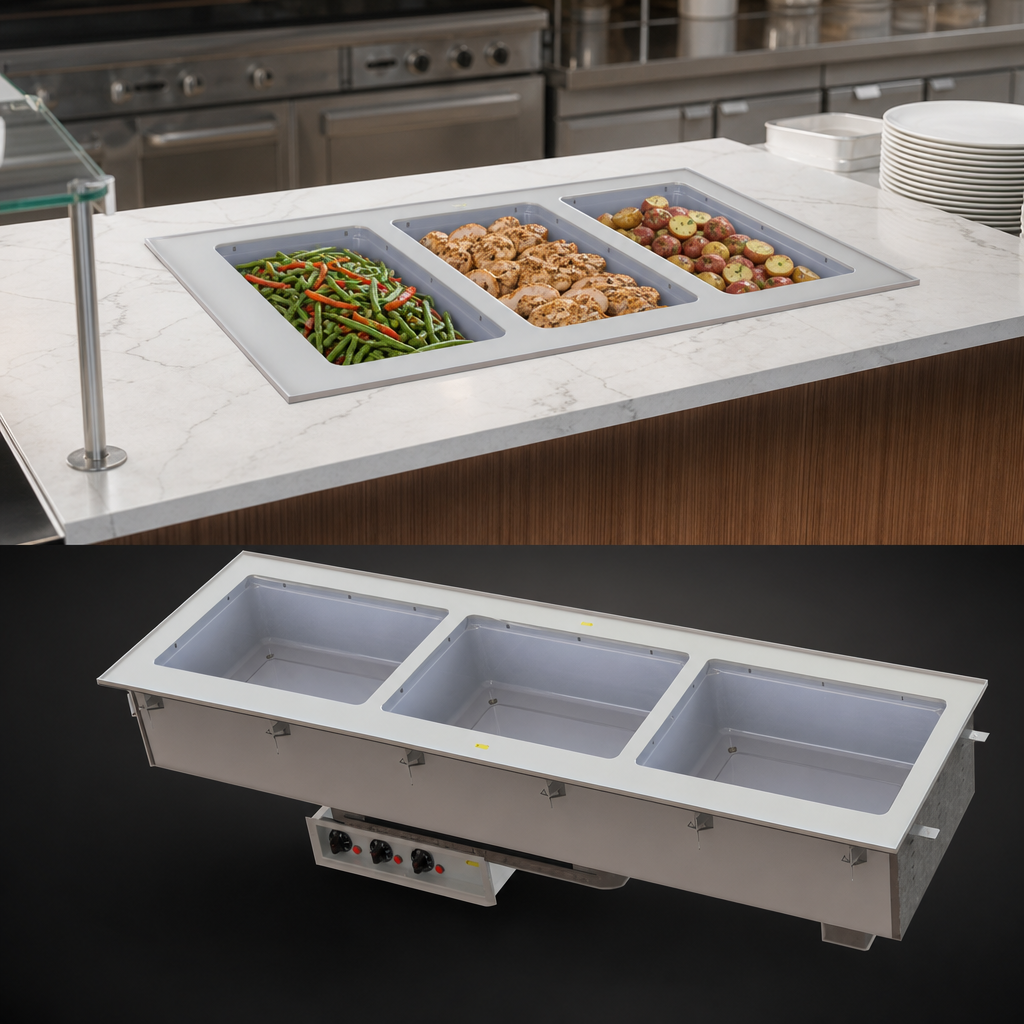

Model 36643HD | Marine-Grade Wells | 120 V, 1875 WCreate a compact, crew-friendly serving line without sacrificing full-size pan capacity. The Vollrath 36643HD turns three 20 × 12 in. pans sideways for a narrow 18 in. counter footprint—ideal for tighter counters or when you need to keep food pulled forward for effortless reach. Built with 316 marine-grade stainless steel and thick polyurethane insulation, this drop-in delivers reliable, corrosion-resistant performance service after service.
Why You’ll Love It
- Narrow 18 in. depth lets you reclaim valuable counter space while keeping pans within easy reach.
- Rotated wells accept three standard full-size pans (up to 6 in. deep) for maximum menu flexibility.
- 18-gauge, SAE 316 marine-grade stainless steel top resists pitting, salt & chemical wear.
- Individual infinite controls and power lights for precise holding on every well.
- Full-perimeter drip edge and included gasket protect countertops from condensation.
- Standard ½ in. drains with individual ball valves plus drain plug for fast clean-up.
- Zero-clearance design—ideal for drop-in installations where space is tight.
- 6 ft pre-wired cord with NEMA 5-20P plug—no hard-wiring required.
- Made in the USA and listed by UL, cULus, and NSF.
Technical Specifications
| Wells / Capacity | 3 full-size pans (20 × 12 in.), 8 in. deep |
|---|---|
| Controls | Individual infinite (manual) dial per well |
| Total Wattage | 1875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase • 15.6 A • NEMA 5-20P |
| Overall Dimensions | 66-7/8 in. W × 18 in. D |
| Counter Cut-out | 66-1/16 in. W × 17-1/4 in. D • 7/8 in. corner radius |
| Well Interior (each) | 20 in. L × 12 in. W × 8 in. D |
| Construction | 316 marine-grade stainless well, 18-ga stainless top, stainless exterior housing |
| Insulation | Thick polyurethane foam (all sides & between wells) |
| Drain | ½ in. standard drains with individual valves; plug included |
| Cord Length | 6 ft (1.8 m) factory installed |
| Certifications | UL, cULus, NSF, Made in USA |
| Warranty | 2-year limited warranty (see vollrathfoodservice.com) |
Quick Installation Facts
- Includes mounting clips for counters up to 3 in. thick.
- 4 ft tethered stainless control panel mounts where you need it.
- Zero side clearance required—great for built-in applications.
- Adapter bars (sold separately) recommended when using fractional pans.
Refer to Vollrath’s full warranty policy online for complete terms and service procedures.
