Vollrath 3664330 Steam Tables & Food Wells
Description

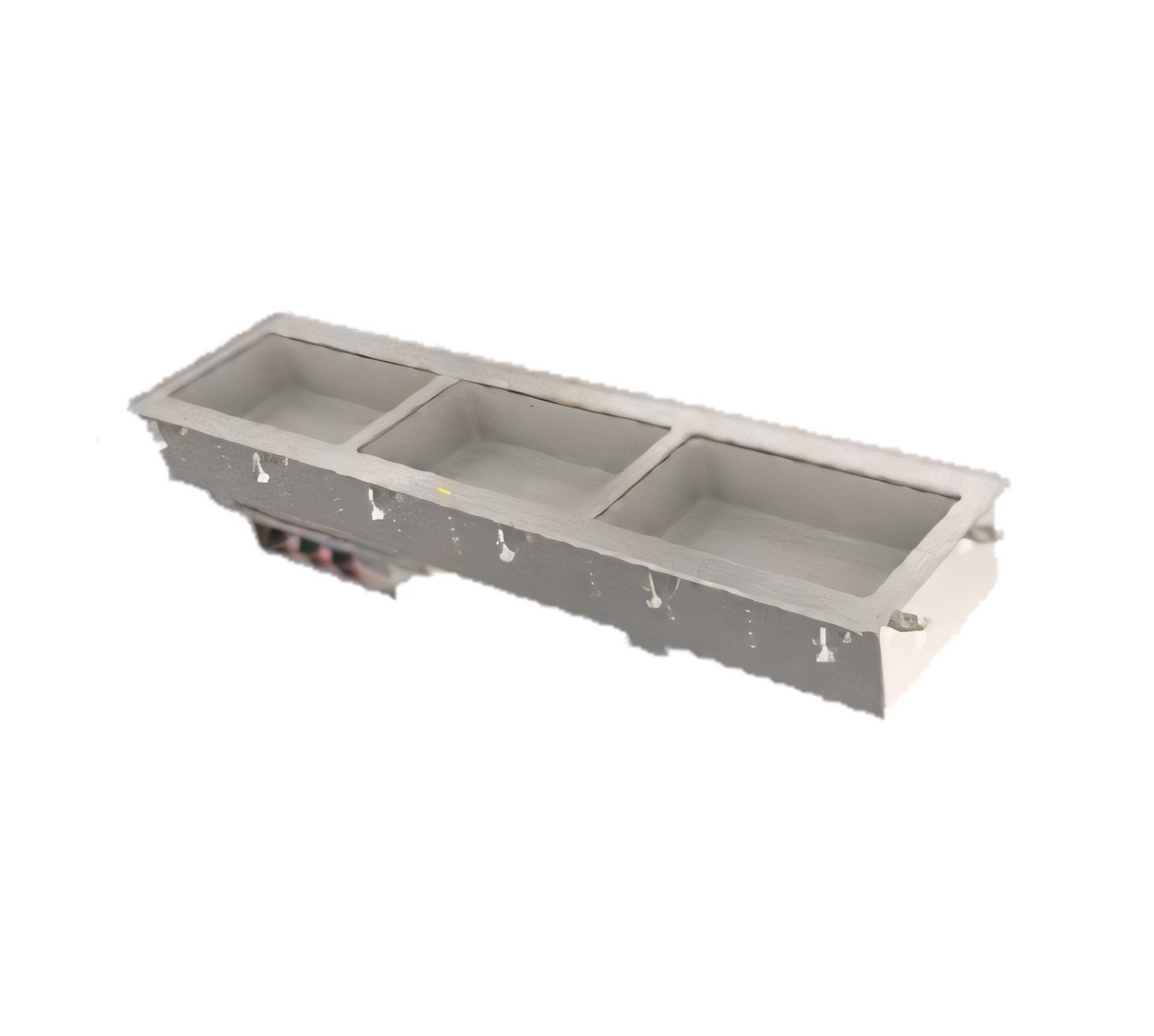

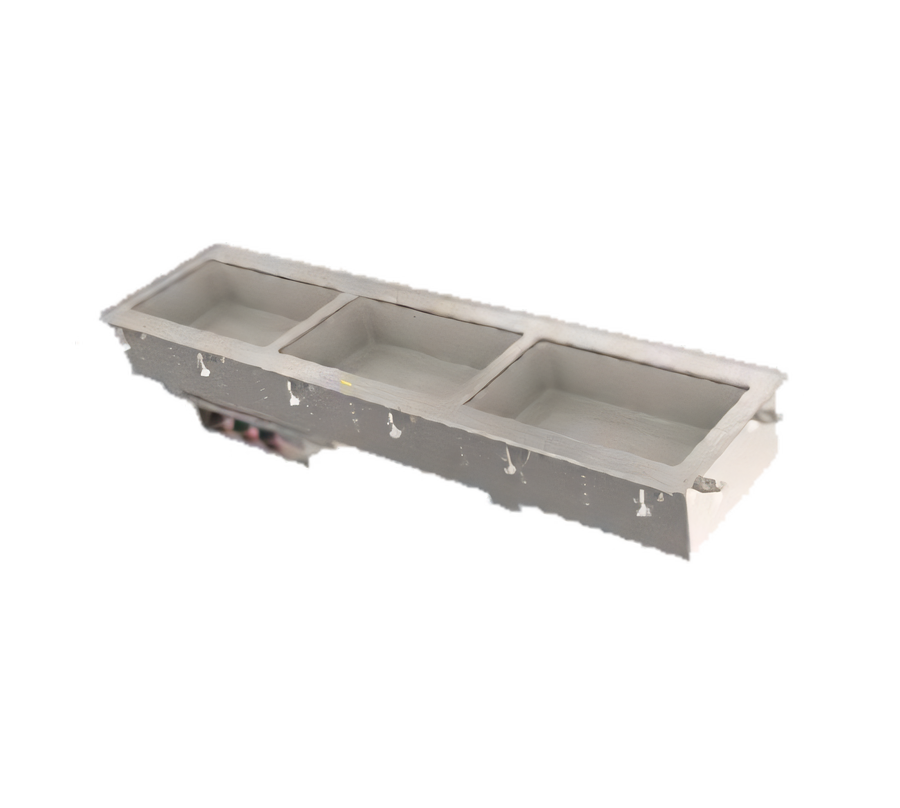

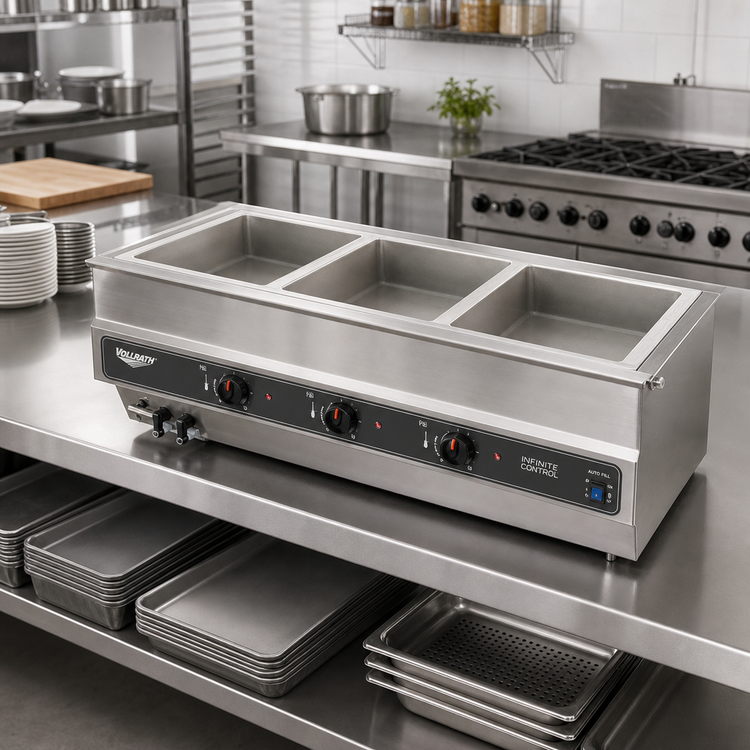

Vollrath Short-Side Hot Drop-In Well – 3 Pan, Infinite Controls, Autofill & Manifold Drain

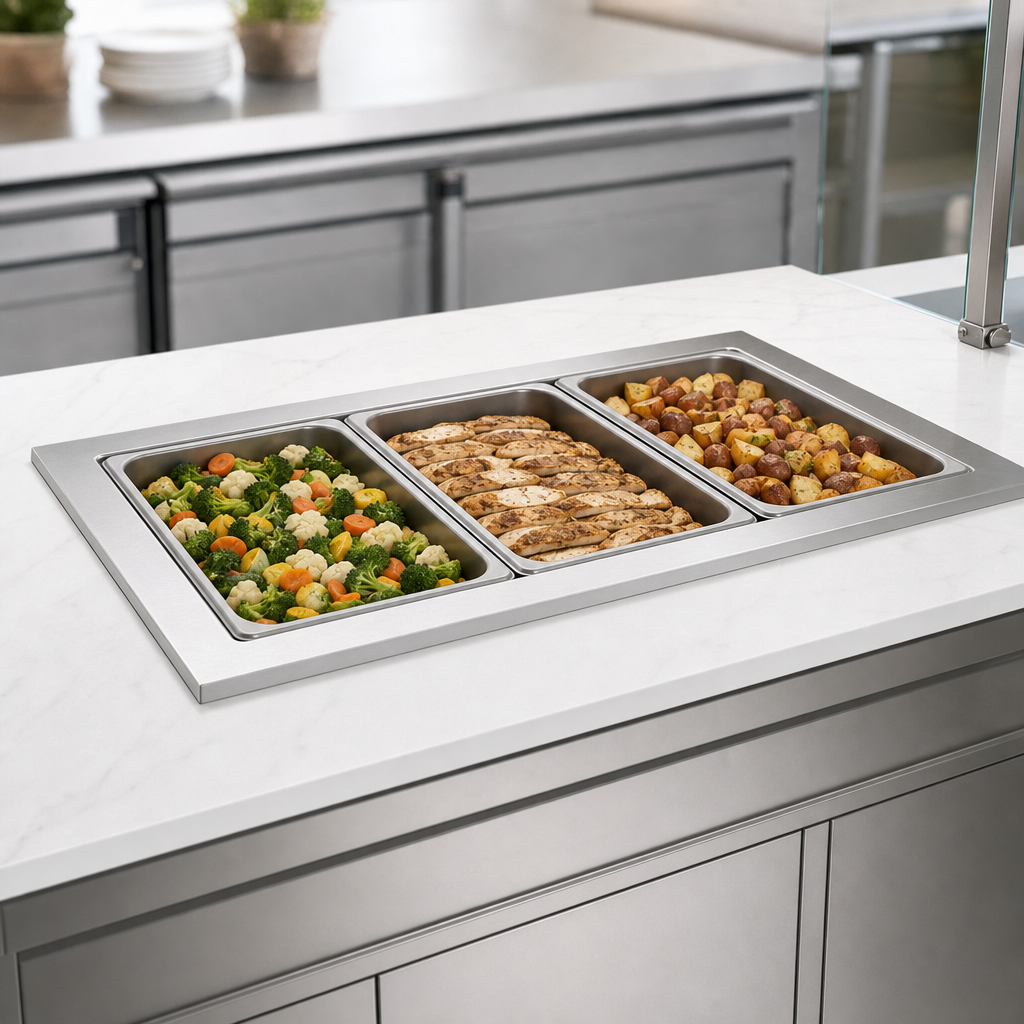

Model 3664330 | 120 V • 1,875 W • NEMA 5-20PFree up valuable counter depth without sacrificing capacity. This Vollrath 3-well Short-Side hot well rotates full-size pans sideways, creating a narrow 18 inch footprint that keeps food within easy reach—ideal for buffets, islands, kiosks, and pass-thru lines.
Why You’ll Love It
- Space-saving 18 in (45.7 cm) depth – perfect where every inch counts.
- 18/8 stainless steel top flange & drawn wells resist corrosion and clean easily.
- Thick polyurethane foam insulation on all sides (and between wells) maximises efficiency.
- Individual infinite controls with indicator lights let you fine-tune each well’s temperature.
- Factory-installed autofill system maintains proper water level for consistent, even heating.
- 1 in (2.5 cm) copper manifold drain with master shut-off plus ½ in ball-valves on each well for fast, mess-free draining.
- Full-perimeter drip edge and included gasket protect countertops from condensation.
- Ships with 6 ft (1.8 m) cord & NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance design simplifies drop-in installation; mounting clips for counters up to 3 in (7.6 cm) thick are included.
- UL, C-UL & NSF listed; proudly Made in the USA.
Technical Specifications
| Pan Capacity | 3 full-size (12 × 20 in) or fractional pans up to 6 in (15.2 cm) deep |
|---|---|
| Well Interior | 20 × 12 in (50.8 × 30.5 cm) • 8 in (20.3 cm) deep |
| Overall Dimensions | 66 7⁄8 × 18 in (169.8 × 45.7 cm) |
| Counter Cut-Out | 66 1⁄16 × 17 1⁄4 in (167.9 × 43.8 cm) • 7⁄8 in corner radius |
| Electrical | 120 V / 60 Hz / 1-ph • 1,875 W (3 × 625 W) • 15.6 A • NEMA 5-20P |
| Controls | Remote stainless panel (4 ft tether) with individual infinite knobs & power lights |
| Water Management | Automatic water fill • 1 in manifold drain with master shut-off & ½ in ball-valves |
| Construction | 18/8 (304) stainless steel wells & flange, foam-insulated; full-perimeter drip edge |
| Certifications | UL, C-UL, NSF |
| Country of Origin | United States of America |
Covered by Vollrath’s standard commercial warranty. For complete terms, visit vollrathfoodservice.com. Please note that drop-ins are built to order and are non-returnable.
