Vollrath 3664320 Steam Tables & Food Wells
$2,755.05
Unit price
/
Unavailable
Description

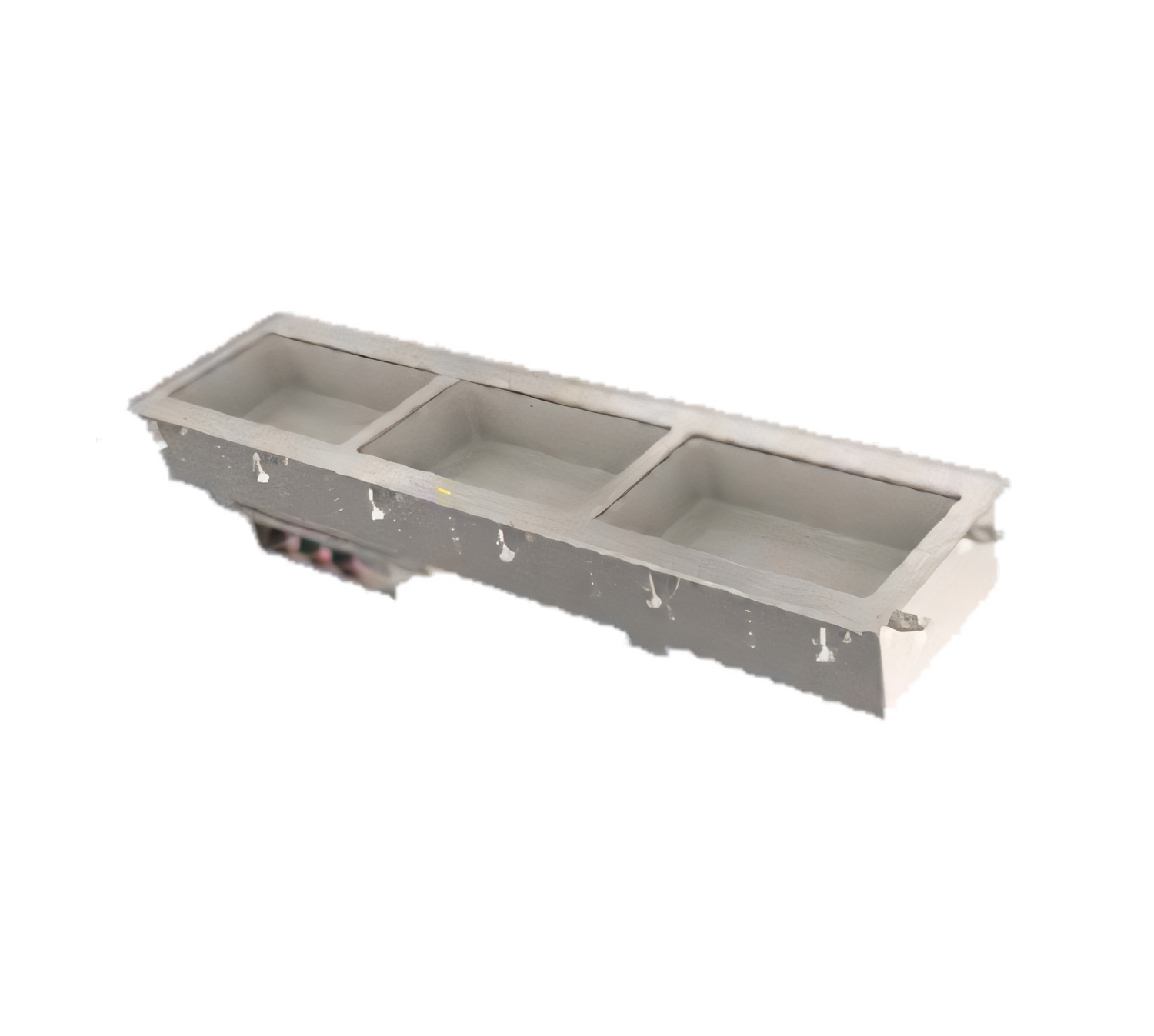

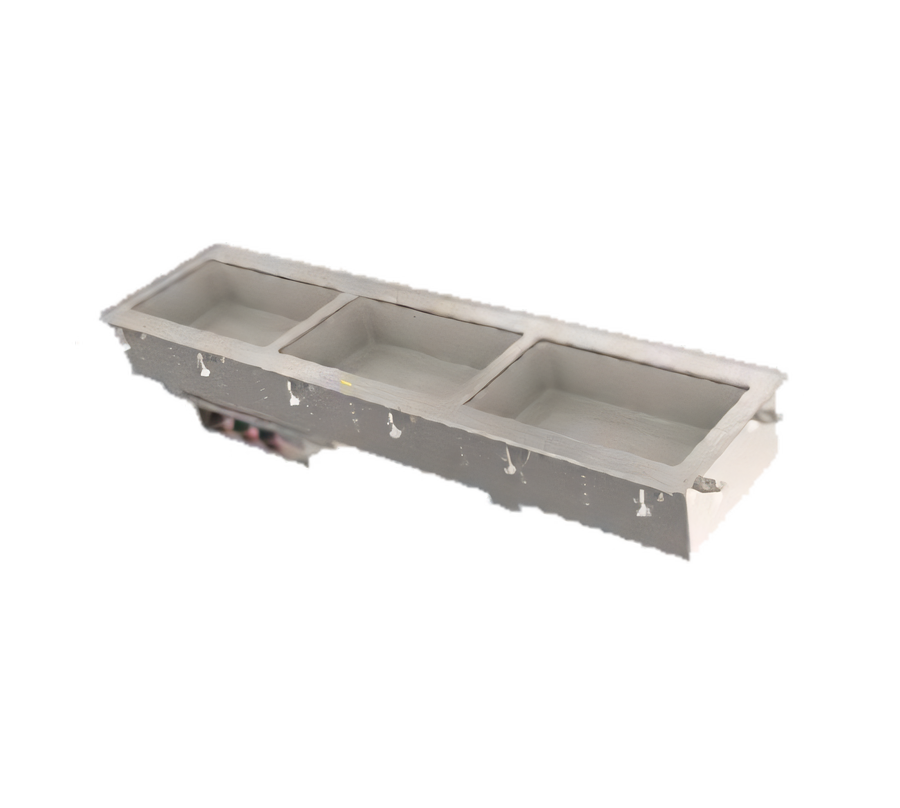

Vollrath 3-Well Short Side Hot Drop-In

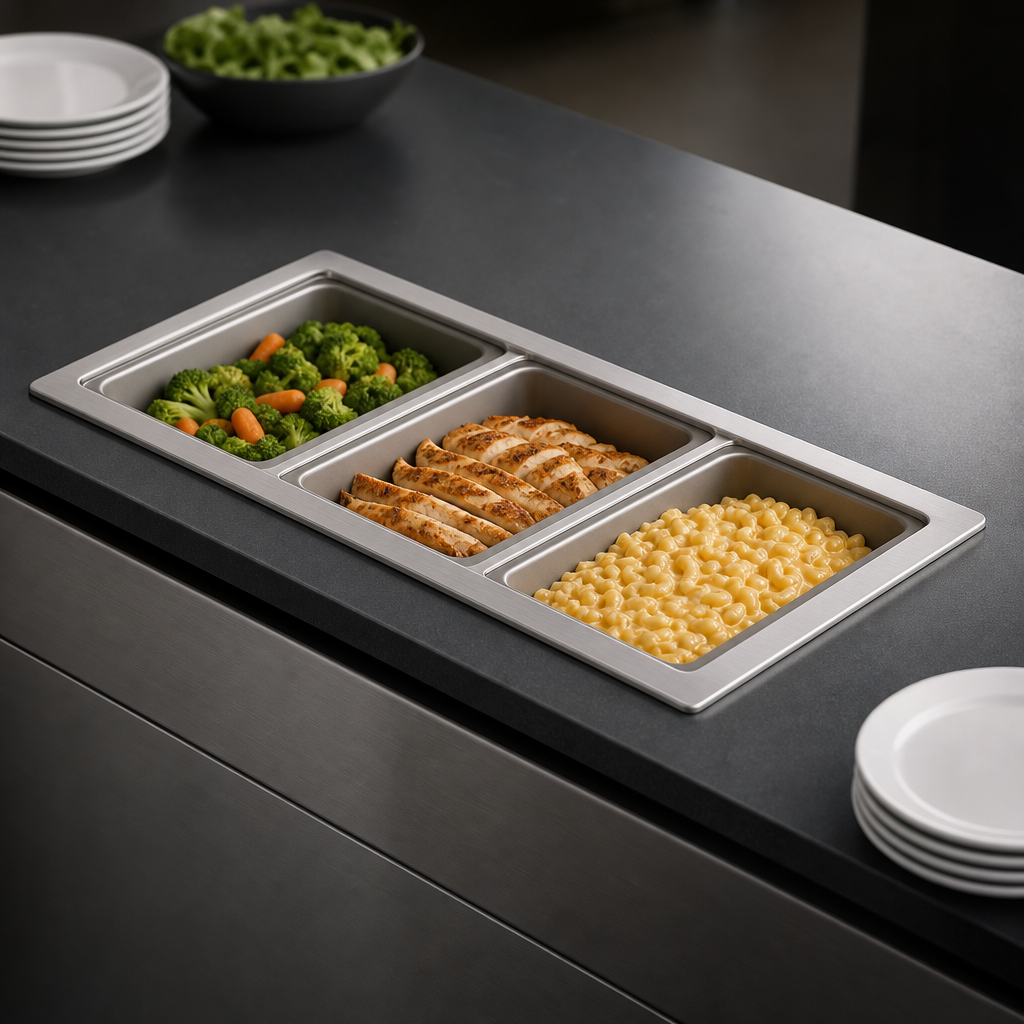

Model 3664320 – Infinite Controls, Manifold Drain, 120 VGive guests full-size pan capacity without sacrificing valuable counter depth. This Vollrath Short Side Hot Drop-In rotates pans sideways, creating a slim 18-inch footprint that’s easy for staff and customers to reach while still meeting NSF4 hot-holding standards.
Why you’ll love it
- Narrow 18" front-to-back design keeps the line moving and frees up workspace.
- Three full-size wells (20" × 12" × 8") accept pans up to 6" deep—great for entrées, sides or sauces.

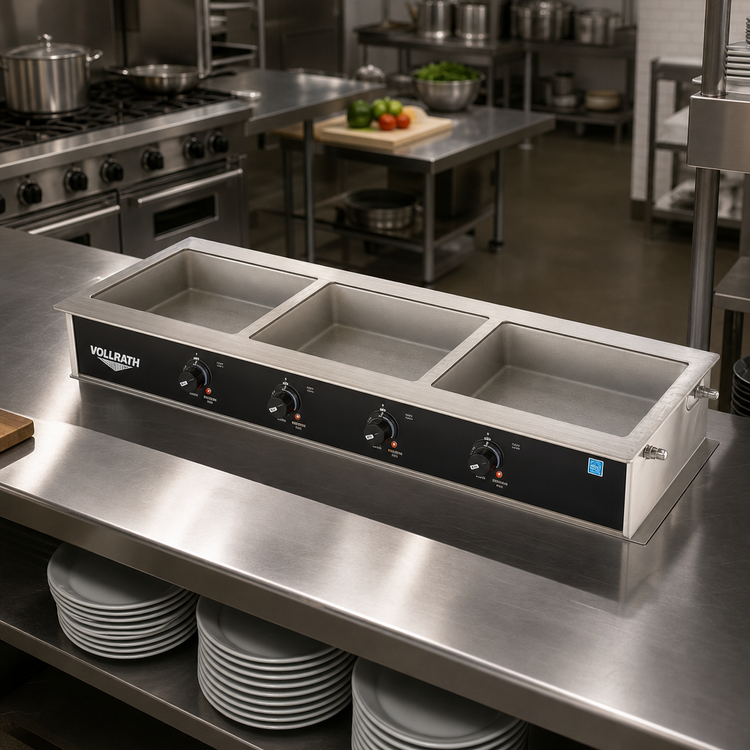

- Independent infinite controls and power lights for precise holding on every well.
- 1" copper manifold drain with master shut-off plus individual ½" ball valves speeds cleanup.
- 18/8 (300 series) stainless-steel flange & well with full-perimeter drip edge for a spotless counter.
- Thick polyurethane foam insulation on all non-exposed sides—reduces energy use and keeps surfaces cool.
- Factory-installed 6' cord and NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance installation and 7⁄8" corner radius simplify drop-in cutout work.
- Made in the USA, UL / CUL / NSF listed.
Technical specifications
| Pan / Well capacity | 3 full-size steam table pans (sideways orientation) |
|---|---|
| Total wattage | 1875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 15.6 A, NEMA 5-20P cord & plug included |
| Overall dimensions | 66-7⁄8" L × 18" D |
| Counter cut-out | 66-1⁄16" L × 17-1⁄4" D, 7⁄8" corner radius |
| Well interior | 20" L × 12" W × 8" H (each) |
| Controls | Remote stainless panel, 4' tether, infinite dial & power light per well |
| Drain system | 1" copper manifold with master shut-off, ½" ball valve per well, drain plug supplied |
| Construction | 18/8 stainless steel well & flange; foam-in-place insulation |
| Certifications | UL, CUL, NSF, Made in USA |
| Warranty | Standard Vollrath one-year warranty (details) |
Best-practice operation
- Always operate with water in each well to maintain even heat and comply with NSF4.
- Use adapter bars when holding fractional pans for maximum steam coverage.
- Indoor use only; ambient HVAC conditions can affect holding temperature.
Important: Drop-ins are built to order and are not returnable or cancelable once in production.
Looking for marine-grade corrosion resistance? Add the “HD” suffix when ordering.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
21.5in
Width
66.88in
Depth
18.0in
Shipping Weight
161.0lbs
Controls
infinite controls
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Insulated or Non-Insulated
insulated
Construction
stainless steel construction
Drain
with drain
Wet or Dry operation
wet
Specifications
Short Sided Hot Well, Drop-In, (3) pan, infinite controls, manifold drain, 1875 watts, 120v/60/1-ph, 15.6 amps, NEMA 5-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
