Vollrath 36642HD Steam Tables & Food Wells
Vollrath 36642HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36642HD Steam Tables & Food Wells
Description

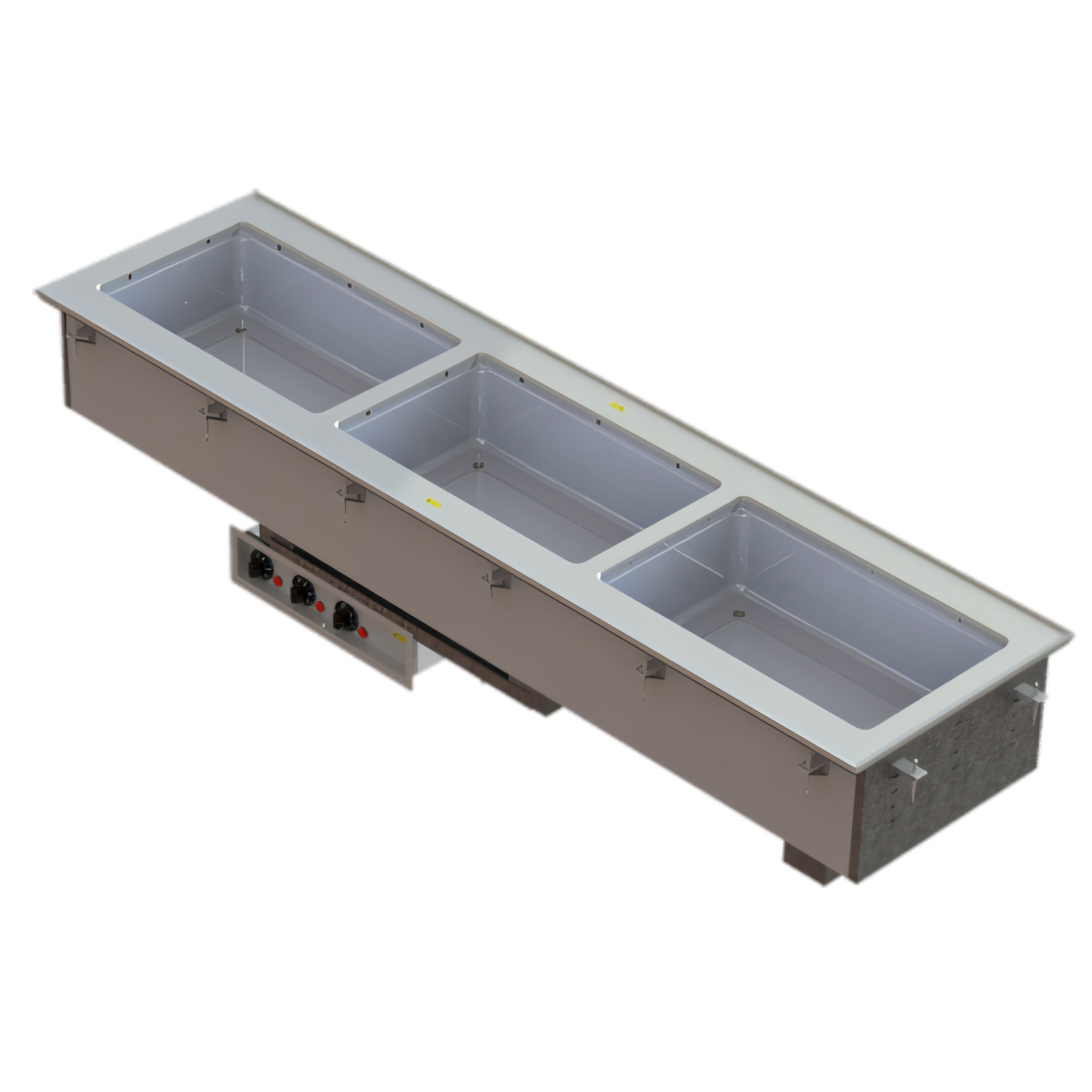

Vollrath Short-Side Modular Drop-In Hot Well – 3 Pan, Marine-Grade, 120 V
Model 36642HD • Thermostatic controls • Standard drainsGive your serving line a sleek, space-saving advantage. This 3-well Short-Side Hot Drop-In turns full-size pans sideways for a narrow 18-inch presentation, putting hot entrées and sides within easy reach while preserving valuable counter depth. Built from 18-gauge 316 marine-grade stainless steel, the unit thrives in the toughest commercial environments and resists the pitting and corrosion that defeat ordinary wells.
Key Advantages

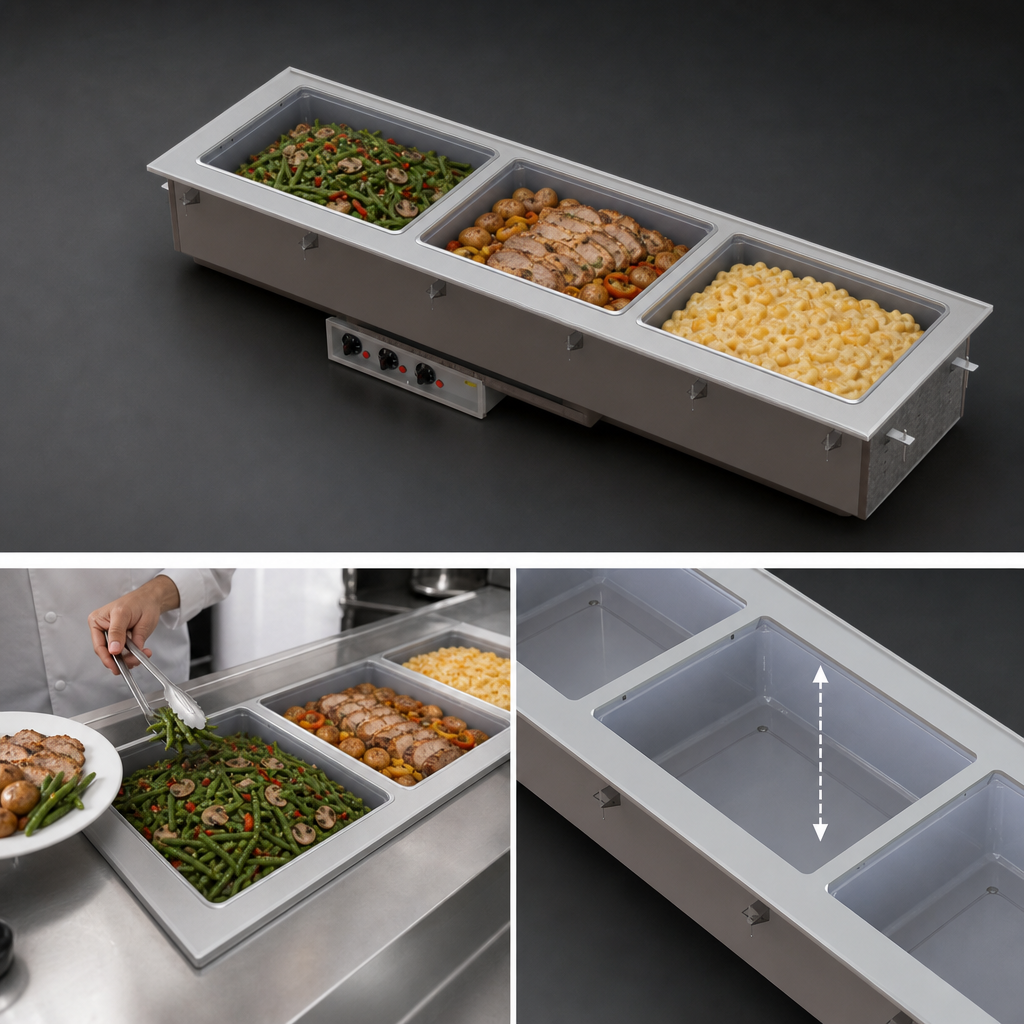

- Rotated 20" × 12" wells accept full-size or fractional pans up to 6" deep.
- Individual thermostatic controls (knob & pilot light) maintain precise holding temperatures.
- Full-perimeter drip edge with included gasket keeps moisture off countertops.
- Standard ½" drains with ball valves and removable drain plug speed cleanup.
- Stainless steel exterior housing packed with thick polyurethane foam for outstanding insulation.
- Ships with a 6' cord & NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance, top-mount design with mounting clips for counters up to 3" thick.
- UL, cUL, and NSF listed; proudly Made in the USA.
At-a-Glance Specs
| Capacity | 3 full-size pans, sideways orientation |
|---|---|
| Control type | Independent thermostatic |
| Total wattage | 1875 W (625 W per well) |
| Electrical rating | 120 V / 60 Hz / 1-phase, 15.6 A |
| Plug | NEMA 5-20P, 6 ft (1.8 m) cord |
| Overall dimensions | 66-7/8" L × 18" W |
| Counter cut-out | 66-1/16" L × 17-1/4" W, 7/8" corner radius |
| Well size (each) | 20" L × 12" W × 8" D |
| Construction | 18-ga 316 marine-grade stainless steel top, stainless housing |
| Insulation | Foamed-in-place polyurethane, all sides & between wells |
| Certifications | UL, cUL, NSF 4 |
| Origin | Made in USA |
Ideal Applications
- QSR & fast-casual service lines where space is tight.
- Grab-and-go markets needing ADA-compliant reach depths.
- Buffets and cafeterias looking for a cleaner, drip-free counter.
For even heating, operate with water (moist heat). Adapter bars are recommended when using fractional pans.
Two-year manufacturer’s warranty against defects in materials and workmanship. See vollrathfoodservice.com for full policy details.
