Vollrath 3664230HD Steam Tables & Food Wells
Description

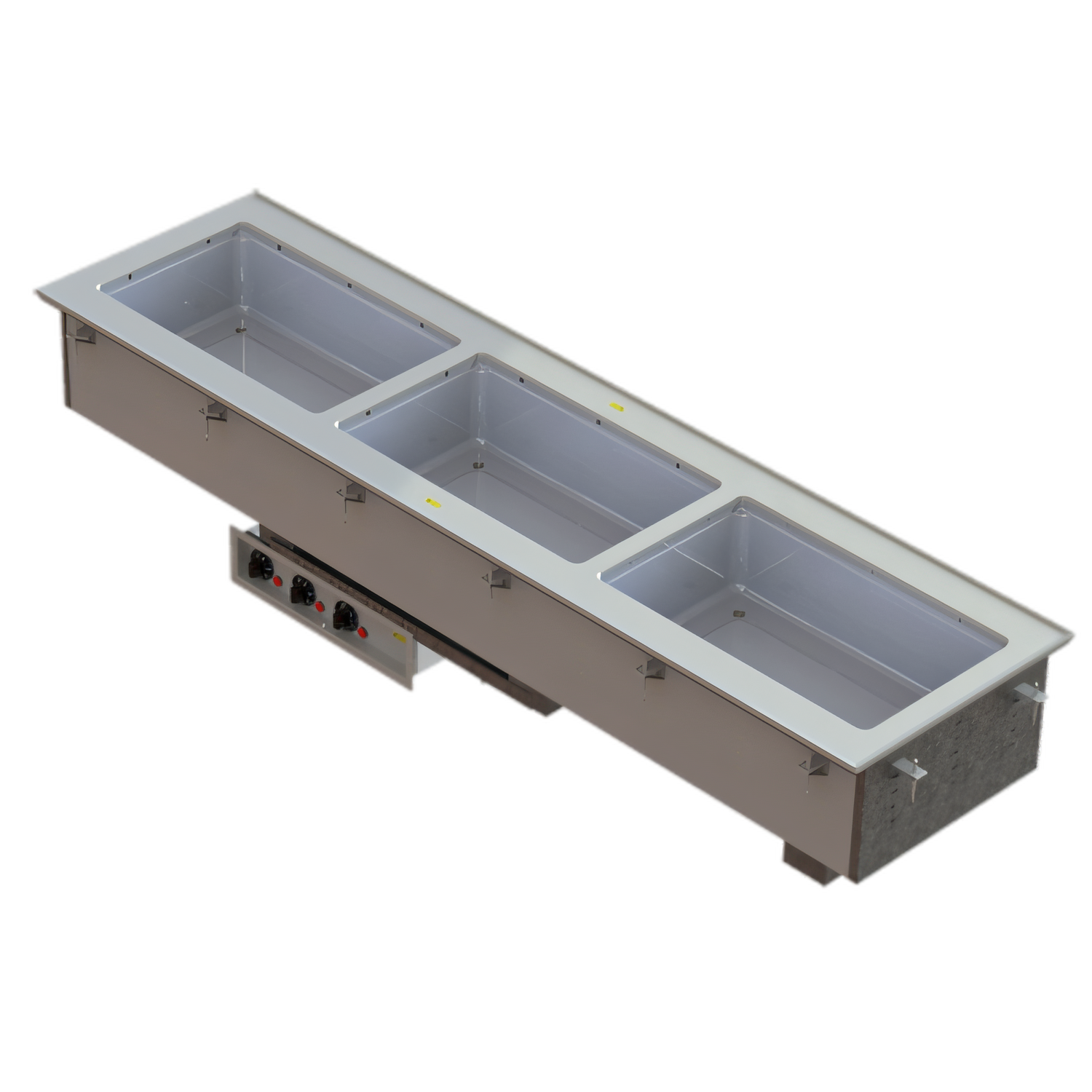

Vollrath Short-Side 3-Pan Hot Well Drop-In – Marine-Grade, Thermostatic, Auto-Fill
Model 3664230HD | 120 V • NEMA 5-20P • Made in USAGive your buffet or serving line a slimmer footprint without sacrificing pan capacity. This Vollrath short-side drop-in hot well turns three full-size pans sideways, bringing food closer to the customer while fitting counters as narrow as 18 inches deep. Built from 18-gauge, SAE 316 marine-grade stainless steel and packed with operator-friendly features—including automatic water fill and a 1-inch manifold drain—this unit delivers reliable, NSF-listed hot holding in even the most demanding commercial environments.
Key Features & Benefits

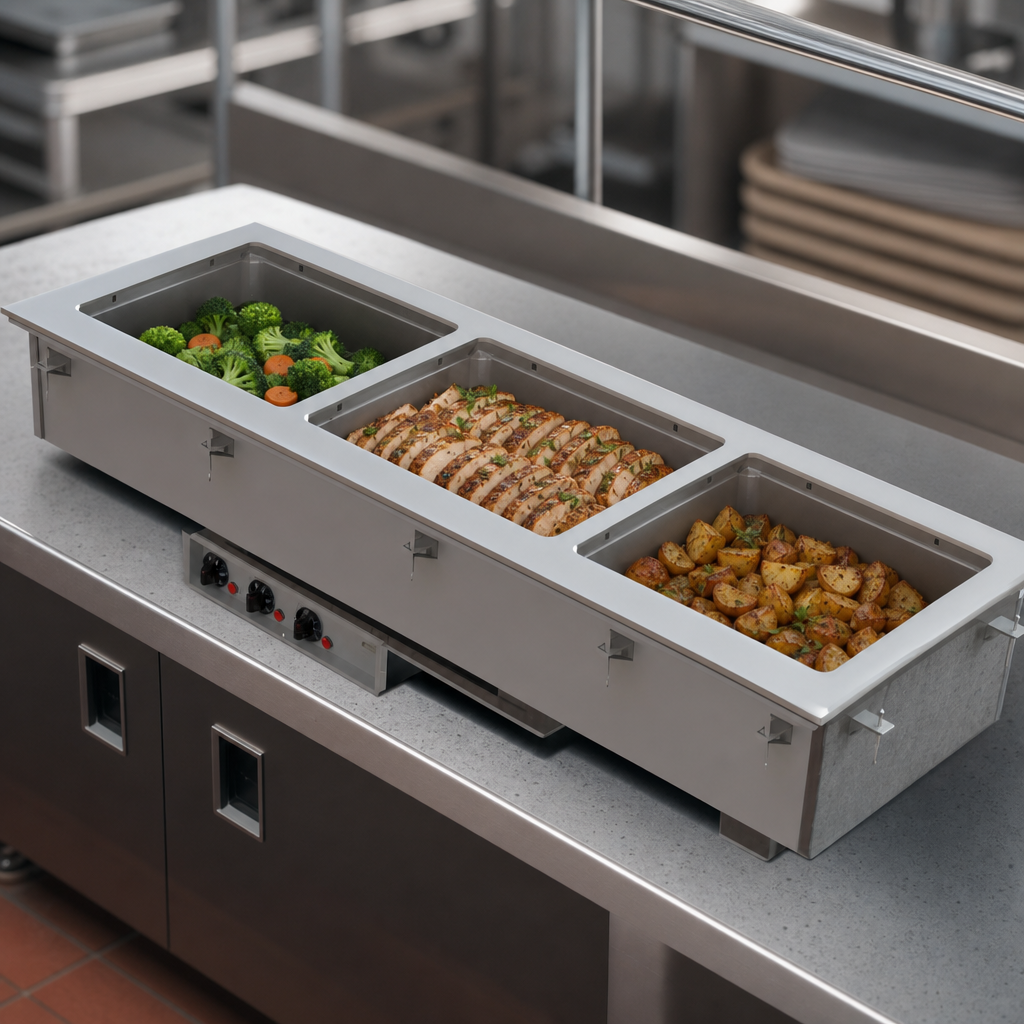

- Slim profile: rotates three 20 × 12 in full-size pans sideways for an overall depth of just 18 in (45.7 cm).
- Corrosion-proof well: 18-gauge, 316 marine-grade stainless steel resists salt, chlorides and harsh cleaners.
- Precise holding: individual thermostatic controls maintain safe temperatures while minimizing energy use.
- Automatic water level control keeps wells at the optimal height for consistent moist heat.
- 1 in (2.5 cm) copper manifold drain with master shut-off plus included drain plug for fast, mess-free cleanup.
- 8-in deep, fully insulated wells accept pans up to 6-in deep; insulation between wells reduces heat loss.
- Full-perimeter drip edge and gasket protect surrounding counters from condensation.
- 6 ft (1.8 m) cord with factory-installed NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance installation and removable service panels accelerate set-up and maintenance.
- UL, CUL and NSF listed; backed by a two-year limited warranty.
Technical Specifications
| Pan Capacity | 3 full-size (20 × 12 in) pans, up to 6 in deep |
|---|---|
| Total Wattage | 1,875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase • 15.6 A • NEMA 5-20P |
| Control Type | Individual thermostatic knobs with power indicator lights |
| Water Management | Auto-fill system • 1 in copper manifold drain with master valve • ½ in individual ball valves |
| Well Size (each) | 20 × 12 in (50.8 × 30.5 cm) × 8 in (20.3 cm) deep |
| Overall Dimensions | 66 ⅞ × 18 in (169.8 × 45.7 cm) |
| Counter Cut-Out | 66 ¹⁄₁₆ × 17 ¼ in (167.9 × 43.8 cm) with ⅞ in (2.2 cm) corner radius |
| Construction | 18-gauge 316 stainless top, stainless exterior housing, polyurethane foam insulation |
| Certifications | UL, CUL, NSF |
| Country of Origin | United States of America |
Installation & Operating Notes
- Designed for top-mount, indoor use only.
- Unit meets NSF 4 performance standards only when operated with water in the well.
- Opening cut-out must have a ⅞ in (2.2 cm) corner radius.
- Modular drop-ins are custom-built items and cannot be cancelled or returned once ordered.
Optional Accessories
- Sheet-pan adapter bar – item #19186 (recommended when using fractional pans).
Two-year limited warranty against defects in materials and workmanship. Please refer to the full policy at vollrathfoodservice.com.
