Vollrath 3664230 Steam Tables & Food Wells
Description

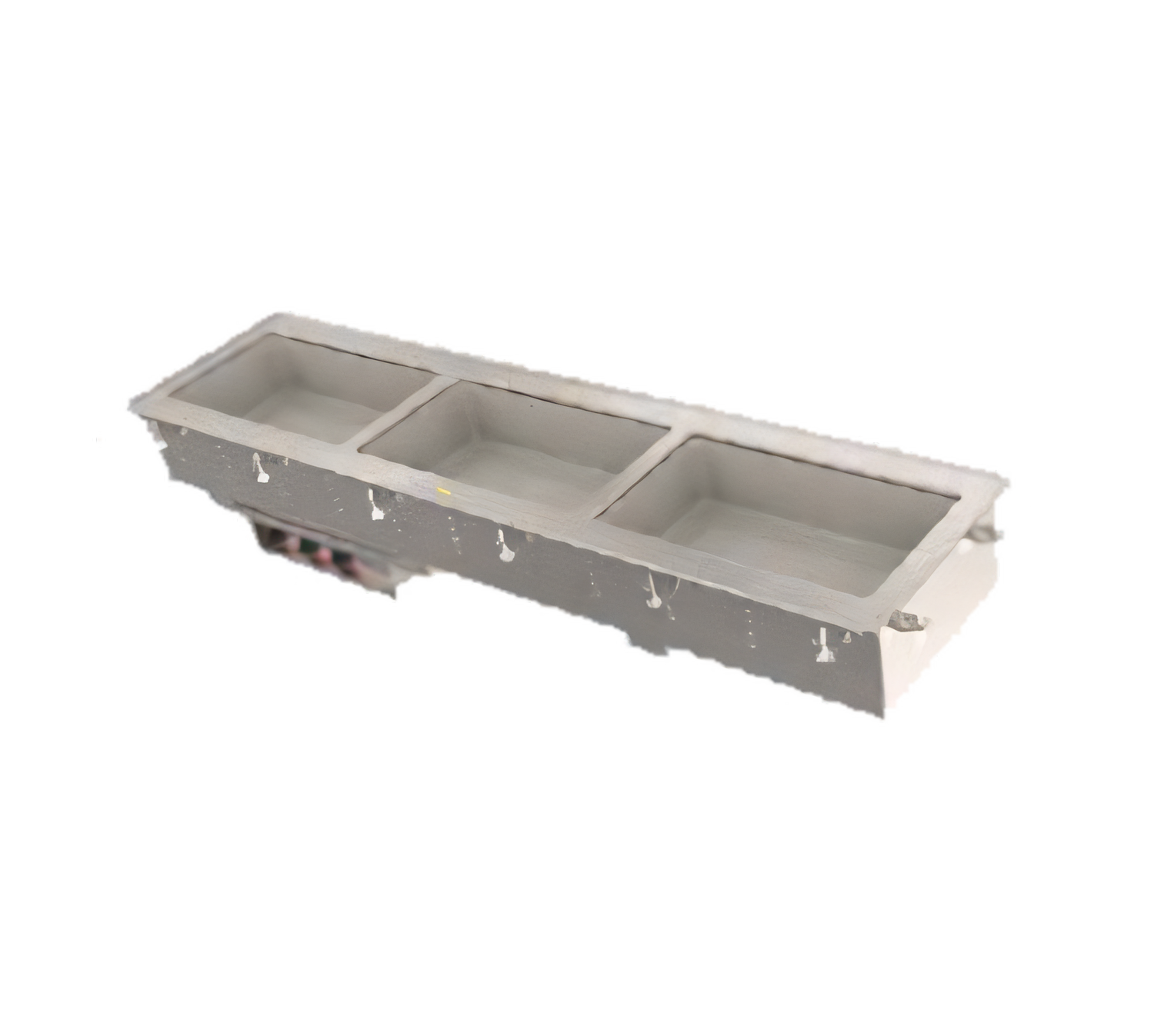

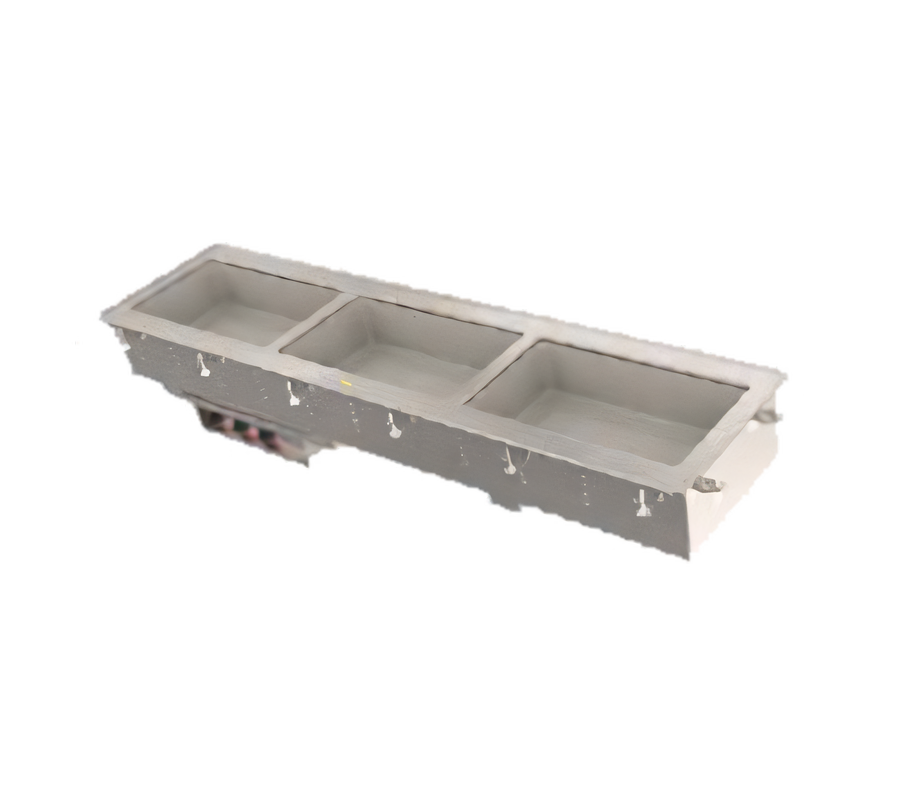

Vollrath Short Side 3-Pan Hot Well Drop-In with Auto-Fill & Manifold Drain
Model 3664230 | 120 V | NEMA 5-20PBring full-size hot-holding performance to narrow counters. This Vollrath Short Side Drop-In rotates food pans sideways, giving staff and guests an easier reach while saving valuable depth. Independent thermostatic controls, automatic water fill and an integrated manifold drain simplify operation from breakfast rush through closing.
Why you’ll love it
- Narrow 18 in (45.7 cm) footprint—perfect for shallow counters or front-of-house serving lines.
- Three 20 × 12 in wells (8 in deep) accept full or fractional pans up to 6 in (15.2 cm).
- Individual thermostatic dials with power lights for precise, independent temperature control.
- Auto-fill system maintains proper water level for consistent, even moist heat.
- 1 in copper manifold drain with master shut-off and included drain plug streamlines cleanup.
- 18/8 (300-series) stainless-steel top flange & wells resist corrosion and wipe clean quickly.
- Thick polyurethane foam insulation on all sides—keeps heat in and energy costs down.
- Full-perimeter drip edge helps keep countertops dry and sanitary.
- Remote stainless control panel on a 4 ft (122 cm) tether for flexible mounting.
- 6 ft (1.8 m) cord with NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance installation, UL / CUL / NSF listed & proudly Made in the USA.
At-a-glance specs
| Item # | 3664230 |
|---|---|
| Wells | 3 (side-oriented) |
| Control type | Independent thermostatic |
| Total wattage | 1,875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-Ph — 15.6 A | NEMA 5-20P |
| Overall dimensions (W × D) | 66-7/8 × 18 in (169.8 × 45.7 cm) |
| Cut-out size (W × D) | 66-1/16 × 17-1/4 in (167.9 × 43.9 cm) |
| Corner radius | 7/8 in (2.2 cm) |
| Well opening | 20 × 12 in (50.8 × 30.5 cm) |
| Well depth | 8 in (20.3 cm) |
| Drain | 1 in manifold w/ master shut-off & ball valves; drain plug included |
| Construction | 18/8 stainless steel with polyurethane foam insulation |
| Certifications | UL, CUL, NSF |
| Origin | Made in USA |
Using fractional pans? Vollrath adapter bars (sold separately) are recommended for the best fit.
