Vollrath 3664220HD Steam Tables & Food Wells
Description

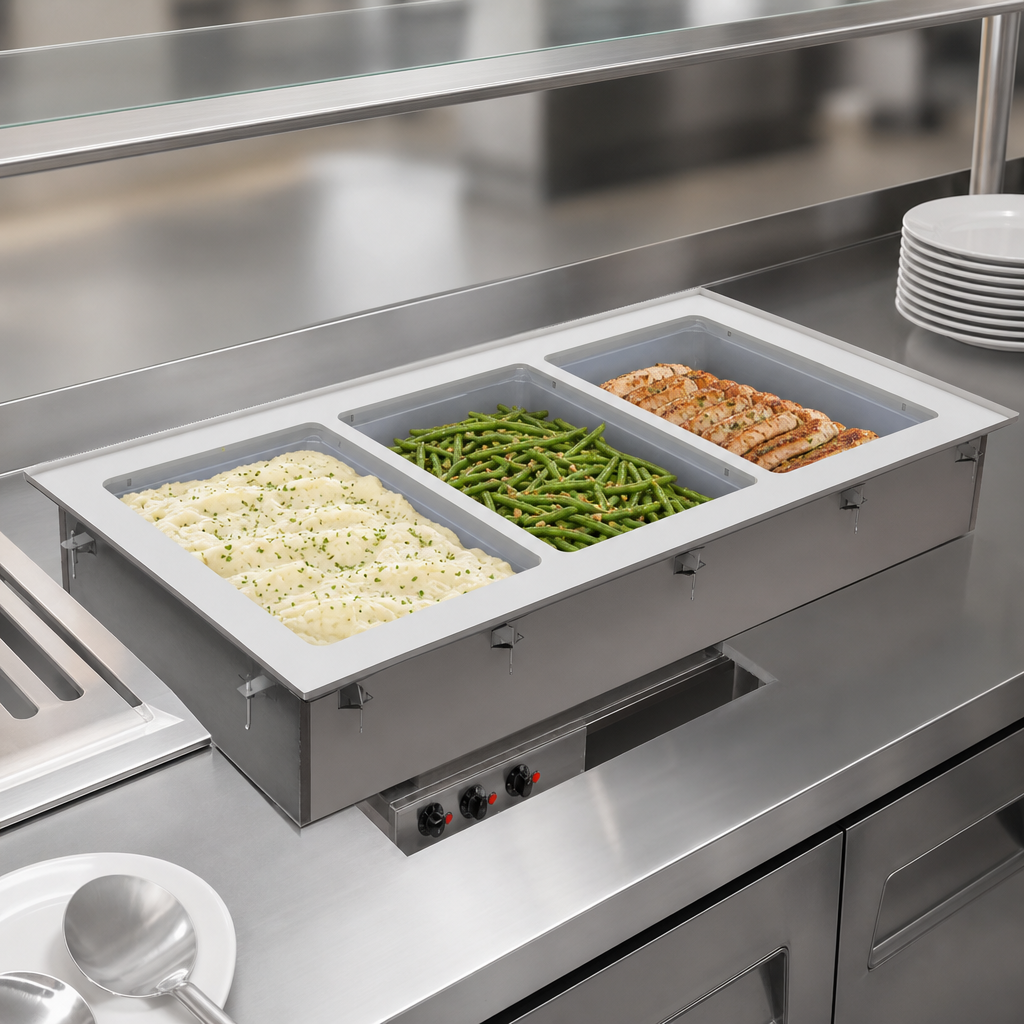

Vollrath Short-Side Modular Hot Well – 3 Pan, Marine-Grade (Model 3664220HD)
120 V | 1 ,875 W | Thermostatic Controls | Manifold DrainIdeal for tight counter depths and forward-facing serving lines, this Vollrath short-side hot drop-in rotates full-size pans sideways so every portion is within easy reach. The 18-gauge, 316 marine-grade stainless steel well delivers industry-leading corrosion resistance, while thick polyurethane insulation keeps heat focused on your food—not your countertop.
Key benefits
- Three full-size wells supply 625 W each for fast, even holding (1 ,875 W total).
- Independent thermostatic controls with bright power indicators for precise temperatures.
- 1" copper manifold drain with master shut-off + ½" individual ball valves for mess-free cleanup.
- Full-perimeter drip edge & included gasket prevent condensation on surrounding surfaces.
- Accepts pans up to 6" deep; adapter bars available for fractional pans.
- Zero-clearance, top-mount design ships ready to plug in—no hard-wiring required.
- 6' (1.8 m) cord with NEMA 5-20P plug; UL, cUL & NSF listed; made in the USA.
Technical specifications
| Total wells / Pan size | 3 wells – holds (3) 20" × 12" full-size steam-table pans (side-to-side) |
|---|---|
| Total wattage | 1 ,875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase, 15.6 A, NEMA 5-20P plug |
| Controls | Remote stainless-steel panel, thermostatic knobs, 4' (1.22 m) tether |
| Well construction | 18-ga 316 marine-grade stainless top; stainless exterior housing |
| Insulation | Polyurethane foam on all non-exposed sides & between wells |
| Drain | 1" copper manifold with master shut-off, ½" ball valves, drain plug included |
| Overall dimensions | 66-7/8" W × 18" D |
| Counter cut-out | 66-1/16" W × 17-1/4" D, 7/8" corner radius |
| Well depth | 8" (20.3 cm) deep; designed for pans up to 6" deep |
| Mounting hardware | Clips for counters up to 3" (7.6 cm) thick |
| Certifications | UL, cUL, NSF |
| Warranty | 2-year limited (see vollrathfoodservice.com for details) |
| Country of origin | USA |
Installation & operation notes
- Indoor use only—ambient temperature & HVAC airflow can affect holding performance.
- Use with moist heat (water) to meet NSF 4 food-holding standards.
- Maintain the specified cut-out size and 7/8" corner radius for a proper seal.
Accessories (adapter bars, pans, etc.) shown in photos are sold separately.
