Vollrath 3-Pan Short-Side Drop-In Hot Well with Manifold Drain and Thermostatic Controls
Vollrath 3-Pan Short-Side Drop-In Hot Well with Manifold Drain and Thermostatic Controls
120V, Wet Operation, Insulated Stainless Steel
This narrow-format hot well turns full-size pans sideways for a more compact presentation and easier reach on busy serving lines.
- Short-side layout turns full-size pans sideways for a narrower serving presentation.
- Three-pan capacity suits buffet lines and food bars with limited front-to-back space.
- Thermostatic controls help maintain consistent warming temperatures.
- 18/8 stainless steel construction with thick polyurethane foam insulation helps retain heat.
- Manifold drain, included drain plug, and full perimeter drip edge simplify cleanup.
- 120V, 60 Hz, single-phase power with a NEMA 5-20P plug.
Overall Dimensions:
66.88"W x 18.0"D x 21.5"HProduct Weight:

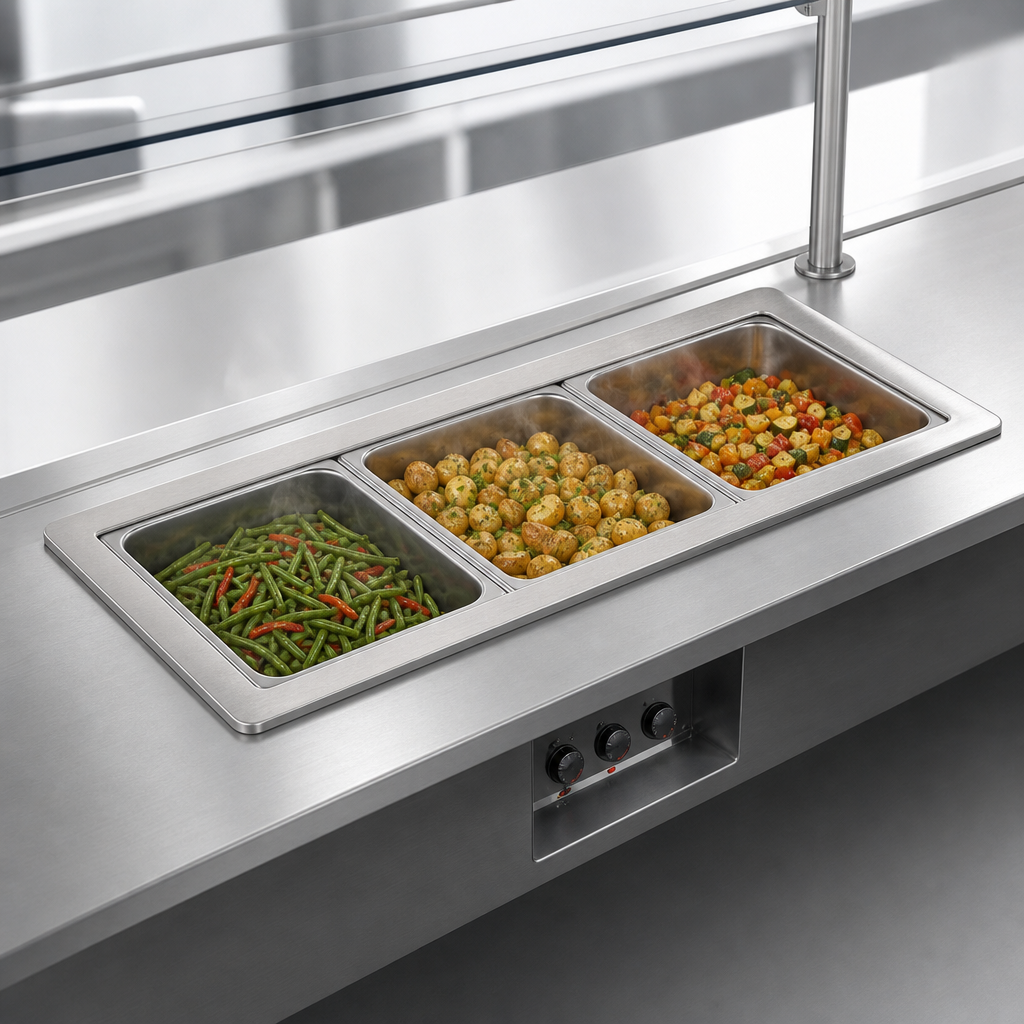

171.0 lbShort-Side Pan Orientation
Turns full-size pans sideways for a narrower presentation and easier reach along the serving line.
Three-Pan Capacity
Sized to hold (3) full-size 12" x 20" pans.
Wet Operation
Designed for wet holding applications.
Thermostatic Controls
Helps maintain accurate and consistent food-warming temperatures.
Insulated Stainless Steel Construction
18/8 stainless steel construction with thick polyurethane foam insulation supports durability and heat retention.
Manifold Drain with Drain Plug
Built with a manifold drain for easier emptying; drain plug is included.
Full Perimeter Drip Edge
Helps contain spills and keep the counter area cleaner.
Installation and Well Dimensions
Overall dimensions are 66-7/8" x 18"; cutout dimensions are 66-1/16" x 17-1/4" with a 7/8" corner radius; well size is 20" x 12" with an 8" deep well.
Electrical Setup
Operates on 120V, 60 Hz, 1-phase power at 15.6 amps and uses a NEMA 5-20P plug.
Certifications & Compliance
Warranty & Protection
1-Year Warranty
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
