Vollrath 36642 Steam Tables & Food Wells
Description

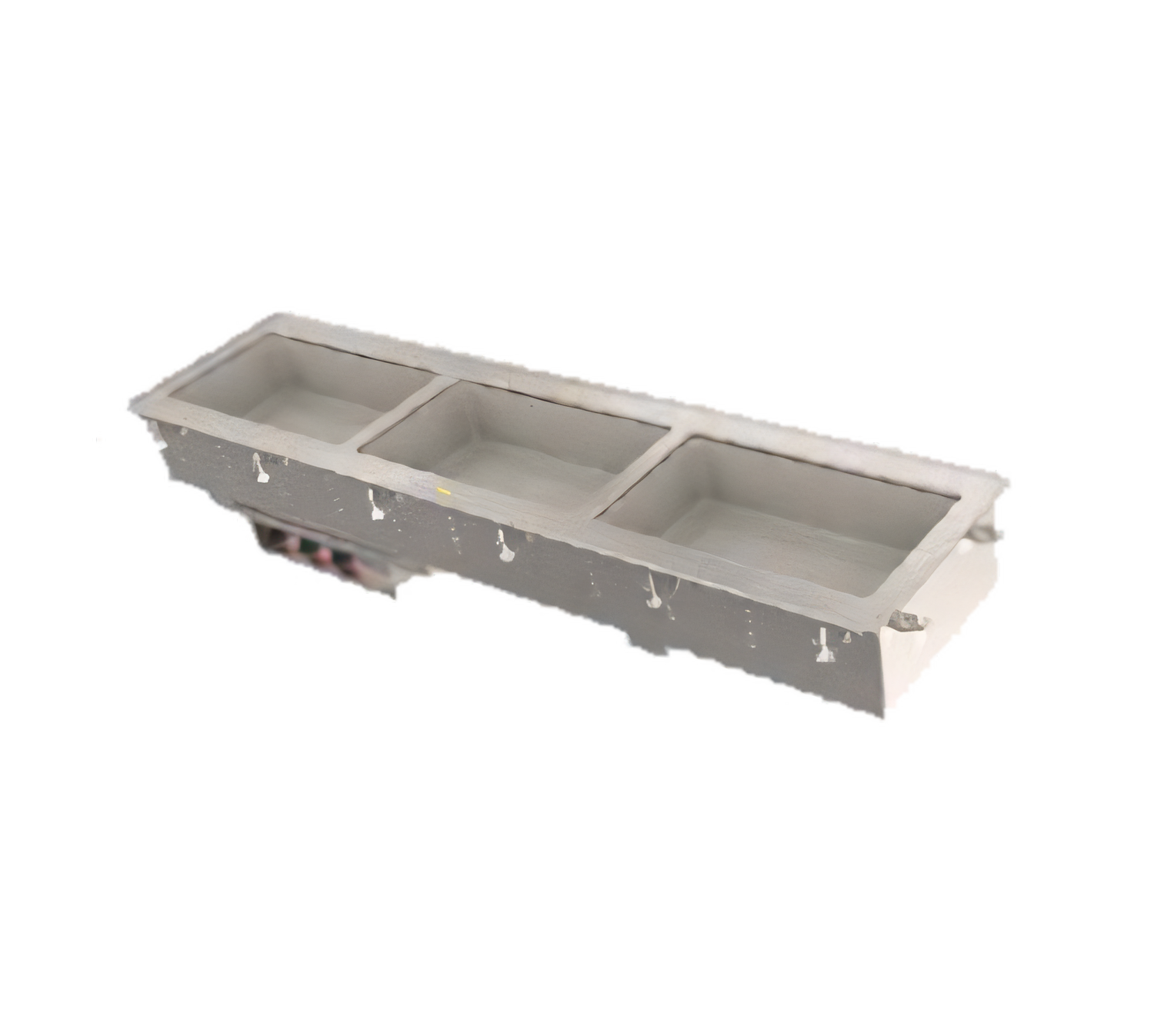

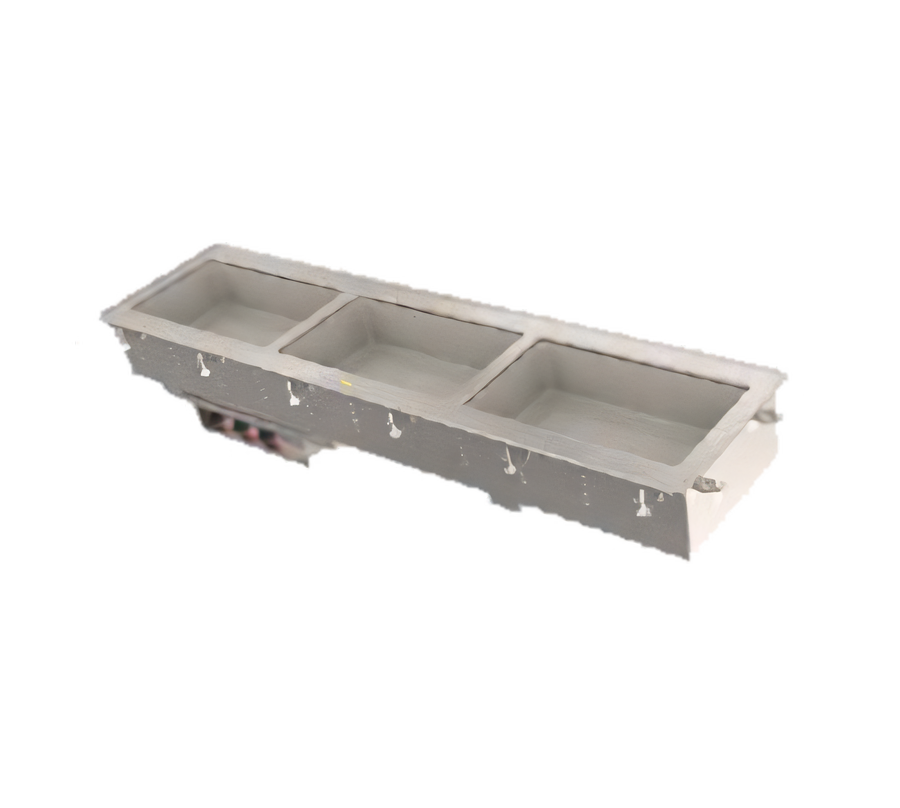

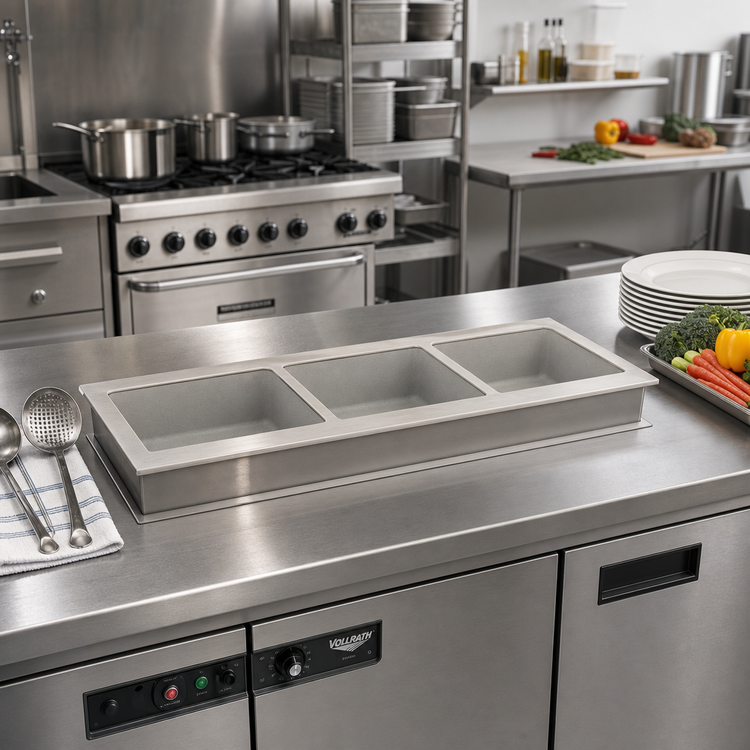

Vollrath Short Side Hot Drop-In Well – 3-Pan, Thermostatic, 120 V
Item # 36642 | Made in USADesigned for tighter counter depths, Vollrath’s short-side drop-in rotates full-size pans sideways, giving you a space-saving 18 inch presentation that keeps product within easy reach of guests and staff. A 300-series (18/8) stainless-steel well, thick polyurethane insulation and thermostatic controls ensure consistent holding temperatures and long-term durability.
Why You’ll Love It

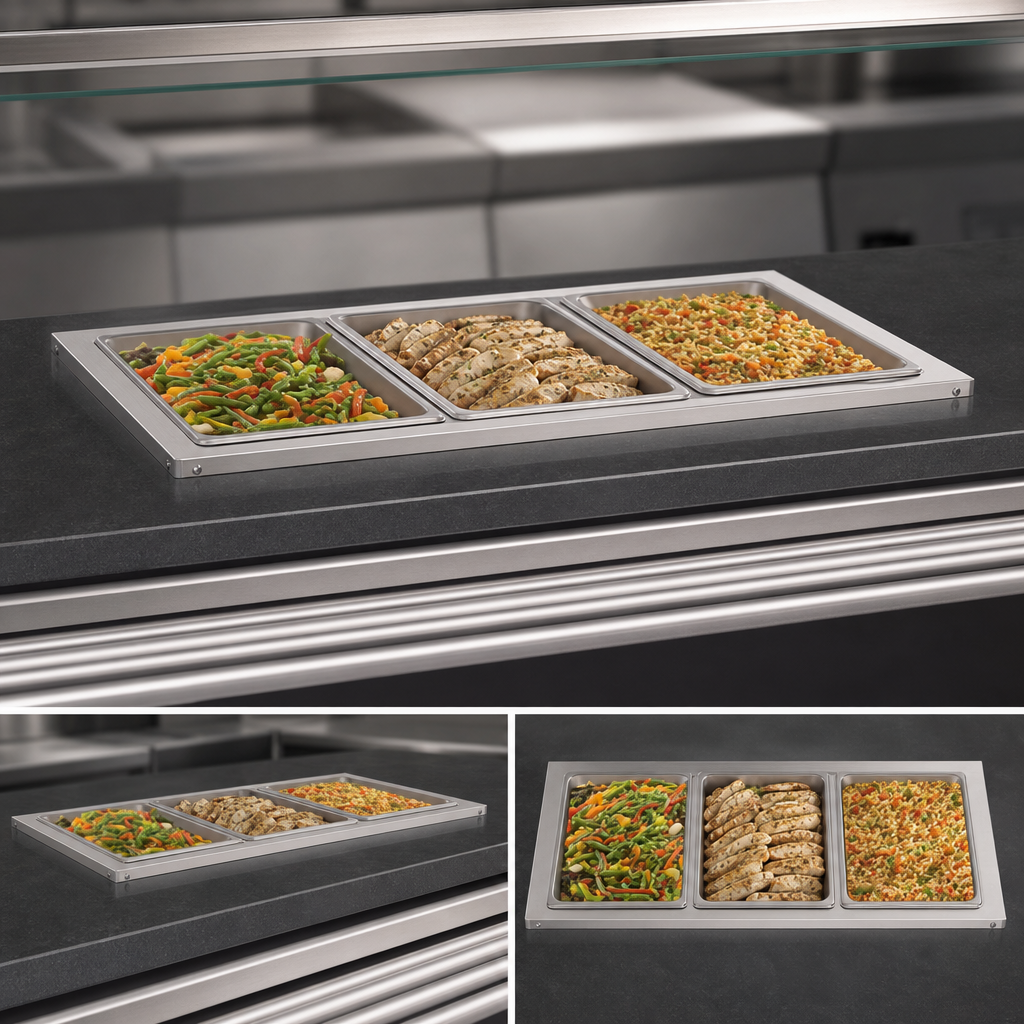

- Space-efficient footprint turns three full-size 20 × 12 in pans sideways for a narrow 18 in counter presentation.
- 1875 W total output (625 W per well) with individual thermostatic controls and power lights.
- Full-perimeter drip edge and ½ in standard drains with individual ball valves help keep counters clean.
- 8 in deep drawn well accepts pans up to 6 in deep; adapter bars available for fractional pans.
- Factory-installed 6 ft cord and NEMA 5-20P plug—no hard-wiring required.
- Zero-clearance design and included mounting clips for counters up to 3 in thick simplify installation.
- UL, CUL and NSF 4 listed for moist-heat holding; operates best with water for even heat distribution.
Technical Specifications
| Pan Capacity | 3 full-size (20 × 12 in) |
|---|---|
| Control Type | Independent thermostatic knobs with indicator lights |
| Total Wattage / Per Well | 1875 W · 625 W per well |
| Electrical | 120 V / 60 Hz / 1-ph | 15.6 A | NEMA 5-20P |
| Well Dimensions (L × W × D) | 20 × 12 × 8 in (50.8 × 30.5 × 20.3 cm) |
| Overall Dimensions (L × W) | 66 7⁄8 × 18 in (169.8 × 45.7 cm) |
| Counter Cut-out (L × W) | 66 1⁄16 × 17 1⁄4 in (167.9 × 43.8 cm) · 7⁄8 in corner radius |
| Construction | 300-series (18/8) stainless-steel flange & well, thick polyurethane foam insulation |
| Drain | ½ in standard drains with individual ball valves; drain plug included |
| Certification | UL, CUL, NSF 4 listed |
| Country of Origin | United States |
Ideal For
- Buffet or cafeteria service lines with limited counter depth
- Convenience stores and delis pulling product forward for merchandising
- Any operation seeking quicker guest access and faster pan changes
For fractional pans, Vollrath adapter bars or sheet-pan adapter Item #19186 are recommended. Drop-ins cannot be cancelled or returned once ordered.
For complete warranty details, visit vollrathfoodservice.com.
