Vollrath 36641HD Steam Tables & Food Wells

Short-Side Modular Hot Well Drop-In – 2 Pan, Infinite Control

Transform tight counter spaces into a high-output hot holding station. This Vollrath short-side drop-in rotates two full-size steam table pans sideways, creating a narrow, customer-facing presentation that’s easier to reach and reload while delivering consistent NSF-listed hot-hold performance.

Built for busy service lines

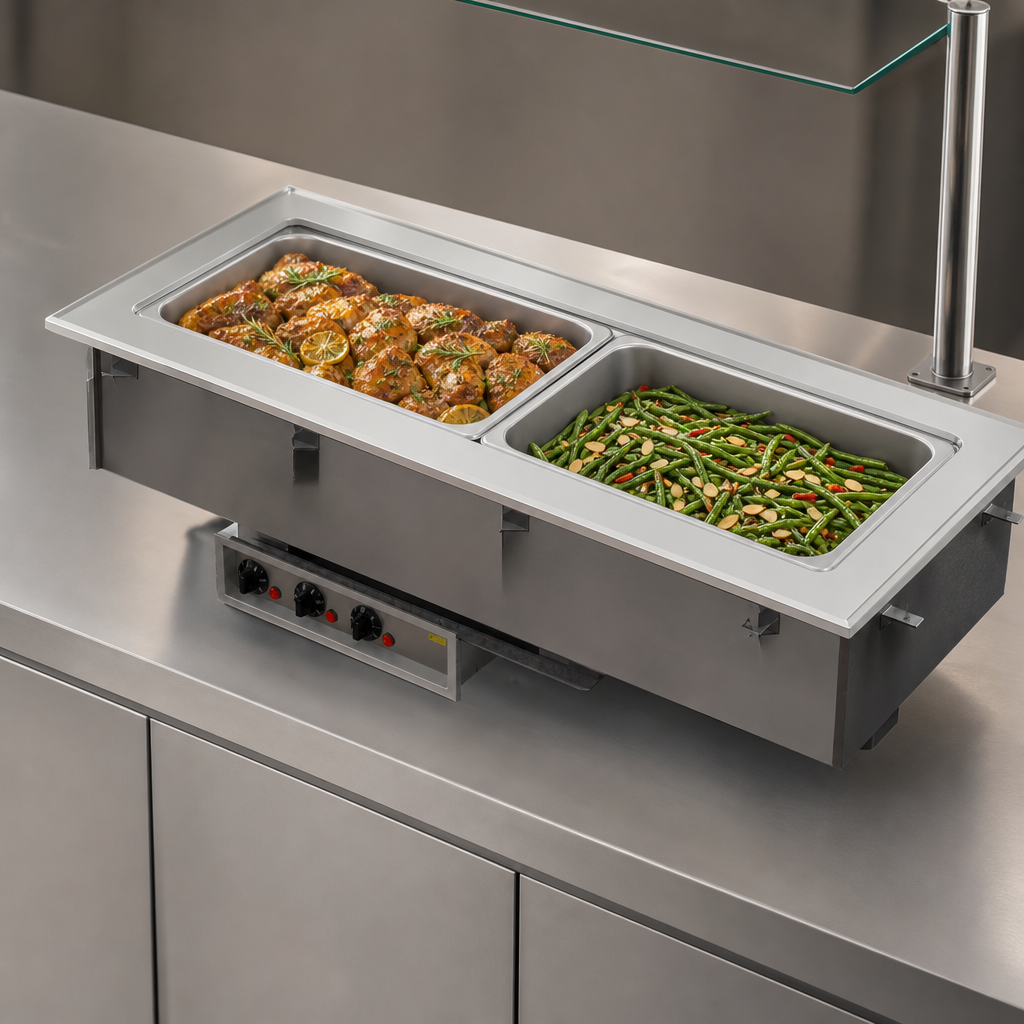

• Space-saving “short-side” orientation turns full-size pans sideways for a narrow 18 in. footprint.
• Drawn 18-gauge, Type 316 marine-grade stainless steel well resists food acids & cleaning chemicals.
• 625 W per well (1250 W total) delivers quick heat-up; infinite controls let you fine-tune holding temps.
• Full-perimeter drip edge plus individual ½ in. ball-valve drains keep counters clean.
• Thick polyurethane foam insulation on every side—including between wells—for energy efficiency.
• Ships pre-wired with 6 ft NEMA 5-15P cord; no hard-wiring required.
• Zero-clearance design drops into counters up to 3 in. thick with included mounting clips & gasket.
• Remote stainless control panel (4 ft tether) with power indicator for each well.

Technical specifications

Installation & operating notes

• Indoor use only; ambient room temperature & HVAC can affect holding temps.
• Meets NSF 4 hot-hold performance standards only when operated with water (moist heat).
• Designed to hold pre-heated foods. Do not use for re-thermalizing refrigerated product.
• Opening cutout must have a 7/8 in. corner radius.

Recommended accessories

• Sheet pan adapter bar  (Vollrath #19186, sold separately)
• Standard adapter bars for fractional pans

Peace-of-mind coverage

Backed by a 2-year Vollrath warranty against defects in materials and workmanship. See full policy at vollrathfoodservice.com.
