Vollrath 3664130 Steam Tables & Food Wells
Description

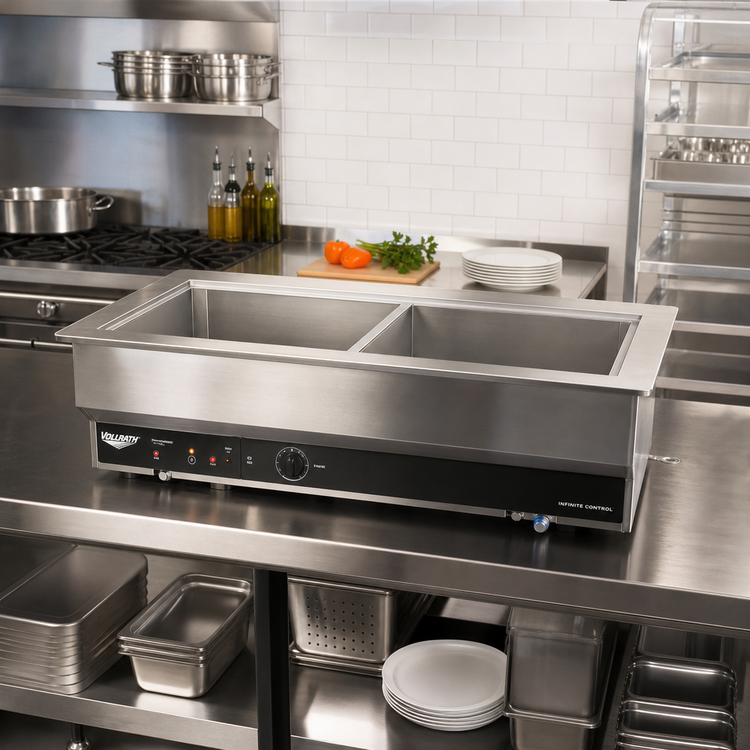

Vollrath Short-Side Drop-In Hot Well – 2-Pan, Auto-Fill, Manifold Drain
Model 3664130 • Infinite Controls • Plug-in 120 VDesigned for counters where every inch counts, the Vollrath Short-Side Hot Drop-In rotates two full-size 12 × 20 in pans sideways, giving you the same capacity in a slim 18 in-deep footprint. An integrated auto-fill system, energy-saving insulation and tool-free installation make this USA-made unit a smart upgrade for buffet lines, cafeterias and QSR kitchens.
Why you’ll love it

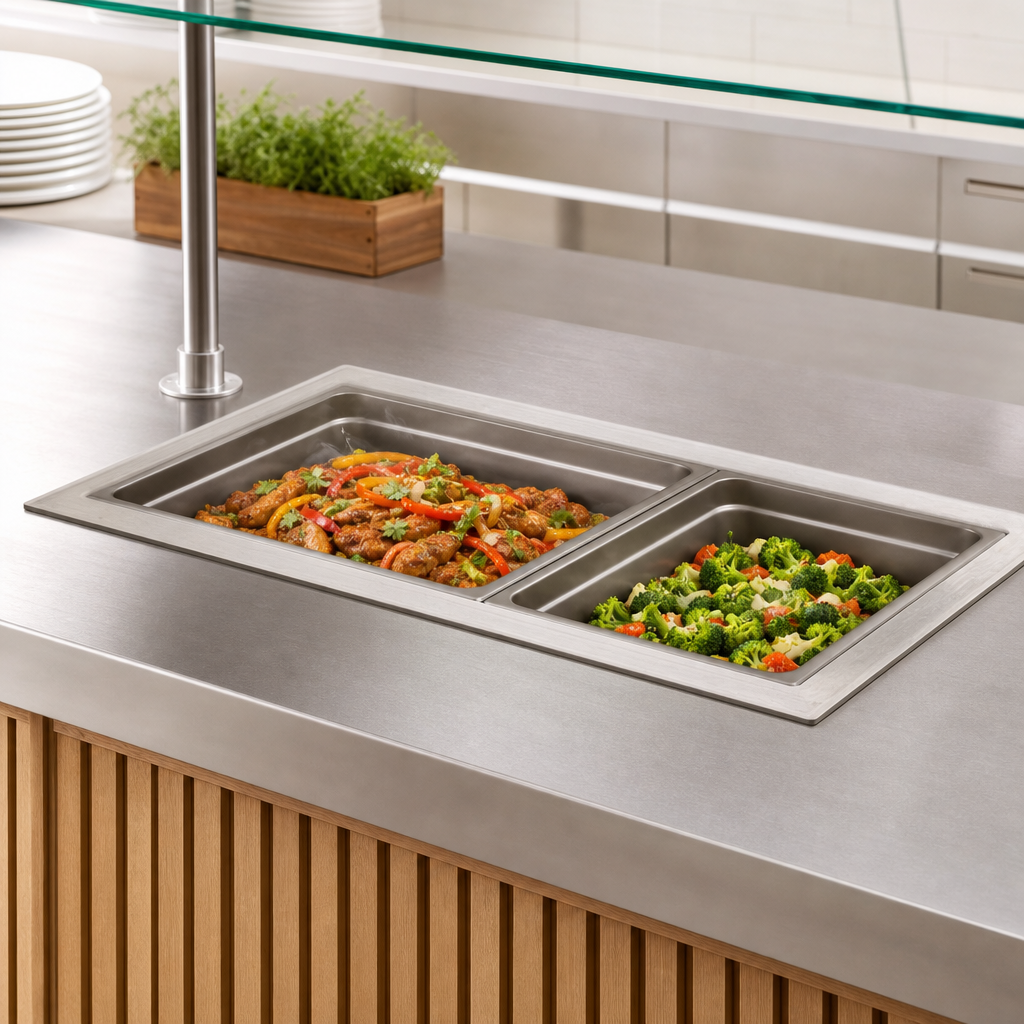

- Side-turned wells create a narrow presentation for easier reach and tighter counter layouts.
- Auto-fill keeps water at the correct level for steady steam heat and lower labor.
- 1 in copper manifold drain with master shut-off plus individual ball valves—drain plug included.
- Individual infinite controls with power lights let you fine-tune each well independently.
- Remote stainless-steel control panel (4 ft tether) mounts where it’s most convenient.
- 18/8 (300-series) stainless steel flange & wells resist corrosion and clean up fast.
- Full-perimeter drip edge helps keep condensation off your countertop.
- Thick polyurethane foam insulation on all non-exposed sides—lower energy use & cooler exterior.
- Zero-clearance, top-mount design with included gasket and clips installs on counters up to 3 in thick.
- Accepts full-size or fractional pans up to 6 in deep (adapter bars recommended for fractional pans).
- 6 ft cord with NEMA 5-15P plug—no hard-wiring required.
- UL, cULus & NSF listed; proudly Made in the USA.
Technical details
| Capacity | 2 full-size (12 × 20 in) pans, sideways orientation |
|---|---|
| Control type | Infinite, individual knobs with indicator lights |
| Water management | Auto-fill system; 1 in copper manifold drain with master shut-off |
| Well size (each) | 20 × 12 in, 8 in deep |
| Overall dimensions | 45 1⁄2 × 18 in (W × D) |
| Counter cut-out | 44 11⁄16 × 17 1⁄4 in; 7⁄8 in corner radius |
| Construction | 18/8 stainless steel well & flange; full-perimeter gasket included |
| Insulation | High-density polyurethane foam on all sides and between wells |
| Electrical | 1250 W, 120 V, 60 Hz, 1-ph, 10.4 A, NEMA 5-15P |
| Cord length | 6 ft (1.8 m) |
| Certifications | UL, cULus, NSF |
| Origin / Warranty | Made in USA • See vollrathfoodservice.com for full warranty policy |
Meets NSF 4 performance standards only when operated with water.
