Vollrath  |  SKU: 3664120HD

Vollrath 3664120HD Steam Tables & Food Wells

$2,489.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

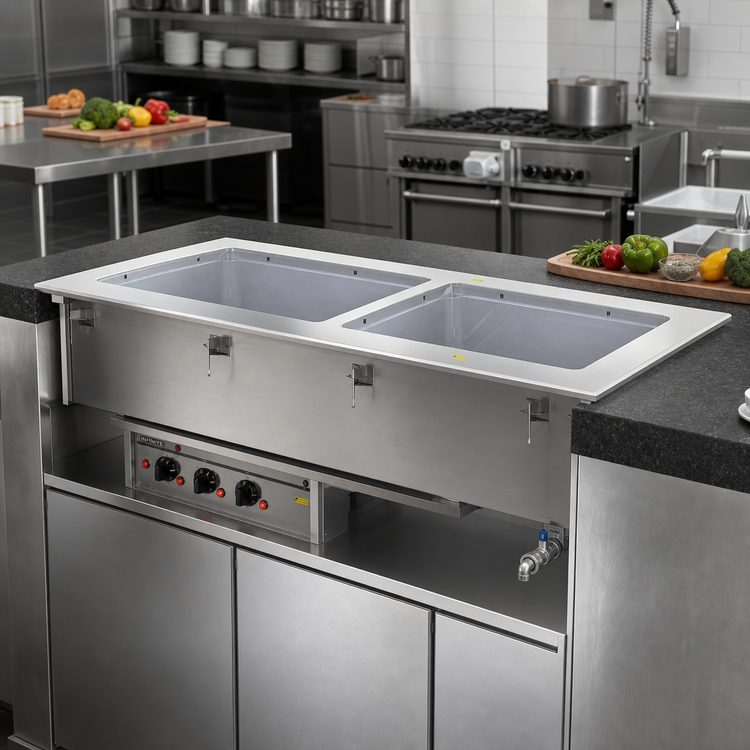

Vollrath Short-Side Drop-In Hot Well – 2 Pan, Marine-Grade

Model 3664120 • Infinite Controls • Manifold Drain • 120 V

Maximize every inch of counter space without sacrificing holding power. This Vollrath short-side hot well rotates two full-size pans sideways, delivering a slim 18 inch presentation that’s easier for guests to reach and perfect for compact cook-lines, buffets, and kiosks.

Key Features & Benefits

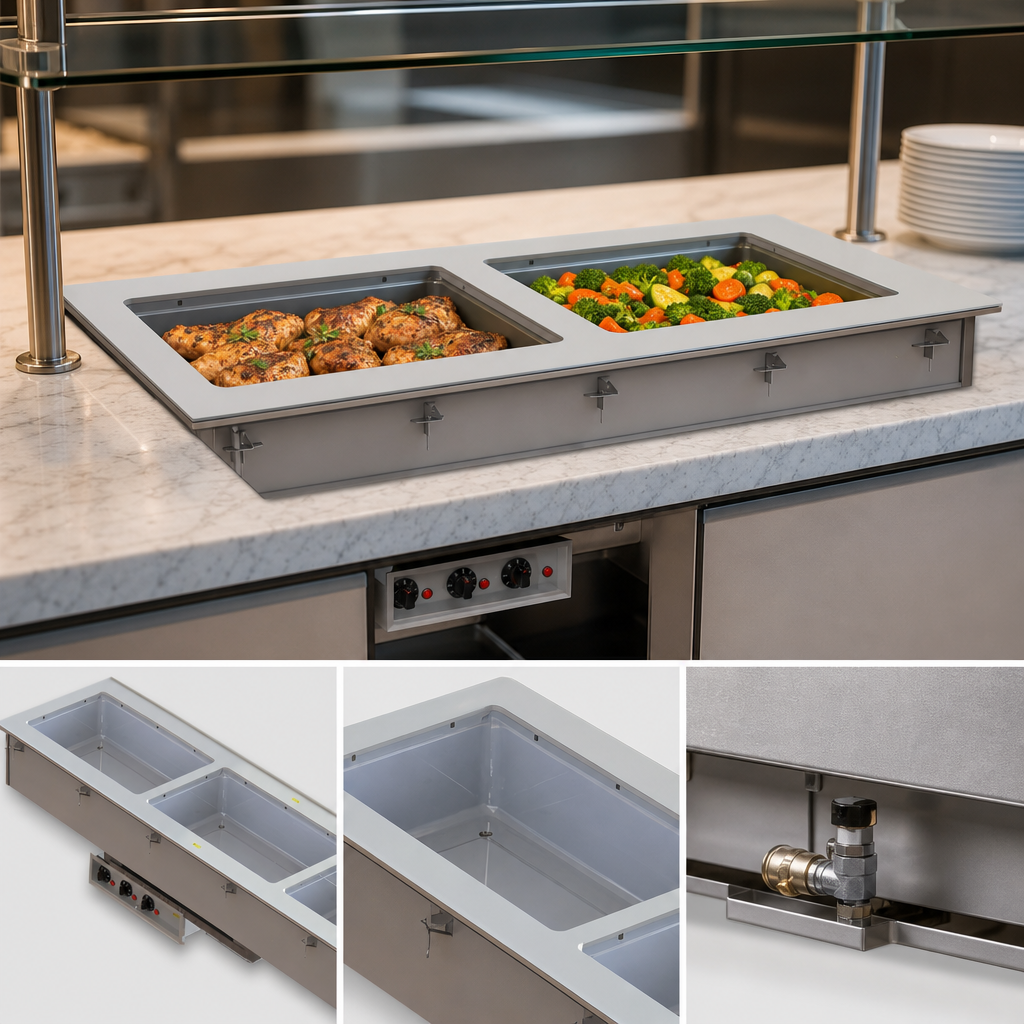

  • Narrow 18 in. footprint turns (2) 20 × 12 in. full-size pans sideways for easy reach.
  • 18-gauge, 316 marine-grade stainless well for superior corrosion resistance to salt, acid & chemicals.
  • Individual infinite controls let you fine-tune holding temps for each well.
  • 1 in. copper manifold drain with master shut-off speeds clean-up; drain plug included.
  • Thick polyurethane foam insulation on every side (including between wells) boosts efficiency and keeps exterior surfaces cool.
  • Full-perimeter drip edge and included gasket keep condensation off the counter.
  • Ships with 6 ft cord and NEMA 5-15P plug—no hard-wiring required.
  • Zero-clearance installation with removable bottom service panels for easy maintenance.
  • UL, CUL & NSF listed; proudly Made in the USA.

Specifications

Capacity (2) full-size steam table pans, up to 6 in. deep
Controls Infinite manual dial (1 per well), remote stainless panel, 4 ft tether
Heating Output 1,250 W total (625 W per well)
Electrical 120 V / 60 Hz / 1-ph, 10.4 A
Plug / Cord NEMA 5-15P, 6 ft (1.8 m) cord
Drain 1 in. copper manifold with master shut-off & ½ in. individual ball valves
Well Interior 20 × 12 in. x 8 in. deep, 18-ga 316 stainless
Top Flange 18-ga / 316 marine-grade stainless steel
Exterior Housing Stainless steel with high-density foam insulation
Overall Dimensions 45-1/2 in. L × 18 in. W
Cut-Out Required 44-11/16 in. L × 17-1/4 in. W (7/8 in. corner radius)
Certifications UL, CUL, NSF
Origin Made in USA

What’s Included

  • Drop-in hot well assembly
  • Remote stainless control panel with mounting screws
  • Under-mount gasket & mounting clips (for counters up to 3 in.)
  • Drain plug
  • Installation & operation manual

This unit is designed for moist heat only; operate with water in the well for even temperature distribution. Indoor use only.

Compatible Accessories (sold separately)

  • Sheet Pan Adapter Bar – Vollrath 19186
  • Fractional pan adapter bars
Important: Orders for drop-ins cannot be cancelled or returned. HD marine-grade wells carry a 2-year limited warranty against defects. Refer to vollrathfoodservice.com for full warranty policy.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

115.0lbs

Controls

infinite controls

Construction

stainless steel construction

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, infinite controls, manifold drain, 1250 watts, 120v/60/1-ph, 10.4 amps, NEMA 5-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
