Vollrath | SKU:
3664120
Vollrath 3664120 Steam Tables & Food Wells
$2,177.05
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3664120 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3664120 Steam Tables & Food Wells
$2,177.05
Unit price
/
Unavailable
Description
Vollrath Short-Side Hot Well – 2-Pan, Manifold Drain, Infinite Control

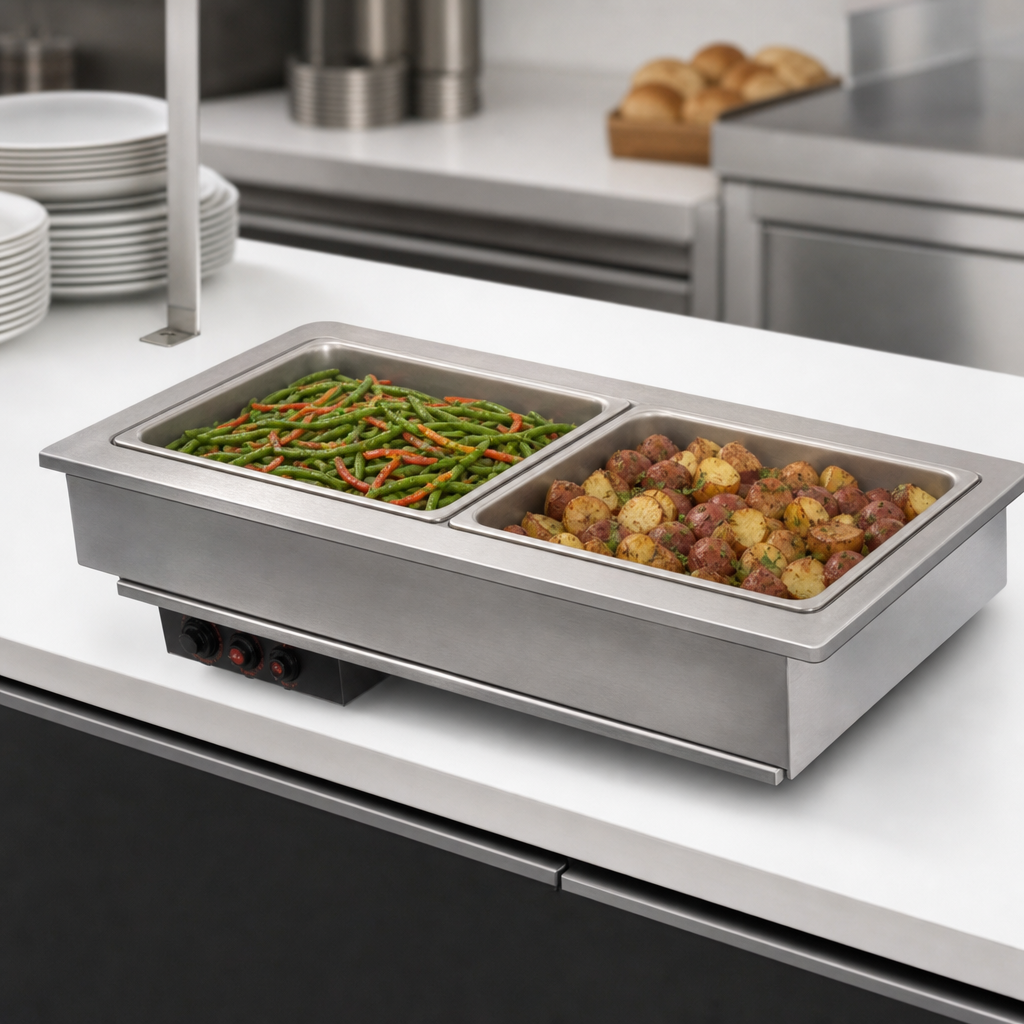

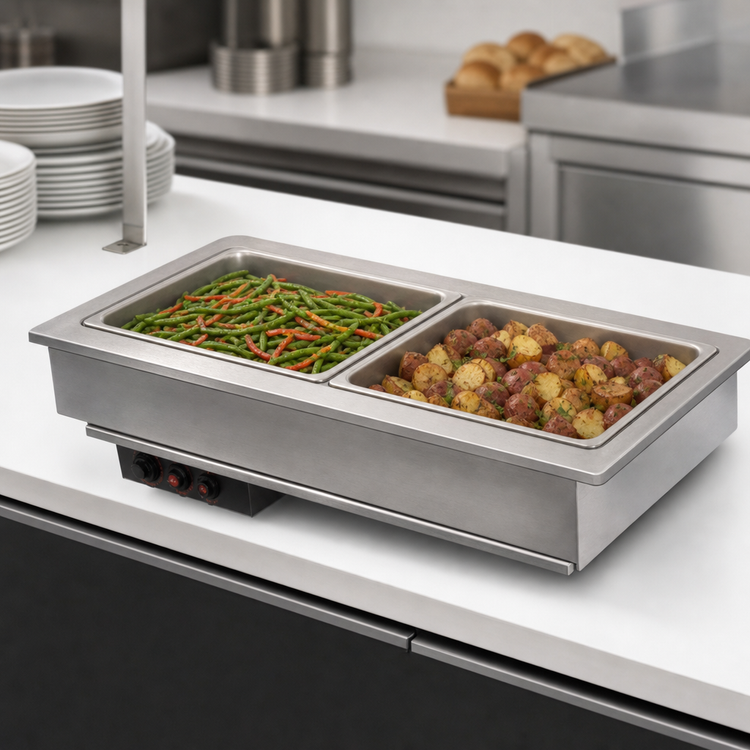

Model 3664120 | Made in the USATurn full-size pans sideways for a slim, customer-friendly footprint. This drop-in hot well keeps food at safe serving temperatures while freeing up valuable counter depth in cafés, buffet lines, or kiosk applications.
Why You’ll Love It
- Narrow 18 in. presentation – easy reach for guests & operators.
- 18/8 stainless-steel flange & drawn well for superior corrosion resistance.
- Thick polyurethane foam insulation on all non-exposed sides, including between wells, boosts energy efficiency.
- Full-perimeter drip edge helps keep counters clean and dry.
- 1 in. copper manifold drain with master shut-off plus included drain plug for quick daily cleanup.
- Remote stainless control panel (4 ft tether) with individual infinite controls & power-on lights for each well.
- 6 ft factory-installed cord with NEMA 5-15P – no hard-wiring required.
- Zero-clearance design for tight installations.
Technical Specifications
| Number of Wells | 2 (rotated full-size) |
|---|---|
| Control Type | Infinite (manual) |
| Heating Mode | Wet operation required for even heat & NSF compliance |
| Total Wattage | 1,250 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 10.4 A, NEMA 5-15P |
| Overall Dimensions | 45 ½ in. L × 18 in. W |
| Counter Cut-out | 44 11⁄16 in. L × 17 ¼ in. W 7⁄8 in. corner radius |
| Individual Well Size | 20 in. L × 12 in. W × 8 in. D |
| Drain | 1 in. copper manifold with ball-valve shut-off (½ in. individual wells) – plug included |
| Pan Capacity | Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended) |
| Construction | 18/8 (300 series) stainless steel, polyurethane foam insulation |
| Certifications | UL, cUL, NSF 4 |
| Origin | Made in USA |
Installation & Operating Notes
- Ships with mounting clips for counters up to 3 in. thick.
- Zero rear/side clearance required; indoor use only.
- Always maintain water level to assure even heating and protect components.
- Not designed for rethermalizing cold food – use only to hold hot, pre-heated products.
- Drop-in units are built to order and cannot be canceled or returned.
Refer to vollrathfoodservice.com for the full warranty policy.
Important: Operating the well without water, altering the factory cord or plug, or modifying any component will void the warranty and may result in damage or injury.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
21.5in
Width
45.44in
Depth
18.0in
Shipping Weight
115.0lbs
Controls
infinite controls
Style
individual pans
Construction
stainless steel construction
Insulated or Non-Insulated
insulated
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Short Sided Hot Well, Drop-In, (2) pan, infinite controls, manifold drain, 1250 watts, 120v/60/1-ph, 10.4 amps, NEMA 5-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
