Vollrath  |  SKU: 3664030HD

Vollrath 3664030HD Steam Tables & Food Wells

$3,580.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

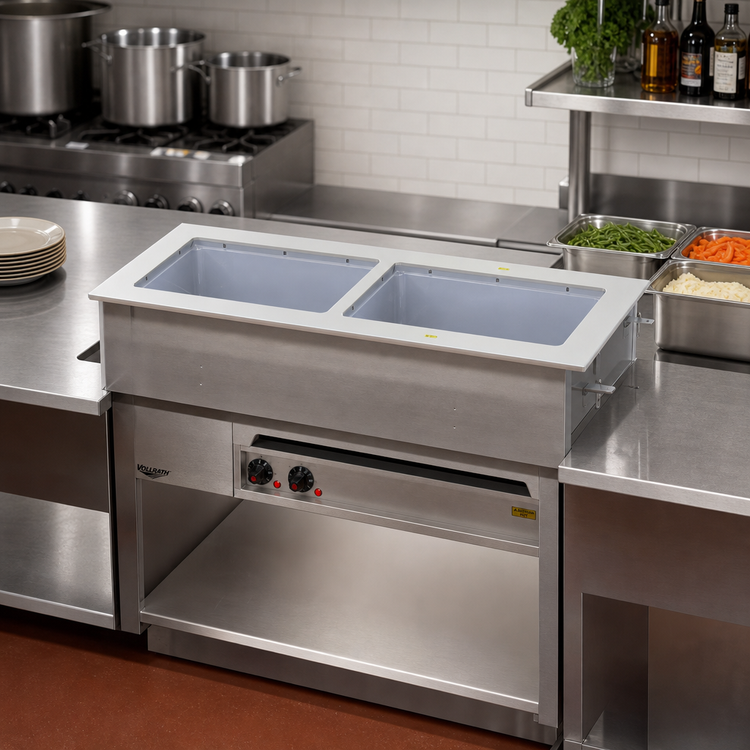

Vollrath Short-Side Modular Hot Well – 2-Pan, Thermostatic, Auto-Fill

Model 3664030HD • Marine-Grade 316 Stainless Steel Well • 120 V Plug-and-Play

Serve hot menu items safely and efficiently in tight counter layouts. This 2-pan Short-Side Drop-In turns full-size pans sideways for a narrower footprint and easier reach, while its marine-grade construction stands up to the toughest kitchen environments.

Why you’ll love it

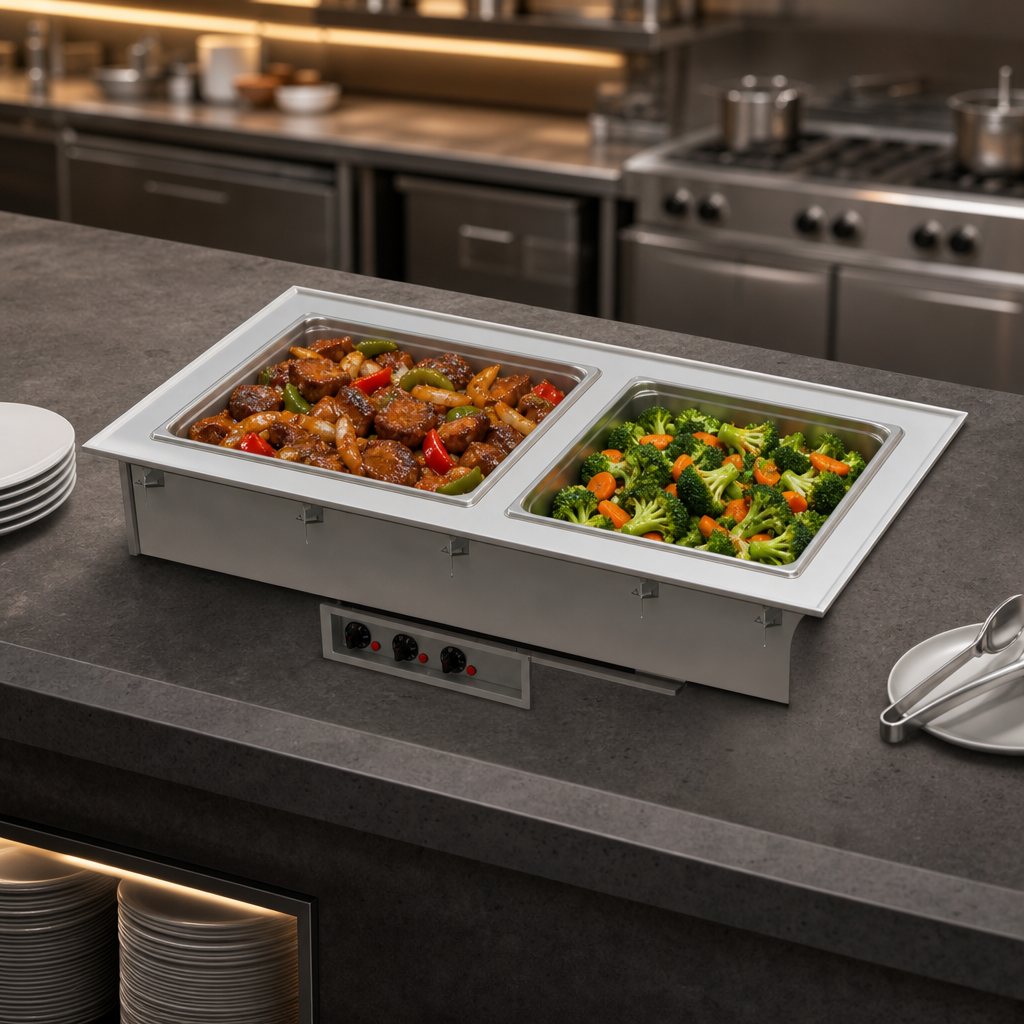

  • Rotated well design saves depth and keeps food within easy reach.
  • SAE Type 316 marine-grade stainless well resists corrosion from salts and aggressive cleaners.
  • Built-in auto-fill keeps water levels perfect all shift long, reducing labor.
  • 1 in. copper manifold drain with master shut-off simplifies end-of-day cleanup.
  • Thermostatic controls deliver precise, consistent holding temperatures.
  • Zero-clearance installation and included mounting clips speed up field installation.
  • Thick polyurethane insulation (all sides & between wells) maximizes energy efficiency.
  • Full-perimeter drip edge and ½ in. individual well ball valves help keep counters dry.
  • 6 ft (1.8 m) cord with NEMA 5-15P—no hard-wiring required.
  • UL, cUL & NSF listed; proudly made in the USA.

Technical specifications

Pan capacity 2 × full-size steam table pans (up to 6 in / 15.2 cm deep)
Well size (each) 20 in × 12 in (50.8 × 30.5 cm) • 8 in (20.3 cm) deep
Heating power 625 W per well • 1,250 W total
Controls Thermostatic knob with individual power indicator light
Water management Auto-fill (factory plumbed) + 1 in. manifold drain ½ in. ball valves per well
Construction 18-ga./316 marine-grade stainless top
Stainless exterior housing
Insulation High-density polyurethane foam, all sides
Overall dimensions 45 ½ in L × 18 in W
Counter cut-out 44 11⁄16 in L × 17 ¼ in W • 7⁄8 in corner radius
Electrical 120 V / 60 Hz / 1-ph • 10.4 A • NEMA 5-15P
Certifications UL • cUL • NSF 4
Country of origin Made in USA
Warranty 2 years parts & labor (see Vollrath warranty)
Included Removable service panel • Mounting gasket & clips • Drain plug • 4 ft tethered control panel
Important: For NSF 4 compliance and even heat distribution, operate with water in the wells at all times. This unit is intended for holding pre-heated food, not re-thermalizing cold product.

Need matching adapter bars or sheet-pan adapter (item 19186)? Contact us—our team is ready to help customize your drop-in setup.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

129.0lbs

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, autofill & manifold drain, 1250 watts, 120v/60/1-ph, 10.4 amps, NEMA 5-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
