Vollrath  |  SKU: 3664020HD

Vollrath 3664020HD Steam Tables & Food Wells

$2,497.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

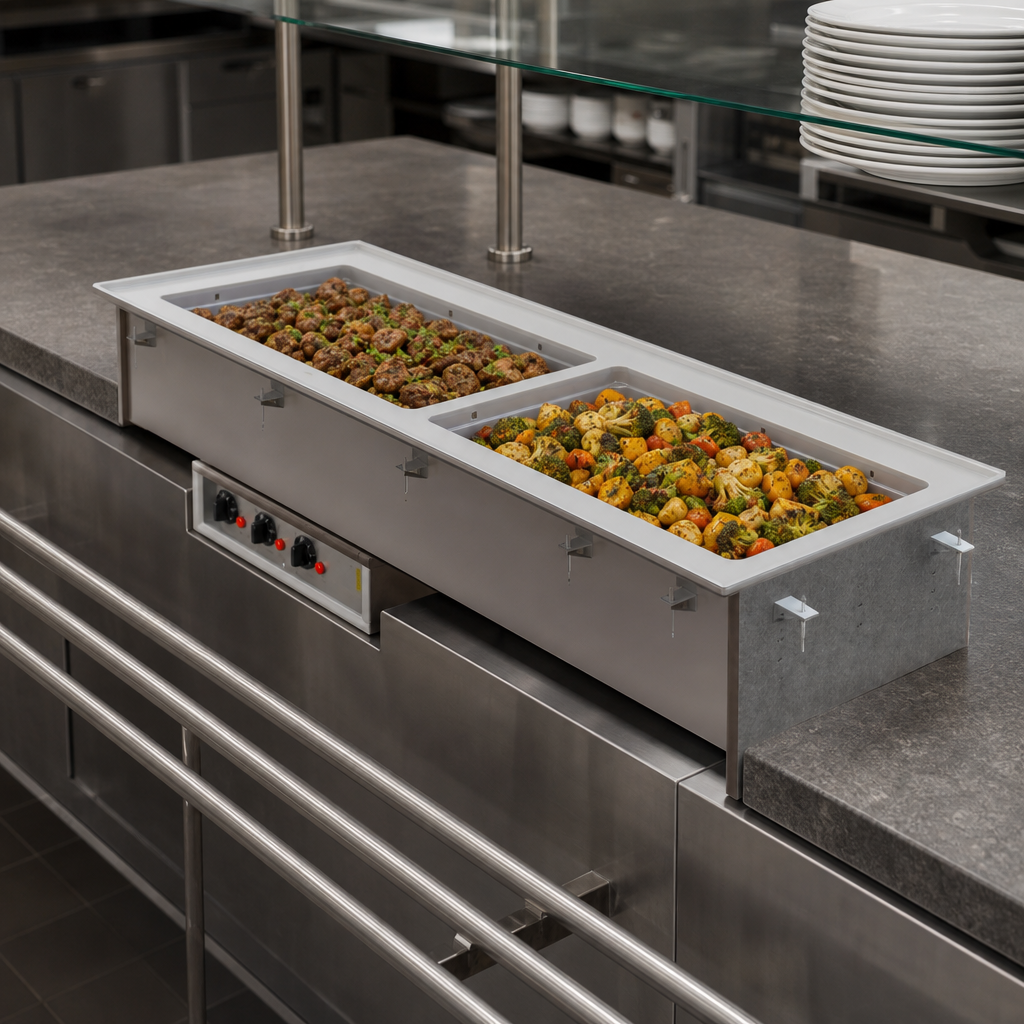

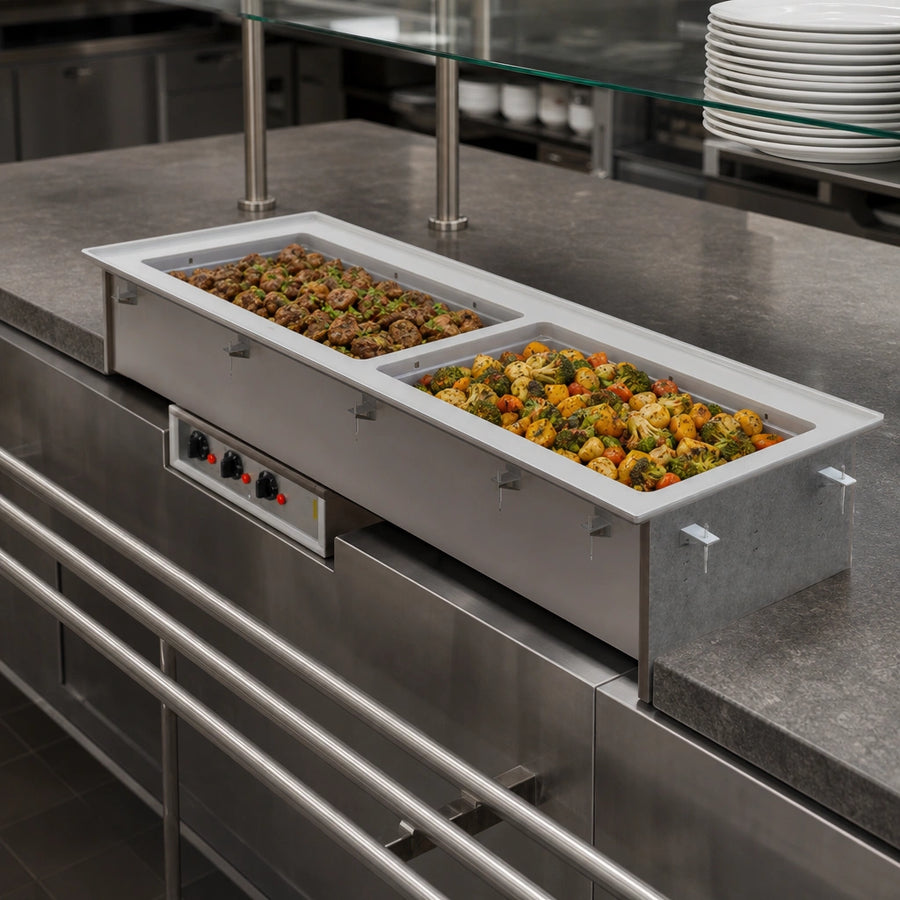

Vollrath Short-Side Modular Hot Well Drop-In – 2 Pan, 120 V

Model 3664020HD • Marine-Grade • Manifold Drain • Thermostatic Controls

Turn two full-size pans sideways for a slim 18-inch footprint without sacrificing holding power. Built from SAE 316 marine-grade stainless steel, this Vollrath Short-Side Hot Well delivers superior corrosion resistance and reliable wet-bath performance in the busiest serving lines.

Key Features
  • Rotated well design narrows counter depth and brings food closer to the customer.
  • 18-gauge marine-grade 316 SS top resists salts, chemicals, and coastal environments.
  • Two independent thermostatic controls—dial in exact holding temps for each well.
  • 1" copper manifold drain with master shut-off; drain plug included for easy cleaning.
  • Full-perimeter drip edge and supplied gasket keep condensation off the countertop.
  • Thick polyurethane foam insulation on every side (even between wells) saves energy.
  • Zero-clearance, top-mount installation with mounting clips for counters up to 3" thick.
  • 6 ft (1.8 m) cord with NEMA 5-15P plug—no hard-wiring required.
  • UL, cUL, and NSF listed; proudly Made in USA.
Capacities
  • Holds 2 full-size 12" × 20" pans up to 6" deep (adapter bars recommended for fractional pans).
  • 8" deep wells provide generous water reservoir for consistent moist heat.
Specifications
Pan Capacity 2 wells – full size (rotated short side)
Control Type Thermostatic, remote panel with 4' tether
Total Wattage 1,250 W (625 W per well)
Electrical 120 V / 60 Hz / 1-ph, 10.4 A
Plug NEMA 5-15P, 6 ft cord
Overall Dimensions (L × W) 45-1/2" × 18" (115.6 cm × 45.7 cm)
Cut-out (L × W) 44-11/16" × 17-1/4" (113.5 cm × 43.8 cm)
Corner Radius 7/8" (2.2 cm)
Well Interior (each) 20" × 12" × 8" deep
Drain 1" copper manifold with master shut-off; plug supplied
Construction 18-ga 316 SS top, stainless exterior housing, poly-foam insulated
Agency Listings UL, cUL, NSF
Origin United States
Ideal For
  • C-stores, kiosks, and food trucks with limited front-to-back space.
  • Buffet or cafeteria lines where operators pull pans forward for quick service.
  • Coastal or high-humidity operations that demand marine-grade corrosion resistance.
Important: This unit is for holding pre-cooked foods at safe serving temperatures. Always operate with water in the wells—do not use for re-thermalizing cold product.

Covered by Vollrath’s 2-year limited warranty on HD marine-grade drop-ins. See full details at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

95.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, manifold drain, 1250 watts, 120v/60/1-ph, 10.4 amps, NEMA 5-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
