Vollrath 3664020 Steam Tables & Food Wells
Description
Vollrath Short Side 2-Pan Hot Drop-In Well – Thermostatic, 120 V
Model 3664020 | Manifold Drain | 1250 W TotalGive your serving line a slimmer profile without sacrificing capacity. Vollrath’s Short Side Hot Drop-In turns two full-size pans sideways, trimming the front-to-back depth to just 18 inches for effortless reach and seamless integration into narrow counters.
Key benefits

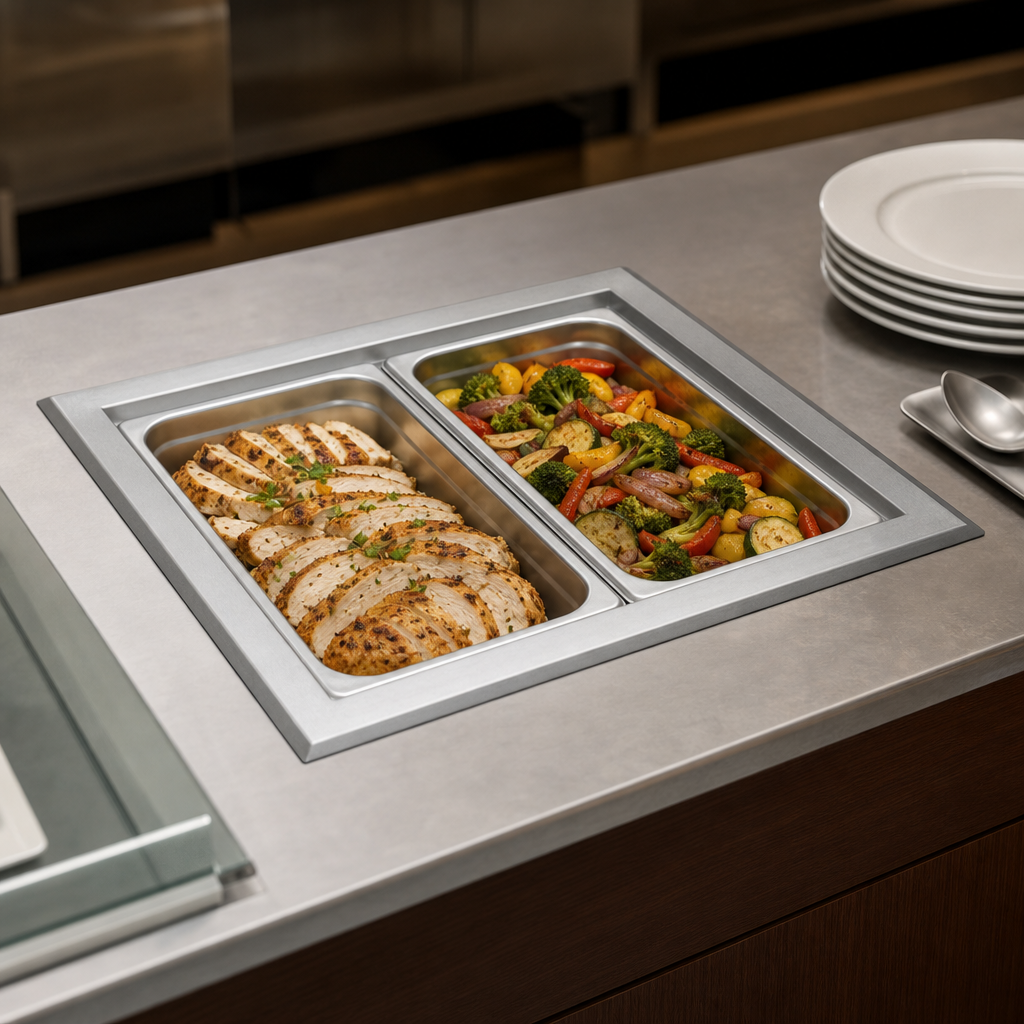

- Side-oriented wells deliver a compact 18 in. footprint—ideal for tight spaces and pull-forward service.
- Precise thermostatic controls (one per well) keep food safely hot with minimal adjustment.
- 1 in. copper manifold drain with master shut-off and individual ball valves makes daily cleanup fast; drain plug included.
- Full-perimeter drip edge prevents condensation from reaching the countertop.
- 18/8 (300 series) stainless-steel top flange and drawn wells resist corrosion and clean easily.
- Closed-cell polyurethane foam insulation on every non-exposed side—including between wells—boosts efficiency and keeps exterior surfaces cooler.
- Remote stainless-steel control panel (4 ft tether) with power indicator lights for each well.
- 6 ft factory-installed cord with NEMA 5-15P plug—no hard-wiring required.
- Accepts two full-size 20 × 12 in. pans (up to 6 in. deep); adapter bars available for fractional pans.
- Zero-clearance installation; mounting clips included for counters up to 3 in. thick.
- UL, CUL & NSF 4 listed; proudly made in Sheboygan, Wisconsin, USA.
At-a-glance specs
| Number of wells | 2 (sideways full-size) |
|---|---|
| Control type | Thermostatic (one per well) |
| Drain | 1 in. copper manifold with master shut-off; drain plug included |
| Total wattage | 1,250 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase, 10.4 A |
| Plug | NEMA 5-15P, 6 ft cord |
| Well size (each) | 20 × 12 in., 8 in. deep |
| Overall dimensions | 45-1/2 × 18 in. (W × D) |
| Counter cut-out | 44-11/16 × 17-1/4 in.; 7/8 in. corner radius |
| Construction | 18/8 stainless steel with polyurethane insulation |
| Certifications | UL, CUL, NSF 4 |
Drop-ins are built to order and are not returnable. For complete warranty information, installation guides and optional accessories, please visit VollrathFoodservice.com.
