Vollrath

Vollrath Short Side Drop-In Hot Well for 2 Full-Size Pans, Thermostatic, Standard Drain, 120V

SKU: 36640
$2,138.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath Short Side Drop-In Hot Well for 2 Full-Size Pans, Thermostatic, Standard Drain, 120V

2-Pan, Short Side Design, 120V

Keep hot foods easy to reach on a narrow line with this insulated, thermostatic drop-in well that presents two full-size pans sideways.

  • Short-side drop-in design turns full-size pans sideways for a narrower presentation and easier reach.
  • 2-pan capacity and an 8-inch-deep well support efficient hot food display.
  • Thermostatic controls help maintain consistent food-warming temperatures.
  • 18/8 stainless steel construction with thick polyurethane foam insulation helps retain heat.
  • Standard drain with included drain plug simplifies emptying and cleanup.
  • 120V, 1250W, 10.4-amp operation with NEMA 5-15P plug; NSF and UL listed, made in the USA.

Overall Dimensions:

45.44"W x 18.0"D x 15.0"H

Product Weight:

115.0 lb

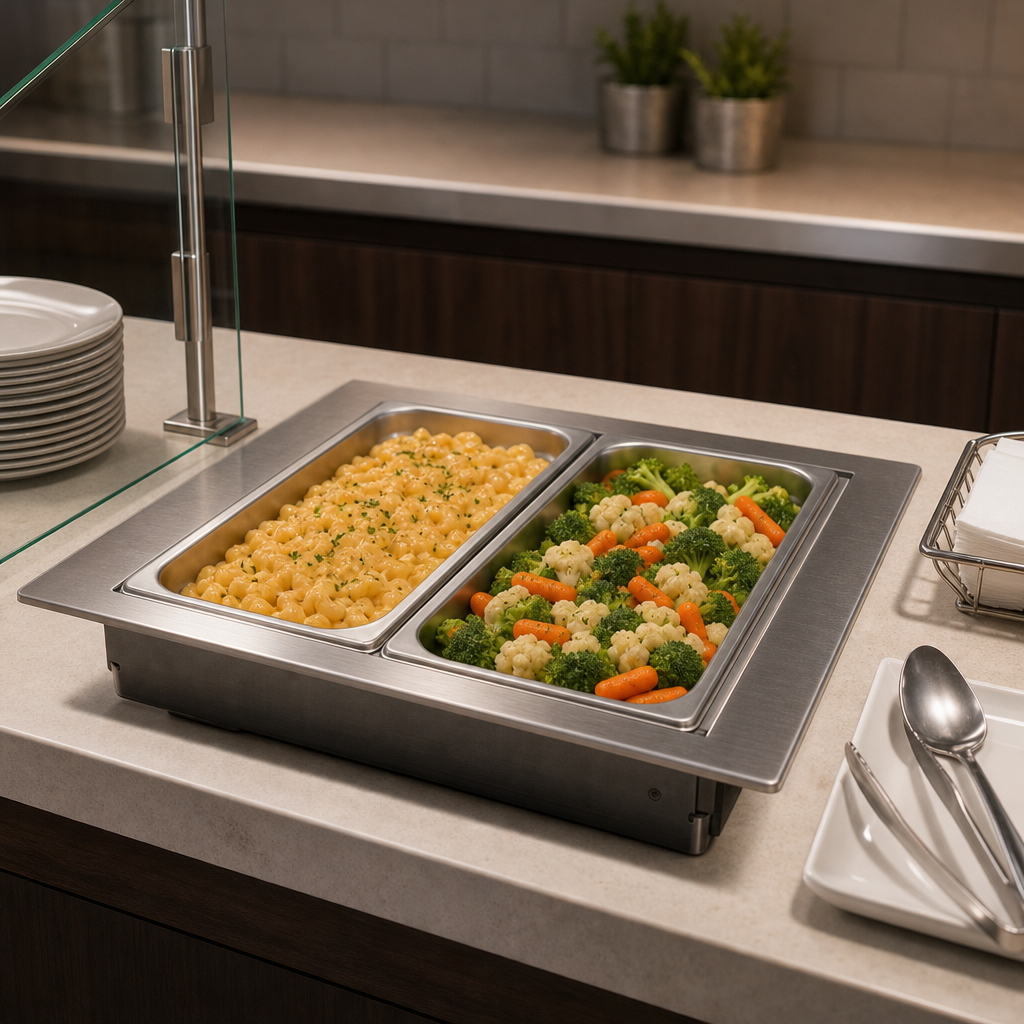

Short-Side Presentation

Turns full-size pans sideways for a narrower display and easier access on tight counters.

Thermostatic Controls

Helps maintain accurate, consistent warming temperatures.

Insulated Stainless Steel Construction

18/8 stainless steel with thick polyurethane foam insulation improves heat retention and durability.

Wet Operation

Designed for wet use in food warming applications.

Full-Perimeter Drip Edge

Helps contain condensation and spills to keep the counter cleaner.

Standard Drain with Included Plug

Standard drain design makes draining easier, and the drain plug is included.

8-Inch Deep Well

Deep well construction provides capacity for warming applications and accommodates food pans.

7/8-Inch Corner Radius

Rounded corners help support fit and cleanup.

Type Hot Well
Style Short Side
Installation Type Drop-In
Controls Thermostatic
Drain Type Standard Drain
Wet/Dry Operation Wet
Pan Capacity 2 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Well Size 20 Inches x 12 Inches x 8 Inches Deep
Material 18/8 Stainless Steel
Voltage 120 Volts
Amps 10.4 Amps
Watts 1.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cutout Width 44-11/16 Inches
Cutout Depth 17-1/4 Inches
Corner Radius 7/8 Inch
Shipping Width 46 Inches
Shipping Depth 18 Inches
Shipping Height 15 Inches
Shipping Weight 115 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

It holds 2 full-size pans, and the short-side design turns them sideways for a narrower presentation and easier reach.
It operates on 120V, 60 Hz, single-phase power, draws 10.4 amps, and uses a NEMA 5-15P plug.
Yes. It has a standard drain and includes a drain plug.
Yes. The unit uses thick polyurethane foam insulation with 18/8 stainless steel construction.
Overall dimensions are 45-1/2" W x 18" D. Cutout dimensions are 44-11/16" W x 17-1/4" D.
The catalog page lists a one-year warranty; refer to vollrathfoodservice.com for full warranty policy.
