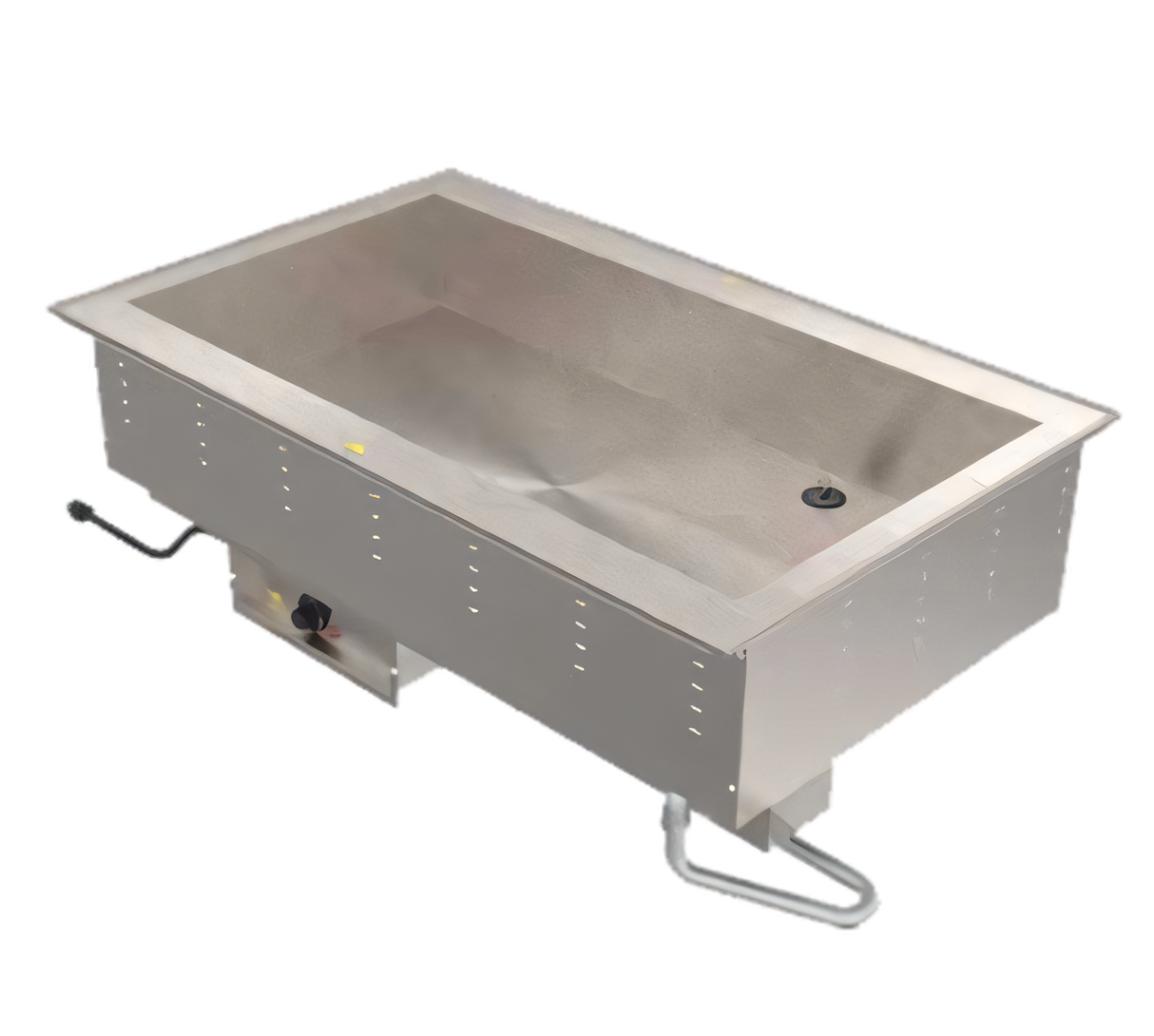

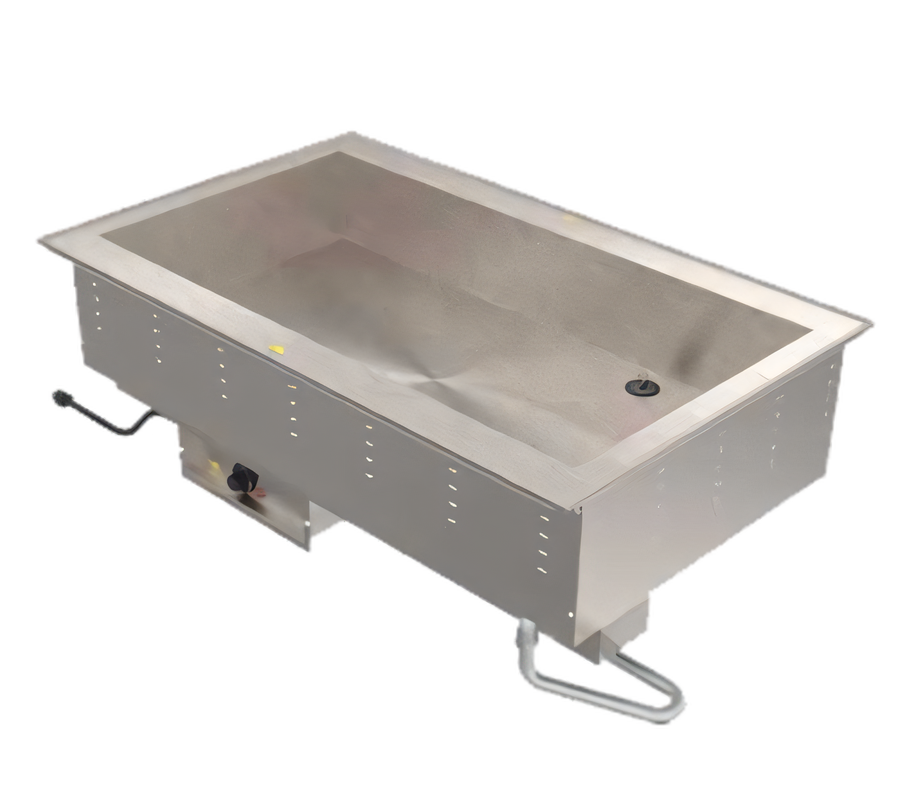

Vollrath 6-Pan Full-Size Electric Top-Mount Bain-Marie Hot Drop-In

Wet Operation, Thermostatic Control, 240 Volts

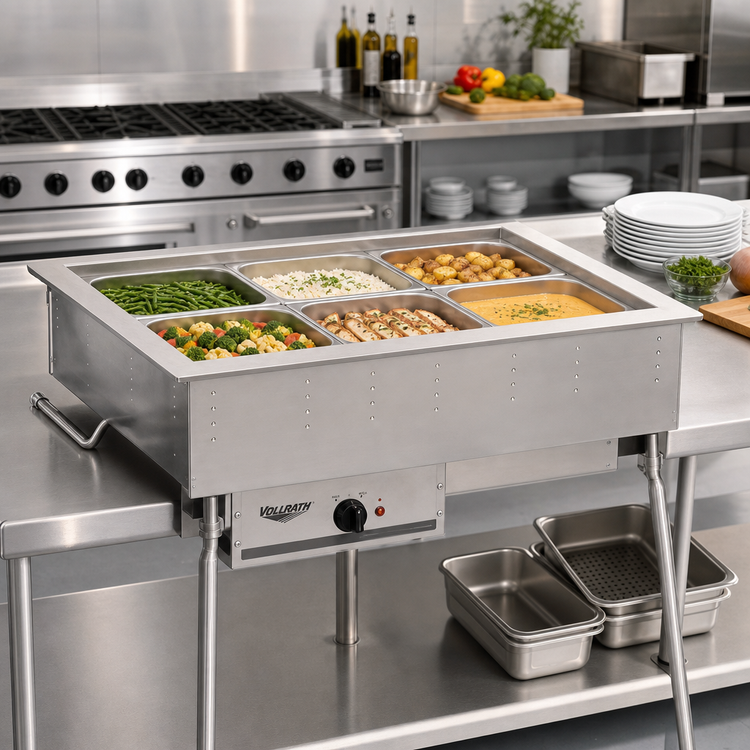

Keep six full-size pans safely warm on the line with a fully insulated wet-operation bain-marie built for top-mount installation.

  • Top-mount electric hot drop-in for buffet lines and food bars.
  • Wet bain-marie operation provides gentle steam heat for reliable food holding.
  • Holds six full-size 12 x 20 pans and supports pans up to 6 inches deep.
  • Fully insulated construction helps retain heat and improve efficiency.
  • Stainless steel top and interior liner with galvanized exterior housing for durability.
  • 240V, 3.75 kW unit includes thermostatic control, a NEMA 6-20P cord, and a 1-inch drain with ball valve shutoff.

Overall Dimensions:

81.25"W x 26.0"D x 15.63"H

Product Weight:

450.0 lb

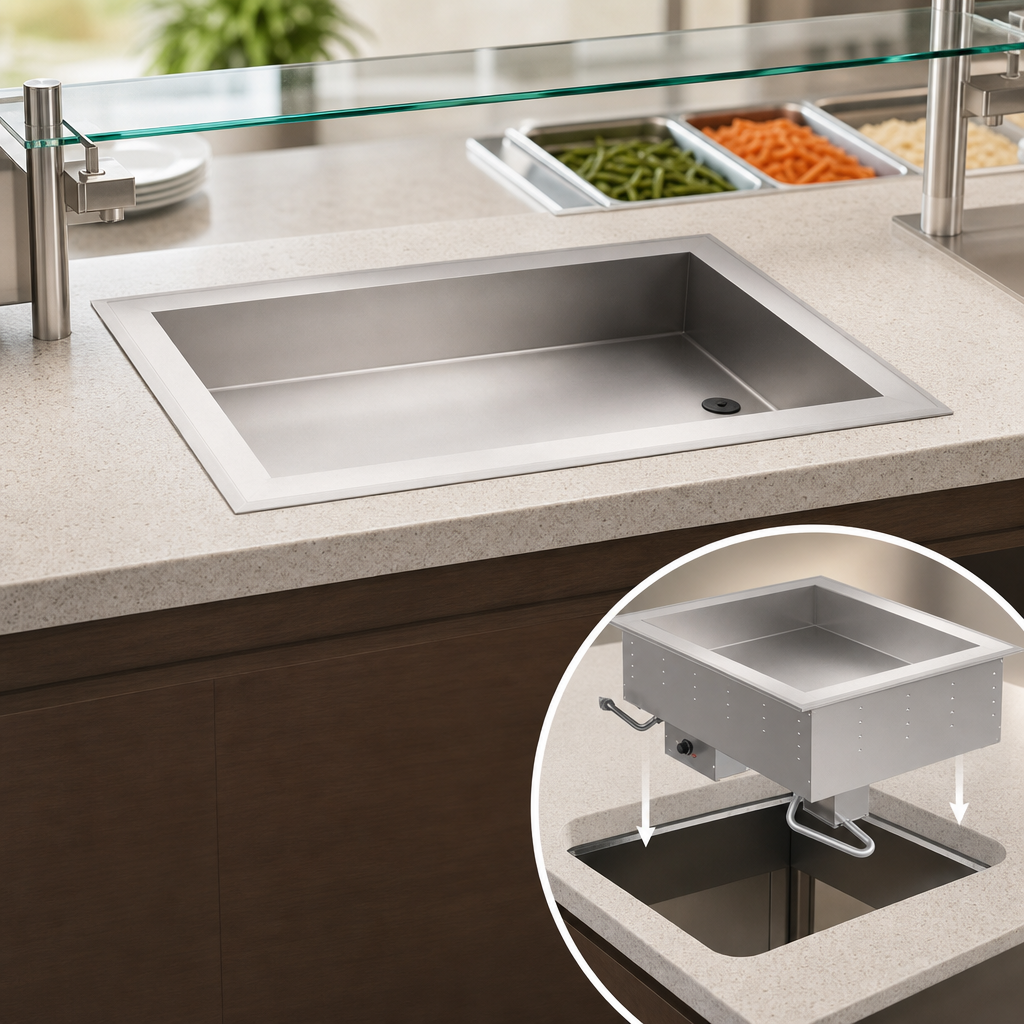

Top-Mount Drop-In Installation

Installs from above the counter for a clean, built-in serving presentation.

Wet Operation Bain-Marie

Uses steam heat to hold food gently and evenly.

Thermostatic Control

Maintains accurate holding temperatures and can be mounted on the unit or remotely with the 48-inch control cord.

6 Full-Size Pan Capacity

Sized for six full-size 12 x 20 pans.

Deep Well Design

The 6 5/8-inch well depth accepts pans up to 6 inches deep.

Fully Insulated Construction

Helps retain heat and improve energy efficiency.

Stainless Steel Top and Interior Liner

Durable food-contact surfaces that are easy to clean.

Galvanized Exterior Housing

Corrosion-resistant exterior built for commercial environments.

1-Inch Drain with Ball Valve Shutoff

Allows for easy draining and cleanup after service.

Type Hot Drop-In
Style Bain-Marie
Installation Type Drop-In
Pan Capacity 6
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 82 Inches
Shipping Depth 26 Inches
Shipping Height 16 Inches
Shipping Weight 450 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

It holds six full-size 12 x 20 pans.
It is designed for wet operation.
Yes. The thermostatic control may be mounted on the unit or remotely with the 48-inch control cord.
It requires 240 volts, 60 Hz, single-phase power, 15.6 amps, 3.75 kW, and a NEMA 6-20P plug.
The well depth is 6 5/8 inches, and it accepts pans up to 6 inches deep.
No. It is designed for warming food pans only.
