Vollrath 36506208 Steam Tables & Food Wells
$4,008.70
Unit price
/
Unavailable
Description

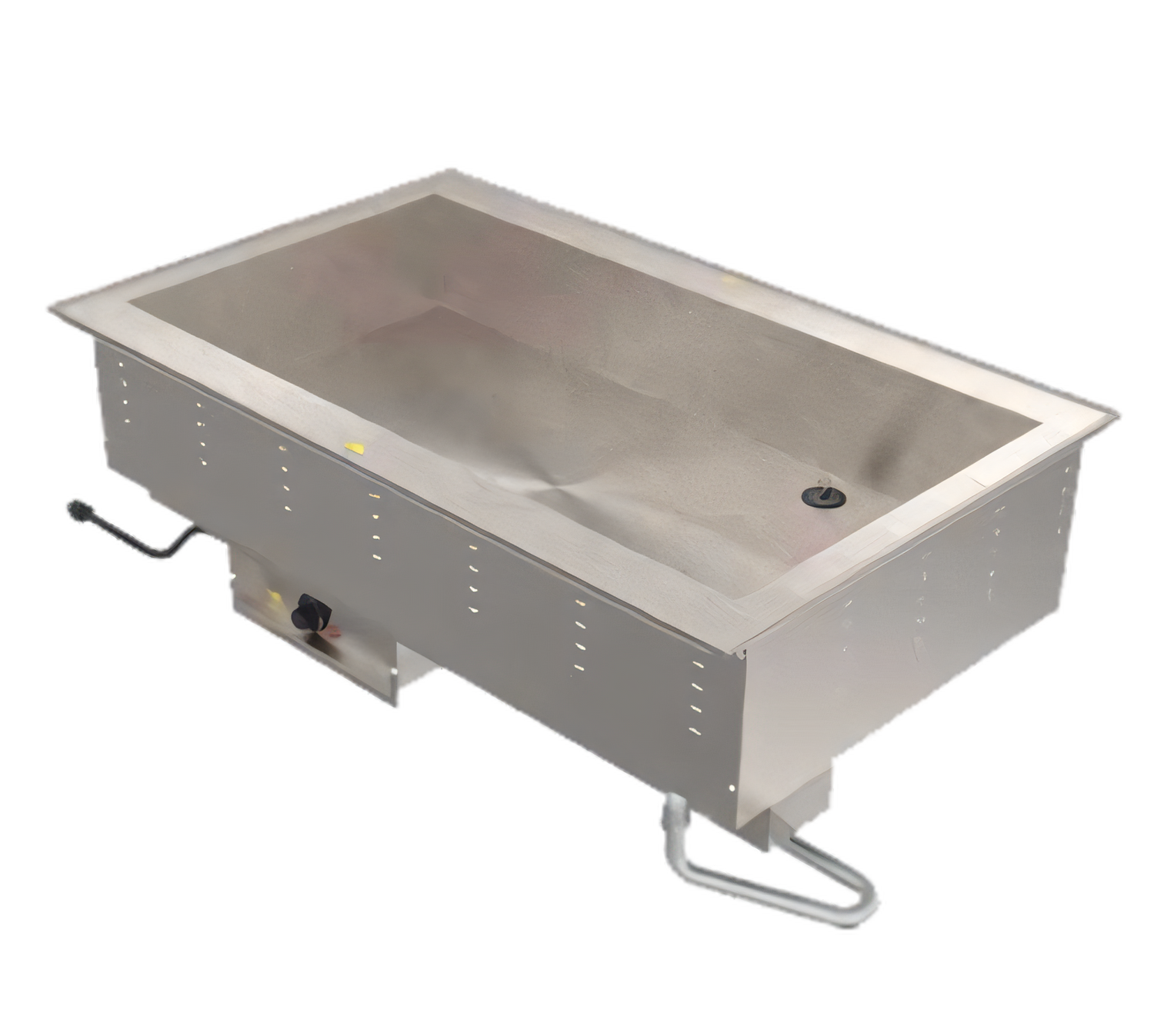

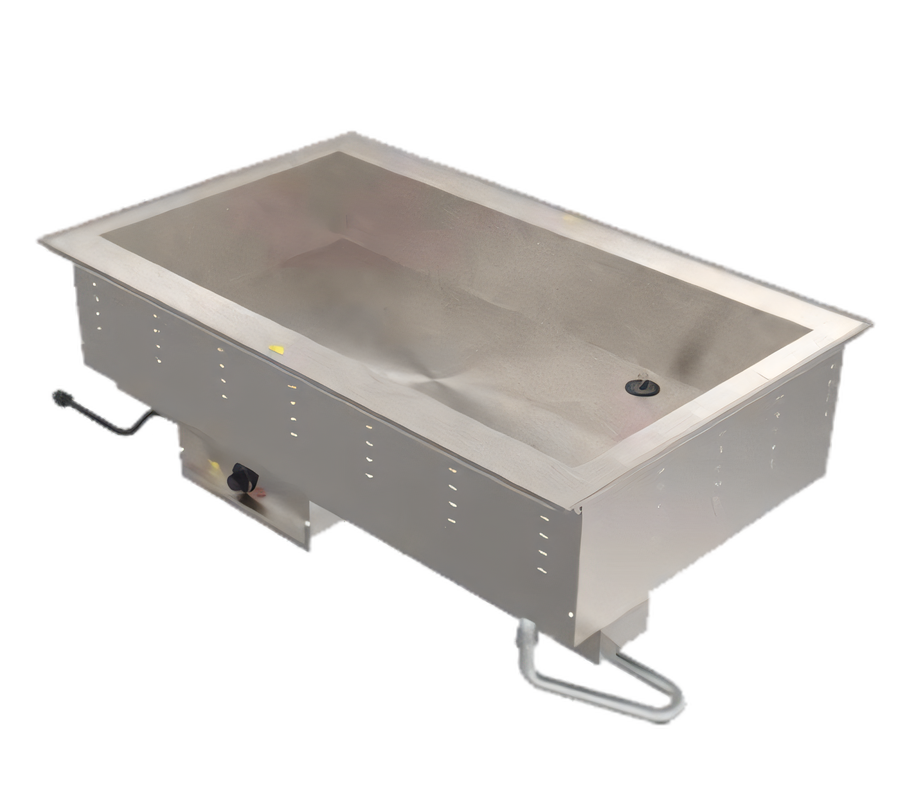

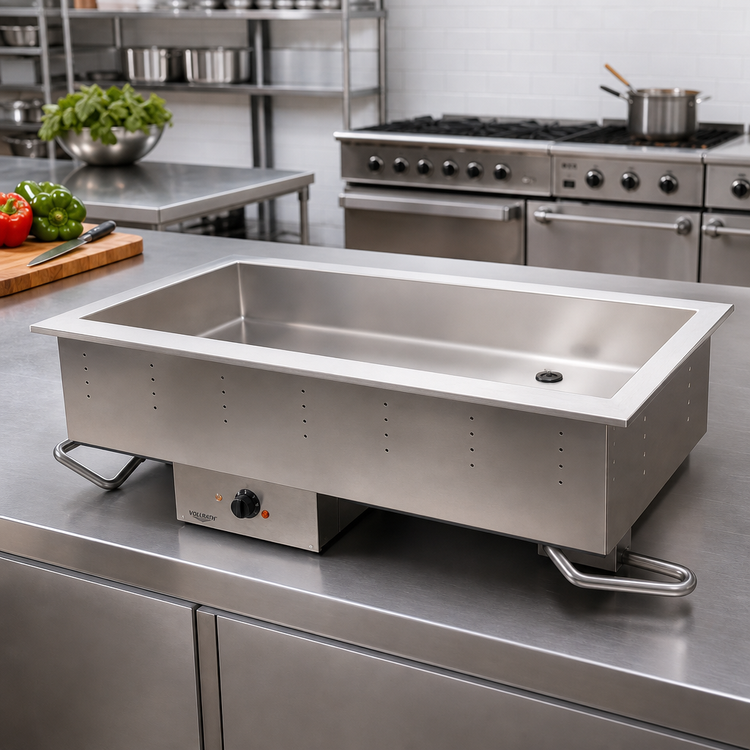

Vollrath 6-Pan Bain Marie Hot Drop-In (208 V)

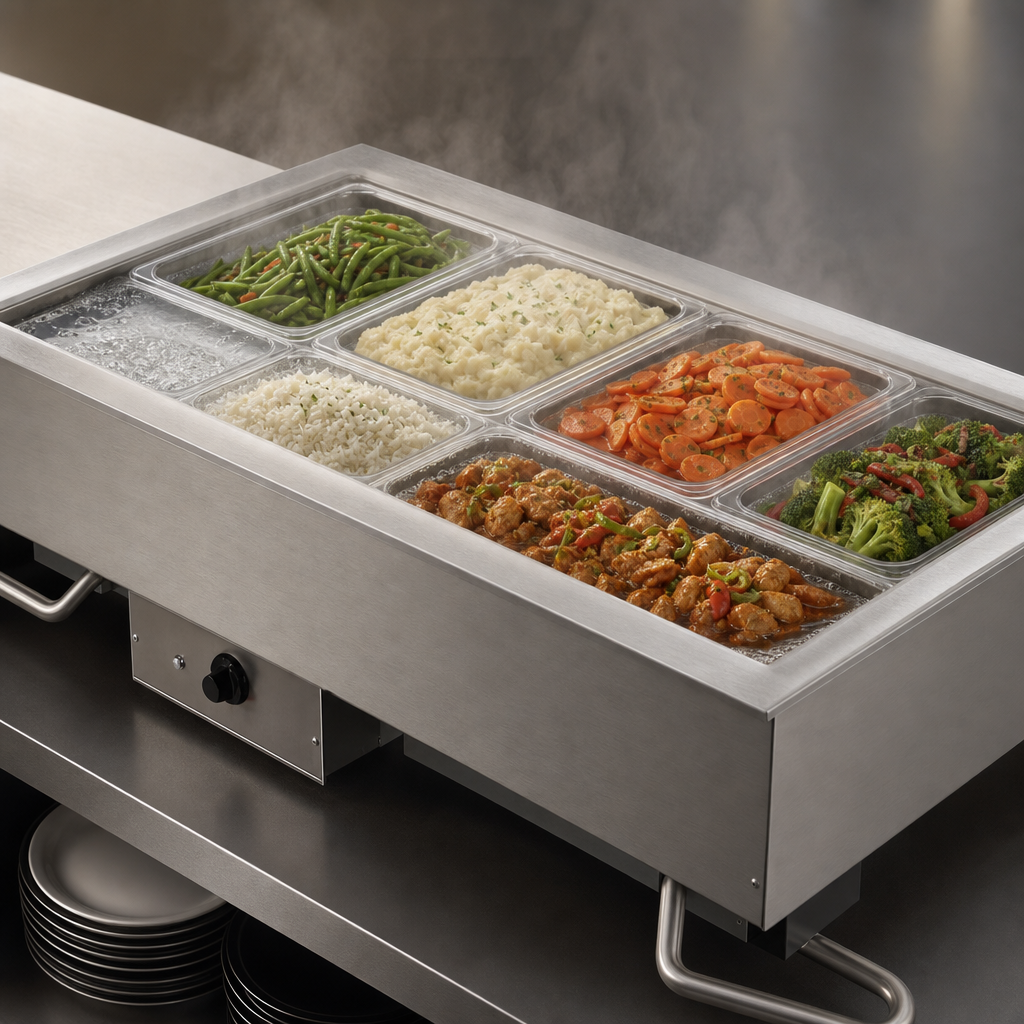

Model 36506208 • Made in the USADesigned for high-volume foodservice lines, this Vollrath top-mount bain marie keeps up to six full-size 12" × 20" pans of product at safe serving temperatures—without hard-wiring. Just drop it in, plug it in, add ½" of water, and let the thermostatic control do the rest.
Why you’ll love it
- Holds 6 full-size or fractional pans up to 6" deep in a single, continuous well.
- Wet operation & 625 W elements deliver gentle, even heat that preserves taste and texture.
- 18-ga 300-series stainless-steel top with full-perimeter drip-edge keeps counters dry and clean.
- Remote-mount thermostatic control (48" cord) lets you position the panel where it’s easiest to reach.
- High-density glass-fiber insulation allows zero-clearance installation and reduces energy use.
- 1" NPT drain with ball-valve shut-off speeds end-of-day cleanup.
- Factory-installed gasket, positioning clips, and adjustable mounting brackets (up to 3" counters) simplify installation.
- cULus & NSF listed for commercial use; backed by a 1-year parts & labor warranty.
Technical specifications
| Pan capacity | 6 full-size (12" × 20") steam table pans |
|---|---|
| Operation | Wet (add approx. ½" / 1.3 cm water) |
| Well depth | 6 5⁄8" (16.8 cm) |
| Overall dimensions | 81 ¼" L × 26" W (206.4 × 66 cm) |
| Counter cutout | 80 ¼" L × 24 ¾" W (203.8 × 62.9 cm) with 7⁄8" (2.2 cm) corner radius |
| Electrical | 208 V / 60 Hz / 1 Ph, 3,750 W, 18 A, 6-ft cord with NEMA 6-30P plug |
| Controls | Thermostatic dial with power indicator light (panel can be unit- or remote-mounted) |
| Construction |
• 18-ga stainless-steel top & 6 5⁄8" deep liner • 20-ga galvanized exterior housing • High-density fiberglass insulation on sides & below element |
| Drain | 1" NPT with external ball-valve shut-off |
| Certifications | cULus, NSF |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for full policy) |
Installation & use: This drop-in is intended for holding hot foods only and is not a rethermalizing vessel. Always operate with water in the well and ensure the cutout follows the dimensions above.
Modular drop-ins are built to order and cannot be canceled or returned once production begins.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.63in
Width
81.25in
Depth
26.0in
Shipping Weight
145.0lbs
Style
bain-marie
Pan Capacity
(6) full size (12" x 20")
Controls
thermostatic controls
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Wet or Dry operation
wet
Specifications
Bain Marie Hot Drop-In, electric, top mount, (6) pan capacity, wet operation, thermostatic control (on unit or may be remote mounted with 48"control cord), fully insulated, stainless steel top & interior liner, galvanized exterior housing, 1" drain with ball valve shut off, 208v/60/1ph, 3750 watts, 18 amps, cord with NEMA 6-30P, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
