Description

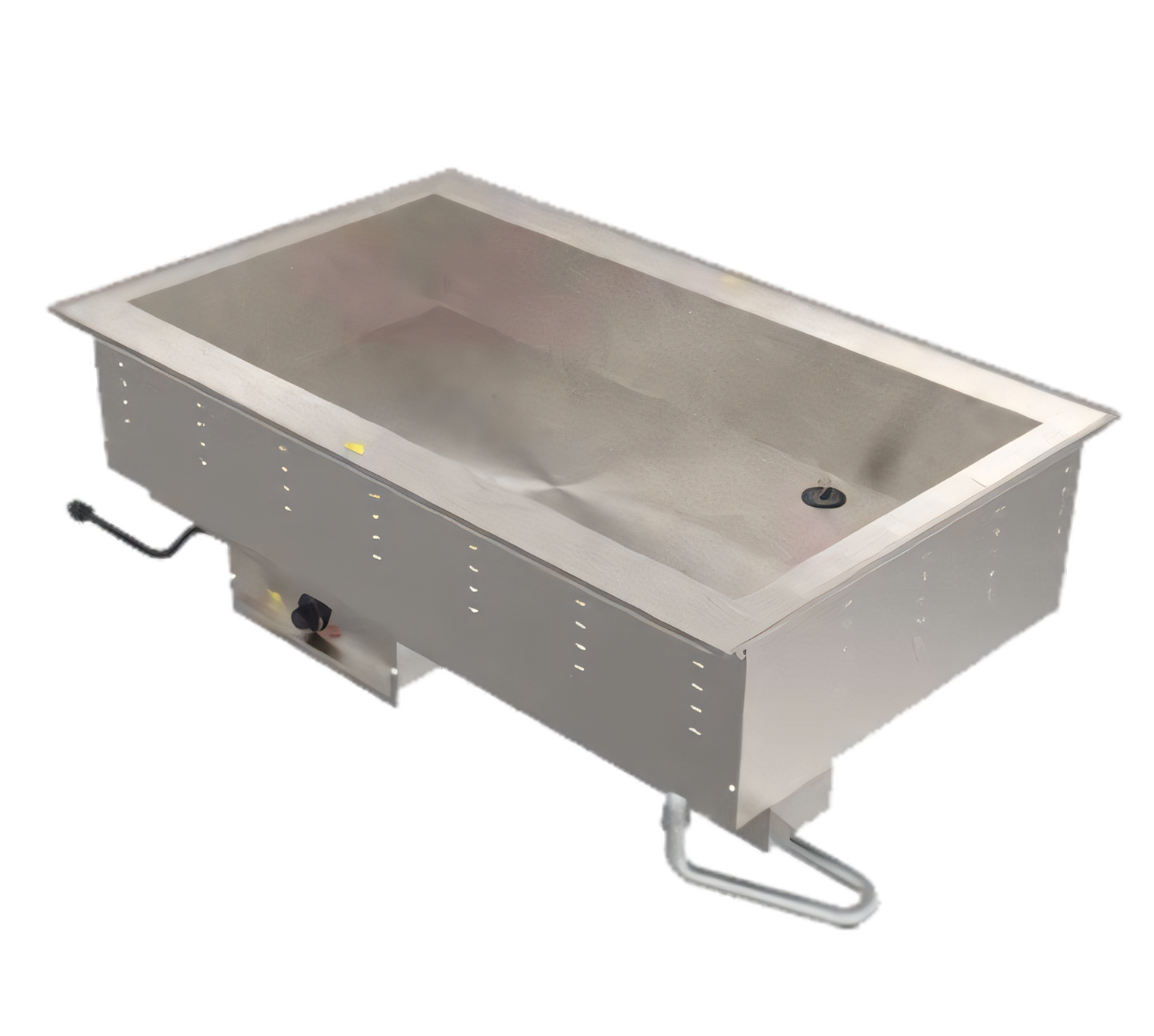

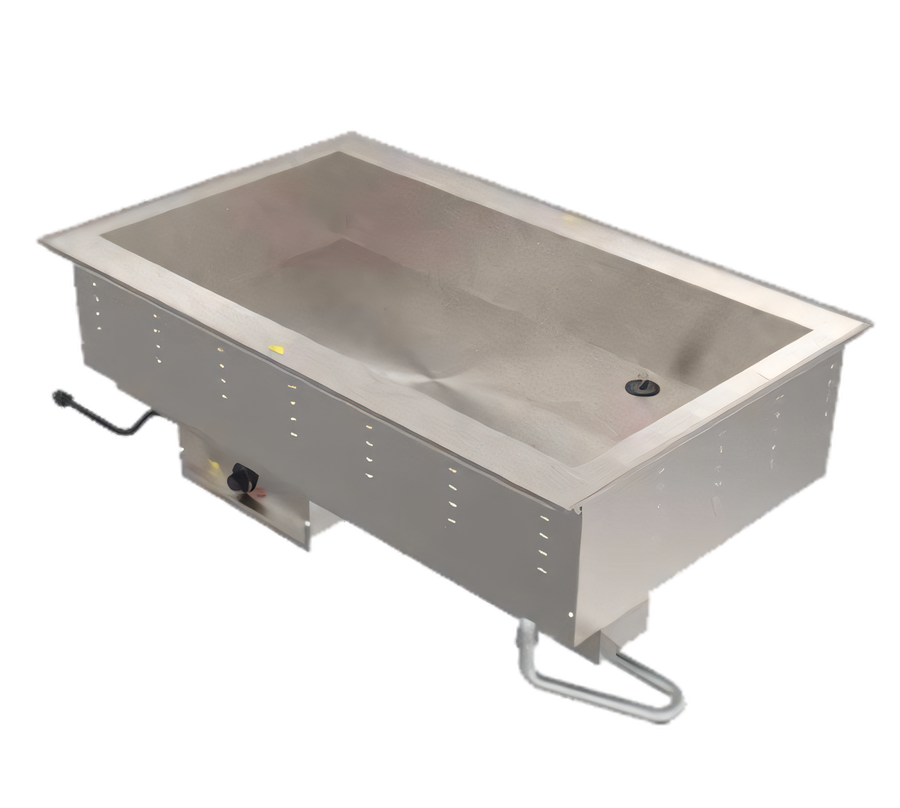

Vollrath Modular Bain Marie Hot Drop-In – 5 Pan

Model 36505240 | 240 V / 1 Ph | NEMA 6-20P

Add high-capacity, wet-heat holding to any serving line with this top-mount drop-in from Vollrath. The five-pan bain marie keeps entrées and sides at safe serving temperatures while its dripless design and remote-mount thermostat make operation effortless.

Why You’ll Love It

  • Holds five full-size, up to 6"-deep pans in an open well—perfect for templates or mixed pan layouts.
  • 18-gauge 300-series stainless-steel top with 3⁄8" drip-edge keeps condensation off the counter.
  • Wet operation with even, gentle steam created by energy-saving 625 W elements under each section.
  • Factory-installed thermostatic control panel (power light included) ships attached or can be remote-mounted up to 48" away.
  • Fully insulated sides & bottom allow zero-clearance installation and reduce ambient heat loss.
  • 1" NPT drain with ball-valve for fast tank service and cleaning.
  • 6-ft power cord with NEMA 6-20P plug — no hard-wiring required.
  • Rugged 20-gauge galvanized exterior housing stands up to everyday commercial use.
  • cULus & NSF4 listed; Made in USA.

Specifications

Pan Capacity 5 full-size (12" × 20") pans
Operation Wet (fill with approx. ½" water)
Overall Dimensions 68" L × 26" W × 11 ⅞" H  (172.7 × 66 × 30.2 cm)
Well Dimensions 63" L × 24 ¾" W × 6 ⅝" D  (160 × 62.9 × 16.8 cm)
Voltage / Phase 240 V / 60 Hz / 1 Ph
Wattage 3,125 W
Amperage 13 A
Power Connection 6-ft cord, NEMA 6-20P
Temperature Control Thermostatic, on-unit or remote (48" cord)
Drain 1" NPT with ball-valve shut-off
Construction Stainless-steel top & liner / galvanized exterior
Certifications cULus, NSF
Warranty 1-year parts & labor (see Vollrath for details)

Looking for stainless templates or adaptor bars? Search “Vollrath Miramar™” in our store for a perfect fit.

Important: Designed for holding pre-heated food only; not intended for re-thermalizing cold product. Modular drop-ins are built to order and cannot be cancelled or returned.

For complete warranty information visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.63in

Width

68.0in

Depth

26.0in

Shipping Weight

171.0lbs

Style

bain-marie

Pan Capacity

(5) full size (12" x 20")

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Bain Marie Hot Drop-In, electric, top mount, (5) pan capacity, wet operation, thermostatic control (on unit or may be remote mounted with 48"control cord), fully insulated, stainless steel top & interior liner, galvanized exterior housing, 1" drain with ball valve shut off, 240v/60/1ph, 3125 watts, 13 amps, cord with NEMA 6-20P, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
