Vollrath 36504208 Steam Tables & Food Wells
$2,834.70
Unit price
/
Unavailable
Description

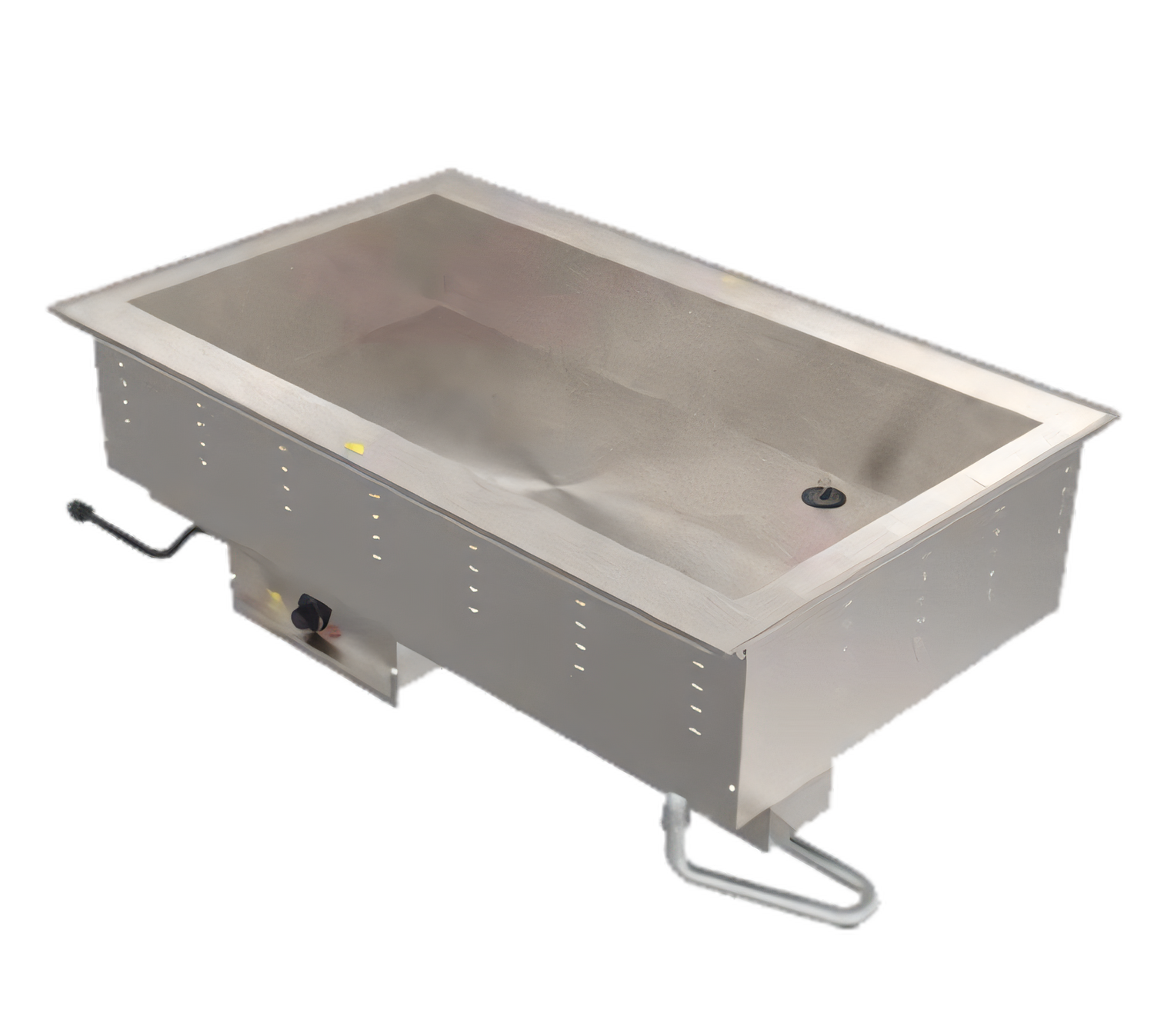

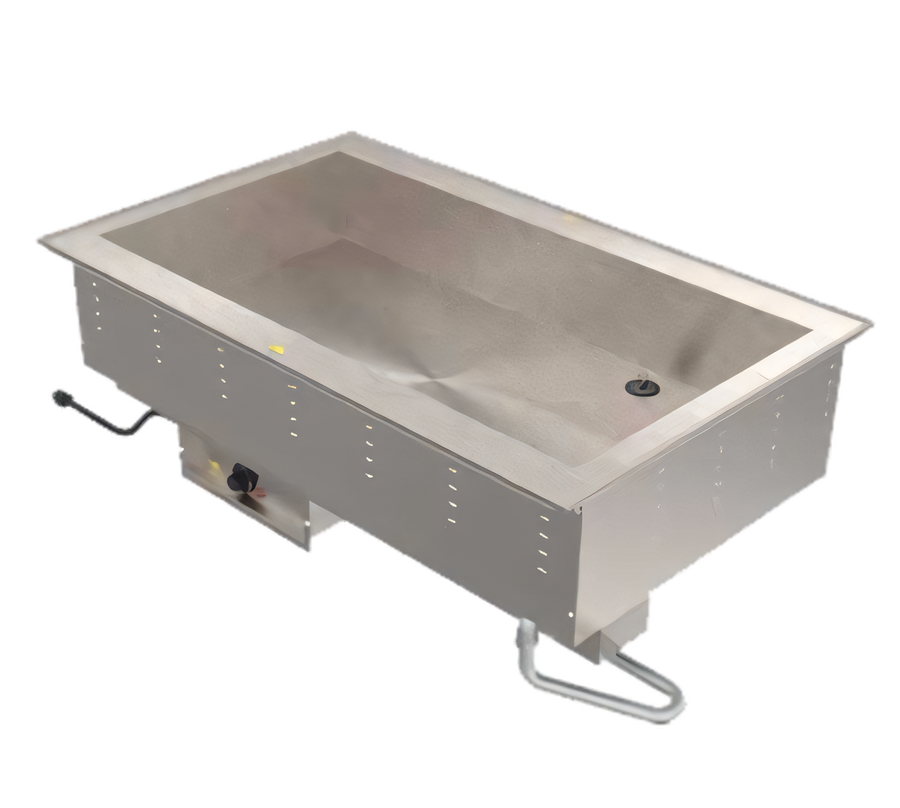

Vollrath 4-Pan Bain Marie Hot Drop-In
Model 36504208 | 208 V, 2,500 W, NEMA 6-20PEasily build a high-capacity steam table into any counter run. Vollrath’s modular Bain Marie Hot Drop-In delivers even, gentle heat to four full-size pans while its drip-edge flange keeps your serving line spotless. Just set the temperature, add a little water, and start serving.
Key benefits
- Open bain-marie well accepts templates or any mix of full-size and fractional pans up to 6" deep.
- 18-ga 300 series stainless top with 3⁄8" dripless perimeter prevents condensation on surrounding counters.
- Wet operation & 6 5⁄8" deep well maintain consistent steam for safe, appetizing food holding.
- Energy-efficient 625 W elements per well (2,500 W total) controlled by a precise thermostatic dial.
- Control panel ships attached or can be remote-mounted up to 48" away—no extra kits needed.
- High-density glass-fiber insulation allows zero-clearance installs and reduces heat loss.
- 1" NPT drain with ball-valve shut-off makes end-of-day cleanup fast and sanitary.
- Ships ready to plug in—6 ft cord with NEMA 6-20P; no hard-wiring required.
- cULus & NSF-4 listed and proudly Made in the USA.
Technical specifications
| Pan capacity | 4 full-size 12" × 20" pans (or equivalent fractional) |
|---|---|
| Operating mode | Wet (add up to ½" water) |
| Control | Thermostatic dial with power indicator – on-unit or remote (48" cord) |
| Voltage / Phase | 208 V / 60 Hz / 1-phase |
| Total wattage | 2,500 W |
| Amperage | 12 A |
| Plug type | NEMA 6-20P (6 ft / 1.83 m cord) |
| Overall dimensions | 54.75" L × 26" W (139.1 × 66 cm) |
| Well depth | 6.625" (16.8 cm) |
| Drain | 1" NPT with ball valve |
| Construction | Stainless steel top & interior liner; 20-ga galvanized exterior housing |
| Insulation | High-density glass fiber (sides & below element) |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for details) |
Important: This equipment is intended for holding pre-heated foods only—it is not a re-thermalizer. Modular drop-ins cannot be cancelled or returned after purchase.
Need extra corrosion resistance? Order the marine-grade “HD” version for a two-year warranty.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.63in
Width
54.75in
Depth
26.0in
Shipping Weight
175.0lbs
Style
bain-marie
Construction
stainless steel top, corrosion resistant steel exterior
Controls
thermostatic controls
Insulated or Non-Insulated
insulated
Pan Capacity
(4) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Bain Marie Hot Drop-In, electric, top mount, (4) pan capacity, wet operation, thermostatic control (on unit or may be remote mounted with 48"control cord), fully insulated, stainless steel top & interior liner, galvanized exterior housing, 1" drain with ball valve shut off, 208v/60/1ph, 2500 watts, 12 amps, cord with NEMA 6-20P, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
