Vollrath  |  SKU: 36503240

Vollrath 36503240 Steam Tables & Food Wells

$2,281.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

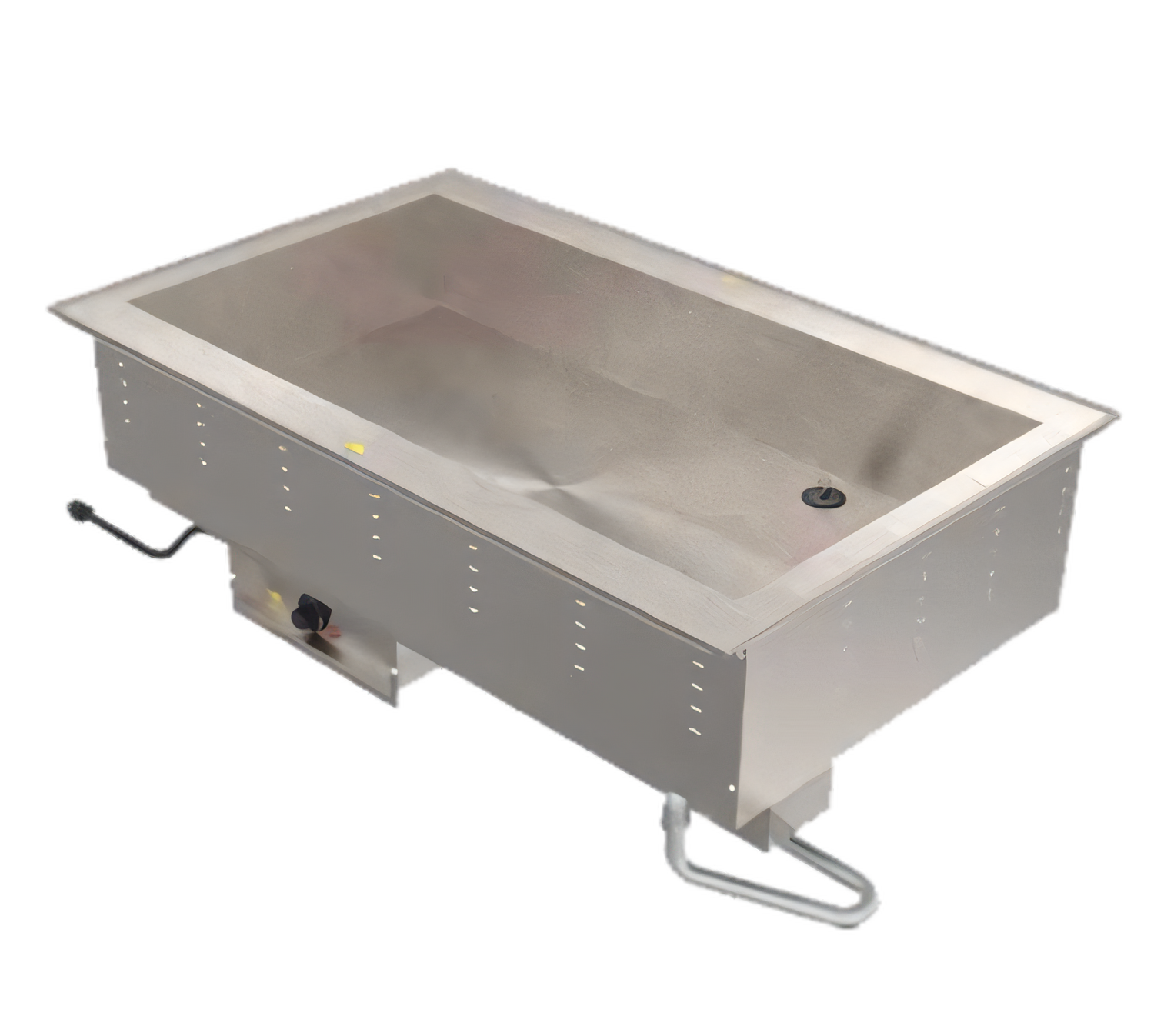

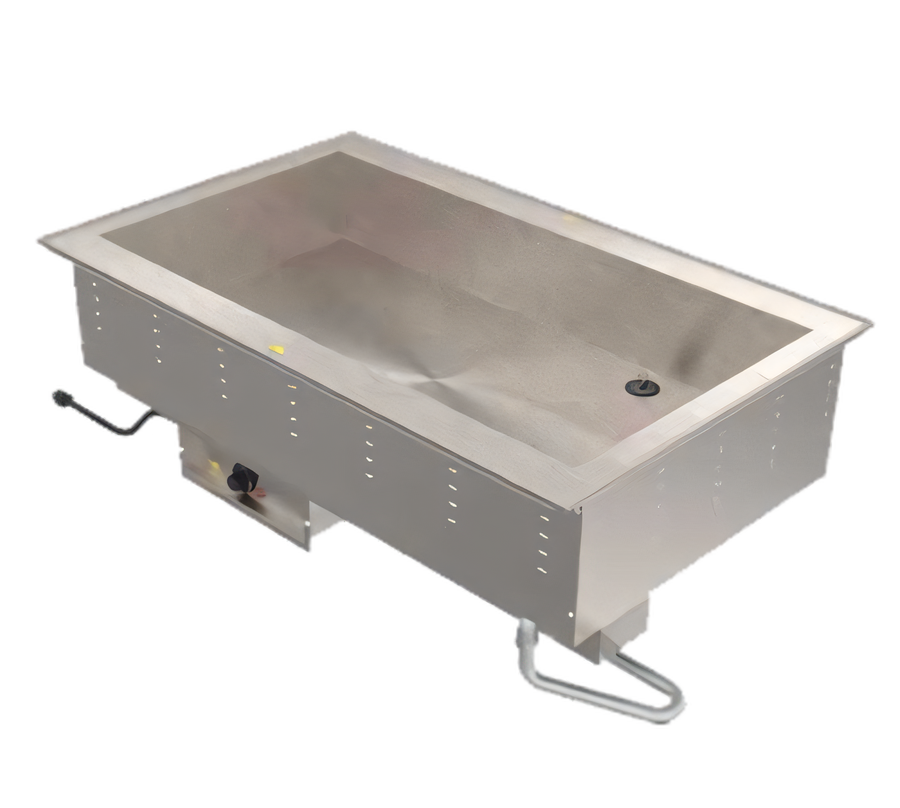

Vollrath Modular Bain Marie Hot Drop-In – 3 Pan, 240 V

Model 36503240 | Electric top-mount wet well with remote thermostatic control

Hold soups, sauces and sides at perfect serving temperatures with this Made-in-USA Vollrath three-pan Bain Marie Hot Drop-In. Simply drop it into your counter cut-out, add a little water and plug it in—no hard-wiring required.

Highlights

  • Three-pan open well accepts full-size or fractional 6" deep pans and Miramar™ templates (sold separately).
  • 18-ga 300-series stainless steel top & interior liner resist corrosion and daily wear.
  • 3⁄8" full-perimeter drip edge with included gasket keeps condensation off the counter.
  • Wet-only operation and high-density glass-fiber insulation provide even heating that meets NSF 4 hot-holding standards.
  • Accurate thermostatic control with power-on indicator; panel can remain on the unit or be remote-mounted up to 48" (121.9 cm).
  • 1" NPT drain with stainless ball-valve shut-off makes end-of-shift cleanup fast.
  • 6-ft (182.8 cm) power cord with NEMA 6-15P plug—no electrician needed.
  • Fully insulated 20-ga galvanized exterior housing allows zero-clearance installation.
  • cULus listed, NSF certified and backed by Vollrath’s factory warranty.

Technical Specifications

Capacity 3 full-size 12" × 20" pans (or fractional equivalents)
Operation Wet (fill well with approx. ½" / 1.3 cm of water)
Overall Dimensions (L × W) 41½" × 26" (105.4 × 66 cm)
Cut-Out Size (L × W) 37½" × 24¾" (95.3 × 62.9 cm) with ⅞" radius corners
Well Depth 6⅝" (16.8 cm)
Electrical 240 V / 60 Hz / 1-ph, 1,875 W, 7.8 A, NEMA 6-15P
Heating Elements 3 × 625 W elements (one per pan)
Drain 1" NPT with ball-valve shut-off
Construction 18-ga stainless top & liner; 20-ga galvanized exterior; high-density insulation
Certifications cULus, NSF
Origin Made in USA

For custom pan layouts, pair this unit with Vollrath Miramar™ stainless templates (available separately).

Important: This unit is designed for holding pre-heated food only—do not use it to re-thermalize cold product. Modular drop-ins cannot be cancelled or returned. Refer to vollrathfoodservice.com for full warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.63in

Width

41.5in

Depth

26.0in

Shipping Weight

119.0lbs

Style

bain-marie

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet

Specifications

Bain Marie Hot Drop-In, electric, top mount, (3) pan capacity, wet operation, thermostatic control (on unit or may be remote mounted with 48"control cord), fully insulated, stainless steel top & interior liner, galvanized exterior housing, 1" drain with ball valve shut off, 240v/60/1ph, 1875 watts, 7.8 amps, cord with NEMA 6-15P, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
