Vollrath 36503208 Steam Tables & Food Wells
Description

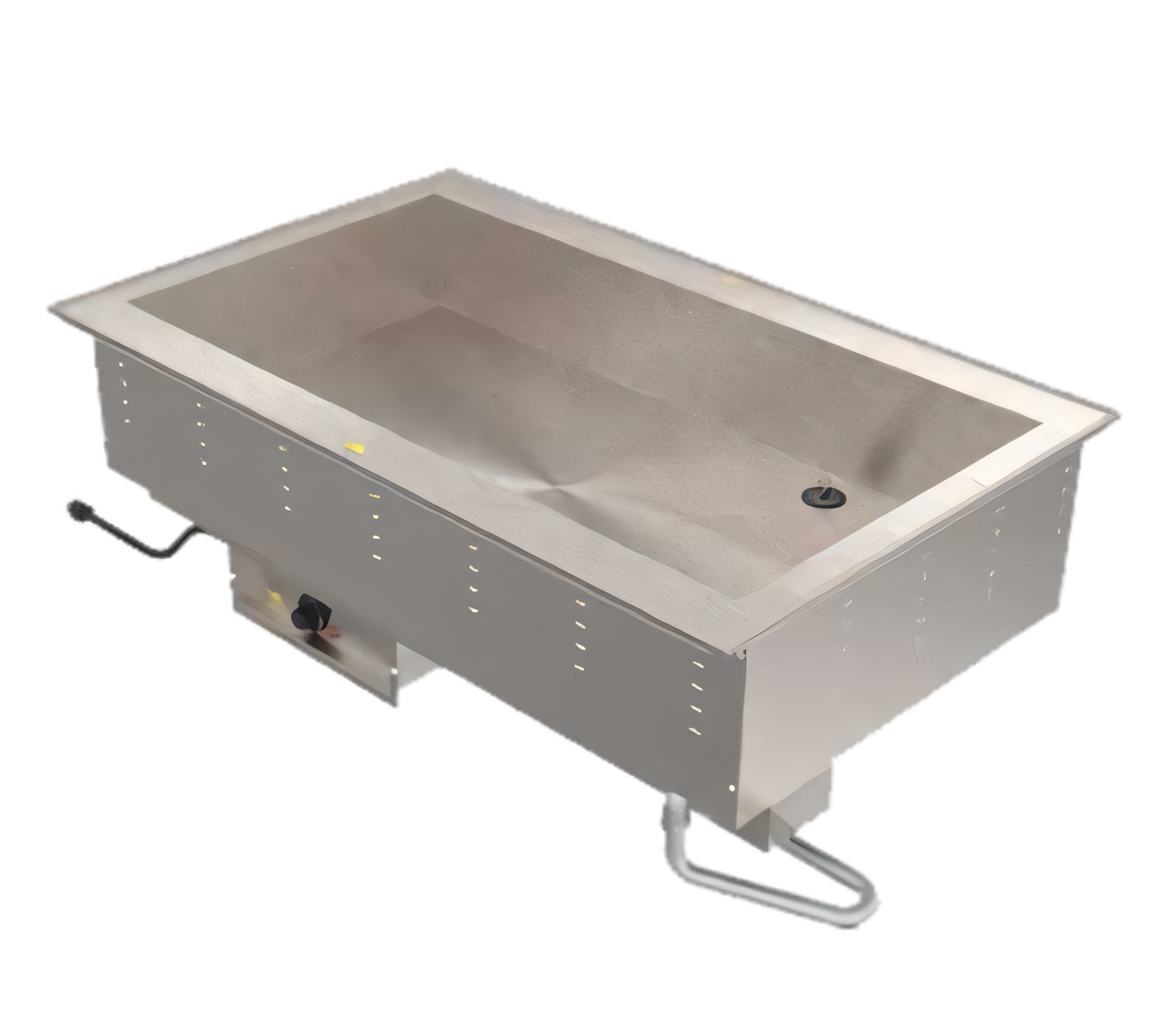

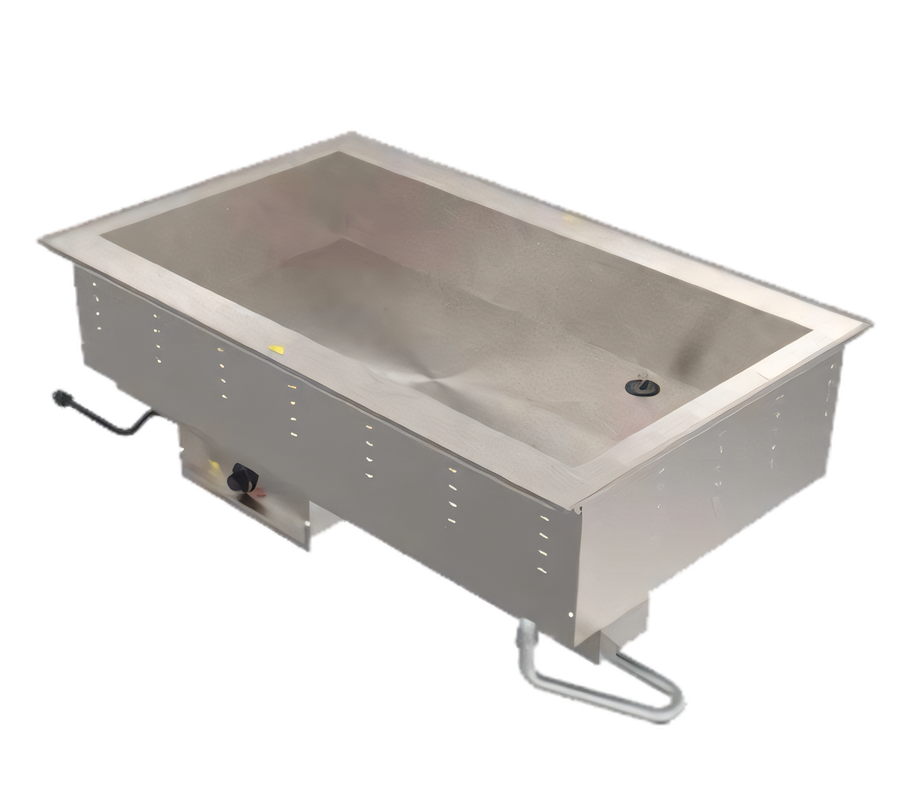

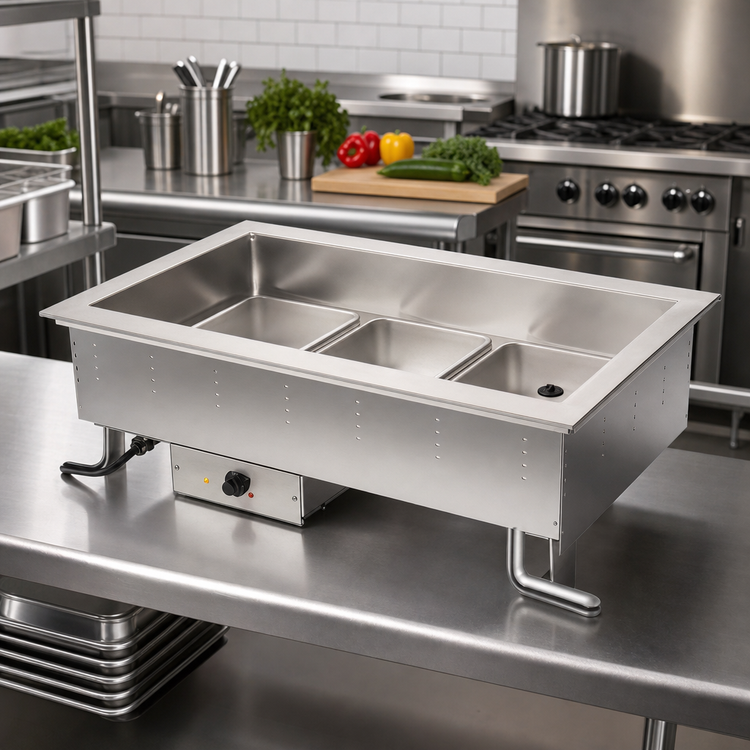

Vollrath 3-Pan Bain Marie Hot Drop-In
Model 36503208 | 208 V / 60 Hz / 1-Ph | Made in USAKeep menu items hot, fresh, and service-ready without sacrificing counter space. Vollrath’s 3-pan bain marie drop-in features wet-heat performance, a corrosion-resistant stainless well, and simple plug-and-play installation—all engineered for the rigors of commercial foodservice.
Key Benefits
- Holds three full-size pans (or fractional pans with templates) at safe serving temperatures.
- Thermostatic control maintains gentle steam; control panel can stay on the unit or mount remotely with the included 48 in. cord.
- 6 ⅝ in.-deep, 18-ga 300-series stainless well handles pans up to 6 in. deep.
- Full-perimeter drip-edge—with included gasket—helps keep condensation off your counter.
- High-density glass-fiber insulation boosts energy efficiency and allows zero-clearance installation.
- 1 in. NPT drain with ball-valve shut-off speeds end-of-shift cleanup.
- Ships ready to use—6 ft power cord with NEMA 6-15P plug; no hard-wiring required.
- cULus & NSF Listed for sanitation and safety compliance.
Perfect For
- Buffet and cafeteria service lines
- Hotel breakfast bars
- Convenience stores & delis
- Catering and banqueting stations
Technical Specifications
| Pan capacity | 3 full-size steam table pans (up to 6 in. deep) |
|---|---|

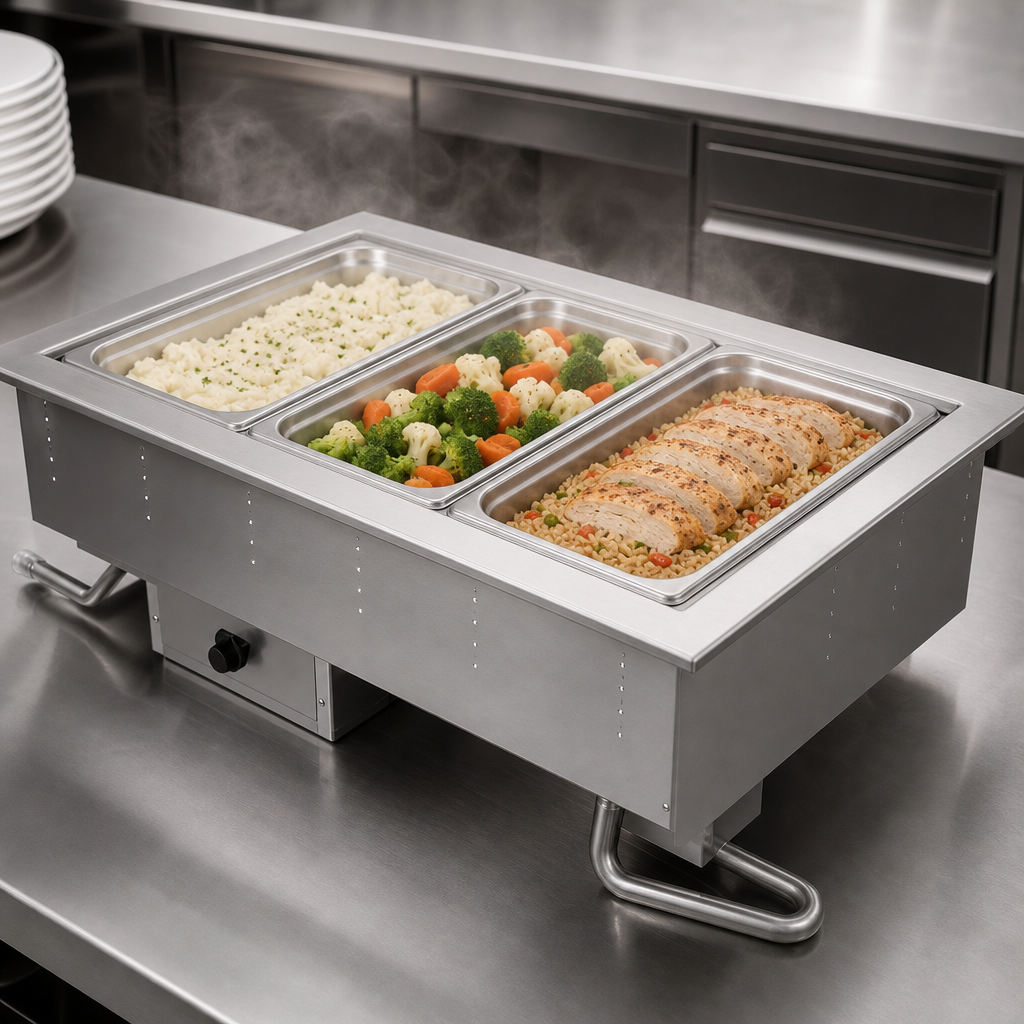

| Operation | Wet only – add approx. ½ in. water |
| Temperature control | Thermostatic; on-unit or remote (48 in. lead) |
| Electrical | 208 V / 1-Ph / 60 Hz · 1875 W · 9 A · NEMA 6-15P |
| Overall dimensions | 41 ½ in. L × 26 in. W × 11 ⅞ in. H (top flange to base) |
| Well depth | 6 ⅝ in. (16.8 cm) |
| Recommended cutout | 37 ½ in. L × 24 ¾ in. W; 7⁄8 in. corner radius |
| Construction | 18-ga stainless top & liner; 20-ga galvanized exterior housing |
| Drain | 1 in. NPT with ball-valve shut-off |
| Cord length | 6 ft (1.83 m) |
| Insulation | High-density glass fiber (sides & beneath element) |
| Agency listings | cULus, NSF 4 |
| Warranty | 1-year parts & labor – see vollrathfoodservice.com for details |
For holding pre-heated food only. This unit is not designed to rethermalize chilled product.
Miramar™ templates and adaptor bars available separately.
