Vollrath 36501240 Steam Tables & Food Wells
Description

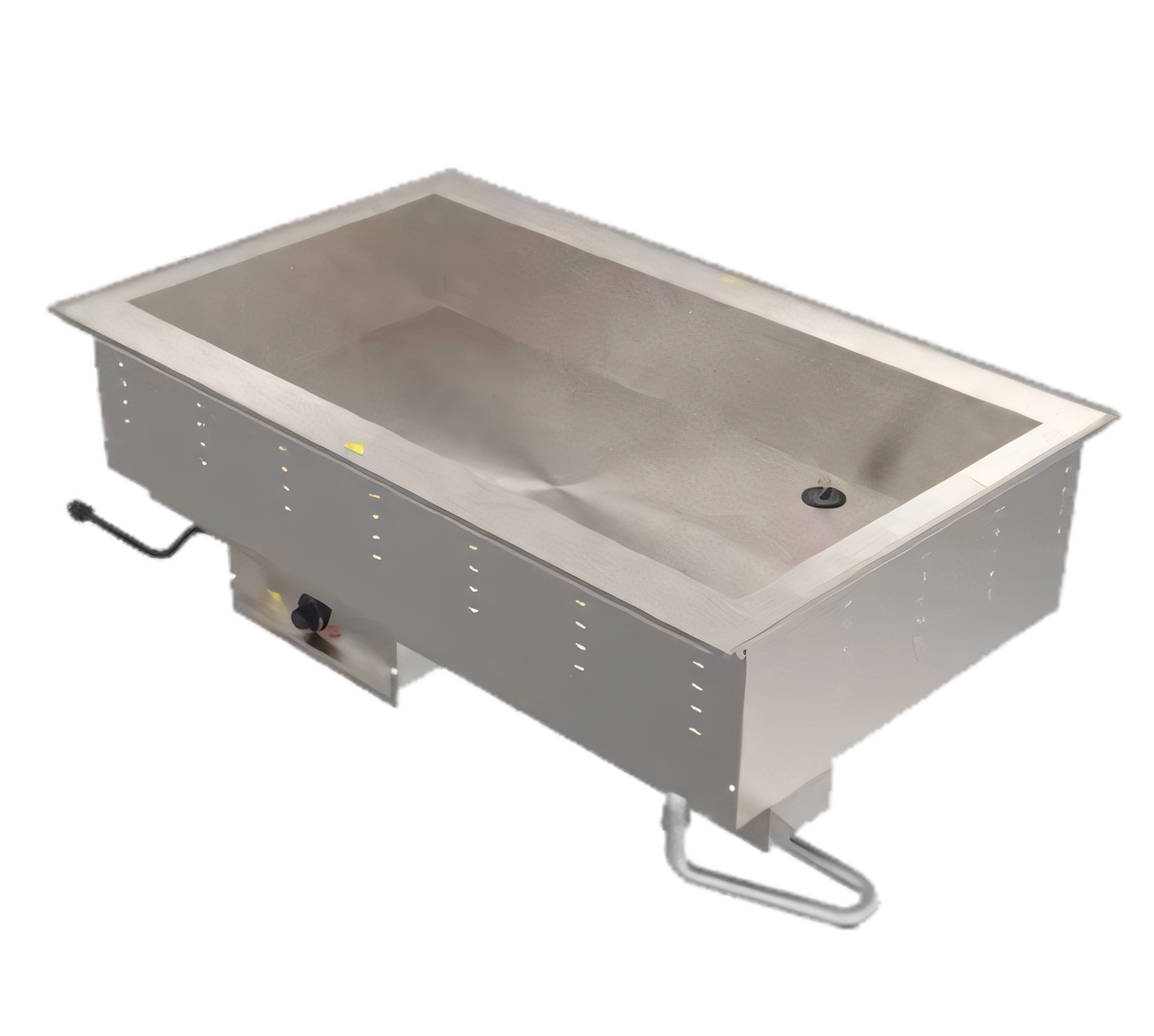

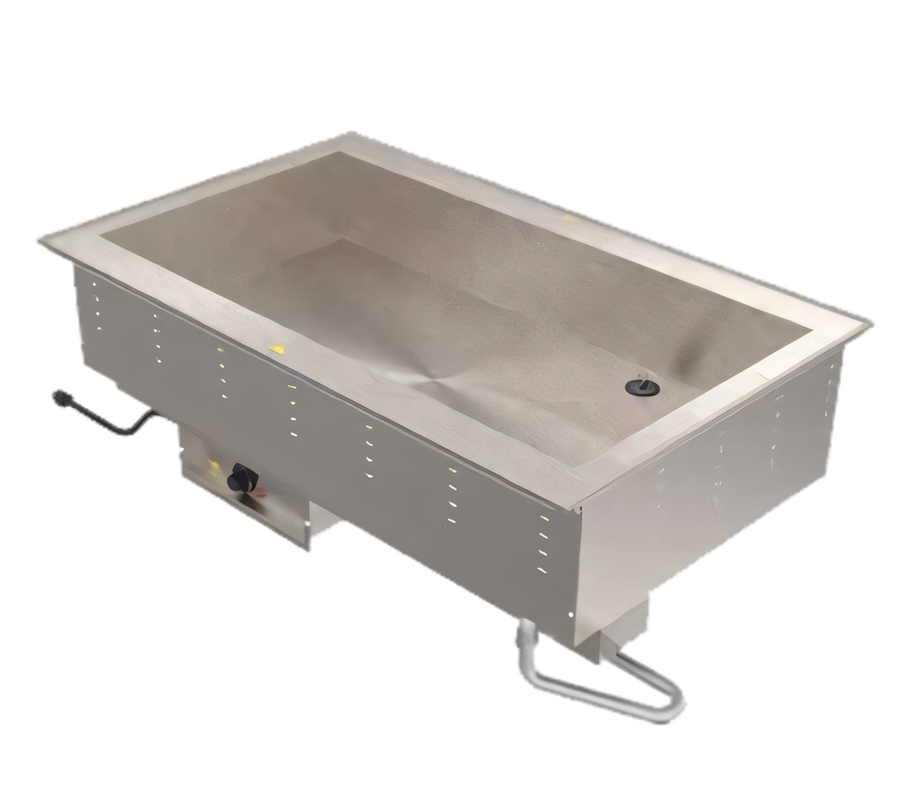

Vollrath Bain Marie Hot Drop-In – 2-Pan, 240 V
Model 36501240 | Item # 36501240Keep two full-size pans of food hot, moist and ready for service with this top-mount Bain Marie well from Vollrath. The stainless-steel unit drops into your counter, plugs into a standard 240 V receptacle and delivers even, energy-efficient heat—no hard-wiring required.
Key benefits
- Precision thermostatic control with pilot light for consistent holding temperatures.
- Control panel ships attached or can be remote-mounted (48 in. cord included) for easy operator access.
- 625 W manifold heating element distributes gentle heat when operated with ½ in. of water.
- Full-perimeter drip edge and drip-less design keep surrounding counters clean.
- 6⅝ in. deep, 18-ga 300-series stainless well accepts pans up to 6 in. deep or Vollrath Miramar™ templates.
- High-density glass-fiber insulation allows zero-clearance installation and reduces energy loss.
- 1 in. NPT drain with ball-valve shut-off simplifies end-of-day cleanup.
- Ships ready to use with 6 ft. cord and NEMA 6-15P plug.
- cULus listed, NSF 4 compliant and Made in the USA.
Perfect for
- Buffets & self-service lines
- Cafeterias & institutional kitchens
- Quick-service makelines
- Convenience stores & delis
Technical specifications
| Pan capacity | 2 full-size (or fractional) steam-table pans |
|---|---|
| Well depth | 6 ⅝ in. (16.8 cm) |
| Overall dimensions (L × W) | 29 in. × 26 in. (73.7 × 66 cm) |
| Cut-out size (L × W) | 27 ½ in. × 24 ¾ in. (70.5 × 62.9 cm), ⅞ in. corner radius |
| Electrical | 1250 W • 240 V • 5.2 A • 1-Phase |
| Plug | NEMA 6-15P (6 ft. cord) |
| Controls | Thermostatic dial, remote-mountable panel |
| Construction | 18-ga stainless top & liner; 20-ga galvanized exterior |
| Drain | 1 in. NPT with ball valve (below housing) |
| Mounting hardware | Gasket, positioning clips & brackets for counters up to 3 in. thick |
| Warranty | 1-Year parts & labor (see vollrathfoodservice.com for full policy) |
Modular drop-ins are built to order and cannot be cancelled or returned. Verify cut-out and electrical requirements before ordering.
