Vollrath 36500 Steam Tables & Food Wells
Vollrath 36500 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36500 Steam Tables & Food Wells
Description

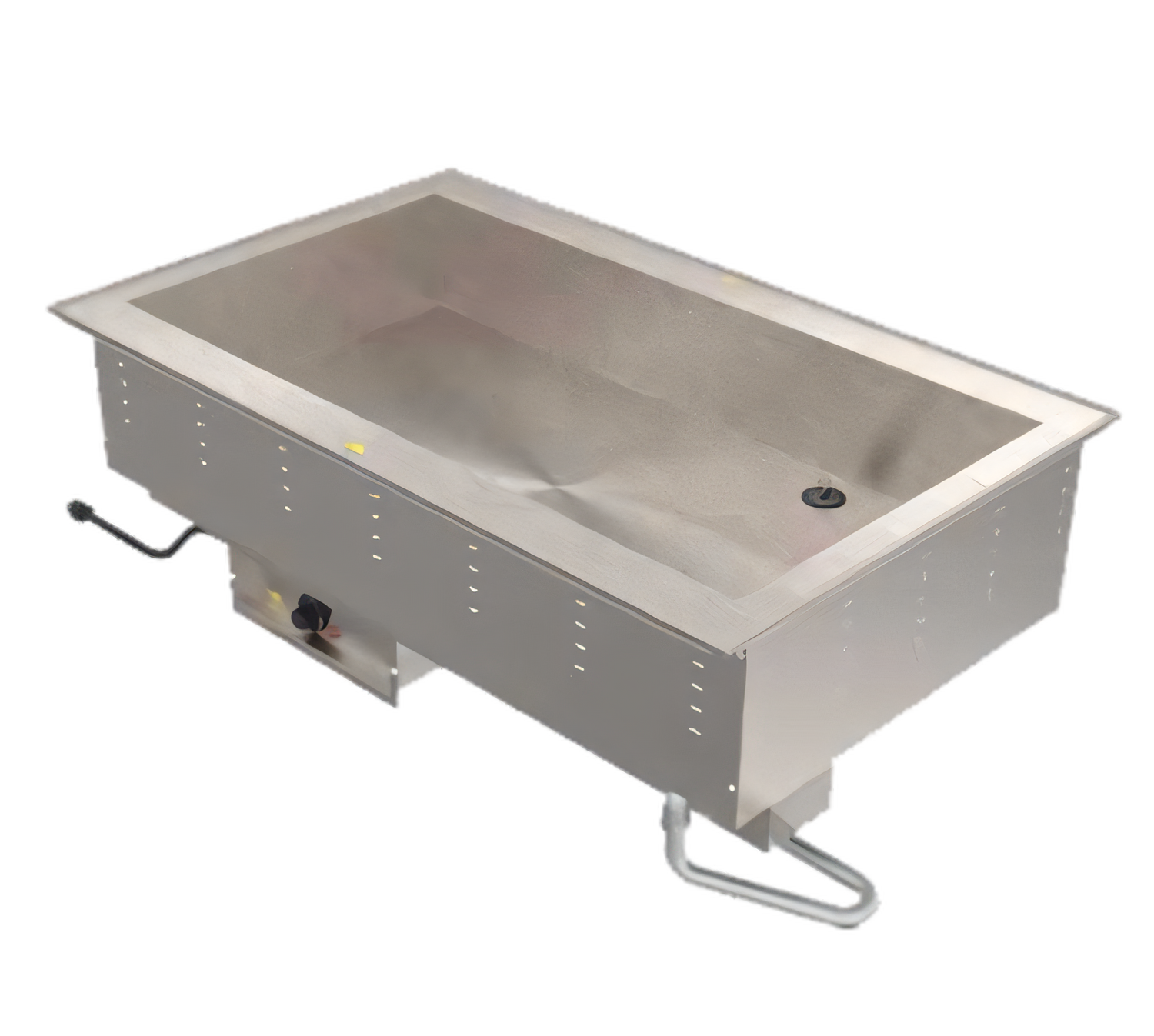

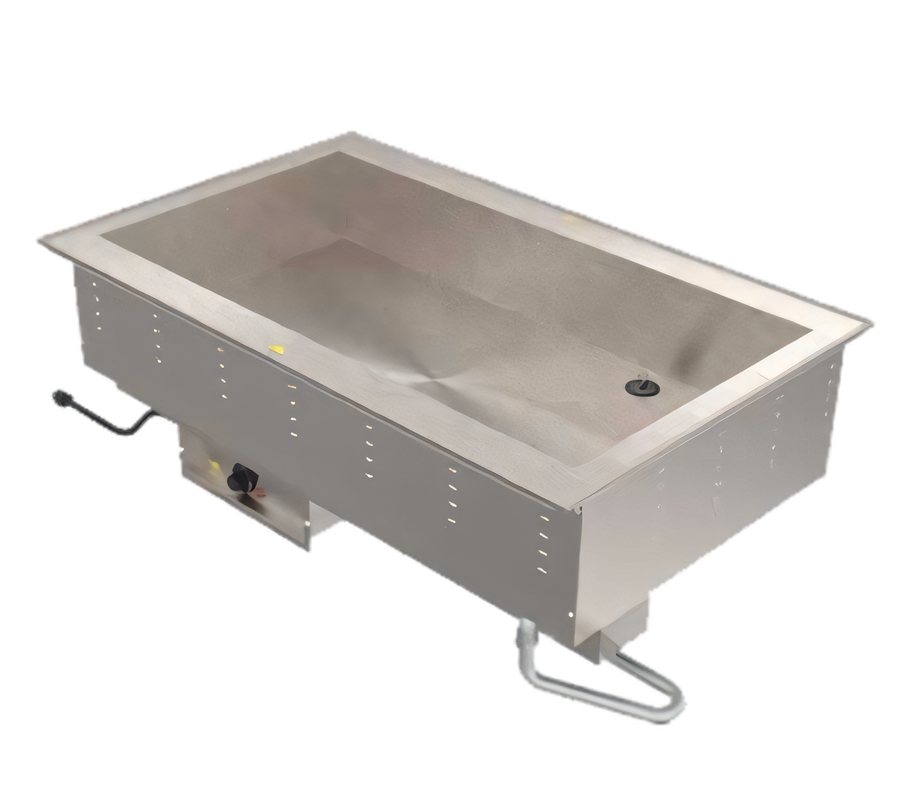

Vollrath Bain Marie Hot Drop-In – 2 Pan (Item 36500)

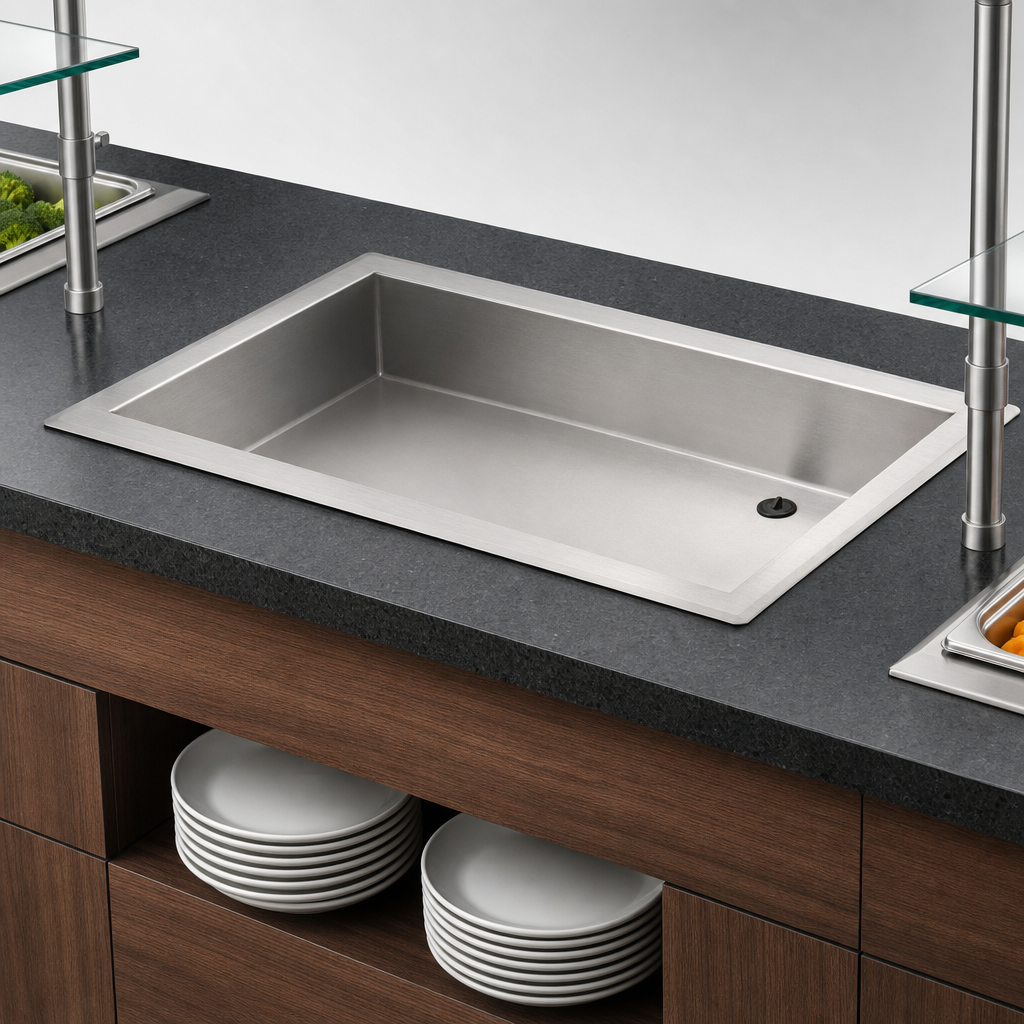

Top-mount electric wet well • 120 V • Made in USAKeep entrées and sides at safe serving temperatures without sacrificing counter space. The Vollrath 2-pan Bain Marie Hot Drop-In combines a fully insulated stainless well, precision thermostatic control and a drip-edge work surface to deliver reliable, mess-free food holding in any buffet, cafeteria or cook-line.
Key Advantages
- Holds two standard 12 × 20 in pans (or fractional equivalents) up to 6 in deep.
- Wet operation maximizes heat transfer and product quality; meets NSF 4 performance when used with water.
- 18-gauge, 300-series stainless steel top & die-stamped well with 3∕8 in full-perimeter drip-edge to keep counters dry.
- Front-mounted stainless control panel with power indicator light – ships attached or can be remote-mounted on the included 48 in cord.
- High-density fiberglass insulation on all sides allows zero-clearance installation and reduces energy loss.
- 1 in NPT drain with ball-valve shutoff for quick, safe water removal.
- Factory-installed gasket, positioning clips and adjustable mounting brackets fit countertops up to 3 in thick – no field fabrication required.
- 6-ft cord with NEMA 5-15P plug; no hard-wiring.
Technical Specifications
| Pan Capacity | 2 × Full size (12 × 20 in) |
|---|---|
| Operation | Wet (steam table style) |
| Well Depth | 6 5⁄8 in (16.8 cm) |
| Overall Dimensions (L × W) | 29 × 26 in (73.7 × 66 cm) |
| Cut-out (L × W) | 27 1⁄4 × 24 3⁄4 in * *7⁄8 in corner radius |
| Electrical | 120 V / 60 Hz / 1 ph • 1,250 W • 10.4 A • NEMA 5-15P |
| Heating Element | 2 × 625 W embedded elements |
| Construction | 18-ga SS top & liner, 20-ga galvanized exterior |
| Drain | 1 in NPT with ball valve (bottom exit) |
| Controls | Thermostatic dial (on-unit or remote up to 48 in) |
| Certifications | cULus • NSF 4 |
| Country of Origin | USA |
Installation & Use Tips
- Add approximately ½ in of water before pre-heating for best heat distribution.
- Use with Vollrath Miramar™ templates or adaptor bars when mixing fractional pans.
- Designed for holding pre-heated foods – not for cooking or re-thermalizing.
- Connect the drain to a floor sink where local codes require.
Included in the Box
- Drop-in bain marie well with 6-ft power cord
- Stainless steel thermostatic control panel & 48-in control cord
- Factory-installed perimeter gasket
- Adjustable mounting clips & positioning hardware
- Owner’s/installation manual
Certifications & Warranty
This unit is cULus listed and NSF 4 compliant for safe, sanitary food holding. Vollrath backs the model 36500 with a one-year parts & labor warranty. For complete terms visit vollrathfoodservice.com.
