Vollrath  |  SKU: 36491

Vollrath 36491 Steam Tables & Food Wells

$1,237.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

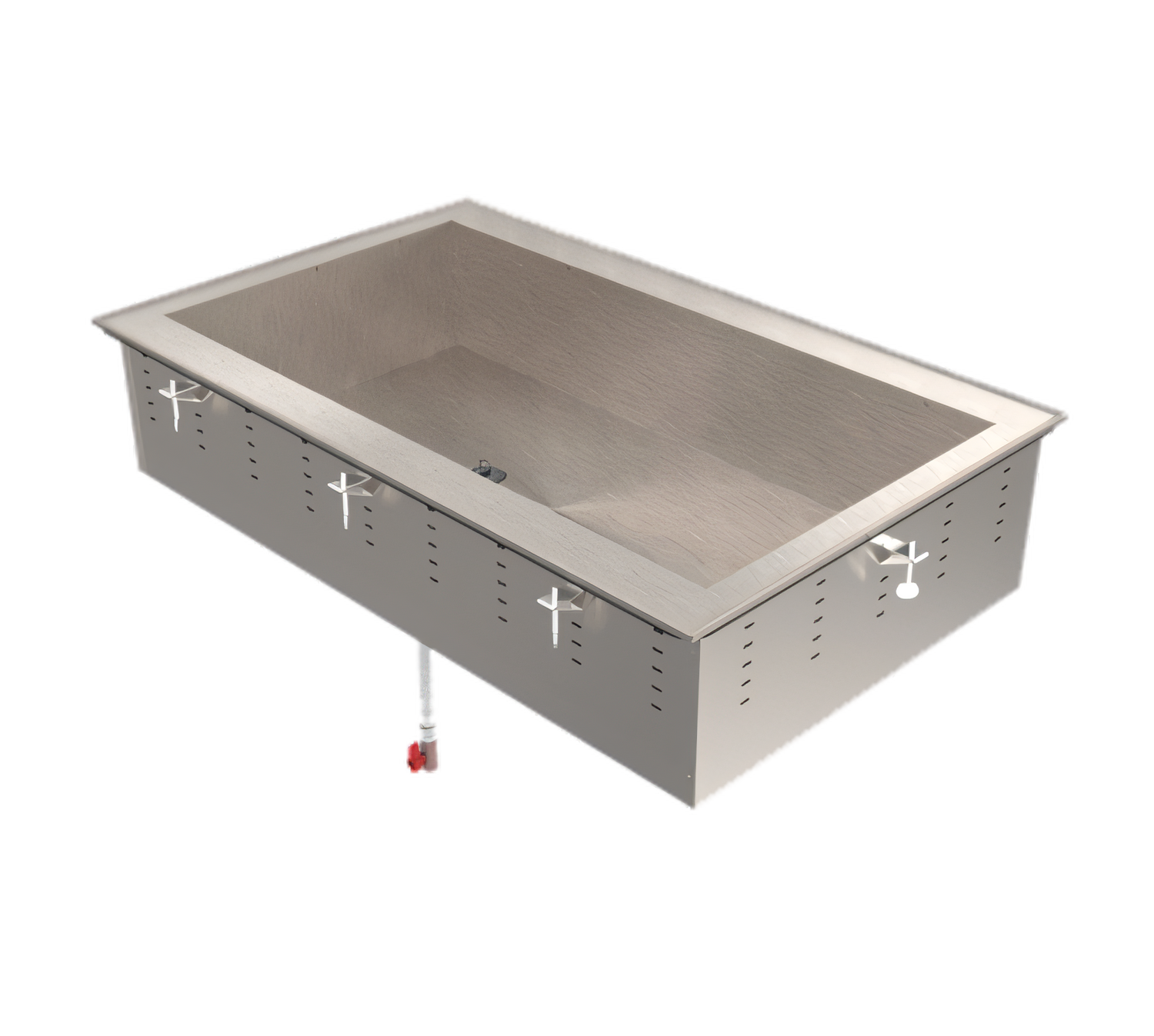

Vollrath 36491 Drop-In Non-Refrigerated Cold Pan – 1 Pan

Ice-cooled well for 12 × 20 full-size pan, NSF Listed, Made in USA

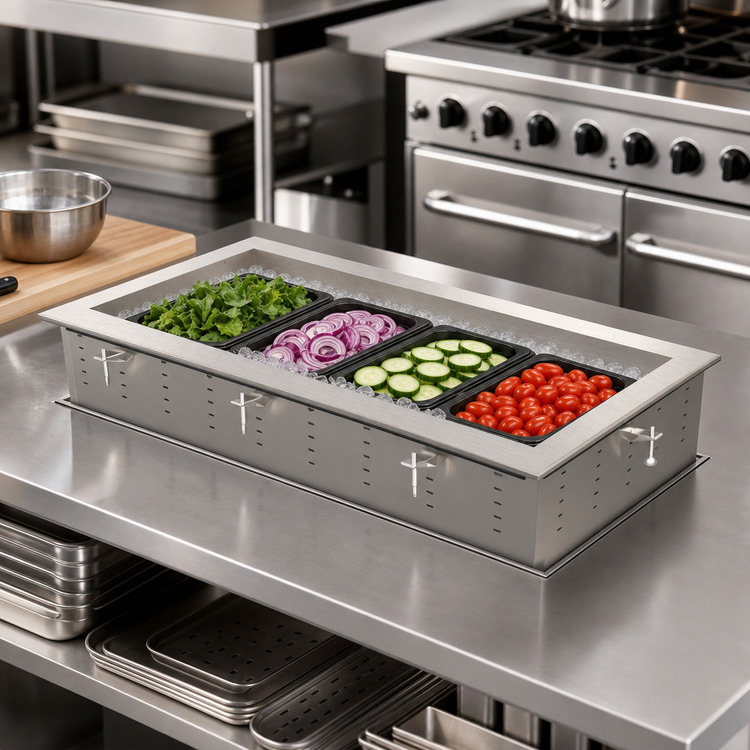

Create a clean, professional cold food station without the cost or complexity of refrigeration. The Vollrath 36491 one-pan drop-in cold well uses ice and thick polyurethane foam insulation to keep salads, fruit, desserts, and grab-n-go favorites at safe serving temperatures for hours while maximizing countertop space.

Key benefits

  • Seamless 18-ga 304 stainless steel well resists corrosion and wipes clean fast.
  • Full-perimeter drip edge with molded breaker gasket keeps condensation off your counter.
  • 8 in (20.3 cm) deep display well delivers maximum ice capacity for superior cold holding.
  • Foamed-in-place insulation retains cold and reduces ice melt for longer service times.
  • 1 in (2.5 cm) integral center drain with included plug for quick, mess-free ice melt removal.

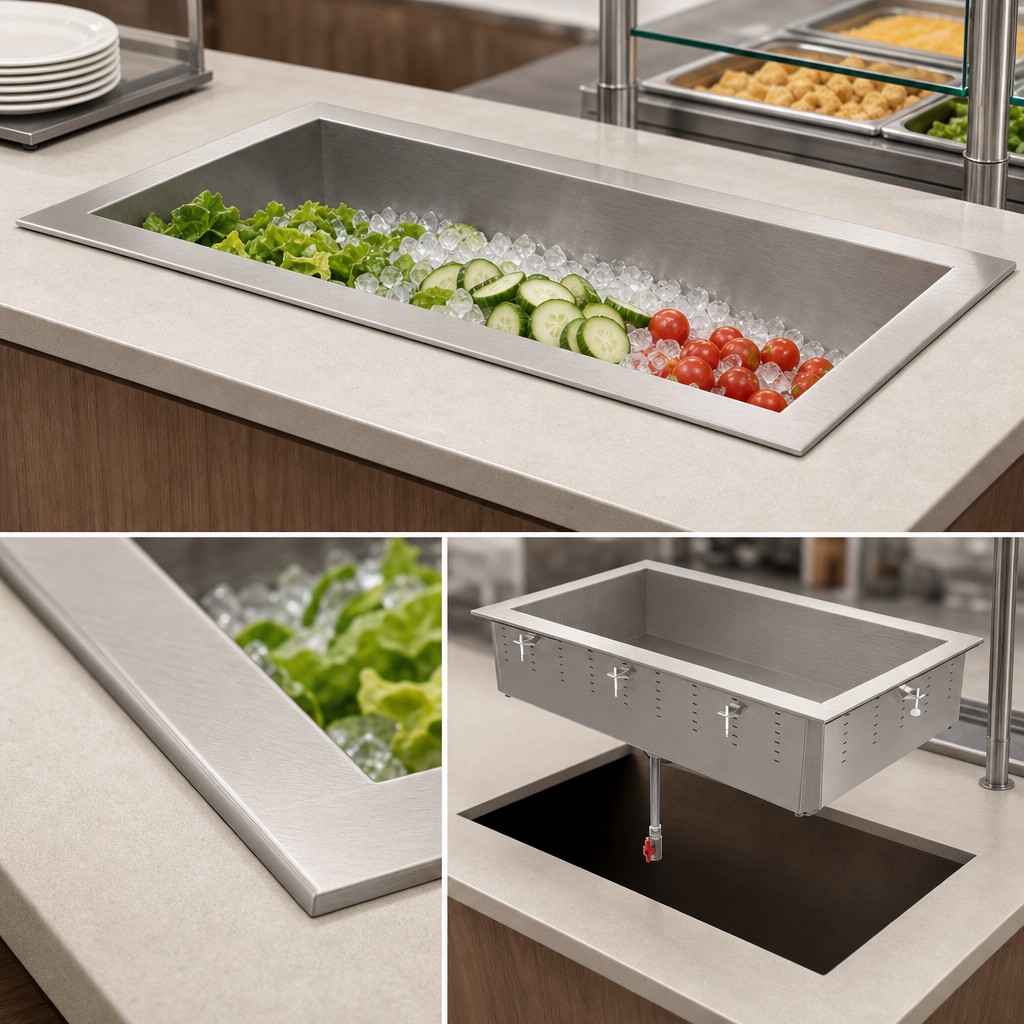

  • Top-mount design with positioning clips for easy, accurate installation.
  • Rugged exterior housing in 18-ga galvanized steel for lasting durability below the counter.
  • NSF Listed and proudly Made in the USA.

Specifications

Model 36491 | One-Pan Non-Refrigerated Cold Well
Overall dimensions (L × W × H) 15" × 26" × 17 15⁄16" (38.1 × 66 × 45.1 cm)
Well interior (L × W × Depth) 12" × 19 7⁄8" × 8" (30.5 × 50.5 × 20.3 cm)
Pan capacity (1) full-size 12" × 20" steam table pan — or fractional pans equivalent
Cut-out size* 14 1⁄4" × 25 1⁄4" (36.2 × 64.1 cm) with 7⁄8" (2.2 cm) corner radius
Drain 1" integral center drain & plug
Construction 18-ga 304 stainless steel well & top, 18-ga galvanized steel exterior
Insulation High-density foamed-in-place polyurethane
Power None required – ice cooled
Certifications NSF Listed
Warranty 1-year parts & labor (see vollrathfoodservice.com for full policy)
Origin Made in USA

*Opening cut-out must have 7⁄8" (2.2 cm) radius corners.

Optional accessory

  • Perforated stainless steel false bottom, 1" high (Model 20000) — elevates product out of melt water.
Lead Time: Modular drop-ins are built to order; please contact Vollrath for current availability. Drop-in units are not cancellable or returnable once in production.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, Made in USA

Height

17.94in

Width

15.0in

Depth

26.0in

Shipping Weight

32.3lbs

Interior Liner

stainless steel

Depth (front-to-back) OA

25 - 30 inches

Pan Qty

1-pan

Exterior Liner

galvanized steel

Width (side - side) OA

13 - 18 inches

Layout

straight

Specifications

Cold Food Pan, Drop-In, (1) pan, non-refrigerated, ice cooled, 15"W x 26"D x 17-15/16"H (overall), 12"W x 19-7/8"D x 8"deep (pan), drip-free flange, polyurethane foam insulated, 1" integral center drain, 18/304 stainless steel interior, 18 gauge galvanized exterior, NSF, Made in USA (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
