Vollrath 36490R Steam Tables & Food Wells
Description

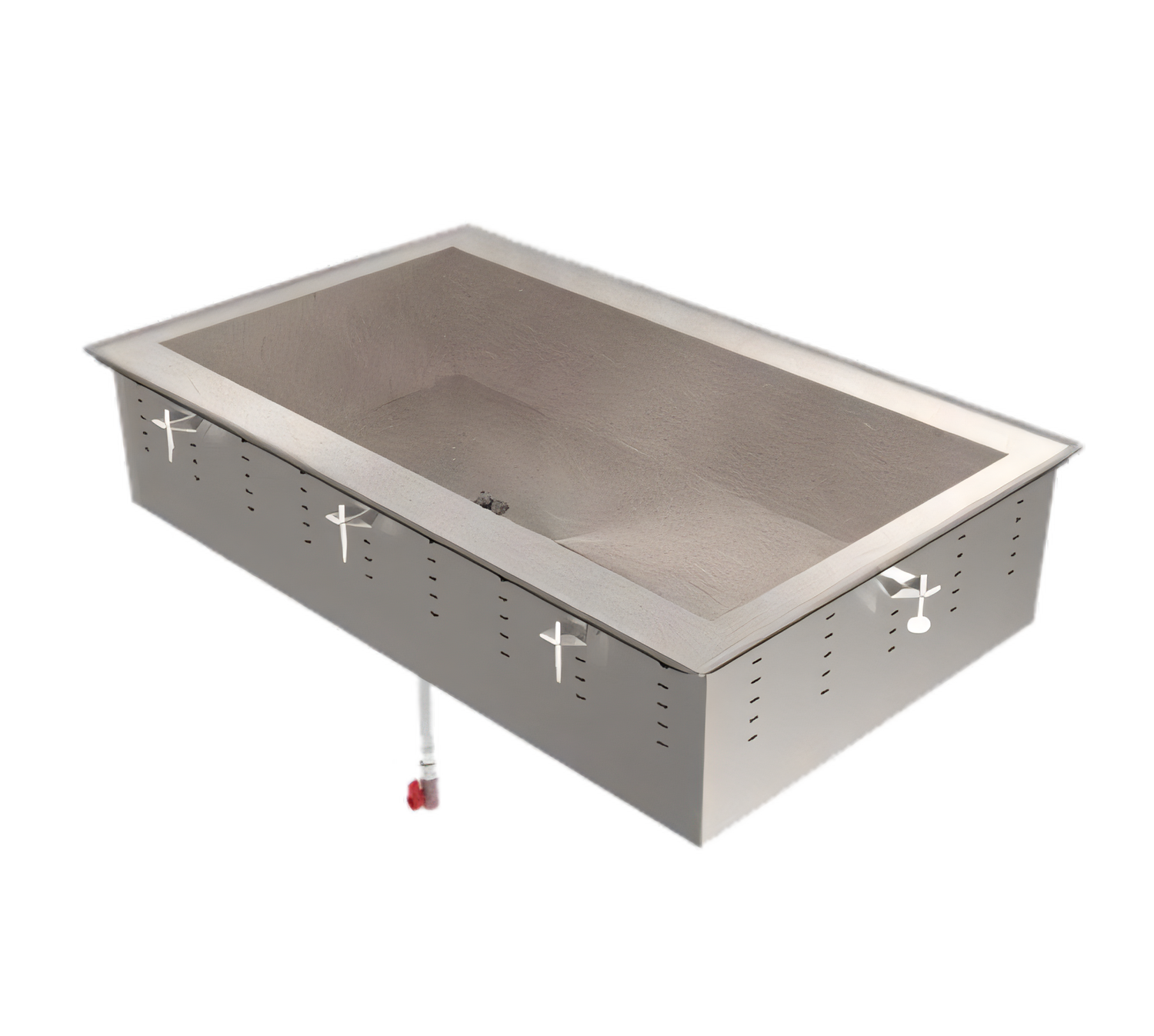

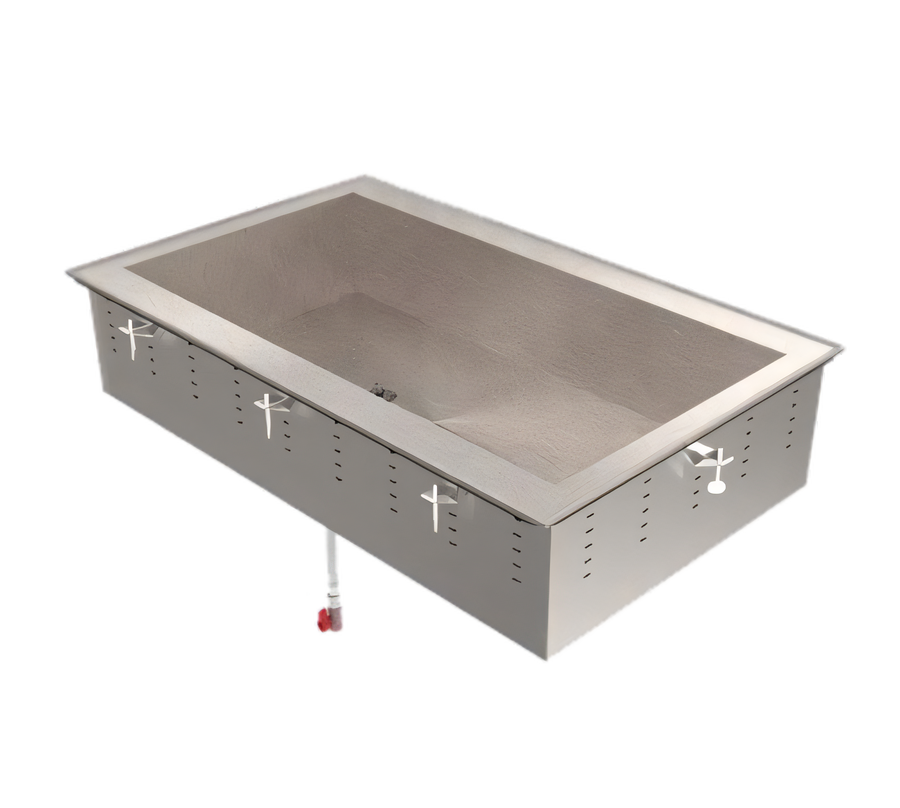

Vollrath 36490R Remote Drop-In Refrigerated Cold Pan – 1 Pan
8 in (20.3 cm) deep well | accommodates 12 × 20 in full-size panKeep salads, toppings and grab-n-go items safely chilled without sacrificing counter space. The Vollrath 36490R remote refrigerated drop-in cold pan delivers reliable cold holding with a seamless, stainless-steel well and the flexibility to locate the compressor outside the customer area.
Key features

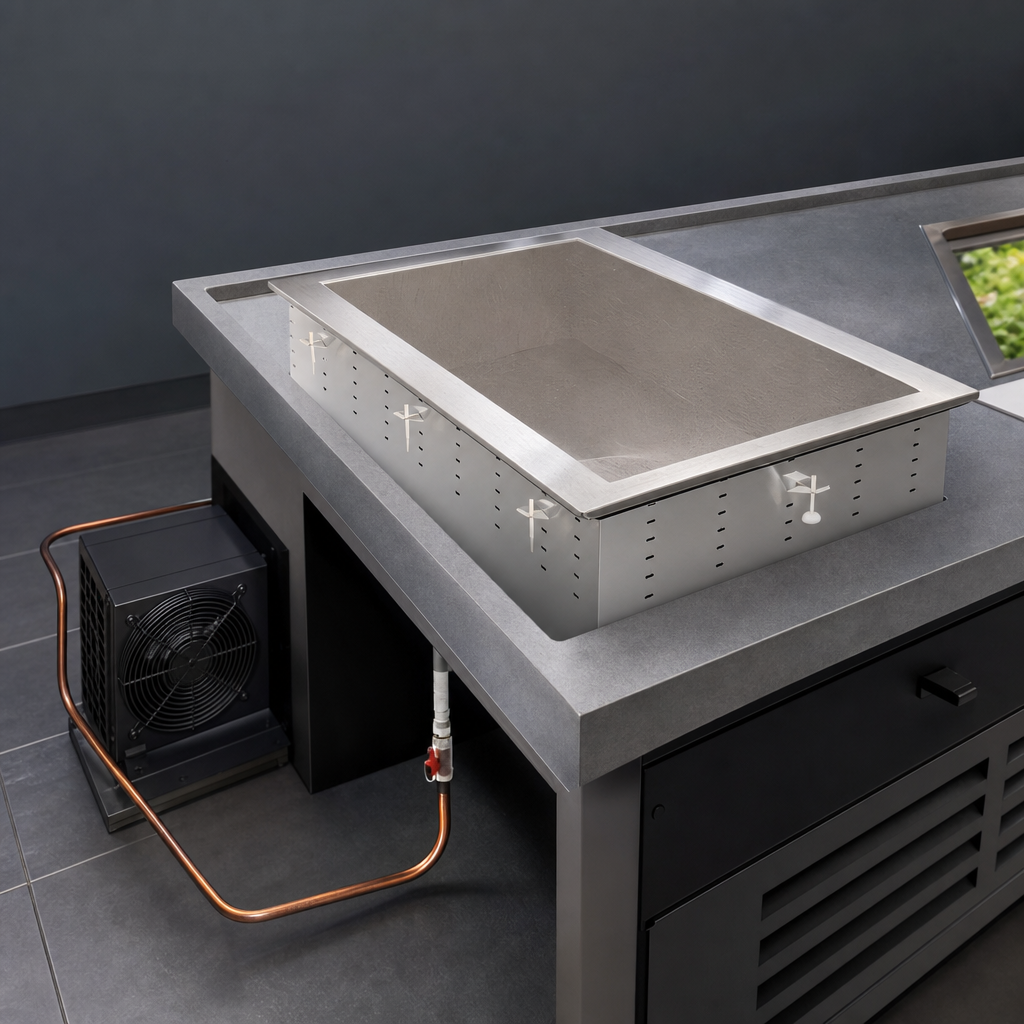

- Remote refrigeration design (compressor not included) keeps noise and heat away from the serving line.
- Holds one standard 12 × 20 in steam-table pan; adaptor bars let you combine fractional pans.
- 8 in (20.3 cm) deep seamless well provides generous ice capacity for up to 4 hours of cold holding.
- 18 ga 18/8 (Type 304) stainless-steel top with full-perimeter drip-free flange contains spills and condensation.
- Foamed-in-place polyurethane insulation maximizes temperature retention and ice life.
- Durable 18 ga galvanized exterior housing built for heavy commercial use.
- Factory-installed ⅜ in O.D. copper tube ready for your capillary thermostat control.
- 1 in (2.5 cm) threaded drain plug for fast, hassle-free clean-up.
- Zero-clearance, top-mount installation with included positioning clips.
- NSF & cULus listed; proudly made in the USA.
Specifications
| Item number | 36490R (standard remote) |
|---|---|
| Pan capacity | 1 full-size (12 × 20 in) pan |
| Well depth | 8 in / 20.3 cm |
| Interior size (L × W) | 12 × 20 in (30.5 × 50.8 cm) |
| Overall dimensions (L × W × H) | 15 × 26 × 17 in (38.1 × 66 × 43.2 cm) |
| Counter cut-out (L × W) | 14 ½ × 25 ¼ in (36.2 × 64.1 cm) 7⁄8 in (2.2 cm) corner radius required |
| Material – well | 18 ga 304 stainless steel, seamless |
| Material – exterior | 18 ga galvanized steel |
| Drain | 1 in (2.5 cm) plug, removable |
| Compressor requirement* | 800 BTUH @ 100 °F condensing / –10 °F evaporating |
| Certifications | NSF, cULus |
| Origin | Made in USA |
*Remote unit ships without compressor. Values shown are for sizing reference.
Optional accessories (sold separately)
- Perforated stainless-steel false bottom (reduces pan depth by 1 in).
- Solenoid valve with coil – Vollrath 36480.
- Expansion valve – Vollrath 36481.
- Thermostat with knob control – Vollrath 36482.
- Filter & sight-glass kit – Vollrath 36483.
- Remote lighted toggle switch – Vollrath 23540-1.
Important installation notes
• Remote compressor and refrigerant controls are not included.
• Must be installed and charged by a certified refrigeration technician.
• Modular drop-in orders cannot be canceled or returned.
• Contact Vollrath for current lead times and refrigeration guidelines.
One-year parts & labor warranty applies. For complete terms, see the Vollrath warranty policy.
