Vollrath 36476HD Steam Tables & Food Wells
$4,961.70
Unit price
/
Unavailable
Description

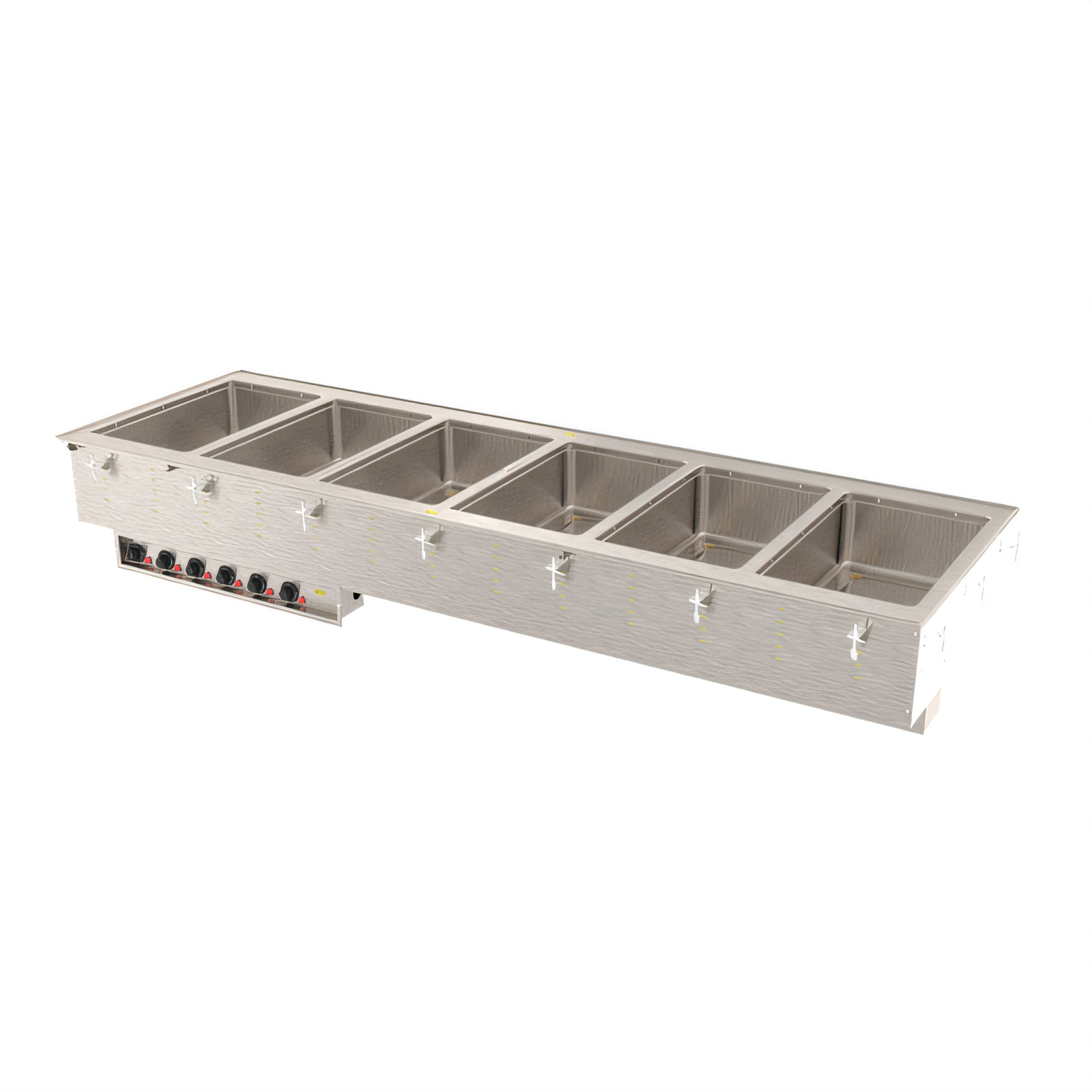

Vollrath Six-Well Modular Hot Drop-In with Marine-Grade Wells
Model 36476HD | 240 V Infinite Control | Standard DrainKeep entrées, sides and sauces held safely above 140 °F while giving your serving line a clean, built-in look. Vollrath’s 36476HD drop-in delivers wet-bath, even heating to six full-size pans—without hard-wiring, field welding or guesswork.
Why You’ll Love It

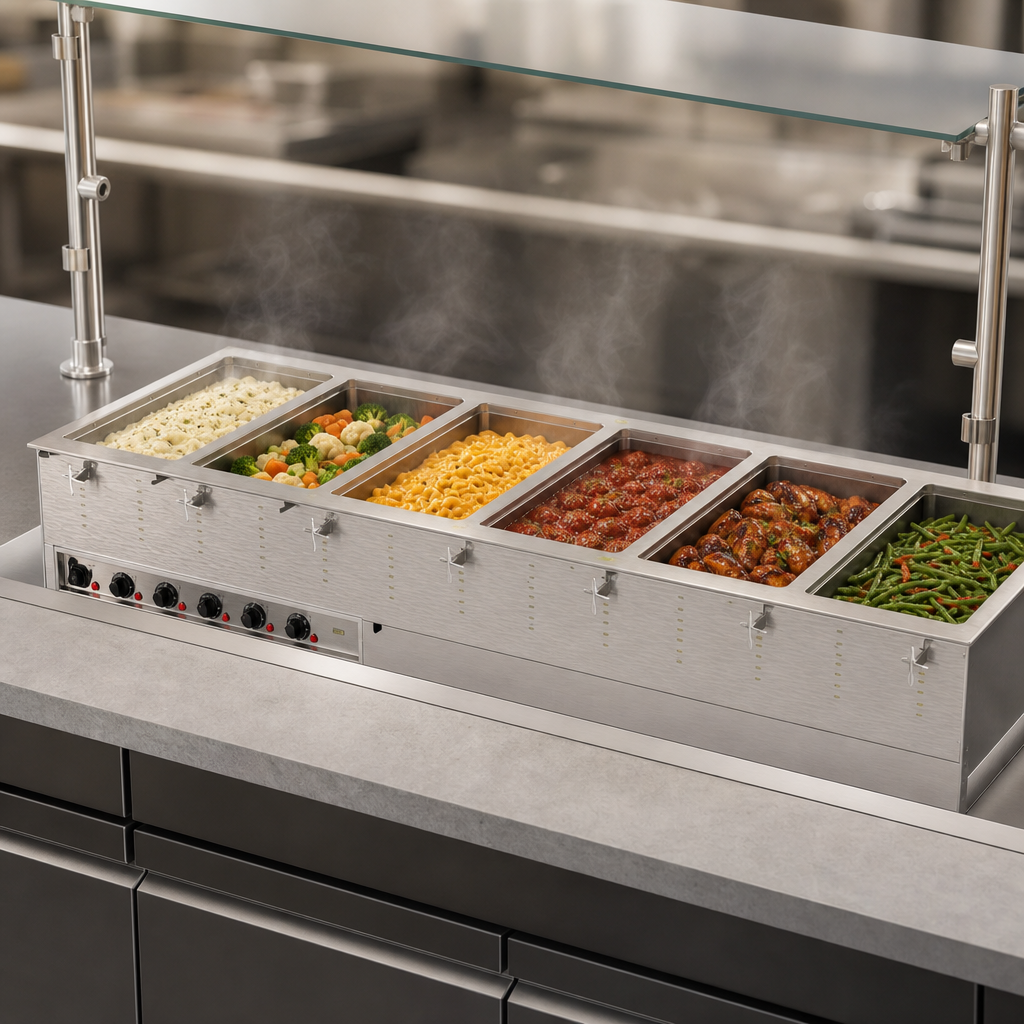

- 6 independent 12" × 20" wells formed from 20-ga. 316 marine-grade stainless steel for superior pitting & corrosion resistance.
- Individual infinite controls and power lights let you tailor holding temps per menu item.
- Fully insulated (including between wells) to maximize energy efficiency and keep counters cool to the touch.
- Wet-operation design meets NSF 4 hot-holding performance standards.
- ½" drains with separate shut-off valves for each well reduce pan-change downtime and mess.
- Drip-free perimeter flange, included gasket and mounting clips speed installation on counters up to 3" thick.
- Ships with a 6' cord and NEMA 6-20P plug—no electrician required.
- Made in the USA and backed by Vollrath’s two-year warranty.
Technical Specifications
| Wells | (6) full-size 12" × 20" (holds pans up to 6" deep) |
|---|---|
| Construction | 316 stainless wells, 18-ga. stainless top, stainless exterior housing |
| Operation | Wet bath only | Infinite knob control, one per well |
| Total Power | 3 750 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph | 15.6 A | NEMA 6-20P cord-set included |
| Overall Size | 81 ¼" W × 26" D × 15" H (206.4 × 66 × 38.1 cm) |
| Counter Cutout | 80 ½" W × 25 ¼" D (204.5 × 64.1 cm) | 7/8" corner radius |
| Control Panel Lead | 3' (91 cm) tether for flexible mounting |
| Certifications | NSF 4, cULus |
| Country of Origin | USA |
Install & Operate in Minutes
- Zero-clearance design fits tight cabinetry runs.
- Positioning clips and gasket included—no extra kit to buy.
- Indoor use only; ambient HVAC may affect holding temperature.
What’s in the Box
- 36476HD six-well drop-in assembly
- Remote stainless control panel with 6 infinite knobs & power lights
- Mounting gasket & clips
- Factory-installed 6' cord with NEMA 6-20P plug
- Installation & operation manual
Important: Operation with water is required for even heating.
Do not modify the factory cord or plug—doing so will void the warranty.
Drop-ins are made-to-order and cannot be canceled or returned. Refer to vollrathfoodservice.com for complete warranty terms.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
81.25in
Depth
26.0in
Shipping Weight
230.0lbs
Controls
infinite controls
Pan Capacity
(6) full size (12" x 20")
Insulated or Non-Insulated
insulated
Style
individual pans
Construction
stainless steel construction
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
