Vollrath 3647680HD Steam Tables & Food Wells
$6,655.60
Unit price
/
Unavailable
Description

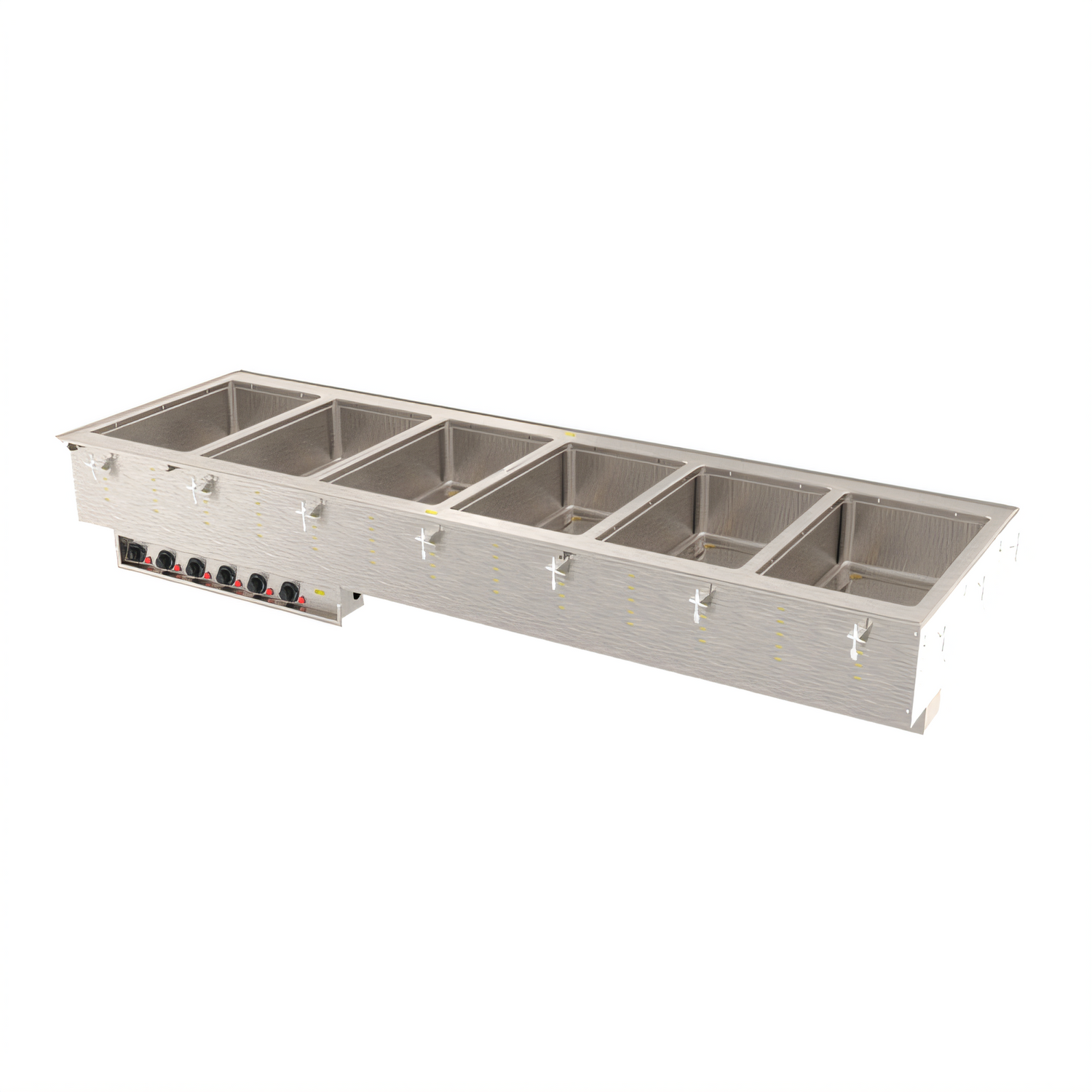

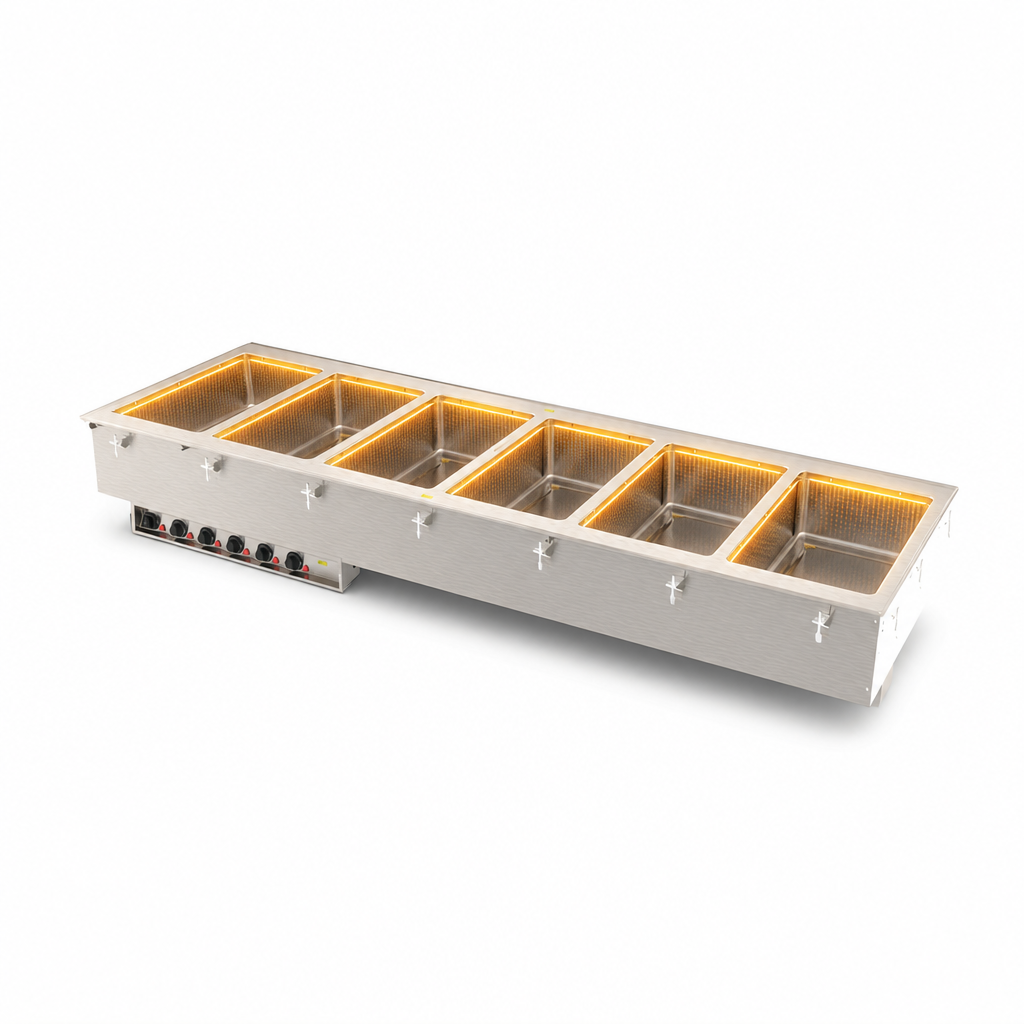

Vollrath Six-Well Modular Marine-Grade Hot Drop-In with Auto-Fill
Model 3647680HD • Thermostatic Controls • 240 V / 3,750 WKeep six different menu items perfectly hot and ready with the industry-leading durability of 316 marine-grade stainless steel. This plug-and-play drop-in delivers reliable wet-bath holding power, hassle-free auto-fill functionality, and individual precision control for every well.
Why you’ll love it
- Six full-size 12 × 20 in. wells formed from 20-gauge 316 stainless steel for maximum corrosion resistance.
- Auto-fill system maintains the correct water level automatically—no constant checking or refilling.
- 625 W per well (3,750 W total) heats quickly while drawing only 15.6 A on a 240 V, single-phase circuit.
- Individual thermostatic knobs with power indicators let you dial-in temperatures for each dish.
- Full insulation on all sides, including between wells, reduces heat loss and lowers operating costs.
- Drip-free 18-gauge stainless steel top/flange with factory gasket creates a clean, sealed counter fit.
- 1 in. copper manifold drain features a master shut-off plus individual ball valves on every well for mess-free emptying.
- Removable bottom service panels, 6 ft cord and NEMA 6-20P plug—no hard-wiring required.
- Mounting clips included for counters up to 3 in. thick; zero-clearance installation saves space.
- Accepts full-size or fractional pans up to 6 in. deep (use adapter bars for fractional sizes).
- NSF/ANSI 4 listed for wet operation, cULus certified and proudly Made in the USA.
Technical specifications
| Number of wells | 6 × 12 × 20 in. (full-size) |
|---|---|
| Operation | Wet only | Auto-fill |
| Controls | Individual thermostatic, remote stainless panel (3 ft tether) |
| Heating power | 625 W per well | 3,750 W total |
| Electrical | 240 V / 60 Hz / 1-Ph | 15.6 A | NEMA 6-20P plug (6 ft cord) |
| Well material | 20-ga 316 marine-grade stainless steel |
| Top / flange | 18-ga stainless steel, drip-free edge |
| Drain system | 1 in. copper manifold with individual & master shut-offs |
| Pan depth capacity | Up to 6 in. |
| Overall dimensions | 81 ¼ W × 26 D × 21 ½ H in. |
| Counter cutout | 80 ½ W × 25 ¼ D in. | 7⁄8 in. corner radius |
| Certifications | NSF, cULus |
| Warranty | 2-year limited on marine-grade wells (see Vollrath for details) |
| Country of origin | USA |
Important: Unit is designed for wet operation only. Running dry may damage elements and void the warranty.
Custom built to order; modular drop-ins are not eligible for cancellation or return. Full warranty policy available at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
81.25in
Depth
26.0in
Shipping Weight
230.0lbs
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Pan Capacity
(6) full size (12" x 20")
Construction
stainless steel construction
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
