Vollrath 3647680 Steam Tables & Food Wells
$5,742.10
Unit price
/
Unavailable
Description

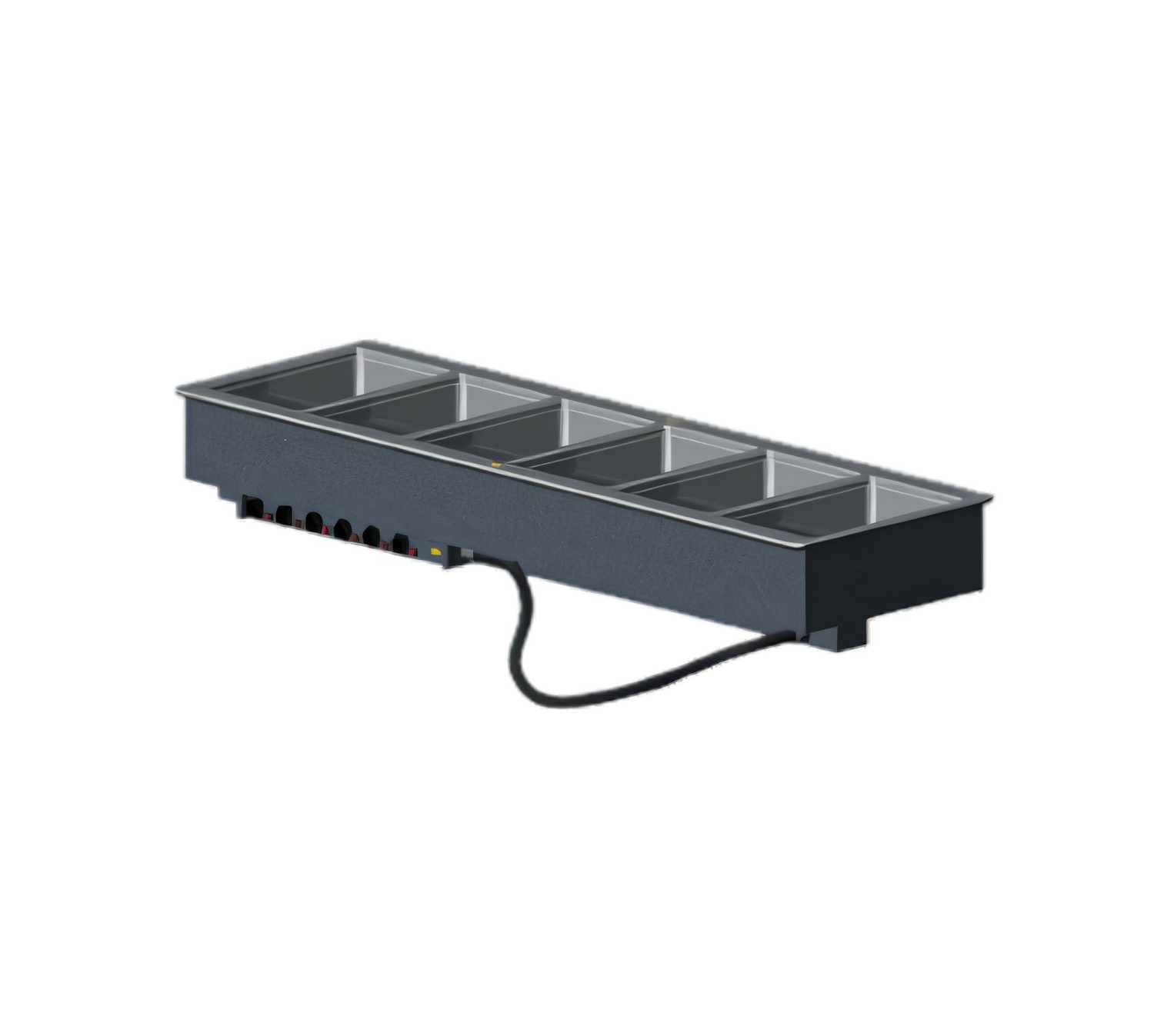

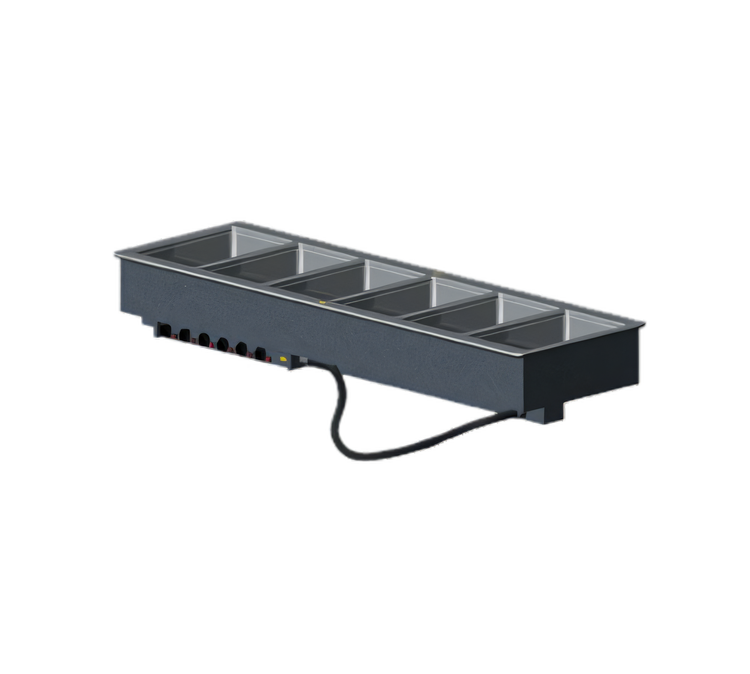

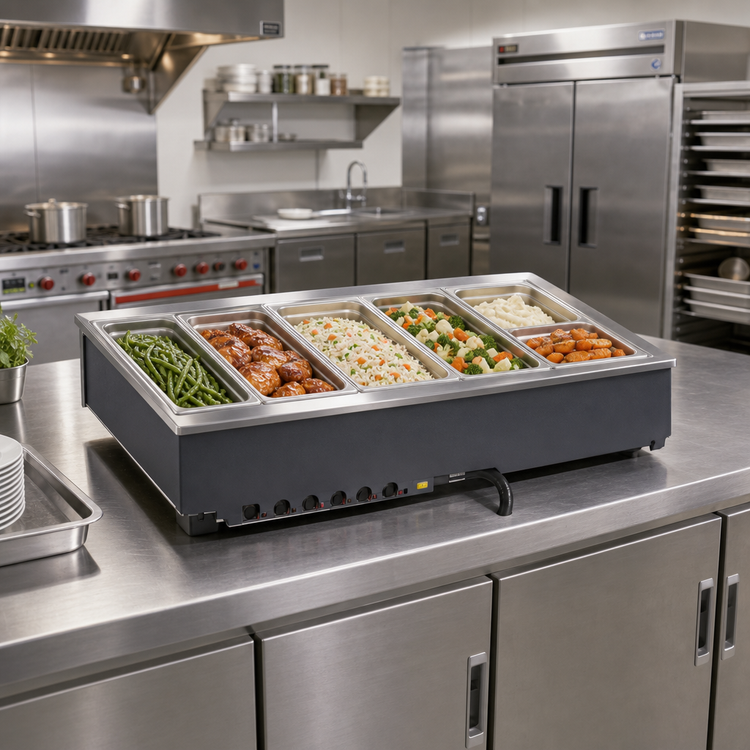

Vollrath 6-Well Drop-In Hot Food Well – Auto-Fill & Thermostatic Control
Model 3647680 | 240 V, 625 W per well, NSF & cULusKeep up to six menu items hot, fresh and food-safe with this USA-made Vollrath drop-in module. The integrated auto-fill system eliminates constant monitoring, while individual thermostatic controls let you dial in the perfect holding temperature for every dish.
Key Features
- (6) 12 × 20 in wells, deep-drawn from durable 20-gauge stainless steel
- Wet-heat operation only – auto-fill maintains correct water level automatically
- Independent thermostatic controls with bright power indicator lights
- 18-gauge stainless steel top with full-perimeter drip-free flange
- 1 in copper manifold drain with individual well shut-offs & master shut-off
- High-density fiberglass insulation on sides, between wells and below elements
- Removable stainless control panel on a 3 ft flexible tether for remote mounting
- Positioning & mounting clips included – fits counters up to 3 in thick
- 6 ft power cord with NEMA 6-20P plug – no hard-wiring required
- NSF 4 listed, cULus certified and proudly Made in the USA
Specifications
| Wells | 6 independent, 12 × 20 in (full-size) / up to 6 in deep |
|---|---|
| Heat Source | Wet operation only, factory-installed auto-fill |
| Controls | 6 thermostatic knobs with indicator lights |
| Total Power | 3,750 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph, 15.6 A, NEMA 6-20P cord & plug |
| Overall Dimensions | 81 ¼ W × 26 D × 21 ½ H in (206.4 × 66 × 54.5 cm) |
| Cutout Size | 80 ½ W × 25 ¼ D in (204.5 × 64.1 cm) – 7⁄8 in corner radius |
| Top Material | 18-gauge stainless steel |
| Exterior Housing | 18-gauge galvanized steel |
| Drain | 1 in copper manifold w/ individual & master shut-offs |
| Included Items | Auto-fill assembly, breaker gasket, positioning & mounting clips |
| Agency Listings | NSF 4, cULus |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for details) |
Perfect For
- Buffets, cafeterias & salad bars
- University & corporate dining halls
- C-stores & quick-service serving lines
- Event venues needing built-in hot holding
Installation Note: Designed for top-mount, drop-in installation only.
Unit must be operated with water in all wells for safe and even heating.
Need adapter bars or pans? We stock the full line of Vollrath accessories—just ask!
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
81.25in
Depth
26.0in
Shipping Weight
230.0lbs
Pan Capacity
(6) full size (12" x 20")
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
