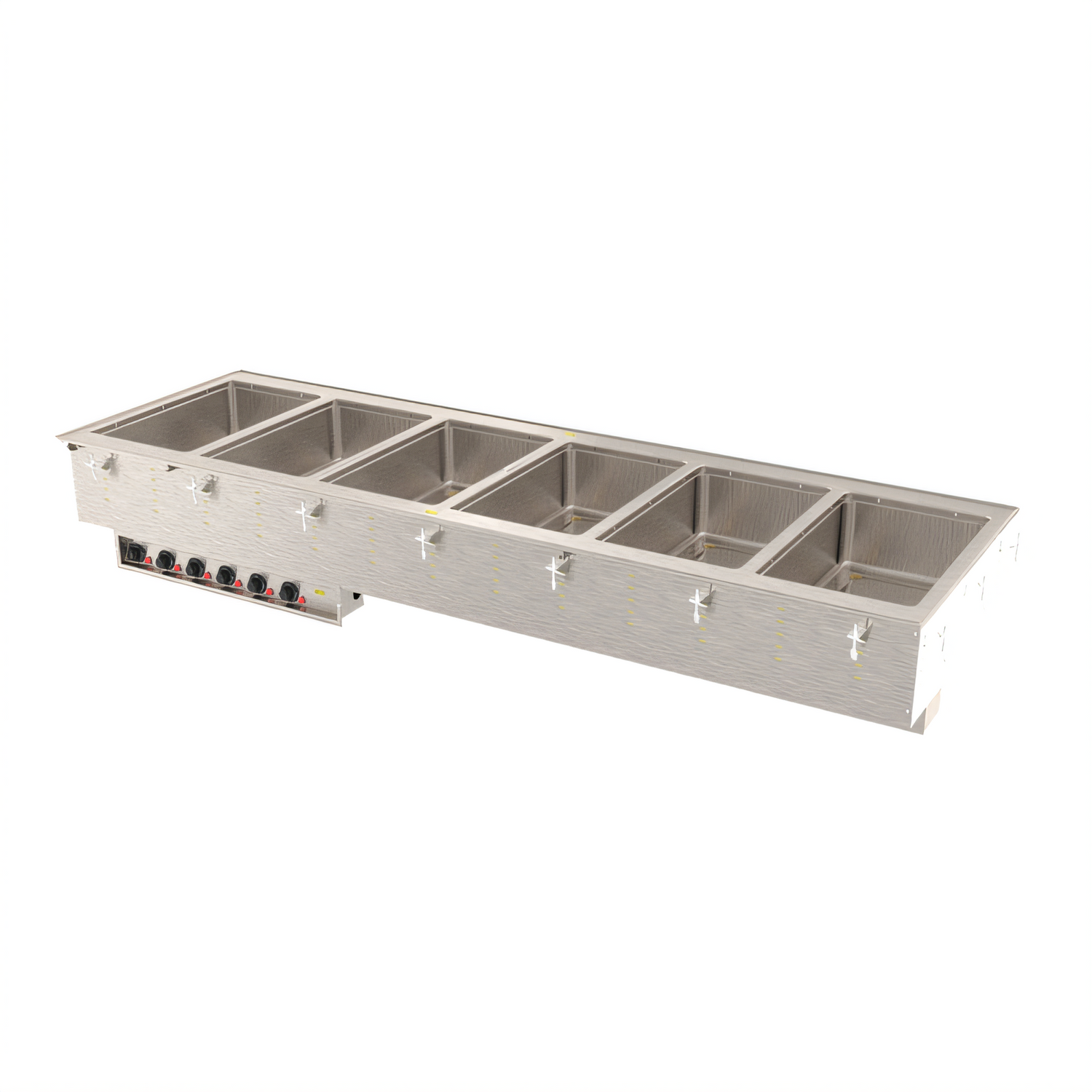

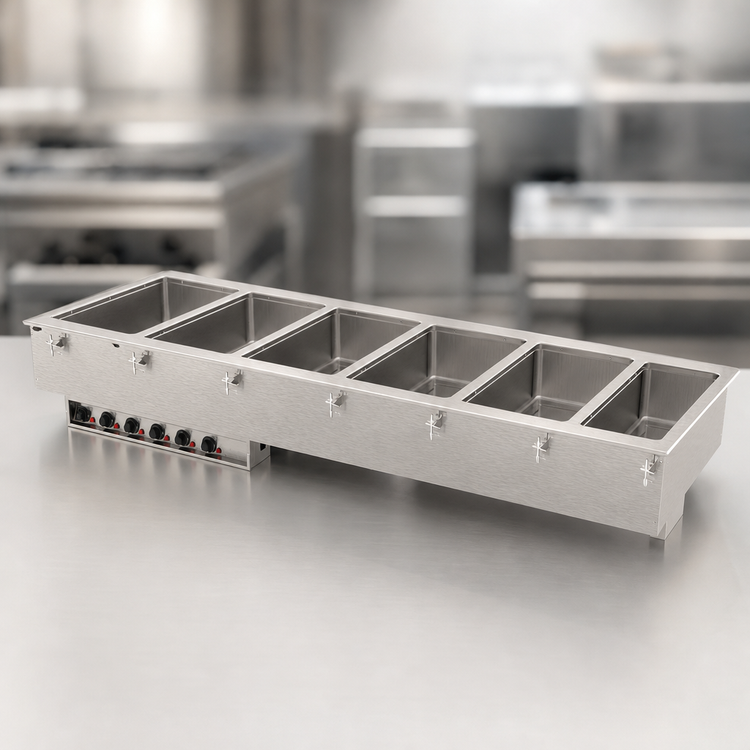

Vollrath 6-Well Drop-In Electric Hot Food Well with Thermostatic Controls

SKU: 3647670HD
$6,290.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 6-Well Drop-In Electric Hot Food Well with Thermostatic Controls

Marine-Grade 316 Stainless Wells, Wet Operation, 240V

Keep six full-size pans hot and ready with a durable drop-in well built for wet operation, precise thermostatic control, and marine-grade stainless steel construction.

  • Holds six individual 12" x 20" full-size pans in insulated wells.
  • Wet-operation-only design with individual thermostatic controls for flexible temperature management.
  • 316 marine-grade stainless steel wells with stainless steel top and exterior housing for lasting durability.
  • 1" copper manifold drain includes individual well shutoffs and a manifold shutoff.
  • 240V, 3750W unit includes a NEMA 6-20P cord, power indicator light, and positioning clips.
  • Sized for an 80-1/2" W x 25-1/4" D cutout with a 7/8" corner radius requirement.

Overall Dimensions:

81.25"W x 26.0"D x 21.5"H

Product Weight:

230.0 lb

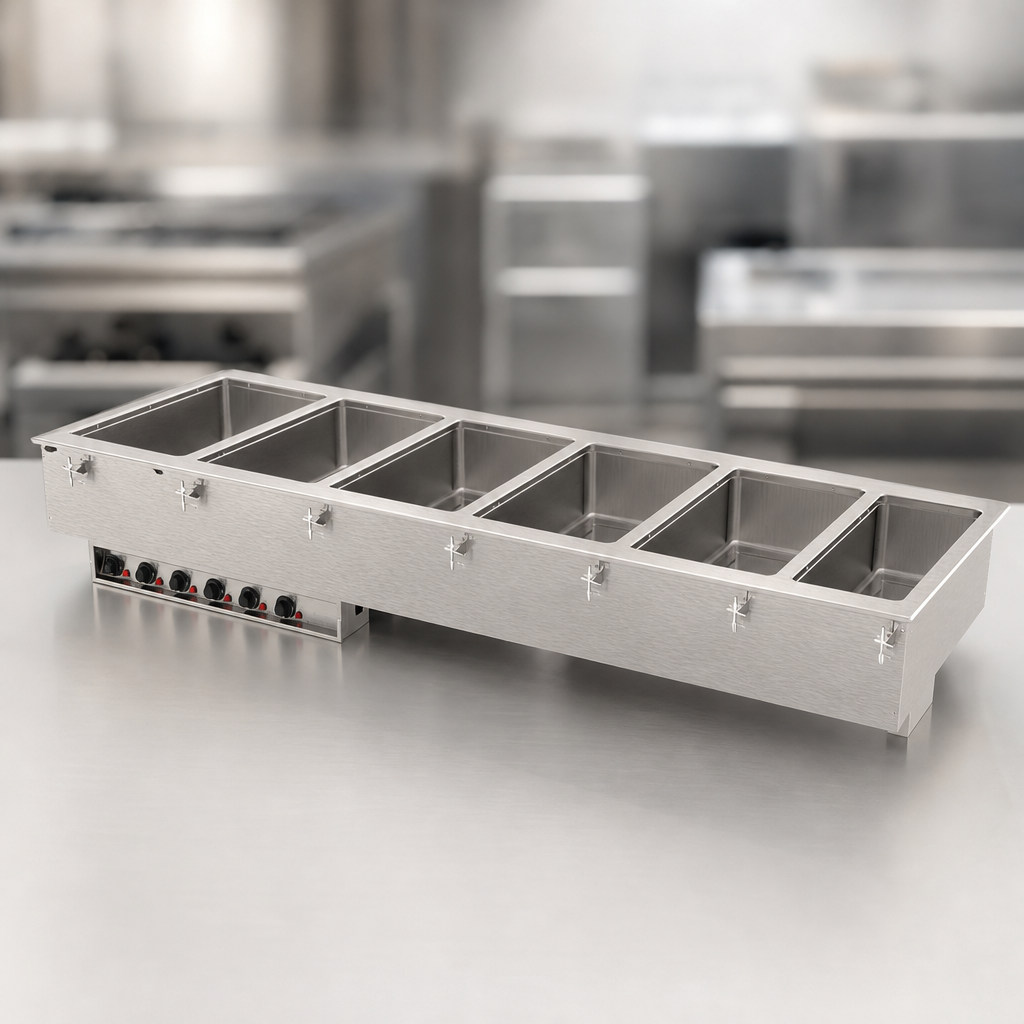

Six Individual Wells

Provides six insulated wells sized for 12" x 20" full-size pans.

Marine-Grade Well Construction

Each well is made from 20-gauge 316 marine-grade stainless steel.

Wet Operation Only

Designed specifically for wet operation.

Individual Thermostatic Controls

Thermostatic controls are mounted in a panel with cord for individual temperature management.

Manifold Drain System

Includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.

Heavy-Duty Stainless Steel Build

Features an 18-gauge stainless steel top and stainless steel exterior housing.

Power Indicator Light

Built-in indicator light shows when the unit is powered.

Includes Positioning Clips

Positioning clips are included to help secure installation.

Electrical Package

Operates on 240V, 60 Hz, single-phase power at 15.6 amps and 3750 watts with a NEMA 6-20P cord.

Drop-In Installation Requirements

Requires an 80-1/2" W x 25-1/4" D cutout and a 7/8" corner radius.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 6 Full-Size Pans
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Marine-Grade Stainless Steel
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 82 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 230 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty on HD wells

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds six individual 12" x 20" full-size pans.
Wet operation only.
It requires 240V, 60 Hz, single-phase power, draws 15.6 amps, and uses 3750 watts with a NEMA 6-20P cord.
Yes. It includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
The required cutout size is 80-1/2" W x 25-1/4" D, and a 7/8" corner radius is required.
HD wells have a 2-year warranty. Refer to VollrathFoodservice.com for the full warranty policy.
