Vollrath 3647670 Steam Tables & Food Wells
Description

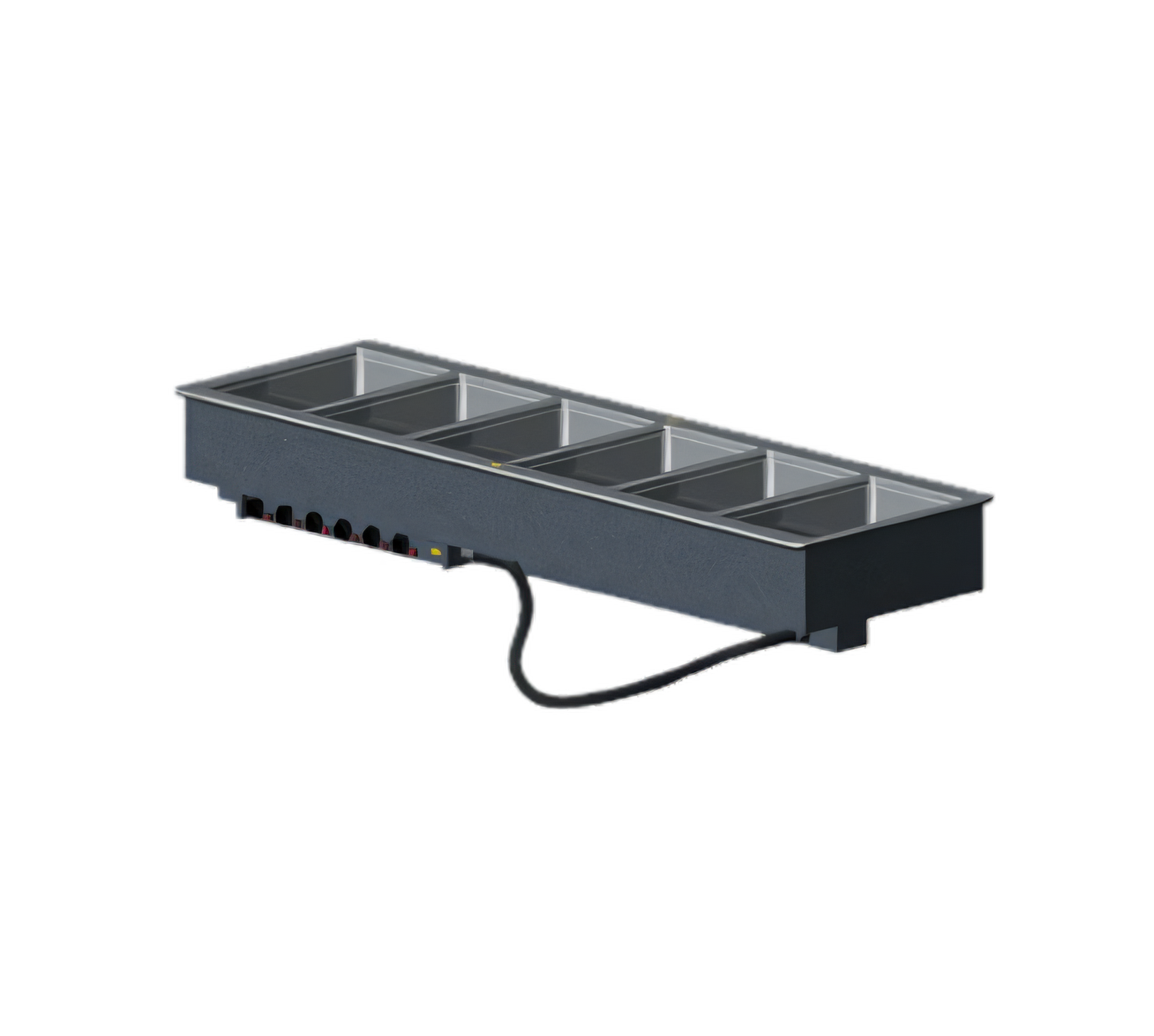

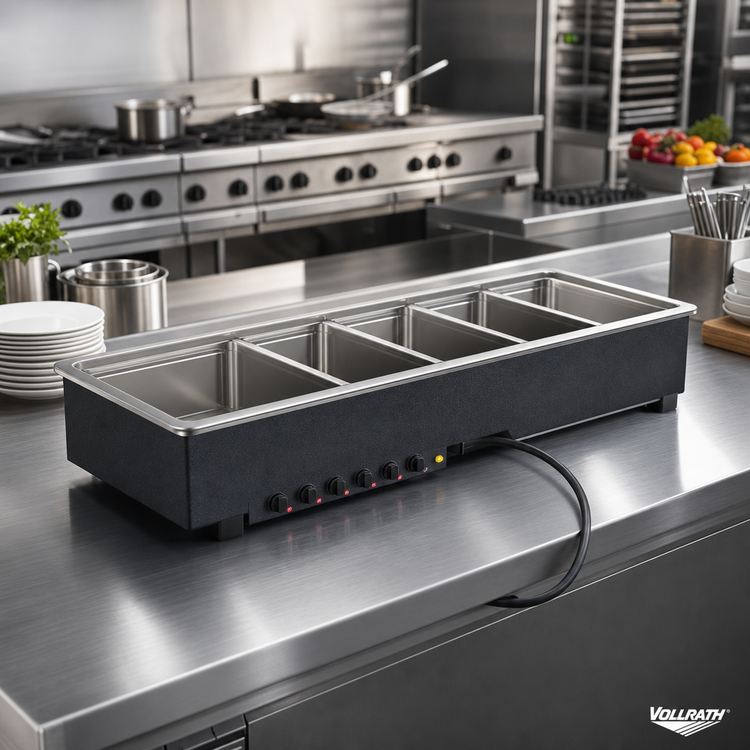

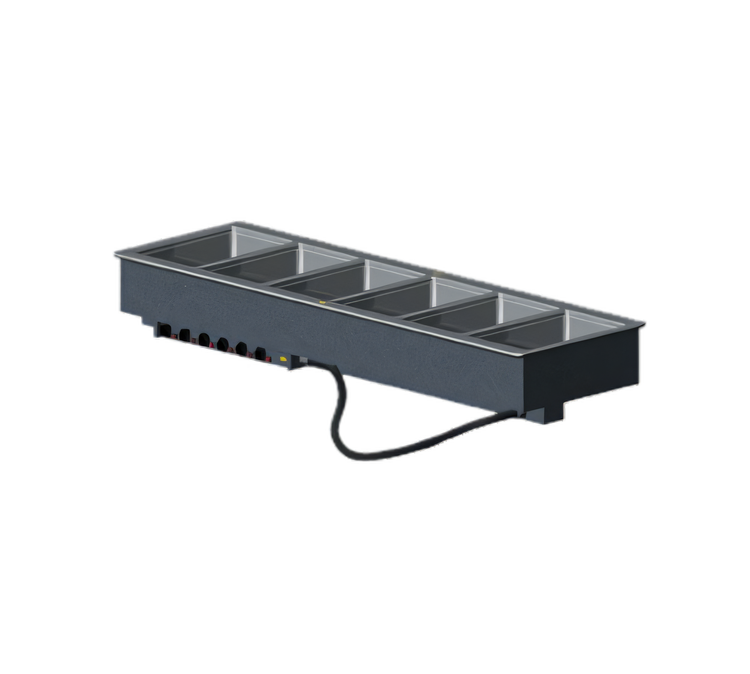

Vollrath 6-Well Drop-In Hot Food Well – Thermostatic, 240 V
Model 3647670 | Manifold Drain | 625 W per well (3 750 W total)Built for demanding serving lines, this U.S-made Vollrath drop-in keeps six different menu items at safe, flavorful temperatures with precise thermostatic control. It installs from the top, plugs in, fills with water and goes straight to work—no hard-wiring or complicated field assembly required.
Key Features & Benefits

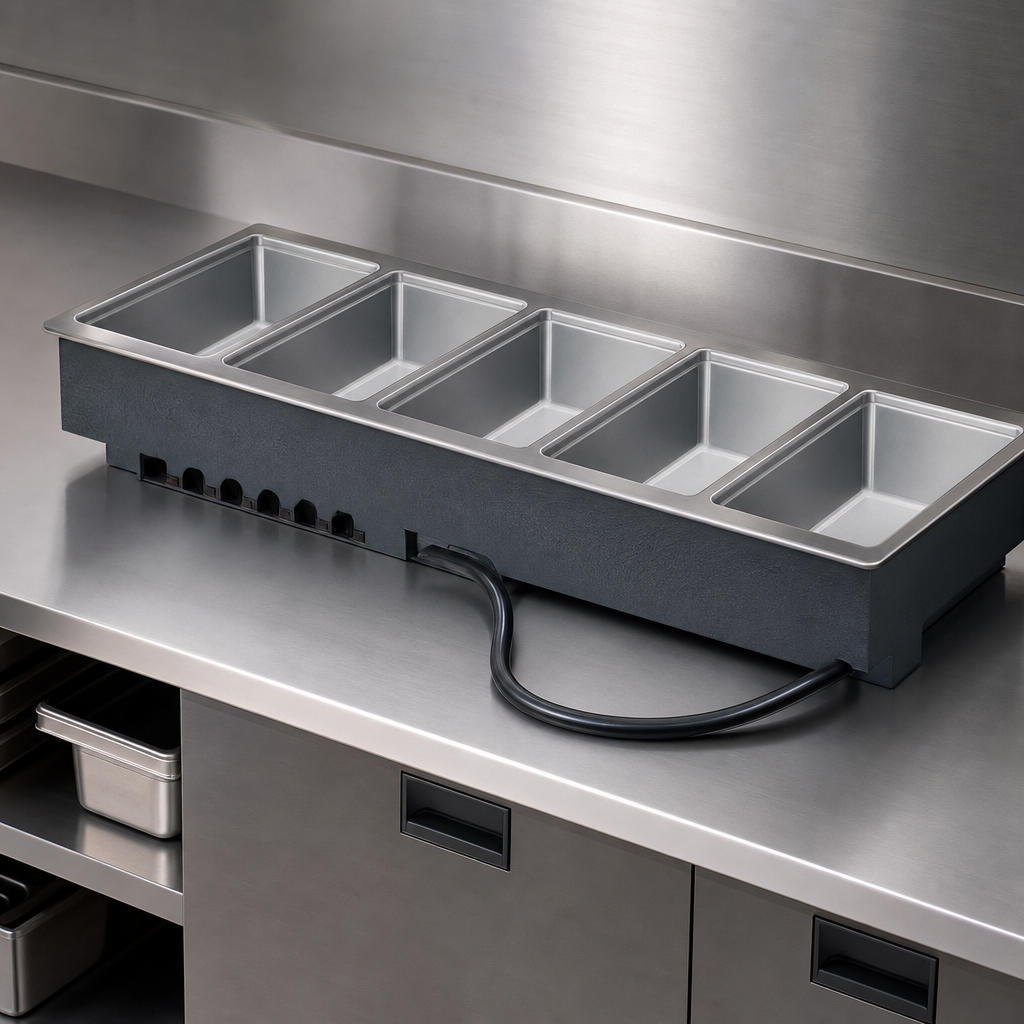

- Six individually heated 12" × 20" wells—ideal for full-size or fractional pans up to 6" deep.
- Thermostatic controls (one per well) ensure consistent holding temperatures.
- Sturdy 18-gauge stainless-steel top with a drip-edge flange keeps spills off the counter.
- Deep-drawn 20-gauge stainless wells deliver even, moist heat and clean easily.
- High-density fiberglass insulation lets you install with zero side clearance.
- 1" copper manifold drain with individual well shut-offs + master shut-off for fast, mess-free emptying.
- Factory-wired 6 ft cord & NEMA 6-20P plug—no electrician needed for hookup.
- Includes positioning and mounting clips for counters up to 3" thick.
- NSF 4 & cULus listed; proudly Made in the USA.
Technical Specifications
| Number of wells | 6 (individually controlled) |
|---|---|
| Well size | 12" × 20" (full-size steam table pan) |
| Operation | Wet, thermostatic |
| Total wattage | 3 750 W | 625 W per well |
| Electrical | 240 V / 60 Hz / 1-phase | 15.6 A |
| Plug | NEMA 6-20P (6 ft cord included) |
| Overall dimensions | 81-1/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 80-1/2" W × 25-1/4" D | 7/8" corner radius |
| Top material | 18-gauge stainless steel |
| Well material | 20-gauge stainless steel (insulated) |
| Exterior housing | 18-gauge galvanized steel |
| Drain | 1" copper manifold with individual & master shut-offs |
| Certifications | NSF 4, cULus |
| Origin | Made in USA |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for full policy) |
Modular drop-ins are built to order and are non-cancelable / non-returnable once in production. Please verify electrical and cut-out requirements before ordering.
