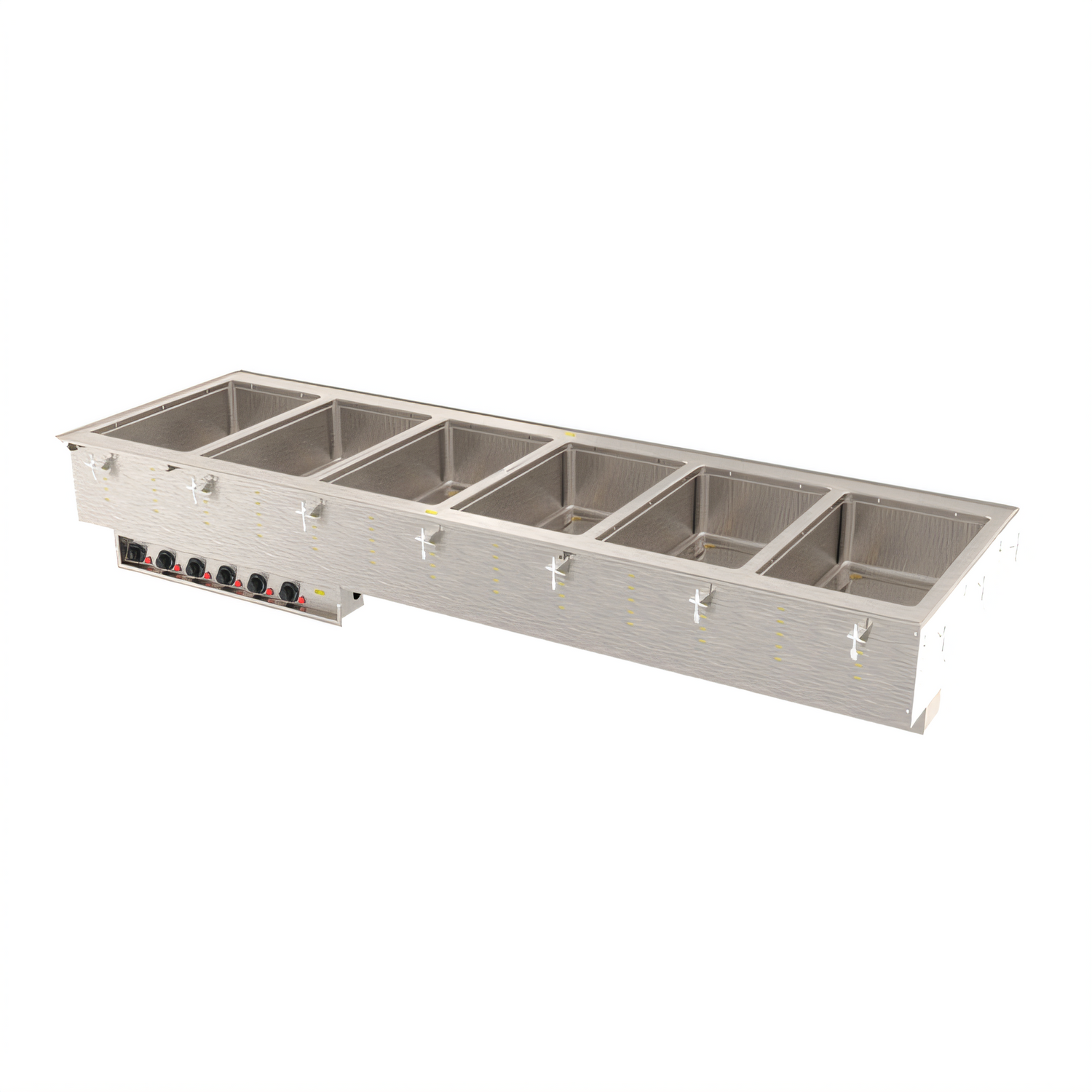

Vollrath 6-Well Drop-In Electric Auto-Fill Hot Food Well Unit with Manifold Drain

Wet Operation Only, 316 Marine-Grade Stainless Steel Wells, Infinite Controls

Designed for busy buffet lines, this drop-in hot food well keeps six full-size pans hot with wet-operation auto-fill convenience and precise individual infinite controls.

  • Six individual 12" x 20" insulated wells support a full-service hot buffet line.
  • Wet-operation auto-fill design helps maintain consistent heat and water levels.
  • Individual infinite controls let operators fine-tune temperatures well by well.
  • 316 marine-grade stainless steel wells, stainless steel top, and stainless steel exterior housing support demanding commercial use.
  • 1" copper manifold drain with individual well shutoffs and a manifold shutoff simplifies draining and cleanup.
  • Includes positioning clips and a NEMA 6-20P cord for installation.

Overall Dimensions:

81.25"W x 26.0"D x 21.5"H

Product Weight:

230.0 lb

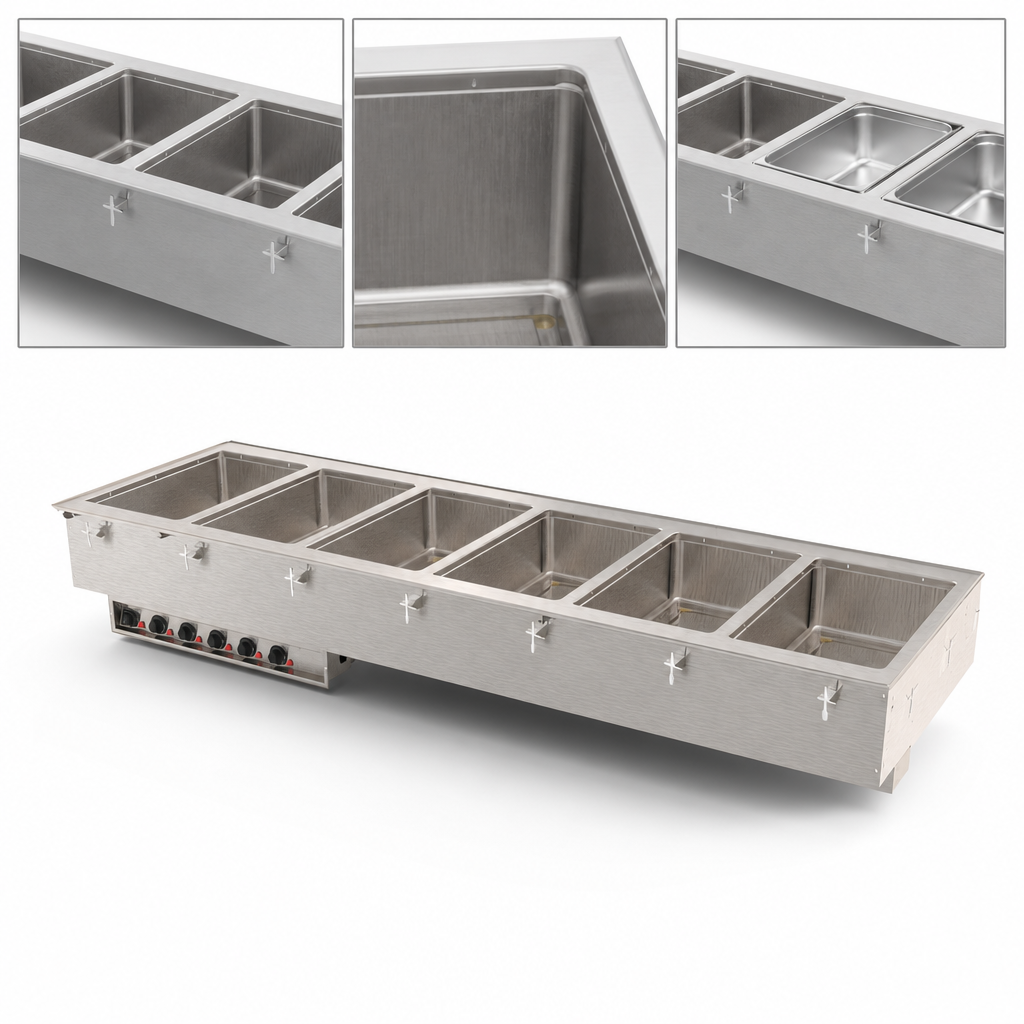

Six Individual Insulated Wells

Built with six separate 12" x 20" wells to hold a full-size steam table pan lineup.

Auto-Fill Wet Operation

Designed for wet operation only and includes auto-fill functionality to help maintain proper water level.

Individual Infinite Controls

Each well is controlled individually with infinite heat controls for precise temperature management.

Marine-Grade Well Construction

20-gauge, 316 marine-grade stainless steel wells are made for durable commercial foodservice use.

Copper Manifold Drain System

Features a 1" copper manifold drain with individual well shutoffs and a manifold shutoff for easier draining.

Stainless Steel Top and Housing

An 18-gauge stainless steel top and stainless steel exterior housing provide a clean, professional finish.

Installation-Ready Details

Includes positioning clips, a drip-free flange, power indicator light, and a cord with NEMA 6-20P plug.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Pan Capacity 6
Pan Size 12 x 20 Inches
Controls Infinite
Water Connection Required
Drain Connection Required
Material Stainless Steel
Interior Finish 316 Marine Grade Stainless Steel
Finish Stainless Steel
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 82 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 230 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty on HD wells

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is wet operation only.
It holds six full-size 12" x 20" pans.
The unit operates on 240V, 60 Hz, single-phase power and draws 15.6 amps at 3,750 watts. It comes with a NEMA 6-20P cord.
The required cutout size is 80-1/2" W x 25-1/4" D, with a 7/8" corner radius.
Yes. It includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
The catalog notes that HD wells have a 2-year warranty; refer to Vollrath's full warranty policy for complete details.
