Description

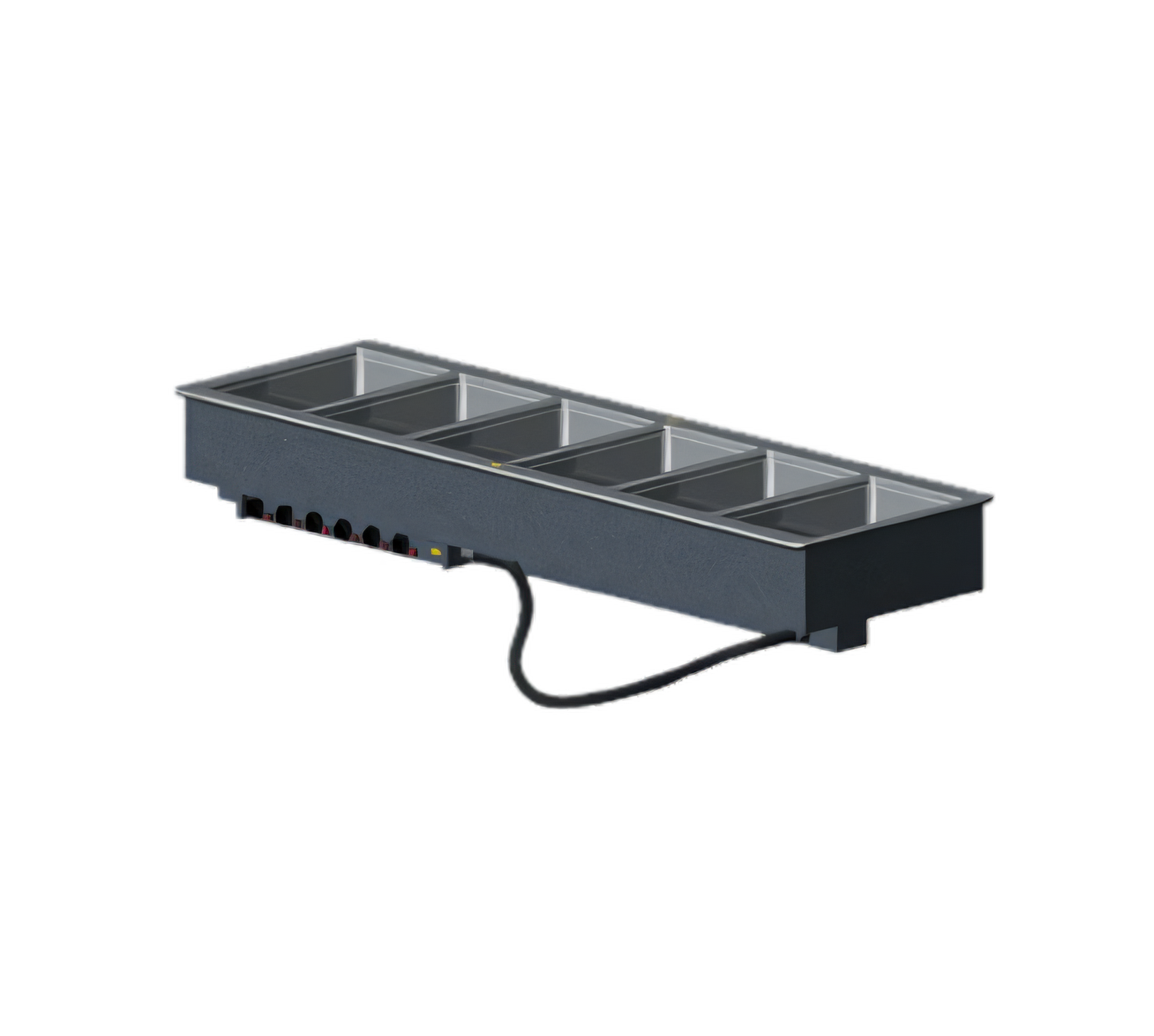

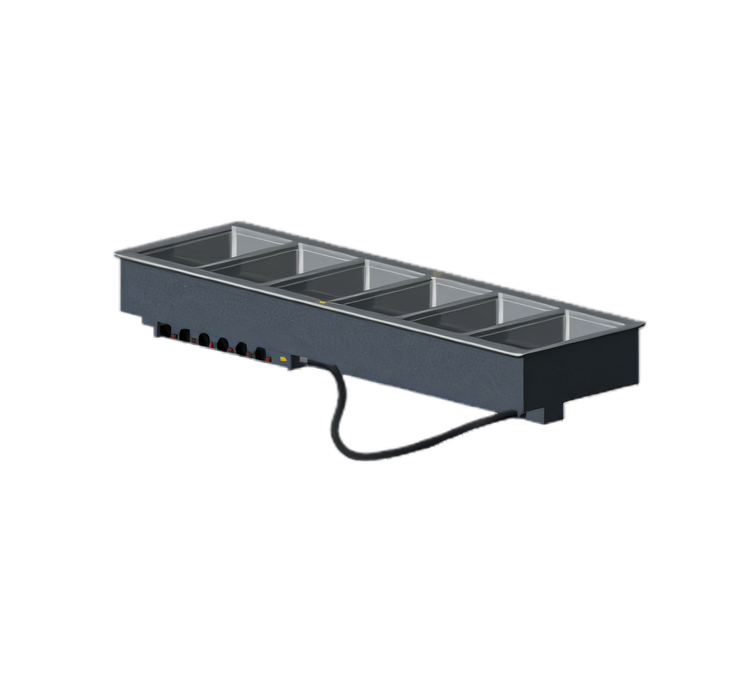

Vollrath 6-Well Drop-In Hot Food Well with Auto-Fill & Manifold Drain – 240 V

Item 3647660 | Infinite controls | Made in USA

Keep six entrée pans piping-hot and perfectly hydrated without constant supervision. Vollrath’s modular drop-in delivers reliable steam-table performance in a compact, plug-and-play package that installs flush with your countertop and meets NSF-4 holding standards.

Key advantages
  • Auto-fill system maintains proper water level automatically—no more manual top-offs.

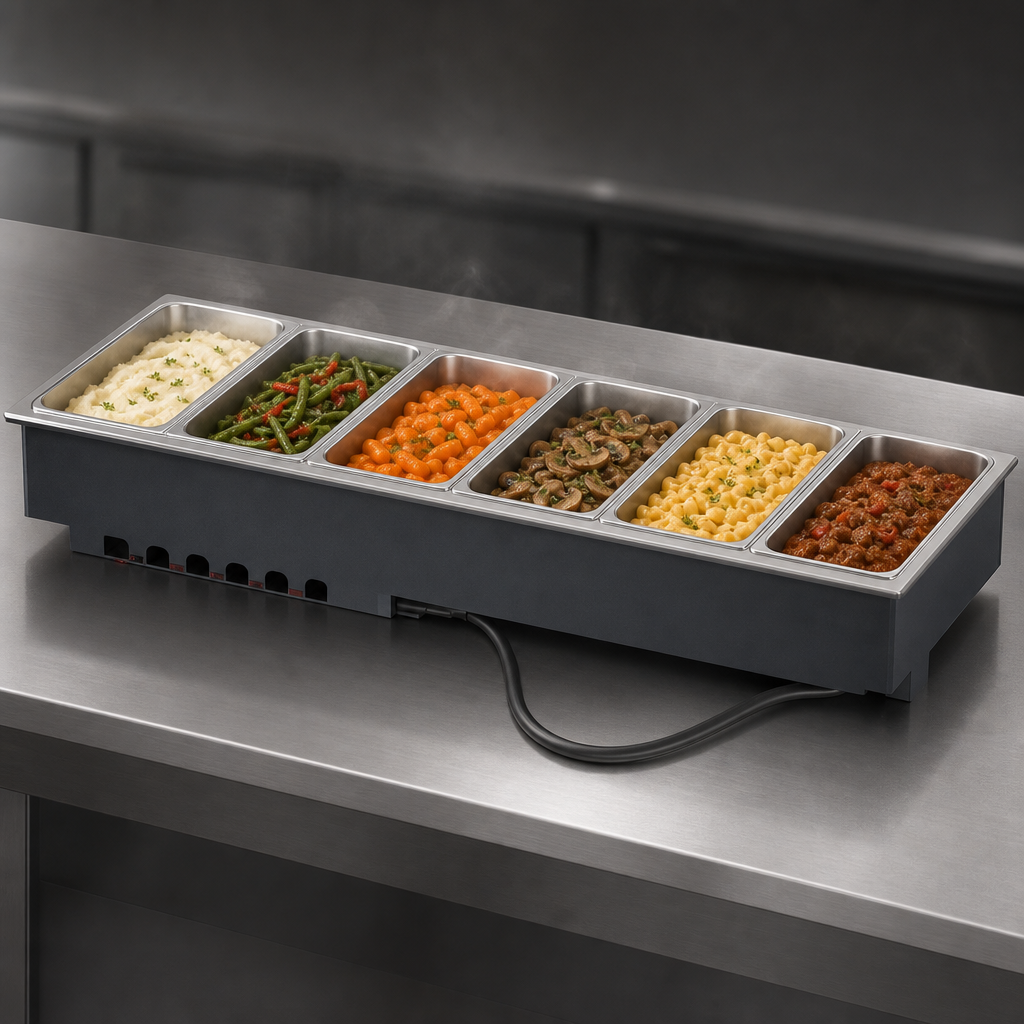

  • (6) individual 12 × 20 in. wells, each 625 W, insulated for maximum efficiency.
  • Separate infinite control knobs with power indicator lights for precise, independent holding temperatures.
  • Full-perimeter, drip-free 18 ga stainless flange contains condensation and spills.
  • 1 in. copper manifold drain with individual well shut-offs plus master shut-off for fast cleanup.
  • Zero-clearance, top-mount design with included positioning & mounting clips (accommodates counters up to 3 in. thick).
  • 6 ft power cord with NEMA 6-20P plug—no hard-wiring required.
  • NSF & cULus listed; built in Sheboygan, Wisconsin.
Specifications
Capacity Six full-size steam table pans (12 × 20 in) up to 6 in deep
Operation Wet only (water required for NSF-4 compliance)
Controls (6) infinite knobs, panel-mounted, with indicator lights
Total Wattage 3,750 W (625 W per well)
Electrical 240 V / 60 Hz / 1-phase, 15.6 A, NEMA 6-20P cord & plug
Overall Dimensions 81 ¼ W × 26 D × 21 ½ H in (206.4 × 66 × 54.5 cm)
Cut-Out Required 80 ½ W × 25 ¼ D in (204.5 × 64.1 cm)  •  7⁄8 in corner radius
Construction – Top 18 ga 300-series stainless steel
Construction – Wells 20 ga stainless; high-density glass-fiber insulation on sides & bottom
Exterior Housing 18 ga galvanized steel
Drain 1 in copper manifold with ball-valve shut-offs (each well + master)
Water Connection Auto-fill attaches to manifold; check-valve prevents backflow (separate electric service not required)
Agency Listings NSF 4, cULus
Warranty 1-year parts & labor (see VollrathFoodservice.com for full policy)
What’s in the box
  • Drop-in hot well module with pre-wired control panel & 6 ft power cord
  • Positioning & mounting clip set
  • Auto-fill assembly with check-valve
  • Owner’s / installation manual
Wet operation only: Always keep wells filled to the recommended water level. Running the unit dry can damage the heating elements and void the warranty.

Modular drop-ins are custom equipment and are non-cancelable & non-returnable once ordered. Please verify all dimensions, electrical requirements, and local codes prior to purchase.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

81.25in

Depth

26.0in

Shipping Weight

230.0lbs

Controls

infinite controls

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
