Vollrath  |  SKU: 3647650HD

Vollrath 3647650HD Steam Tables & Food Wells

$5,687.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

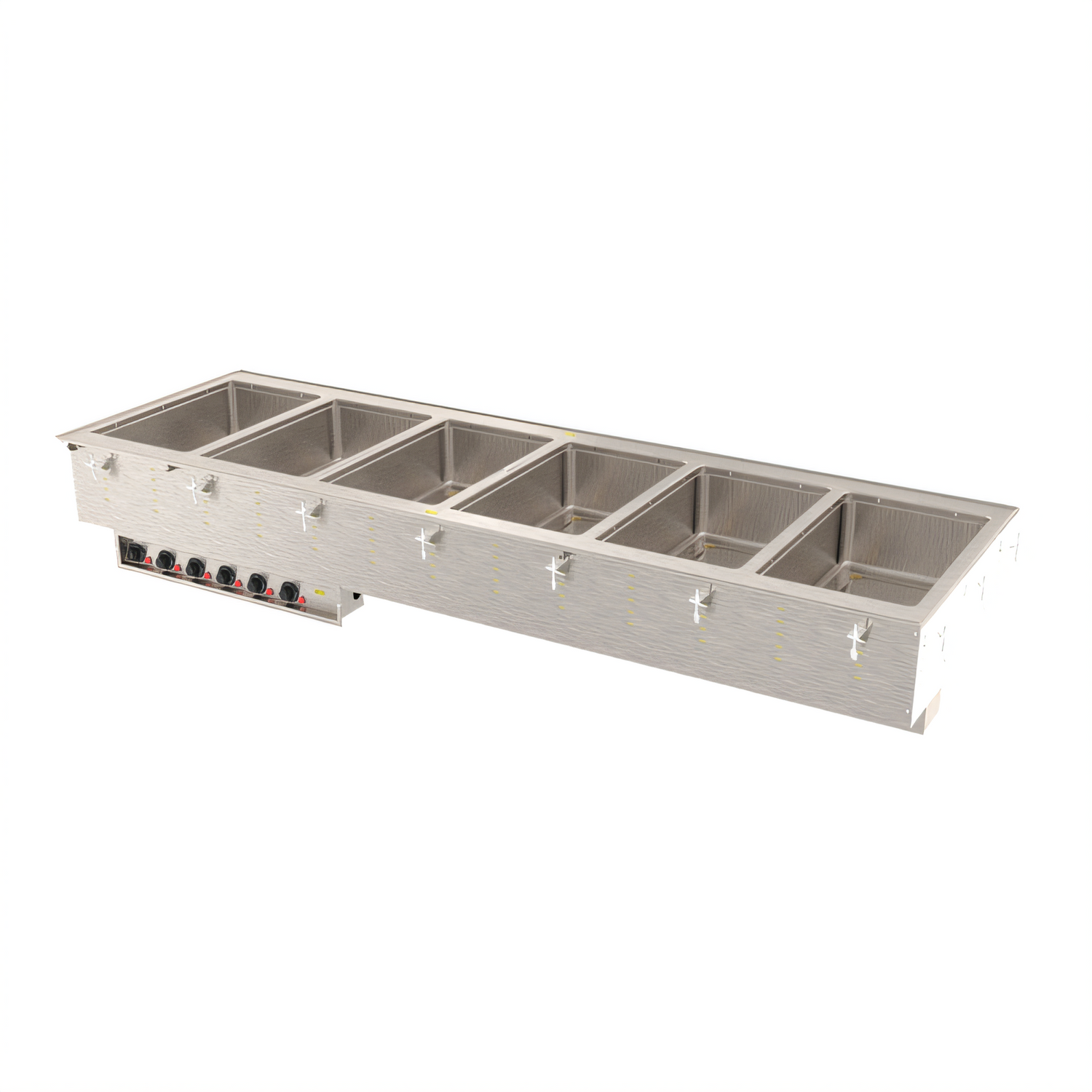

Vollrath 6-Well Modular Drop-In Hot Food Well – Marine-Grade HD

240 V | Infinite Controls | Manifold Drain | 3,750 W

Engineered for demanding commercial kitchens, this Vollrath drop-in keeps six full-size steam-table pans at optimal serving temperatures while protecting your investment with corrosion-resistant 316 stainless-steel (HD) wells. Independent infinite controls, heavy insulation, and a convenient manifold drain system make operation safe, efficient and worry-free.

Highlights

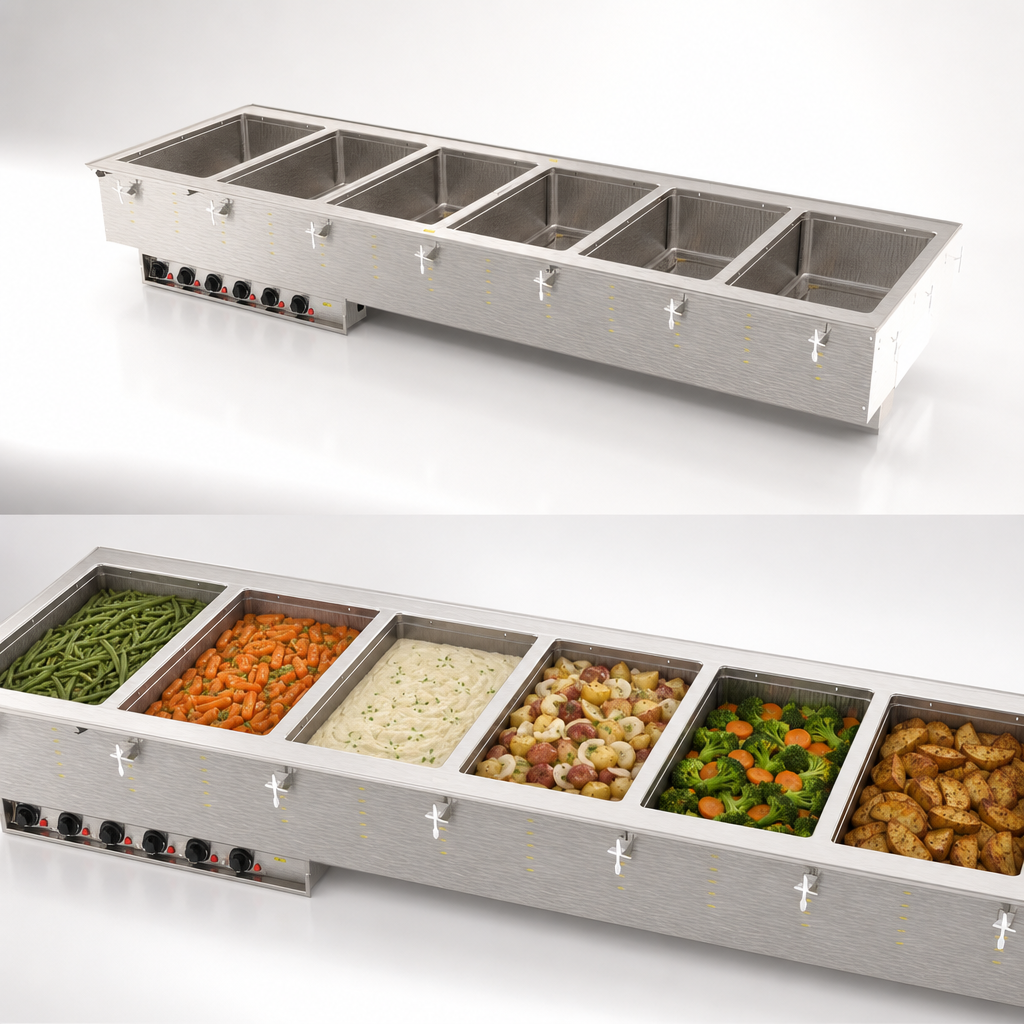

  • Six drawn 12 × 20 inch wells, 20-ga 316 marine-grade stainless steel for maximum corrosion resistance.
  • Wet-operation only design meets NSF 4 hot-holding standards for even, gentle heat.
  • Individual infinite temperature controls with power indicator lights on a stainless-steel remote panel (3 ft tether).
  • Full perimeter drip-free flange with included gasket helps keep countertops clean and dry.
  • 1 inch copper manifold drain with individual ½ inch ball-valve shut-offs plus master manifold shut-off for quick, mess-free draining.
  • Completely insulated on all sides, including between wells, for energy efficiency and cool exterior surfaces.
  • Ships ready to install: 18-ga stainless top, positioning clips for counters up to 3 in (7.6 cm) thick and a 6 ft cord with NEMA 6-20P plug—no hard-wiring required.
  • Zero-clearance installation; NSF and cULus listed; proudly made in the USA.
Capacity

Accepts any combination of full or fractional pans up to 6 in (15.2 cm) deep. Adapter bars are recommended for fractional pans.

Specifications
Number of wells 6 full-size (12 × 20 in)
Heating method Wet heat only
Control type 6 × independent infinite knobs with pilot lights
Total wattage 3,750 W (625 W per well)
Electrical 240 V / 60 Hz / 1-phase, 15.6 A, NEMA 6-20P
Overall dimensions 81-1/4 in W × 26 in D × 21-1/2 in H (206.4 × 66 × 54.6 cm)
Counter cut-out 80-1/2 in W × 25-1/4 in D (204.5 × 64.1 cm) with 7/8 in (2.2 cm) corner radius
Top material 18-ga stainless steel
Exterior housing Stainless steel
Drain system 1 in copper manifold, individual ½ in valves, master shut-off
Compliance NSF 4 (wet), cULus
Country of origin USA
Important: Operate with water in each well at all times to ensure even heating and to maintain NSF compliance.

HD marine-grade wells include a 2-year parts & labor warranty. Modular drop-ins cannot be canceled or returned once ordered. Refer to vollrathfoodservice.com for full warranty policy.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

81.25in

Depth

26.0in

Shipping Weight

230.0lbs

Insulated or Non-Insulated

insulated

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Pan Capacity

(6) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
