Description

Vollrath Six-Well Modular Drop-In Hot Food Well

Model 3647650 · 240 V · Manifold Drain · Made in USA

Keep up to six full-size steam-table pans of entrées, sides or sauces at safe serving temperatures in a single, easy-to-install module. Individually controlled 12 × 20 in. wet wells deliver reliable, even heat while the full-perimeter drip edge and integral copper manifold drain make clean-up almost effortless.

Key Advantages

  • Six 12 × 20 in. wells (625 W each) — use full-size or fractional pans up to 6 in. deep
  • Individual infinite controls with power indicator lights for precise holding

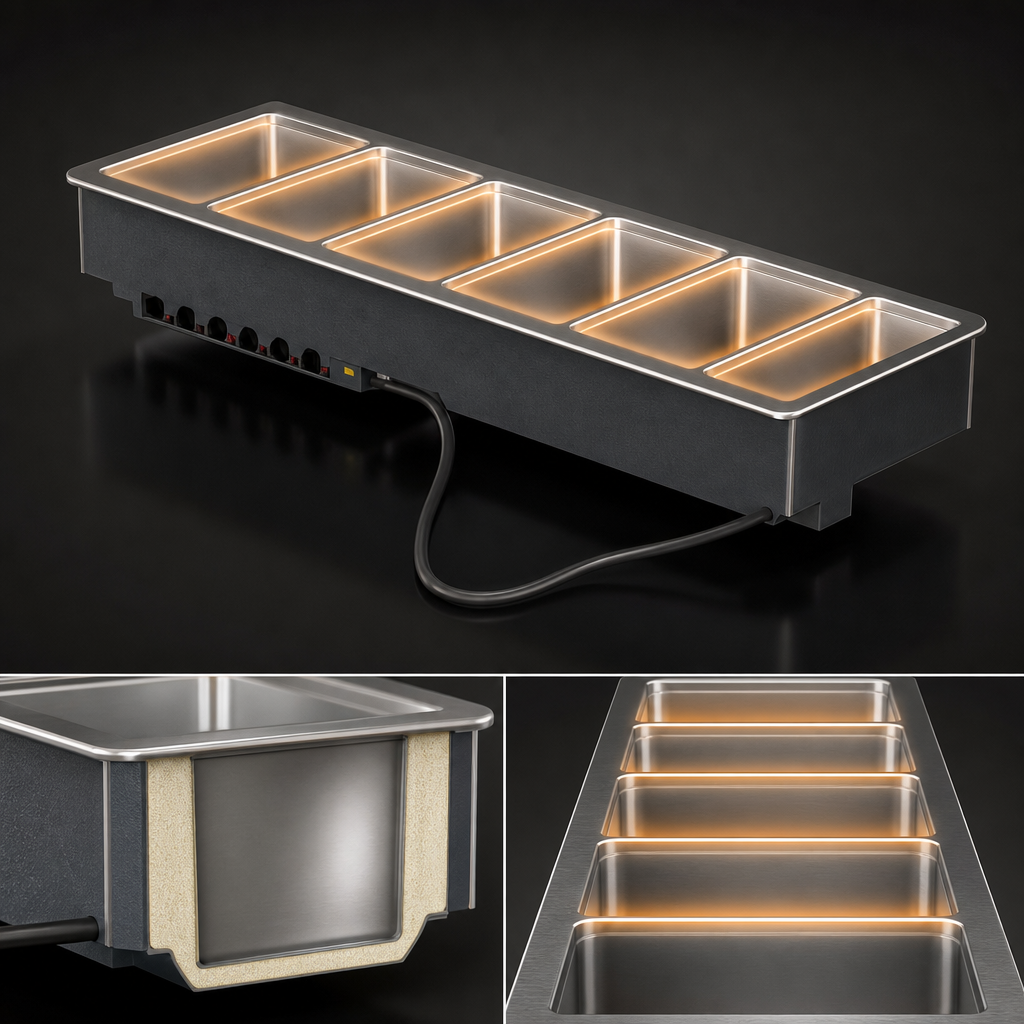

  • 20-ga stainless steel wells surrounded by high-density insulation for energy efficiency and zero-clearance installation
  • 18-ga stainless steel top with drip-free flange contains spills and adds strength
  • 1 in. copper manifold drain with individual well shut-offs plus a master shut-off valve
  • 6 ft cord with NEMA 6-20P plug — no hard-wiring required
  • NSF 4 & cULus listed for wet operation; built, engineered and tested in the USA

At-a-Glance Specs

Capacity (6) 12 × 20 in. wells, wet operation only
Controls Six infinite heat dials, panel-mounted, tethered 3 ft (91 cm) cord
Construction Wells: 20-ga stainless steel
Top flange: 18-ga stainless steel
Housing: 18-ga galvanized steel
Drain System 1 in. copper manifold with individual well shut-offs & manifold shut-off
Power 3,750 W (625 W × 6) · 240 V / 60 Hz / 1-ph · 15.6 A · NEMA 6-20P
Overall Size 81 1⁄4 W × 26 D × 21 1⁄2 H in.  (206.4 × 66 × 54.6 cm)
Counter Cut-out 80 1⁄2 W × 25 1⁄4 D in. (204.5 × 64.1 cm) – 7⁄8 in. corner radius
Cord Length 6 ft (182 cm)
Certifications NSF 4, cULus
Warranty 1-year parts & labor (see VollrathFoodservice.com for full policy)

Included with Your Unit

  • Breaker gasket for under-counter drip protection
  • Positioning & mounting clips (fits counters up to 3 in. thick)

Popular Accessories

  • Sheet-pan adapter, item 19186
  • Fractional-pan adapter bars (recommended when using fractional pans)
Installation Note: This modular drop-in is a special-order item and cannot be cancelled or returned. Confirm cut-out dimensions and electrical requirements before ordering.

For best performance, operate wells with water at all times and clean drain lines daily.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

81.25in

Depth

26.0in

Shipping Weight

230.0lbs

Controls

infinite controls

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
