Vollrath  |  SKU: 3647610HD

Vollrath 3647610HD Steam Tables & Food Wells

$5,325.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

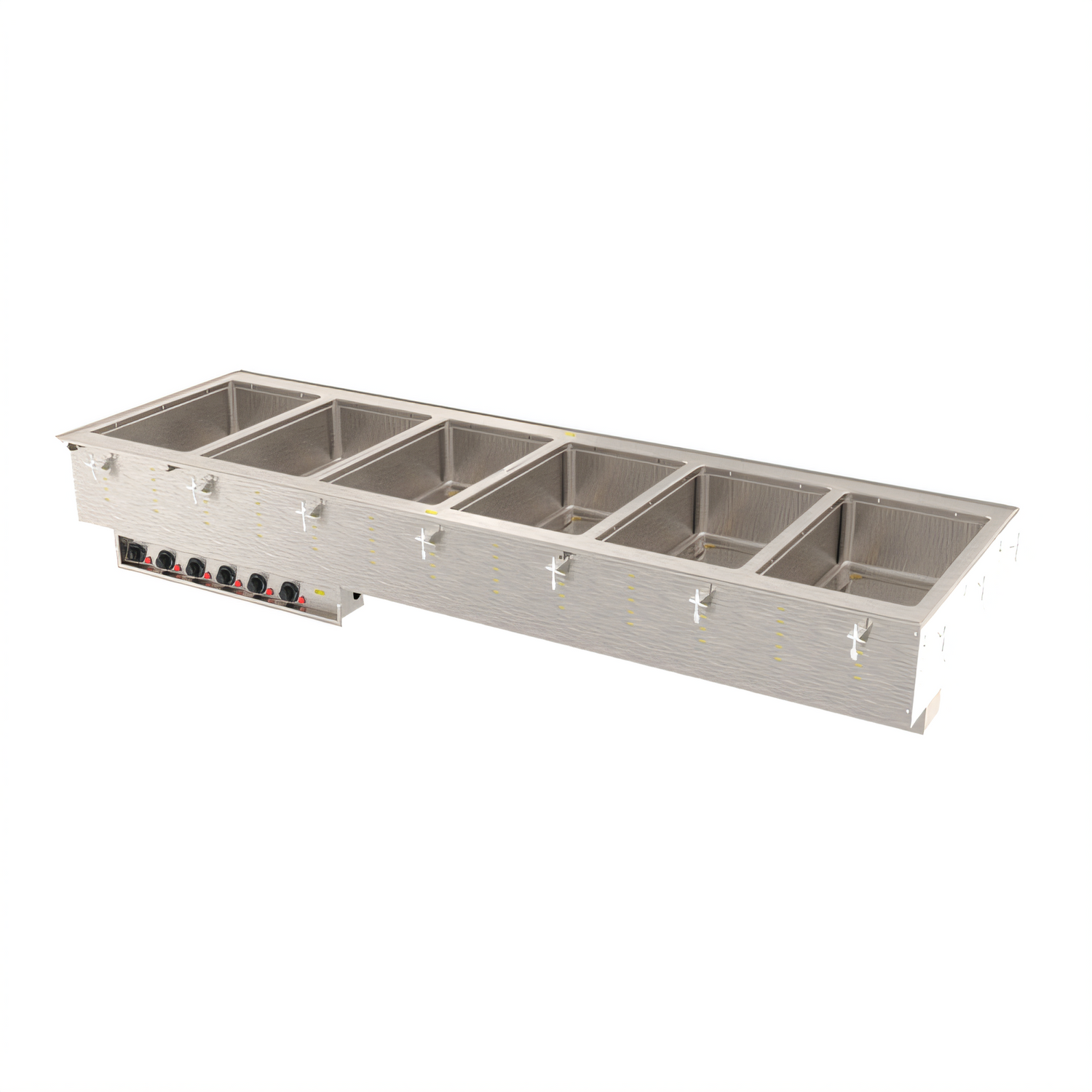

Vollrath 3647610HD Six-Well Marine-Grade Hot Drop-In

Thermostatic • 625 W per well • 240 V / 1-Phase

Keep every entrée at perfect serving temperature with Vollrath’s premium six-well hot food well unit. Built with SAE 316 marine-grade stainless steel, each individual well resists corrosion, cleans up fast, and delivers reliable wet-heat performance service after service.

Why you’ll love it

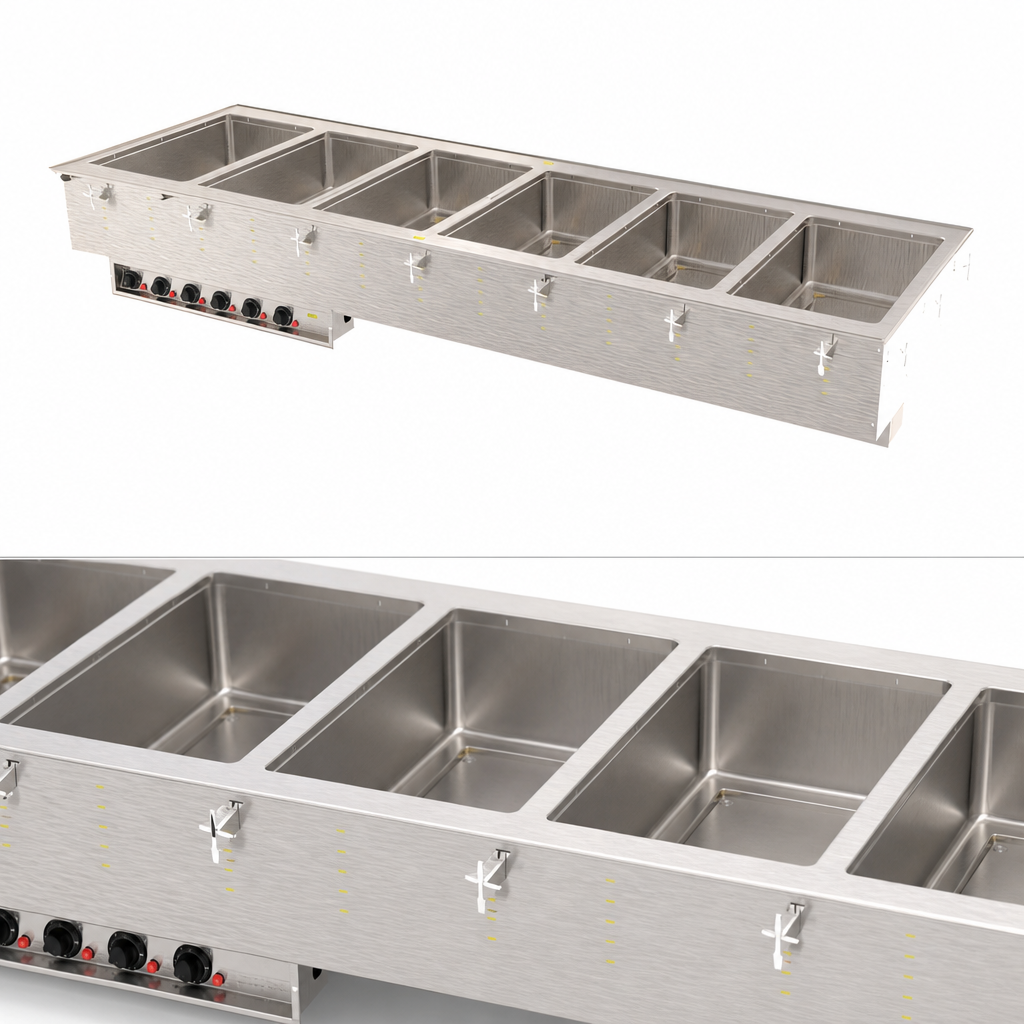

  • Six independent wells – each accepts a full-size 12" × 20" pan (or fractional pans with adapter bars) up to 6" deep.
  • True marine-grade 316 stainless – superior resistance to salt, chlorides and harsh cleaning chemicals.
  • Individual thermostatic controls & power lights – dial-in precise holding temps for every menu item.
  • Wet-operation NSF 4 compliance – even heat distribution and safer food-holding when used with water.
  • Built-in ½" drains with ball-valve shut-offs on every well for fast, mess-free water changes.
  • Zero-clearance drop-in design – includes gasket & mounting clips for counters up to 3" thick.
  • Fully insulated on all sides—including between wells—for energy-efficient operation.
  • Made in the USA  |  NSF & cULus listed

Technical specifications

Manufacturer / Model Vollrath 3647610HD
Well count & size (6) full-size 12" × 20" (20 ga) wells
Operation Wet heat only
Controls 6 independent thermostatic dials with indicator lights (remote panel with 3 ft lead)
Total wattage 3,750 W  (625 W per well)
Electrical 240 V / 60 Hz / 1-Ph  |  15.6 A  |  6 ft cord & NEMA 6-20P plug
Overall dimensions 81 ¼" W × 26" D × 15" H (206.4 × 66 × 38.1 cm)
Counter cut-out 80 ½" W × 25 ¼" D (204.5 × 64.1 cm) – 7⁄8" corner radius required
Top / exterior 18-ga stainless top, stainless housing
Drain connection (6) ½" MPT individual drains with ball valves
Certifications NSF 4 (wet), cULus, Made in USA
Warranty 2-year limited on marine-grade wells (see Vollrath for full policy)
Important: This unit is designed for wet operation only. Operating the wells dry may damage components and void the warranty.

Modular drop-ins are custom-built to order and are non-returnable. For full warranty terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

81.25in

Depth

26.0in

Shipping Weight

230.0lbs

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
