Vollrath

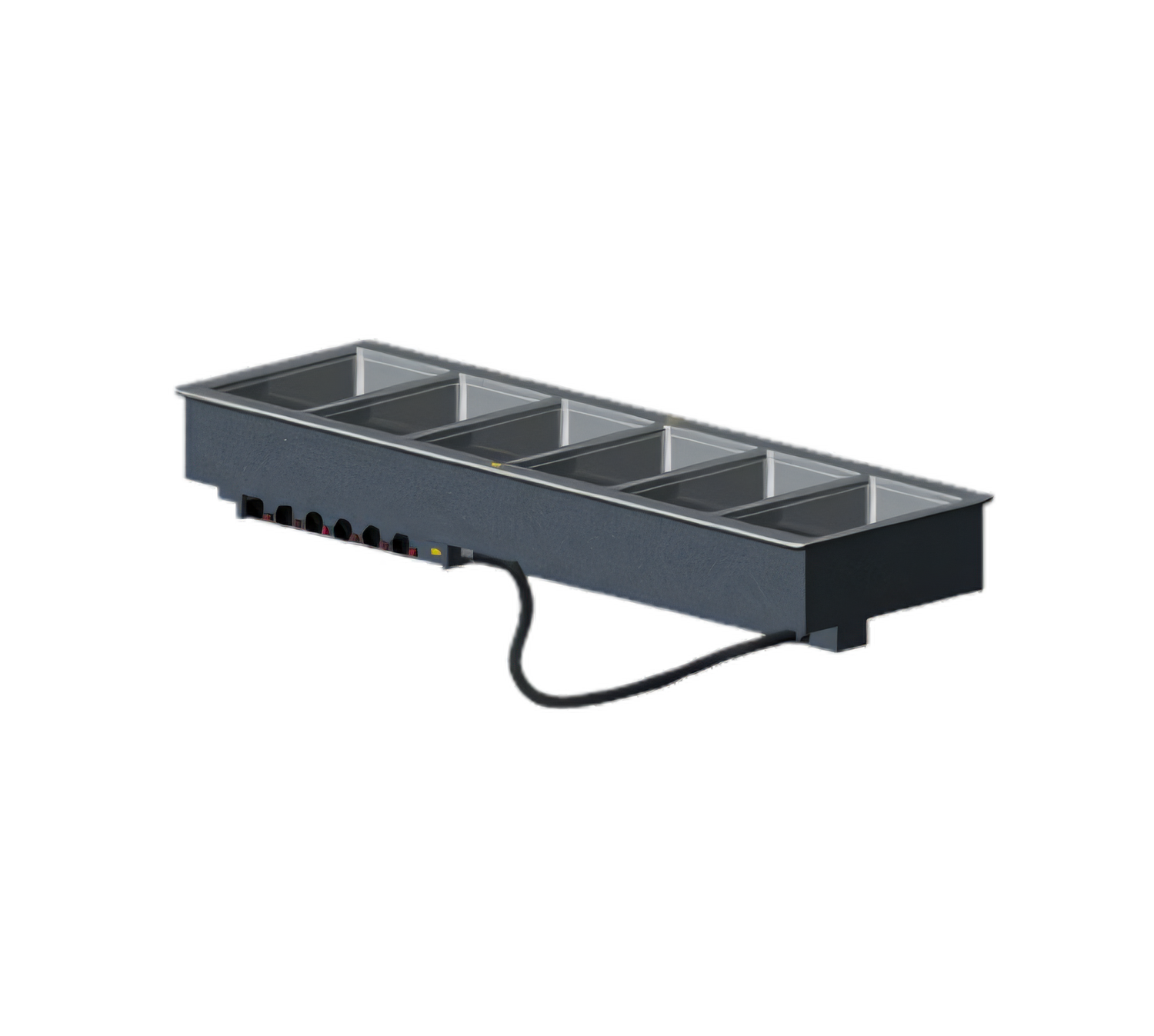

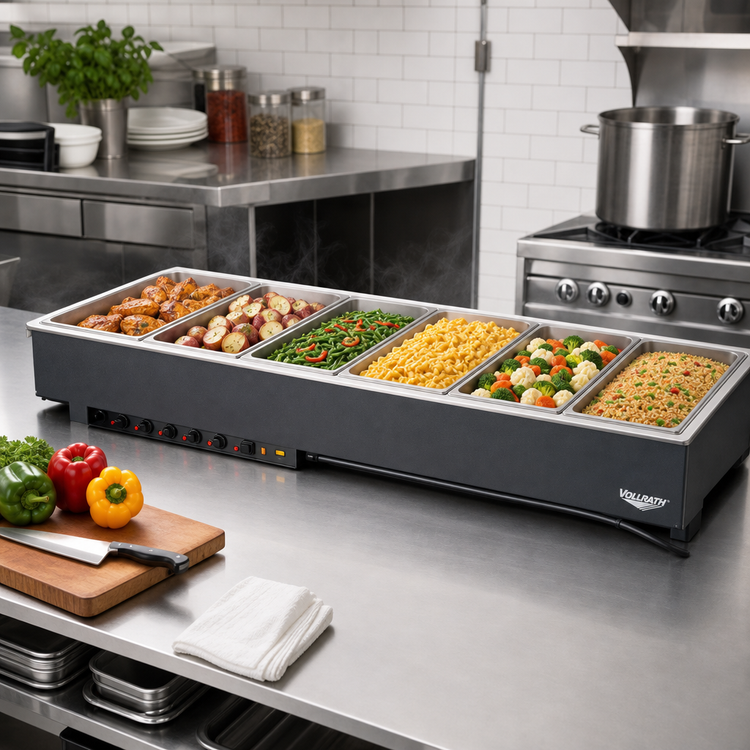

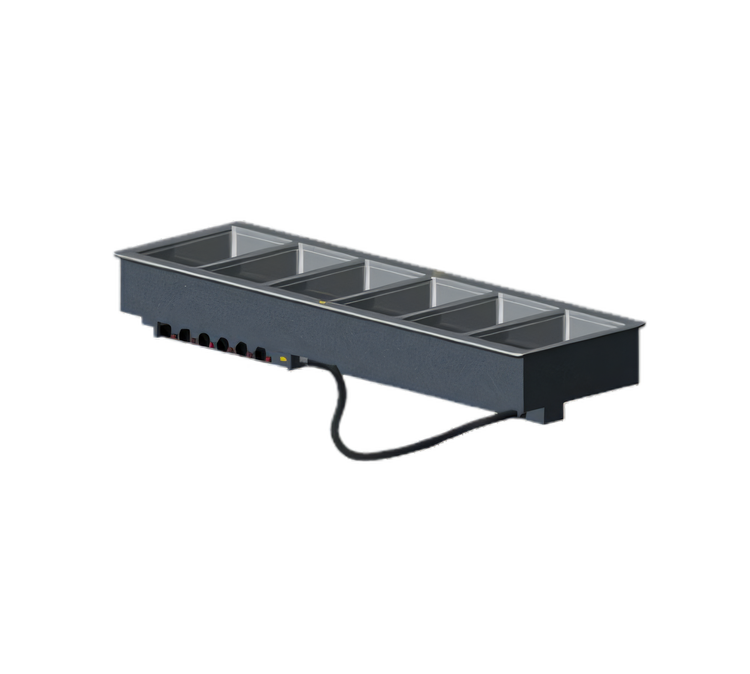

Vollrath 6-Well Drop-In Electric Hot Food Well for Full-Size Pans with Individual Thermostatic Controls

SKU: 3647610
$4,452.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 6-Well Drop-In Electric Hot Food Well for Full-Size Pans with Individual Thermostatic Controls

Wet Operation Only, Insulated 12" x 20" Wells, 240V

Keep six full-size pans hot and ready with independent thermostatic control, wet operation, and a durable drop-in design.

  • Holds six full-size 12" x 20" pans in individual insulated wells.
  • Wet-operation design helps maintain consistent serving temperatures.
  • Independent thermostatic controls let you manage each well separately.
  • Stainless steel top and galvanized exterior housing support durability.
  • Drip-free flange and individual drain shutoffs help simplify cleanup.
  • Includes positioning clips and a cord with NEMA 6-20P plug.

Overall Dimensions:

81.25"W x 26.0"D x 15.0"H

Product Weight:

230.0 lb

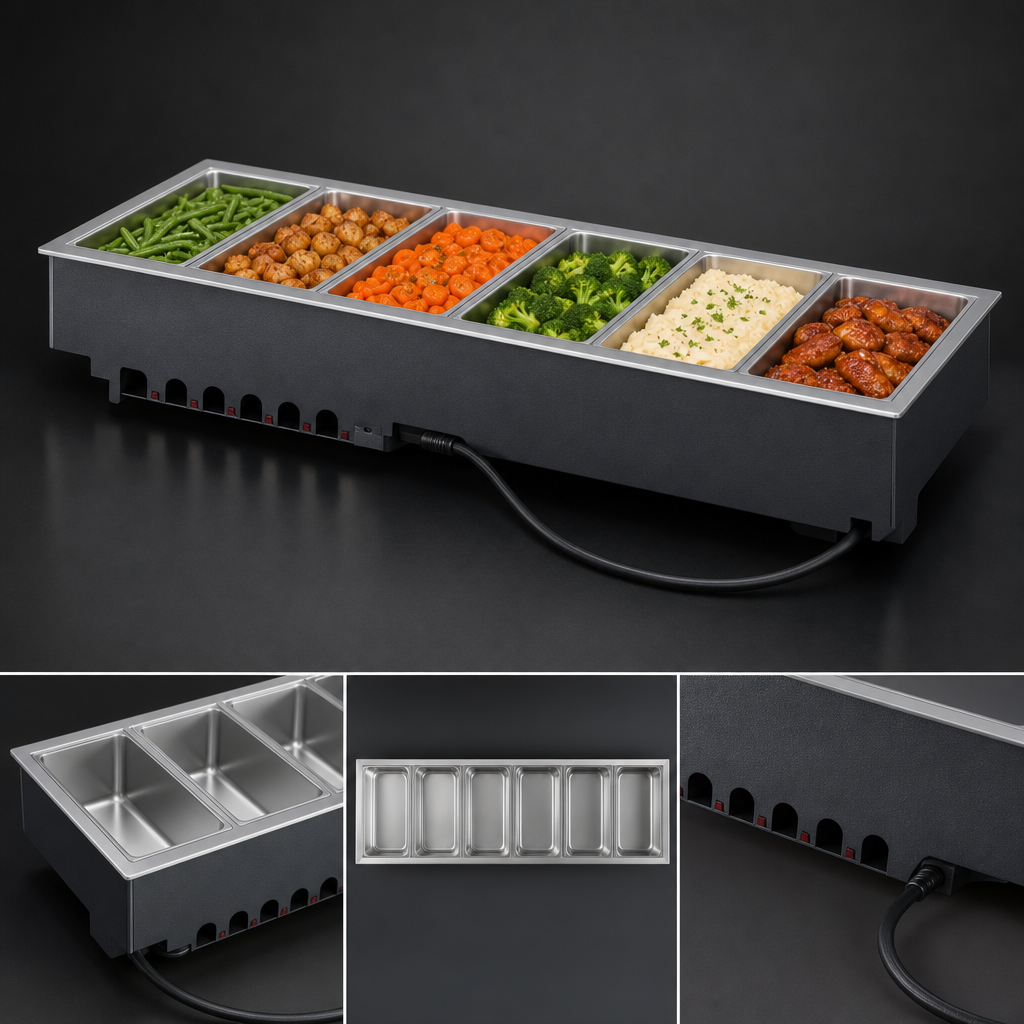

Six Individual Wells

Designed for six separate full-size pans, giving you flexible holding capacity across the line.

Thermostatic Controls

Individual thermostatic controls are mounted in a panel for precise temperature management.

Wet Operation Only

Built for wet use to help maintain heat and food quality during service.

Insulated Stainless Steel Wells

20-gauge stainless steel insulated wells help retain heat and improve operating efficiency.

Drip-Free Flange

The top flange is designed to help contain spills and make cleanup easier.

Individual Drain Shutoffs

Each well has its own drain shutoff for easier draining and maintenance.

Durable Cabinet Construction

Features an 18-gauge stainless steel top with an 18-gauge galvanized exterior housing.

Ready-To-Install Power Cord

Includes a cord with a NEMA 6-20P plug and a power indicator light.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Pan Capacity 6
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Finish Galvanized
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 82 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 230 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for six individual full-size 12" x 20" pans.
This model is for wet operation only.
It operates on 240V, 60 Hz, 1-phase power and draws 15.6 amps at 3.75 kW. It includes a NEMA 6-20P plug.
The required cutout size is 80-1/2" W x 25-1/4" D with a 7/8" corner radius.
It includes a drip-free flange and individual drain shutoffs for each well.
Positioning clips are included, along with the power cord and NEMA 6-20P plug.
