Vollrath 36476 Steam Tables & Food Wells
Description

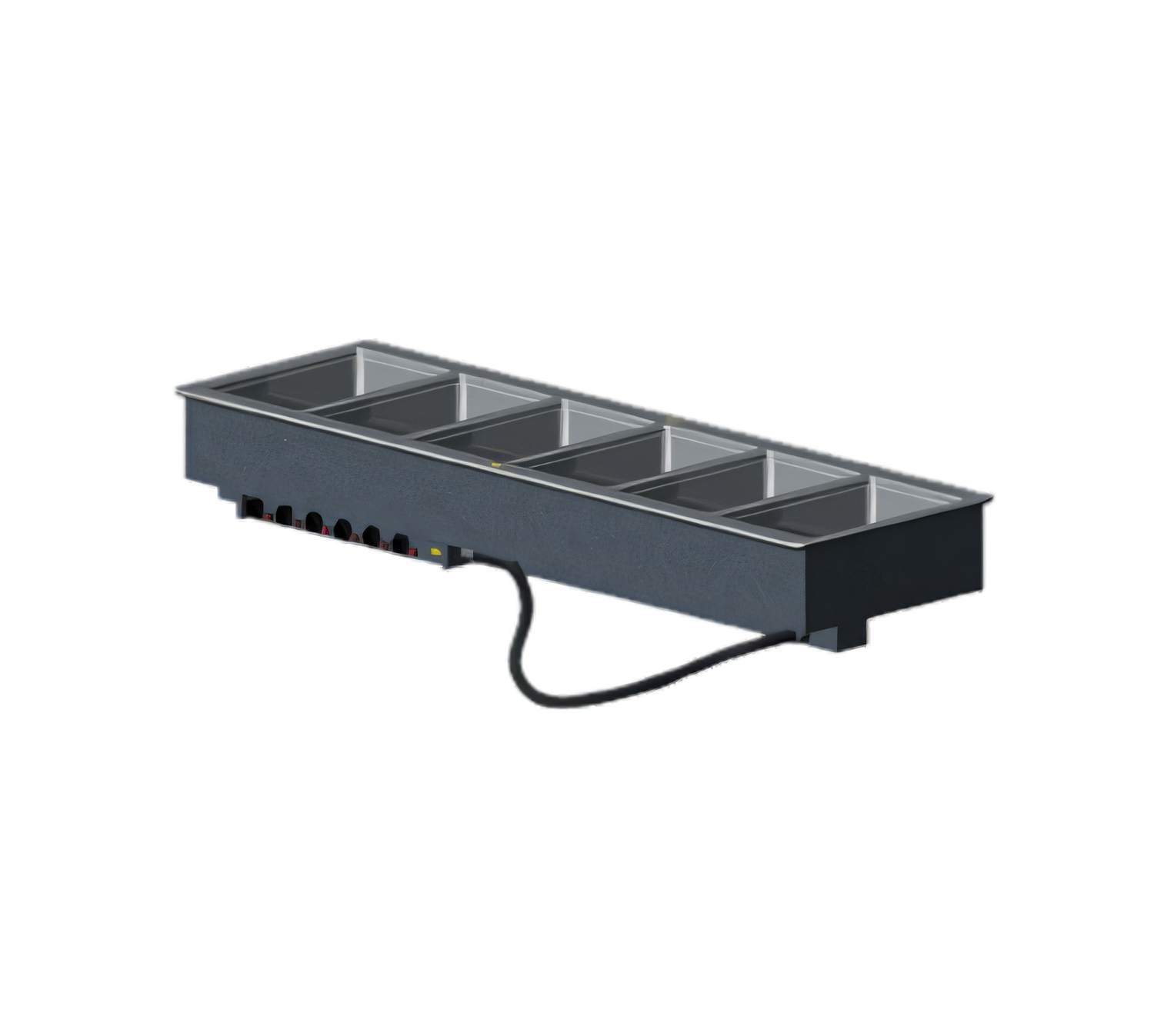

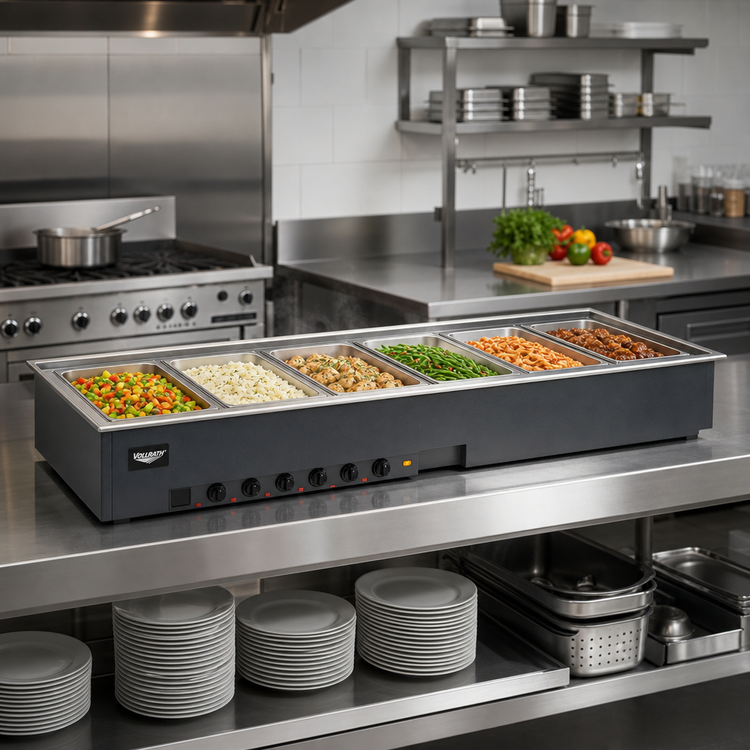

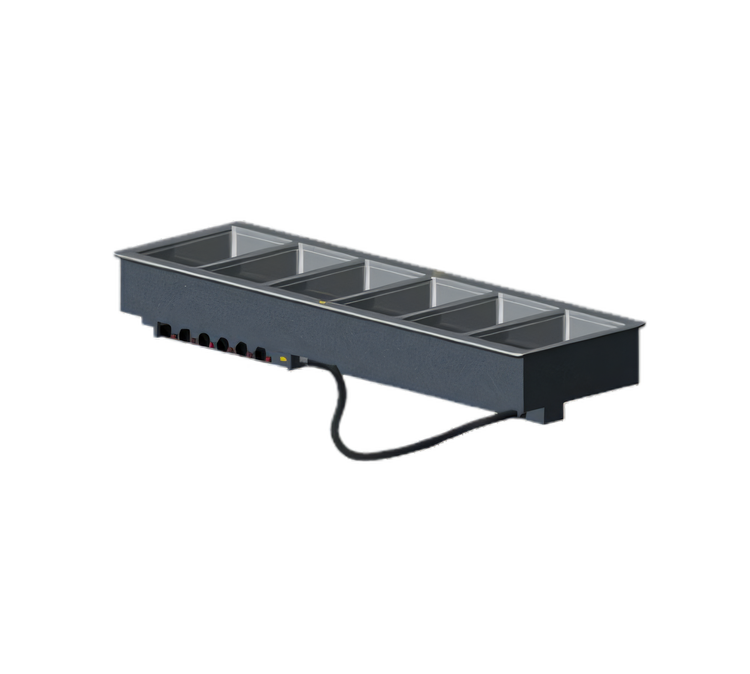

Vollrath Six-Well Drop-In Hot Food Well Module
Model 36476 • 240 V / 1-Phase • Infinite Controls • NEMA 6-20PGive your serving line the flexibility of six independently controlled, NSF-listed hot wells – all in one plug-and-play module that installs flush with your countertop. Perfect for buffets, cafeterias and institutional kitchens that demand durable construction, energy efficiency and effortless operation.
Why you’ll love it

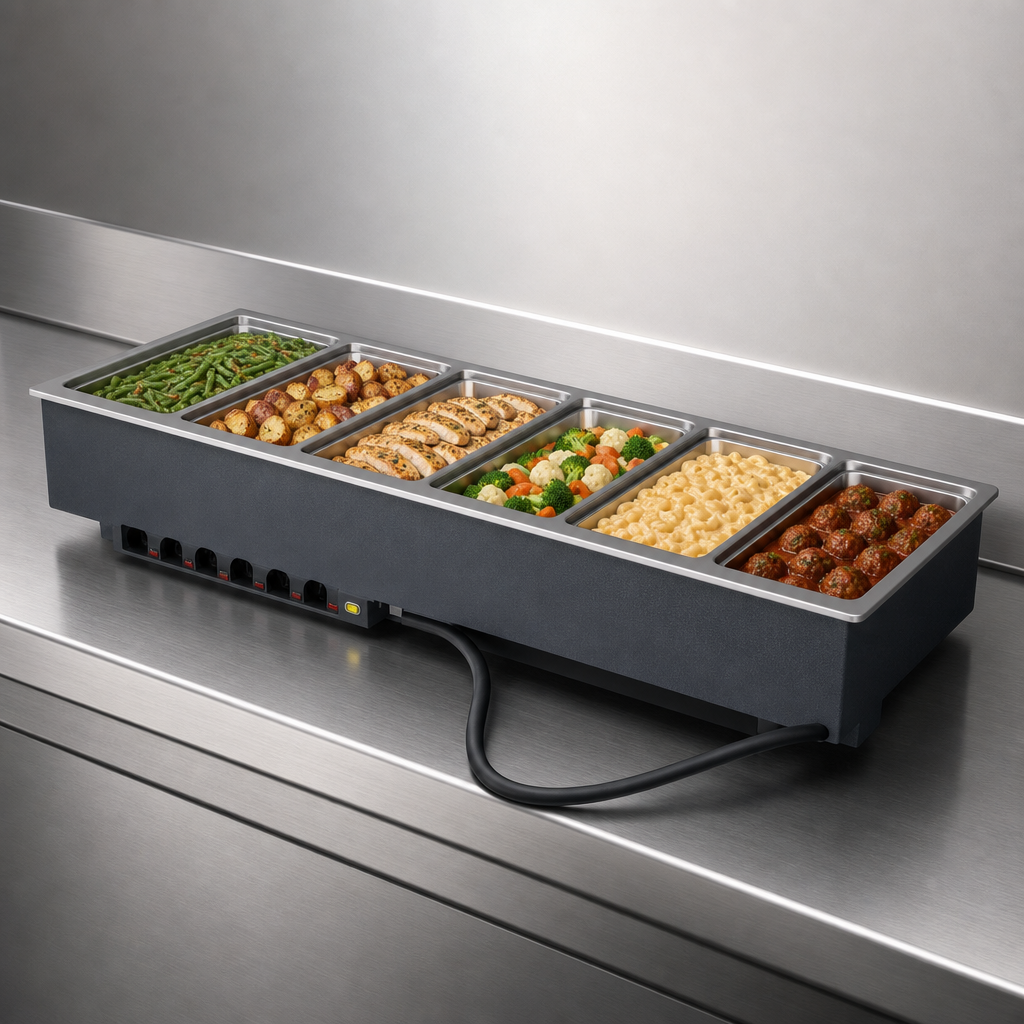

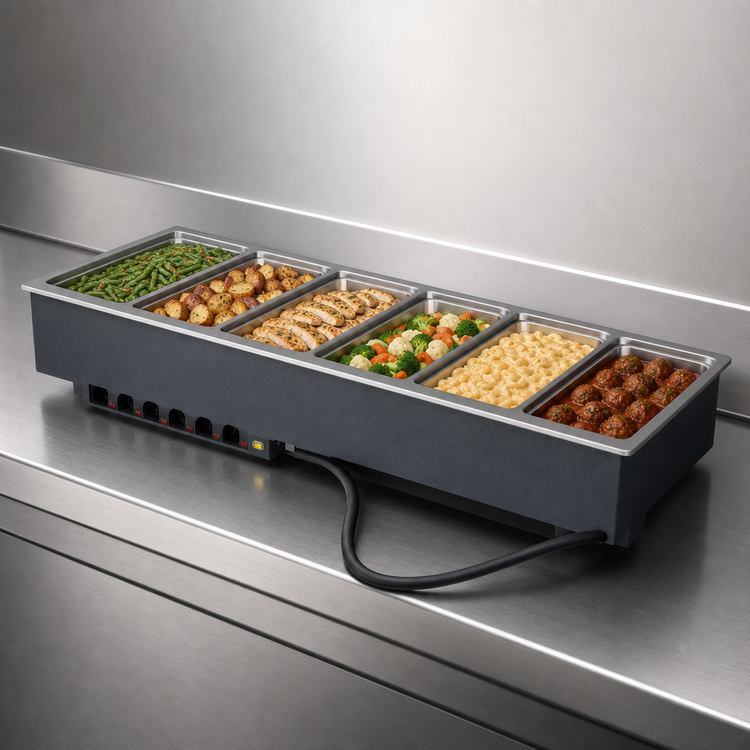

- Six 12 × 20 in deep-drawn wells hold full-size or fractional pans up to 6 in (15.2 cm) deep.
- 625 W per well (3,750 W total) delivers fast, even wet heat while keeping utility costs in check.
- Individual infinite controls give each well its own temperature zone – no guessing, no compromises.
- Full-perimeter drip-edge flange contains spills and adds structural strength for a clean, professional installation.
- Stainless steel construction – 18-ga top & 20-ga wells – resists corrosion and stands up to daily commercial abuse.
- High-density fiberglass insulation allows zero-clearance mounting and keeps exterior surfaces cool.
- Each well has its own ½ in MPT drain with ball-valve shut-off for quick, mess-free clean-up.
- 6 ft (182 cm) power cord with NEMA 6-20P plug – no hard-wiring required.
- Made in the USA and backed by Vollrath’s 1-year parts & labor warranty.
Specifications
| Capacity | (6) full-size 12 × 20 in wells – 6 in (15.2 cm) max pan depth |
|---|---|
| Control type | Individual infinite switches with power indicator light |
| Heat output | 625 W per well / 3,750 W total |
| Electrical | 240 V / 60 Hz / 1-ph • 15.6 A • NEMA 6-20P (factory-wired 6 ft cord) |
| Overall dimensions | 81 ¼ in W × 26 in D × 15 in H (206.4 × 66 × 38.1 cm) |
| Countertop cut-out | 80 ½ in W × 25 ¼ in D (204.5 × 64.1 cm) – 7⁄8 in (2.2 cm) corner radius |
| Top material | 18-ga stainless steel with drip-free flange |
| Well material | 20-ga stainless steel, individually insulated |
| Exterior housing | 18-ga galvanized steel |
| Certifications | NSF 4 (wet), cULus Listed |
| Country of origin | USA |
What’s in the box
- Six-well drop-in module, factory-wired and tested
- Stainless steel control panel – ships attached (can be remote-mounted up to 3 ft)
- Positioning & adjustable mounting clips (accommodate up to 3 in counter thickness)
- Breaker gasket for under-flange sealing
- User/installation manual
Accessory: Sheet-pan adapter bar (item #19186) sold separately.
One-year limited parts & labor warranty. See vollrathfoodservice.com for complete terms.
