Vollrath 36475HD Steam Tables & Food Wells
Description

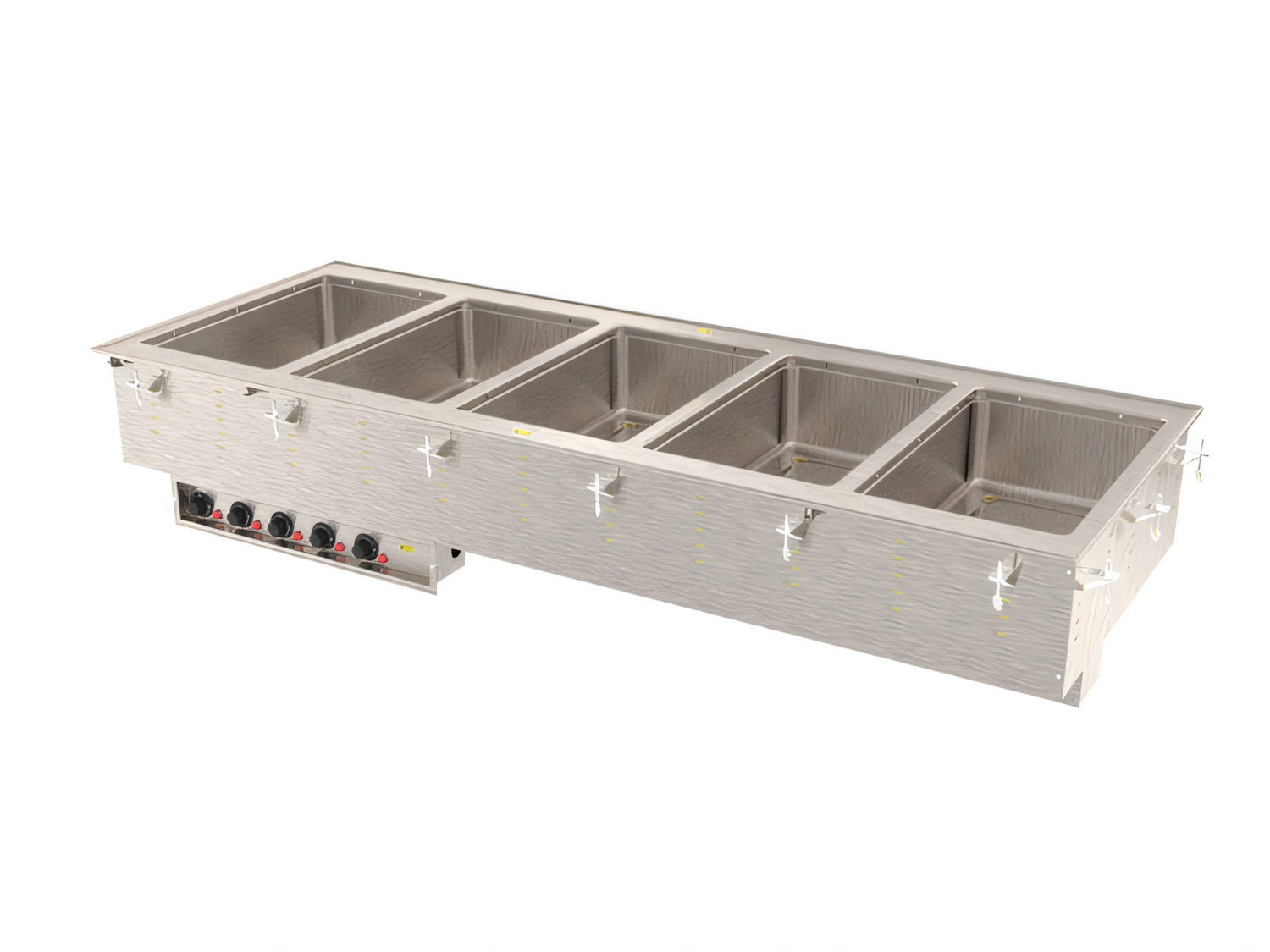

Vollrath 36475HD Five-Well Marine-Grade Hot Drop-In
Standard drain • Infinite controls • 240 V/1-ph • Made in USAEngineered for high-volume buffets, cafeterias, and serving lines, the Vollrath 36475HD keeps five full-size food pans at safe, appetizing temperatures while standing up to the harshest kitchen and front-of-house environments. Each well is drawn from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance and backed by a two-year manufacturer warranty.
Key features & benefits
- Five individual 12" × 20" wells—accepts pans up to 6" deep.

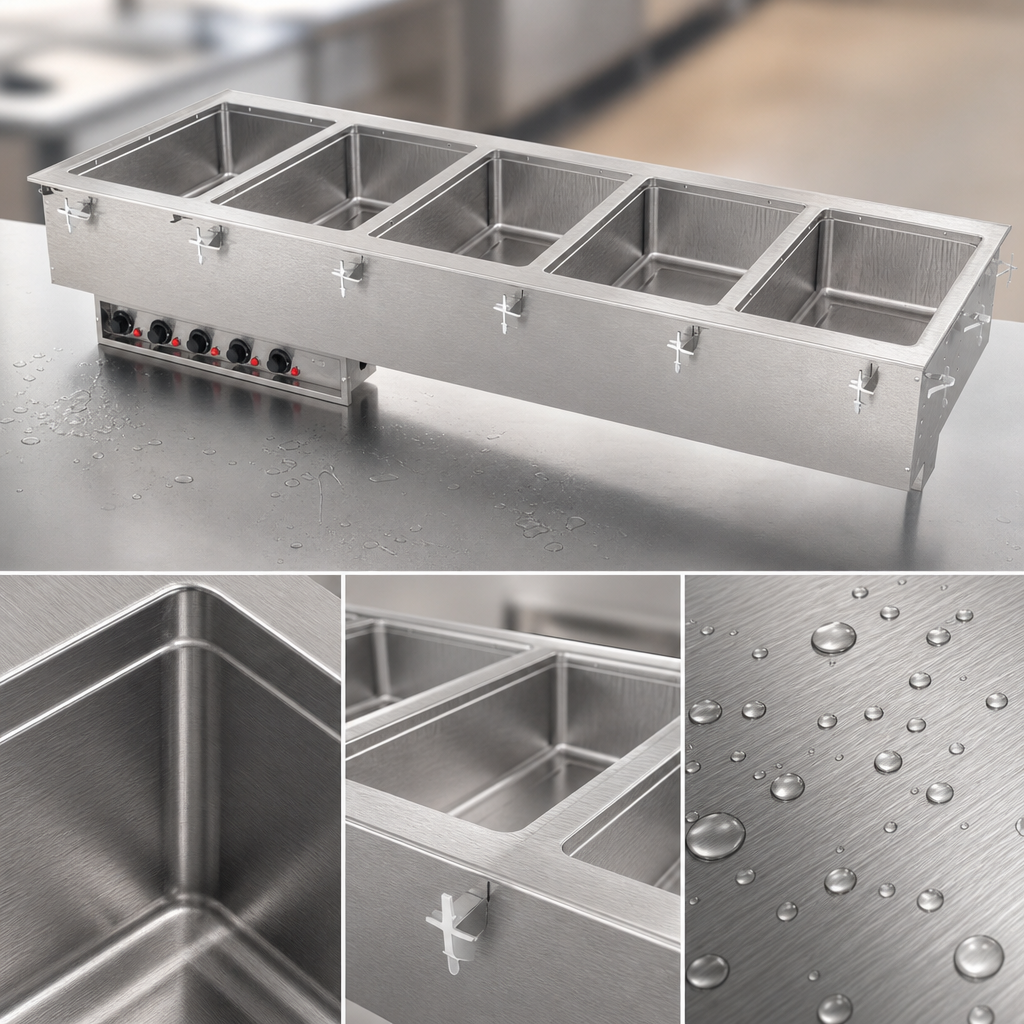

- 316 marine-grade stainless steel wells resist pitting from aggressive cleaners and salt-laden steam.
- Independent infinite controls with power indicator lights let you tailor holding temps for each menu item.
- Wet-operation design (NSF 4 compliant) promotes even heat distribution and reduces scorching.
- ½" ball-valve drain on every well for fast, mess-free cleanup.
- Full perimeter, drip-free flange protects your counter surface.
- Fully insulated—including between wells—to maximize energy efficiency and reduce ambient heat.
- 6 ft factory-installed cord and NEMA 6-20P plug; no hard-wiring required.
- Includes mounting/positioning clips for counters up to 3" thick and a 4' tethered control panel for flexible placement.
- Zero-clearance installation—ideal for tight millwork and retrofit projects.
Product specifications
| Model | 36475HD |
|---|---|
| Number of wells | 5 × Full-size (12" × 20") |
| Well material | 20-ga 316 marine-grade stainless steel |
| Top / exterior | 18-ga stainless steel with drip-free flange |
| Controls | 5 independent infinite switches (remote panel, power lights) |
| Heat output | 625 W per well / 3,125 W total |
| Electrical | 240 V • 60 Hz • 1-phase • 13 A • NEMA 6-20P |
| Operation | Wet heat only (water required) |
| Drains | ½" MPT individual drains with shut-off valves |
| Overall dimensions | 68" W × 26" D × 15" H |
| Counter cut-out | 67-1/4" W × 25-1/4" D • 7/8" corner radius |
| Certifications | NSF • cULus Listed |
| Country of origin | USA |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for details) |
Looking to use fractional pans? Adapter bars (Vollrath #19186, sold separately) are recommended for secure positioning.
